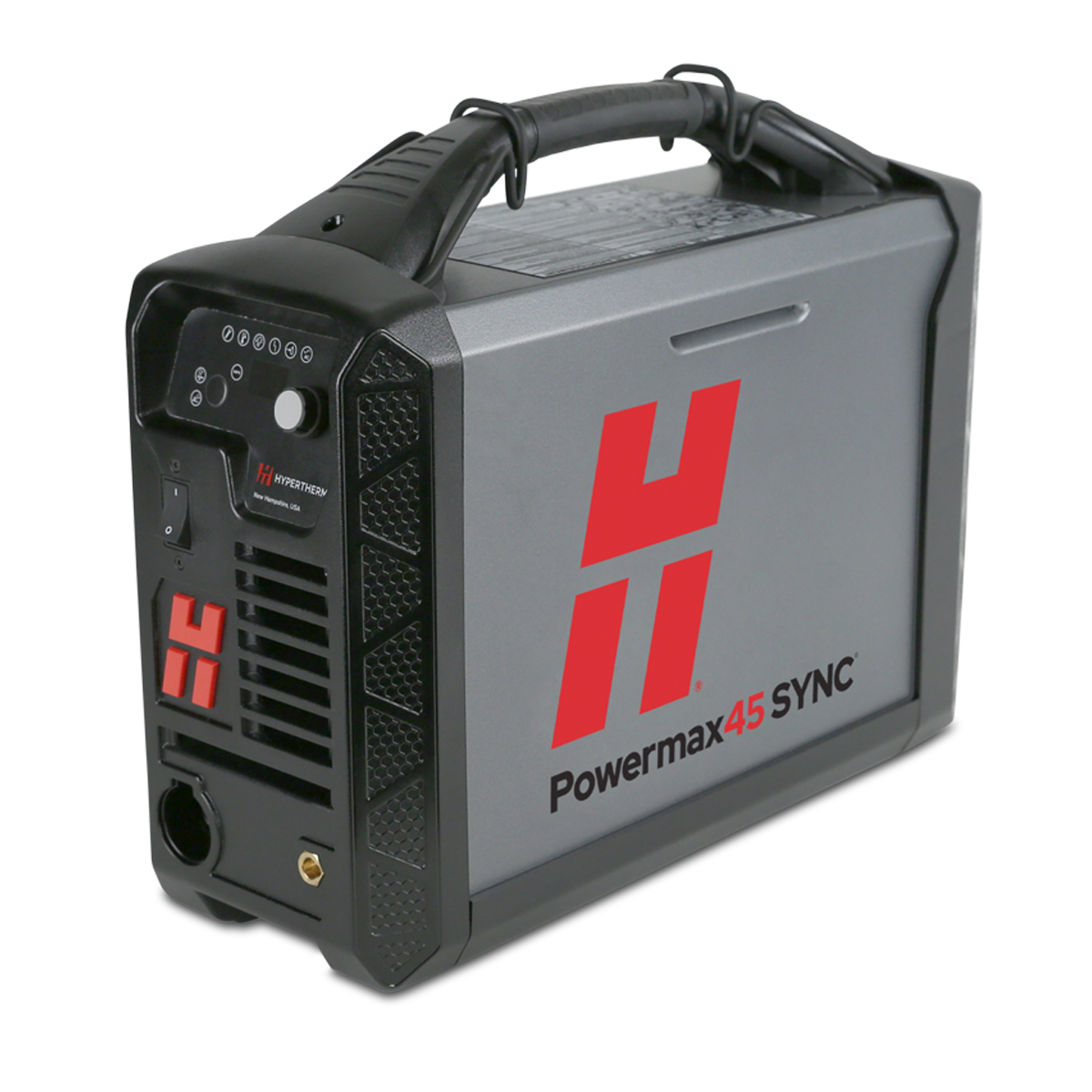

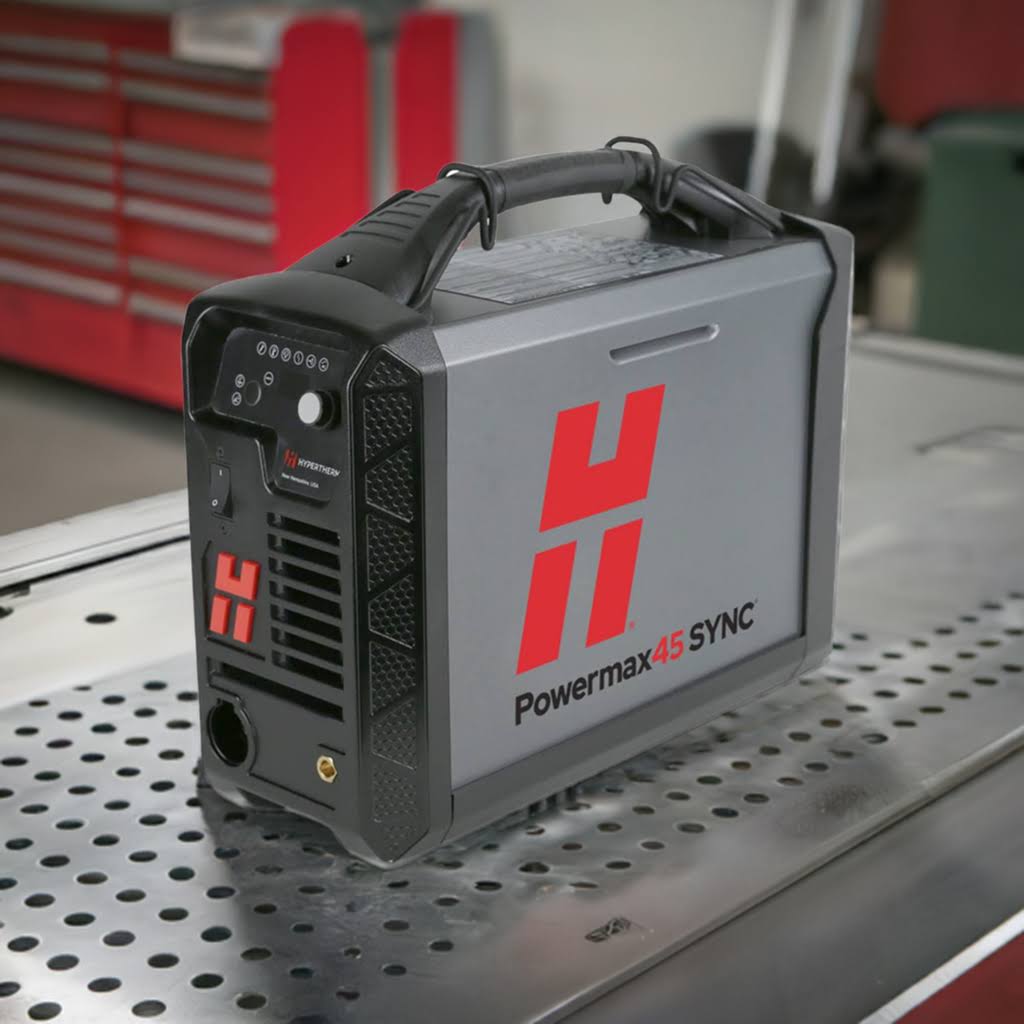

Name: Powermax45 SYNC Plasma Cutter, Power Supply Only (480V 3PH) #088573
Brand: Hypertherm
SKU: HYP088573

Power Supply Only
480V Input
3-Phase Input
Handheld Cutting Only
3-Year Power Warranty

Powermax45 SYNC Power Supply Only (480V) #088573

Introducing the Hypertherm Powermax45 SYNC Power Supply, designed for maximum power and performance in industrial settings. Operating at 480V, this unit is engineered to meet the demands of high-intensity cutting tasks. With its robust design and efficient operation, it serves as the backbone of your cutting operations. Trust in Hypertherm's legacy of excellence and power up your projects with the Powermax45 SYNC plasma cutter.

What's Included

Powermax45 SYNC power supply (no CPC port)
Operator and Safety Manuals

Not included: SmartSYNC torch, SmartSYNC consumables

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Free consumable kit with Powermax45 SYNC 088573

Highlights

Powerful Cutting Capacity: Cuts 5/8" at 20 ipm and severs up to 1-1/8" at 5 ipm, suitable for heavy-duty industrial tasks.
480V Industrial Power: Operates at 480V (3-PH), providing reliable performance for demanding, high-intensity cutting applications.
Quick Change Consumables: Fast cartridge swaps reduce downtime, keeping productivity high.
Efficient Inventory Management: Cartridge data analytics optimize consumable usage, reducing waste.
Reliable Arc Starts: SpringStart™ technology ensures consistent, smooth ignition for superior cut quality.
Rugged Durability: Built to withstand tough industrial environments, ensuring long-term reliability.

Plasma Cutting Applications:

Drag cutting: Maintain constant torch-to-work distance by resting the nozzle directly on the workpiece for consistent, high-quality cuts.
Bevel cutting: Angle the torch to create precise beveled edges for weld preparation or aesthetic finishes.
Gouging: Remove material from a workpiece surface using a specialized gouging tip and higher amperage for weld removal or defect correction.
Flush cutting: Sever attachments or protrusions at their base to create a smooth, flush surface with the main workpiece.
Extended reach cutting: Utilize longer torches or robotic arms to access hard-to-reach areas or cut large, complex structures.
Fine feature cutting: Employ lower amperage and specialized consumables to produce intricate designs or small-diameter holes with minimal kerf width.

Powermax45 SYNC Benefits:

Simplify Operations

Streamlined system minimizes training and troubleshooting costs.
Reduced downtime with quick consumable changes and elimination of premature disposal.
Cartridge usage data aids in optimizing cutting operations and managing inventory.

Easy to Use

Laser-marked, color-coded cartridges prevent mix-ups.
RFID-enabled SmartSYNC torches auto-adjust amperage and mode, eliminating setup errors.
End-of-life detection ensures timely cartridge replacement.
Flexible torch lead reduces operator fatigue, ideal for manual and robotic use.

Maximize Performance

Easily swap torches and cartridges for various cutting and gouging applications.
Optimized cartridge design doubles lifespan in handheld and maintains quality in mechanized use.
On-torch controls allow quick amperage adjustments and cartridge changes without returning to the power supply.

Industry Leading Reliability

SmartSYNC torches designed for rugged, industrial environments.
SpringStart™ technology ensures consistent torch starting.
Industry-leading reliability minimizes production downtime.

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V
Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz
