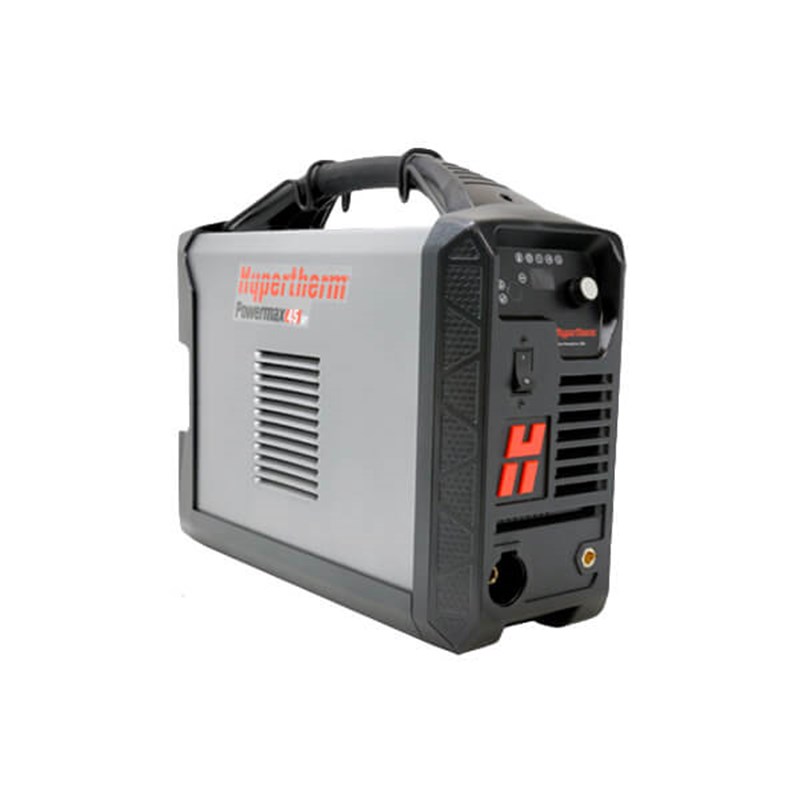

Powermax45 XP power supply, 480V 3-PH, CSA, no power cord

Powermax 45 XP #088112 The New Standard in Small, Portable Plasma Cutters.

Powermax 45 XP #088112: More Power To You

With 70% more power than many of its competitors, Hypertherm has improved the Powermax 45 to easily slice steel up to ⅝” and sever almost twice that thickness. The Smart Sense™ technology adjusts and monitors airflow, eliminating the need to prep and grind edges.

This Mechanized Torch Does More So You Can Do More

Don’t waste any more of your time when it comes to replacing consumables – the Powermax 45 XP has a Duramax® Lock and FastConnect™ connection to make quick, easy work of torch change-outs. And with 11 distinct torch designs to choose from, there is no lack of options.

Powermax 45 XP at a Glance

• 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
• Duramax® Lock torch with disable switch for fast and easy replacement of consumables.
• Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
• Patented drag-cutting technology for ease of use
• Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, marking

Duramax® Lock Torches

The Hypertherm Powermax 45 XP comes equipped with a Duramax® Lock torch for maximum versatility and ease of use.

• Built to withstand hard impacts and heat
• SpringStart™ technology ensures consistent starts and superior torch performance
• Hypertherm Certified™ reliability is your assurance of performance under the most demanding conditions

What's Included:

This Powermax Kit (#088112) includes:

• Powermax 45 XP CSA Hand System
• 20 ft (6.1m) leads

All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead.

Powermax 45 vs Powermax 45 XP: What's the Difference?

Powermax 45 Output current: 20-45 kW output @max power: 5.95 Cut capacity: ½” (12mm) Severance: 1” (25mm) Auto gas adjustment: no Easily accessed, protected air filter regulator: no Number of torch options: 2 Consumables styles: 4 Machine interface options: standard CPC port   F5 gas operation: no Precision gouging capability: no

Powermax 45 XP Output current: 10-45 kW output @max power: 6.5 Cut capacity: 5/8” (16mm) Severance: 1 1/8” (29mm) Auto gas adjustment: yes Easily accessed, protected air filter regulator: yes Number of torch options: 11 Consumables styles: 7 Machine interface options: Optional CPC* F5 gas operation: yes Precision gouging capability: yes

*5 position selectable voltage divider card or serial port via RS-485 communication

Whether you need to know a small detail or other differences between Hypertherm Powermax 45 vs 45XP, or to learn more about our other mechanized torches, Welders Supply is available to answer any of your questions.

Aside from professional-grade plasma cutters, we have welding helmets, gas cutting equipment, Tig welders, and more. Also, check out our popular gift ideas for welders!

Stock up on consumables with the Powermax 65 handheld consumable kit or Powermax 65 mechanized consumables kit.

Warranty information for Hypertherm products

Register your Hypertherm product on the Hypertherm website

Shop all Hypertherm products and accessories or browse plasma cutting machines and plasma cutting consumables available online at Welders Supply.

• Hypertherm Powermax 45XP 088112 Operators Manual
• Hypertherm Powermax 45XP 088112 Brochure
• Hypertherm Powermax 45XP 088112 Error Codes
• Hypertherm Powermax Brochure
• Cut Chart for Powermax 45 XP
