Hypertherm Powermax65 Mechanized Consumable Kit (65A) #851466
Hypertherm Powermax65 Mechanized Consumable Kit (65A) #851466
Buy the Powermax 65/85/105 Consumable Kit today
Contact Welder Supply for more information on Consumable Kits today

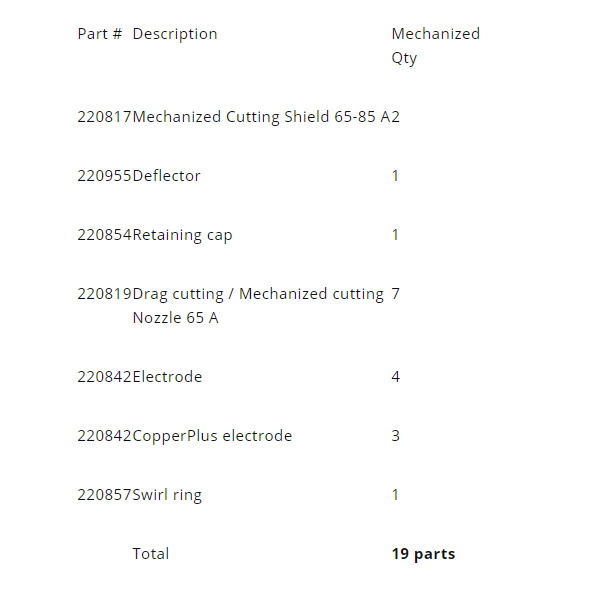

Hypertherm 851466 Part List

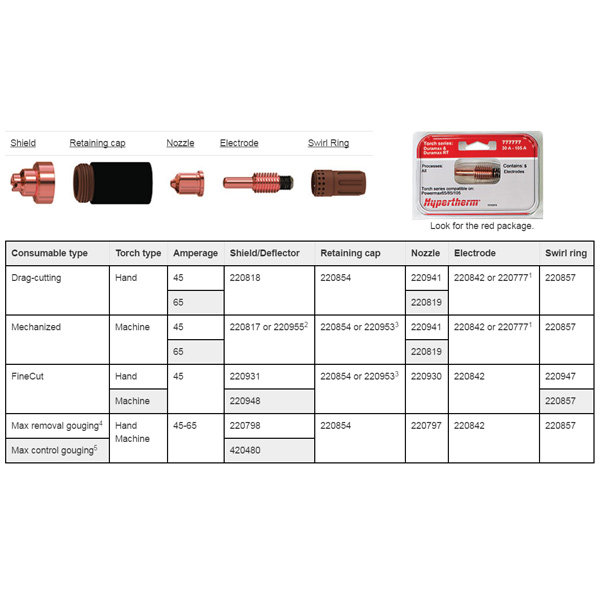

Hypertherm 851466

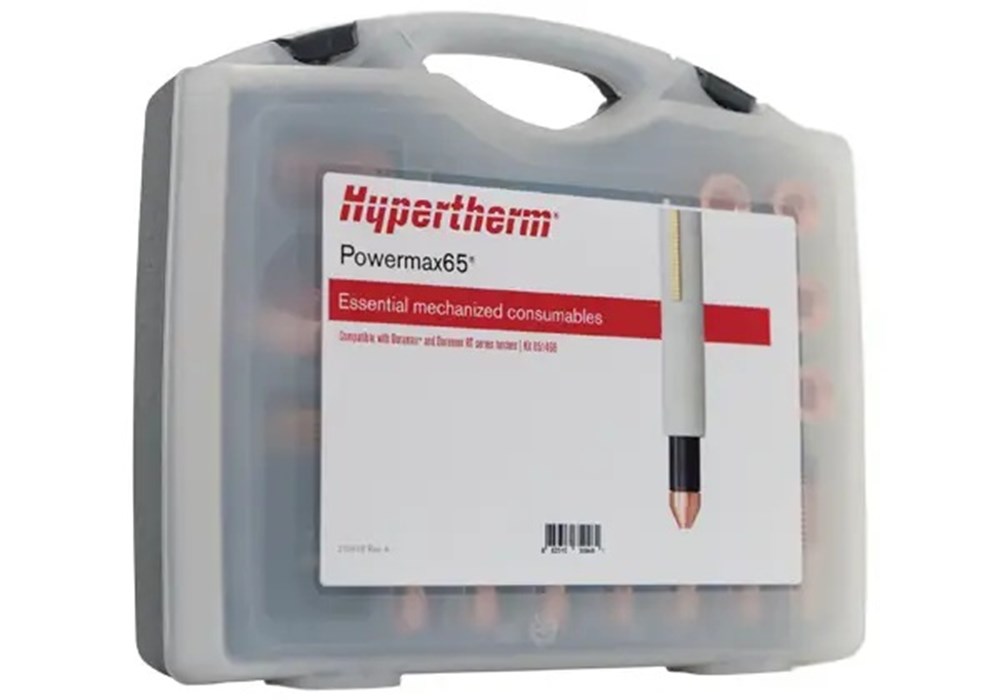

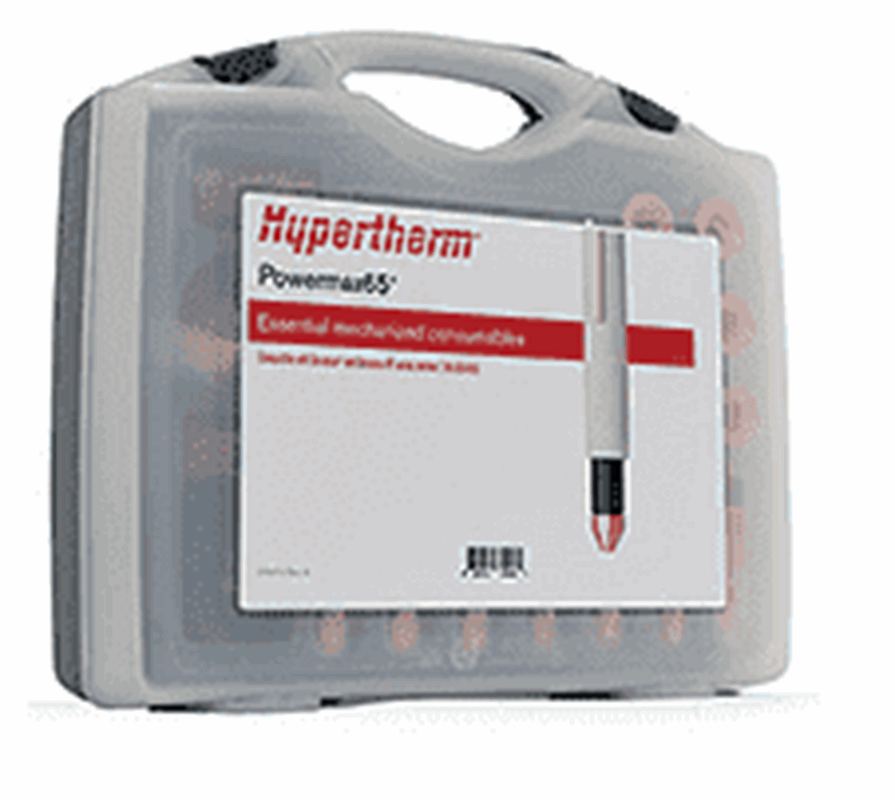

Hypertherm Powermax65 Mechanized Consumable Kit (65A) #851466

Part Number: 851466
UPC: 00662310359461
$234.25 $309.00*
SAVE $74.75

Hypertherm Powermax 65 Mechanized Consumable Kit #851466

Organization: brought to you by Hypertherm

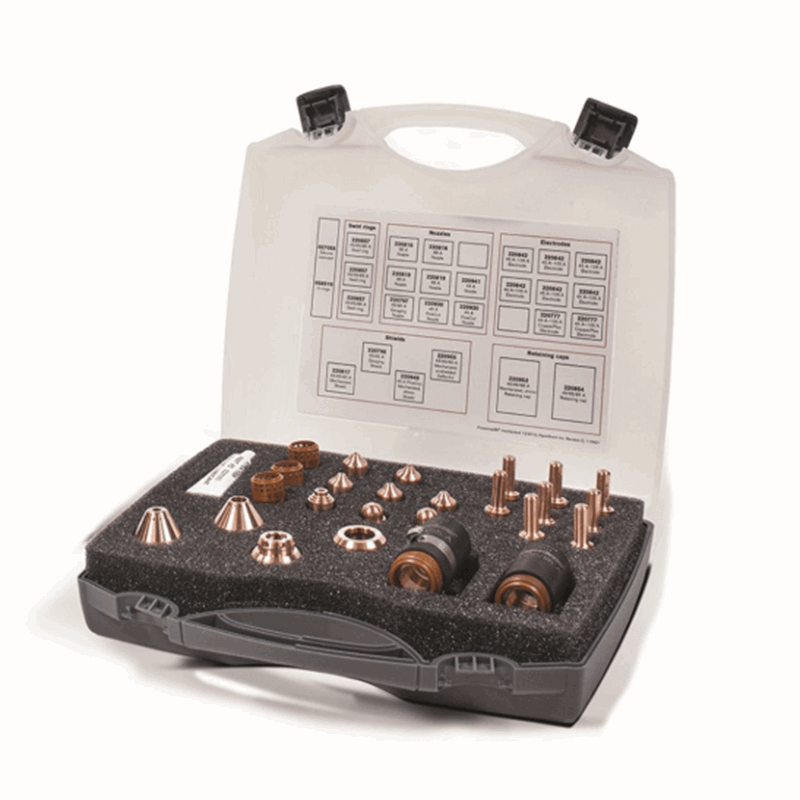

This 24-piece kit of consumable parts contains swirl rings, electrodes, nozzles, retaining caps, shields, and deflectors to fill out your welding parts inventory.

The kit includes parts compatible for welding at amperages of 45, 65, and 85. Set your amperage based on the thickness of the metal you’re cutting. If the metal is thin, set it lower. More amps should be used for thicker metals.

This Hypertherm Powermax mechanized consumable kit is compatible with the following torches:

  • Powermax Handheld Kit—H65/H65s/HRT/HRTs with Powermax 1000
  • Powermax Mechanized Kit—M65/M65m/MRT with Powermax 1000

Hypertherm has provided high quality welding parts at an affordable price for nearly 50 years. They provide customers with parts that cut out the competition.

The Hypertherm Powermax 65 kit provides a wide variety of consumable parts to supplement your inventory.

Electrodes are the most consumed consumable part in most plasma cutters, if not all plasma cutters. That’s not all too horrible of a thing; this plasma cutter consumables kit from Hypertherm, made specifically for the Powermax 65, Powermax 85 and Powermax 105, comes with a total of 16 electrodes. That will save a ton of ordering new parts. The kit also comes with a bunch of nozzles. If you’re just learning how to cut, these will be very helpful to you, since a lot of beginners end up ruining the nozzles due to poor technique.

Still, no matter your skill level, Hypertherm makes the right equipment for you to get your job done well and in a timely fashion. Rookies, contractors. We cover it all.

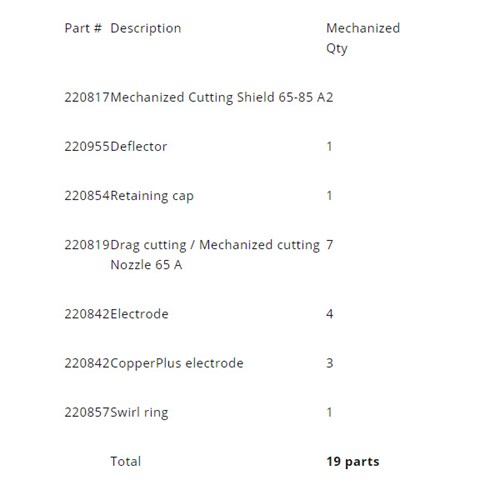

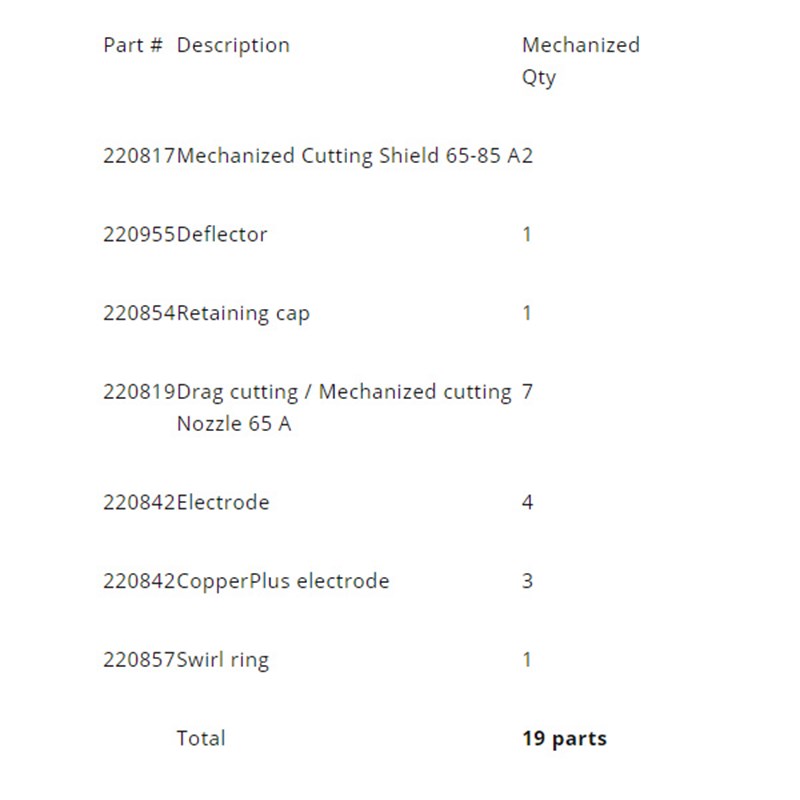

Part #DescriptionMechanized Qty
220817 Mechanized Cutting Shield 65-85 A 2
220955 Deflector 1
220854 Retaining cap 1
220819 Drag cutting / Mechanized cutting Nozzle 65 A 7
220842 Electrode 4
220842 CopperPlus electrode 3
220857 Swirl ring 1
  Total 19 parts
Browse through our Hypertherm plasma cutters, Hypertherm accessories, Welding Helmets, Helmet Accessories, Gloves, Jackets, Aprons, Caps, and Pants.

Compatible with the following plasma cutting machines:

  • Powermax65
  • Powermax85
  • Powermax105

Product Questions and Answers

Q - What is the swirl ring part number? A - #220857
Q - When should I reorder a Powermax mechanized consumables kit? A - We recommend reordering when your 6th nozzle is enlarged or oval, when the pit depth of hafnium/tungsten is over 1/32 in., when cracks appear in the retaining cap, or when slag starts to accumulate on the shield.
Q - Will this work with the Powermax 85? A - Yes.
Q - Is this a better deal than ordering the parts individually? A - Yes, buying the kit is cheaper than buying all the parts individually, plus it comes with a case to hold it all.
Q - How long will this whole kit last? A - It greatly depends on what work is being done and the frequency of use, though the ratio of parts should be consistent with how quickly they typically wear.
