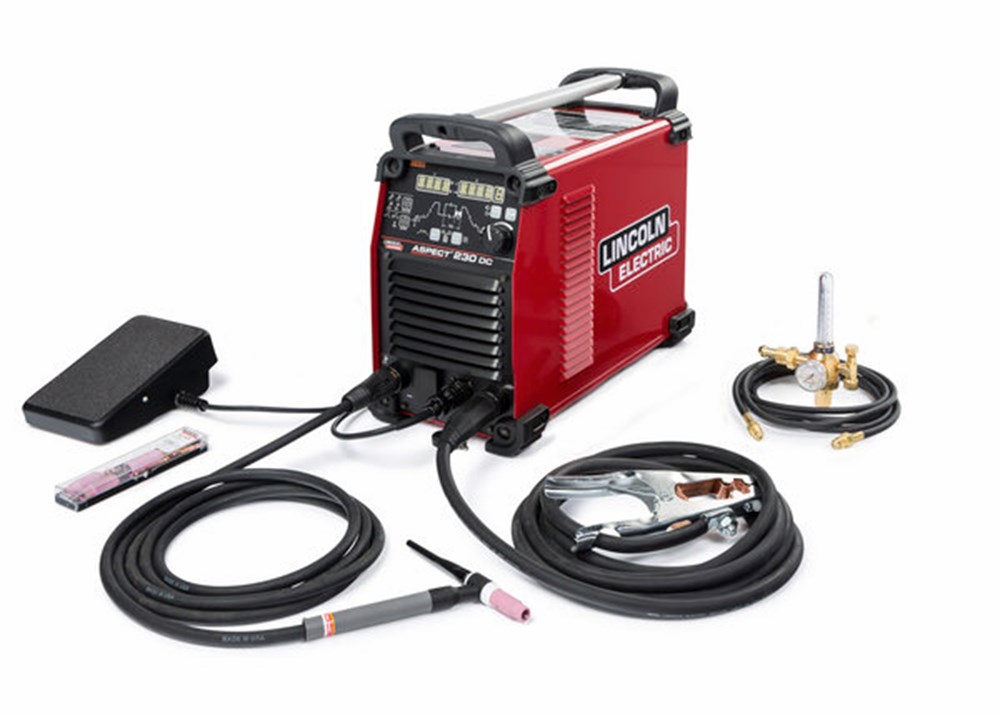

Lincoln Aspect® 230 DC Air Cooled One-Pak #K4347-1

Welding type:

TIG

Stick
Power supply:

110V

220V Single Phase

220V 3 Phase

The Aspect 230 TIG welder is an inverter based arc welding power source optimized for DC TIG and Stick welding. A 1 professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc You need. All of the features You want can be easily customized to Your application and saved in the available memory settings. TIG weld like a champion with the new Aspect 230 DC machine.
Tackle More Work
With up to 230 Amps of maximum output You can TIG weld up to 1/4
Weld on the Go
Portable, lightweight, and easy to transport
Peace of Mind
Save critical weld set up information in up to -9- memory locations
Activate Intellistart technology to automatically provide for softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials. Optional AC Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.
Lincoln Aspect® 230 DC One-Pak #K4347-1 Specifications | |
---|---|
Input power |
120-460V 120V: 21A 208/230/460V: 11A/10A/5A 50/60 Hz 1-Phase, 3-Phase |
Output range | 120V: 2-150A TIG 208/230/460V: 2-230A |
Rated output | 120V 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V 208/230/460V: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V |
Welding processes |
DC TIG DC stick |
Typical applications | Automotive Brewery Distillery Maintenance & Repair Marine Applications Marine Fabrication & Repair Repair Welding Shipbuilding |
SHIPPING DIMENSIONS |
|
Height: | 16.50 Inches |
Width: | 9.70 Inches |
Length: | 19.90 Inches |
Weight: | 74 Lb(s) 10 Oz |
