Multiprocess Compatible
115V Blower Motor
Single Phase Input
1-Year Miller Warranty
Miller FILTAIR® SWX Dual-Arm Add-On Package 951822, 12 ft. ZoneFlow™ Fume Extraction Arm

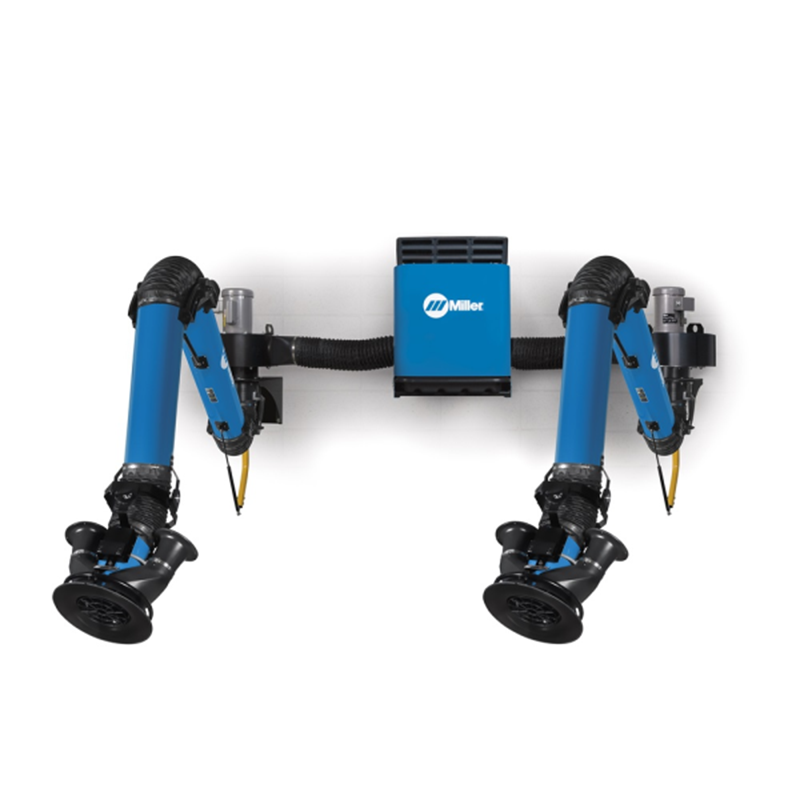

Miller’s FILTAIR fume extraction systems offer the flexibility of adding an extraction arm to single-arm packages, effectively creating a dual arm solution. You can add an arm of the same length, or one that’s longer or shorter than the arm on your single-arm system. This add-on package has the 12 ft. ZoneFlow extraction arm, but you can also choose the 4.5’, 7’, or 10’ arm. Mixing and matching arm lengths allows you to customize your setup to solve whatever workstation or training booth fume extraction challenge you’re facing.
What's Included:

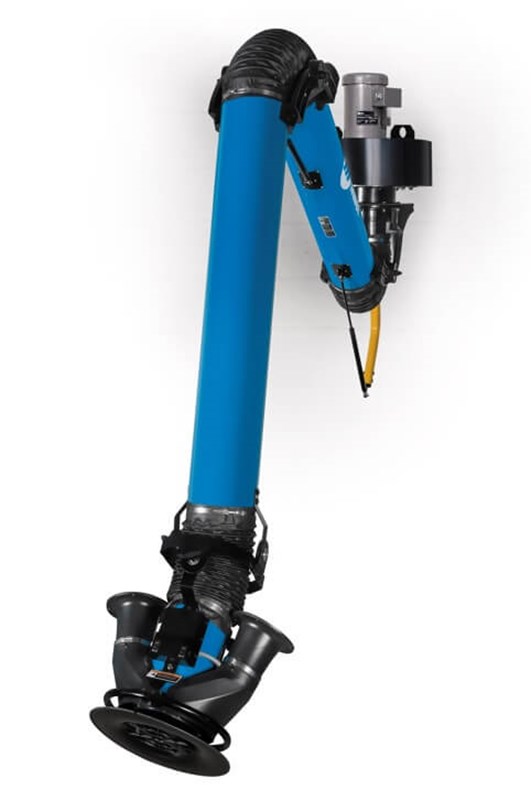

- 8 in. diam. x 12 ft. ZoneFlow fume extraction arm
- Backdraft dampers
- Flexible duct (7 x 37 in.)
- Mounting bracket for blower/arm

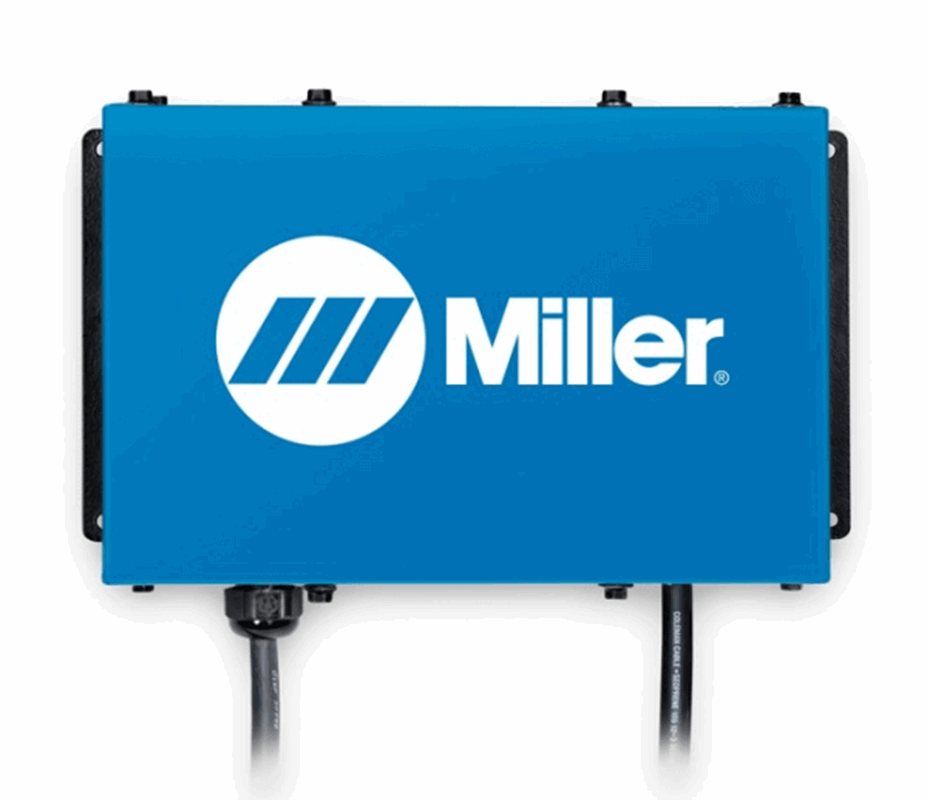

- ZoneFlow motor control box
- 115 V on/off control box
- 115 V blower

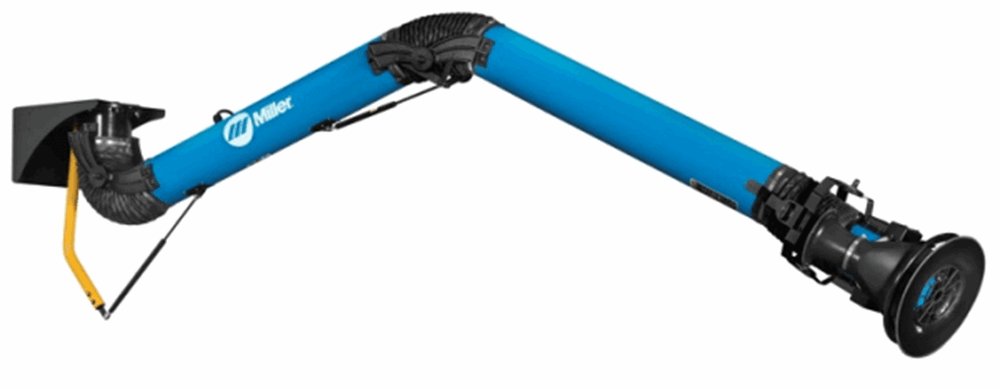

ZoneFlow™ Technology - Creates a negative pressure zone that funnels air to the center of the arm from greater distances. The arm features convenient 360-degree rotation for unlimited positioning and extended welding time.
Easy-to-Operate ZoneFlow™ Arm - Arm with external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Extraction arms are available in 10- or 12-foot lengths.
Less Arm Movement - With a capture zone that is 3 times larger than traditional systems, users have less interaction with the arm, increasing arc-on time and productivity.
Class Leading Suction Power - High-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.

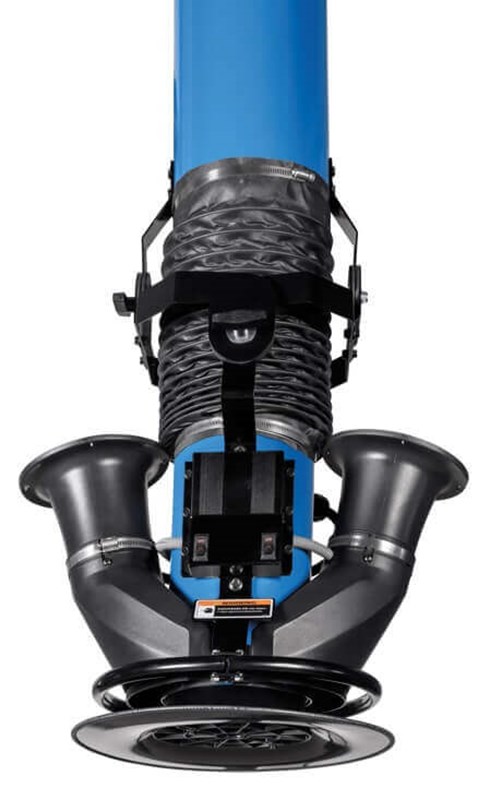

Dual Fan Capture Zone Control - Keep both sides of the fans turned on for a 360 degree capture zone or turn one side off to position next to a wall or curtain for a 180 degree capture zone.
