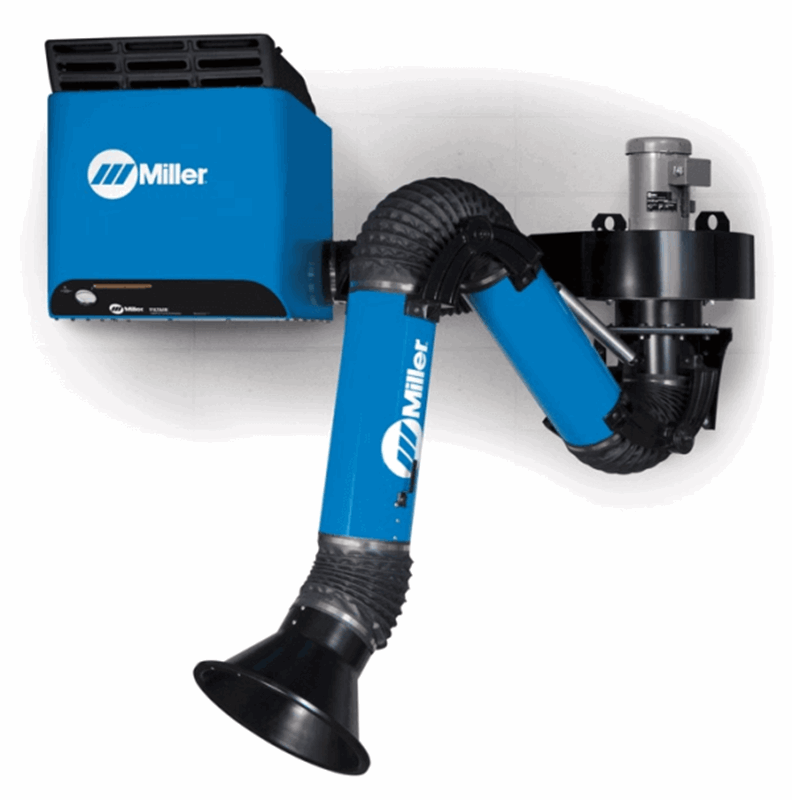

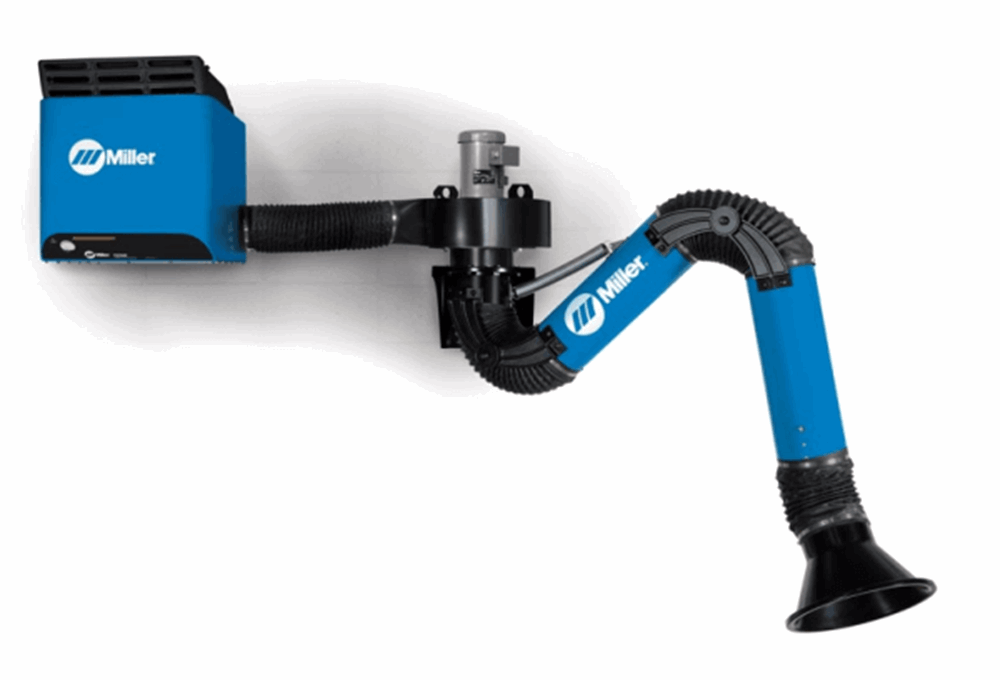

Miller FILTAIR® SWX-D Single-Arm Package 951514

Miller FILTAIR® SWX-D (Disposable Filter) Single-Arm Package 951514, 10 ft. Standard Fume Extraction Arm

Besides being a demanding profession, welding is also fraught with hazards. While spatter on exposed skin is an obvious peril, one of the biggest health hazards isn't even visible to the naked eye-- the submicron sized metal oxide particles in welding fumes. Without a good fume extraction system, this toxic cocktail of particulates can enter your body through your nose or mouth and cause health issues ranging from “metal fever” to cancer.

Miller’s FILTAIR fume extraction systems are available in a variety of configurations to work with virtually any indoor welding environment. They can be wall or column mounted. This package comes with a 10' Standard Fume Extraction Arm, but you can expand your single arm system with a 4.5' telescoping arm, a 7', or a 12' arm--effectively creating a dual arm system customized to whatever fume extraction challenge you may have.

What's Included:

• 8 in. diam. x 10 ft. ZoneFlow fume extraction arm
• Backdraft dampers
• Flexible duct (7 x 37 in.)
• Mounting bracket for blower/arm
• ZoneFlow motor control box
• 115 V on/off control box
• 115 V blower

Features Overview:

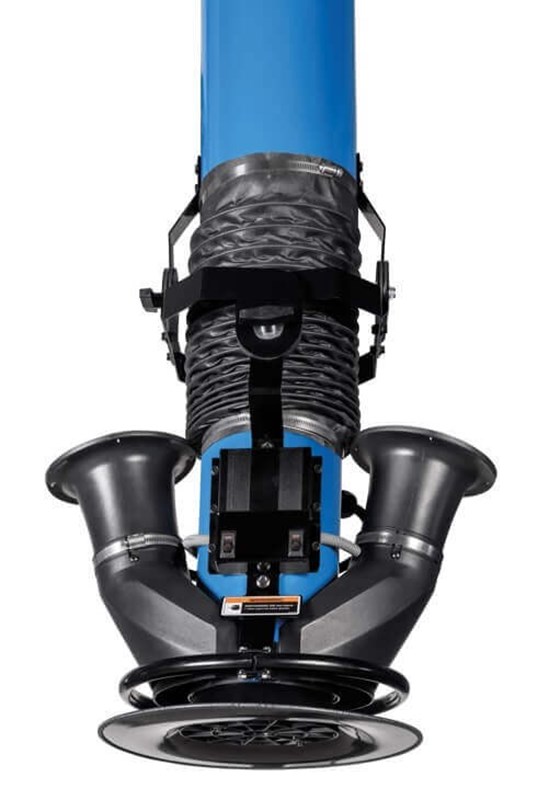

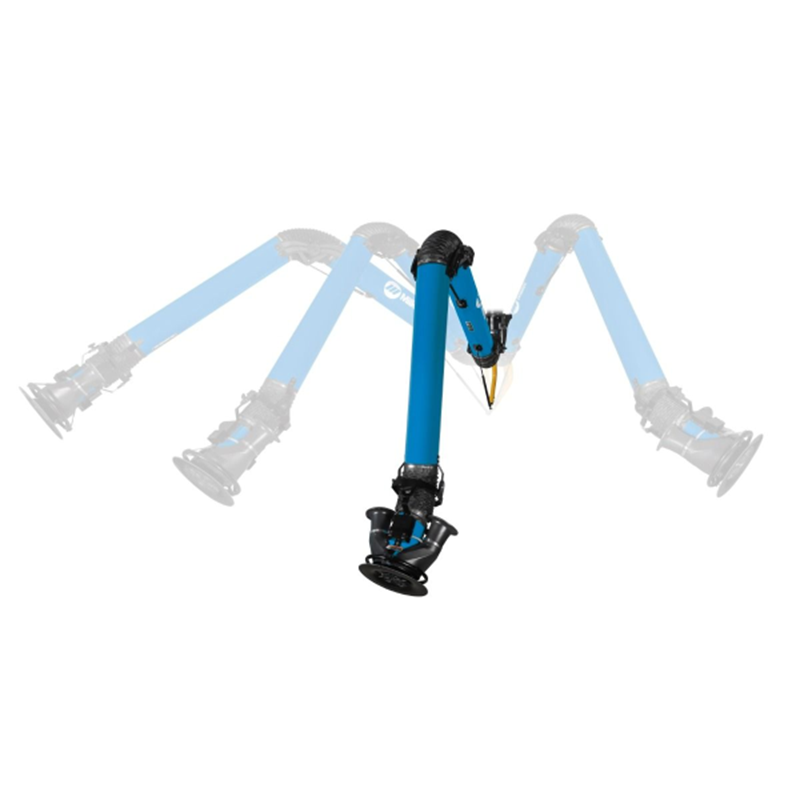

ZoneFlow™ Technology - Creates a negative pressure zone that funnels air to the center of the arm from greater distances. The arm features convenient 360-degree rotation for unlimited positioning and extended welding time.

Easy-to-Operate ZoneFlow™ Arm - Arm with external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Extraction arms are available in 10- or 12-foot lengths.

Less Arm Movement - With a capture zone that is 3 times larger than traditional systems, users have less interaction with the arm, increasing arc-on time and productivity.

Class Leading Suction Power - High-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.

Dual Fan Capture Zone Control - Keep both sides of the fans turned on for a 360 degree capture zone or turn one side off to position next to a wall or curtain for a 180 degree capture zone.

Shop all welding machines, plasma cutting machines, fume extraction equipment and welding safety equipment from Welders Supply.

Processes:

• Stick (SMAW)
• Flux-cored (FCAW)
• MIG (GMAW)
• TIG (GTAW

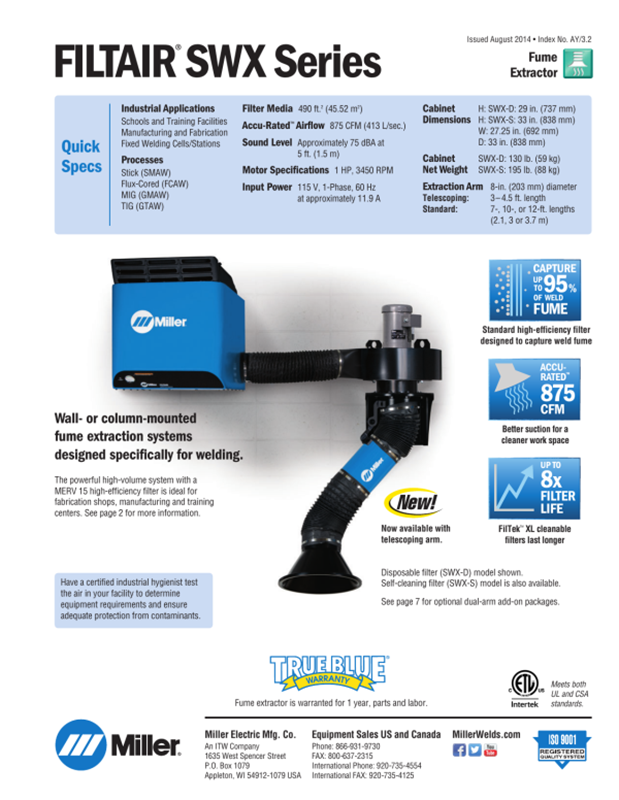

• Miller FILTAIR® SWX-D Single-Arm Package 951514 Specs
