Miller FILTAIR® SWX Dual-Arm Add-On Package, 12 ft. Fume Extraction Arm #951521

Miller FILTAIR® SWX Dual-Arm Add-On Package 951521, 12 ft. Fume Extraction Arm

Miller FILTAIR® systems are designed specifically for fume capture in welding environments. The extraction arms come pre-assembled for fast installation and are designed for convenient and easy operation. With an innovative extended-capture fume extraction system, the FILTAIR® can capture more fumes from further distances. This means it can stay out of your way and still do its job more effectively than other fume extractors. These wall-mounted arms are flexible and easy to adjust, so they can cover large areas with minimal adjustment. Pre-assembled extraction arms are available in 7-, 10-, or 12-foot lengths to fit your unique workspace.

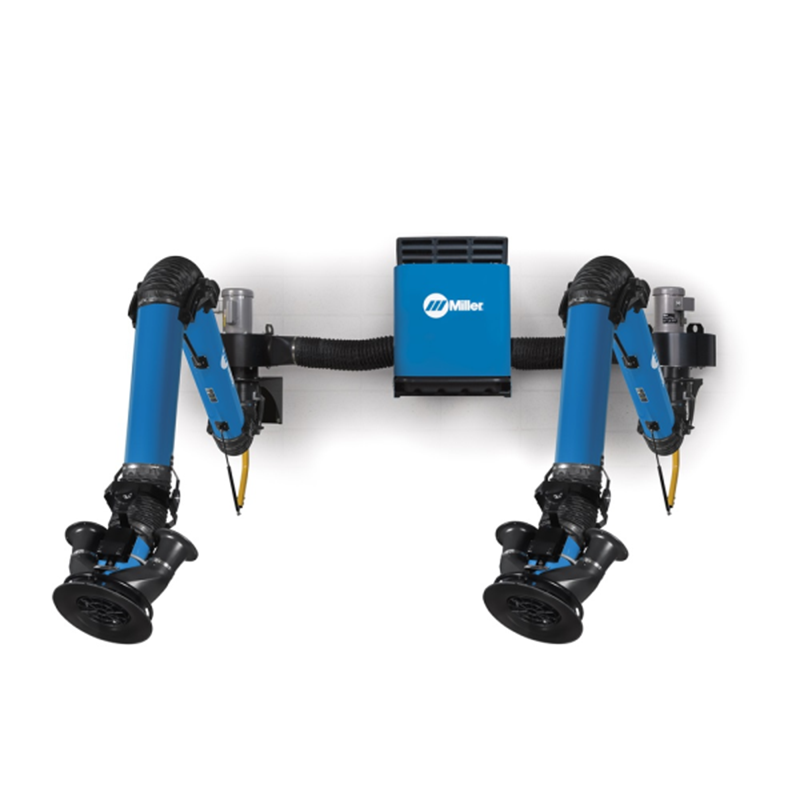

The SWX Dual-Arm Add-On Package adds an arm to your installed FILTAIR® system. For most additions, we typically recommend installing an arm of a different length than the original for a more dynamic setup. However, your fume extraction system should be optimized to your welding station. If two arms of the same length make the most sense, it's your best move.

WHAT'S INCLUDED

• 8 in. diameter x 12 ft. standard fume extraction arm
• Backdraft dampers
• Flexible duct (7 x 37 in.)
• Mounting bracket for blower/arm
• 115 V on/off control box
• 115 V blower

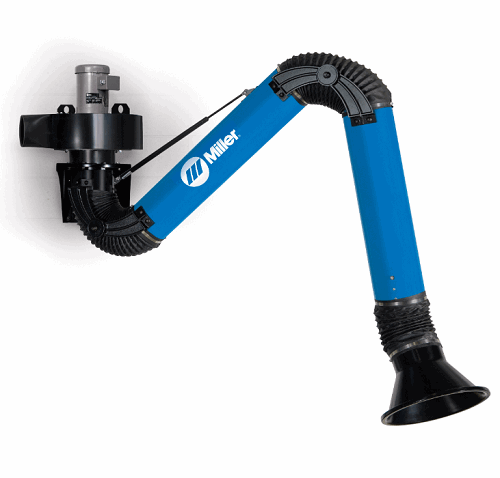

Easy-to-Operate Standard Arm

Featuring external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Pre-assembled extraction arms are available in 7, 10, or 12-foot lengths.

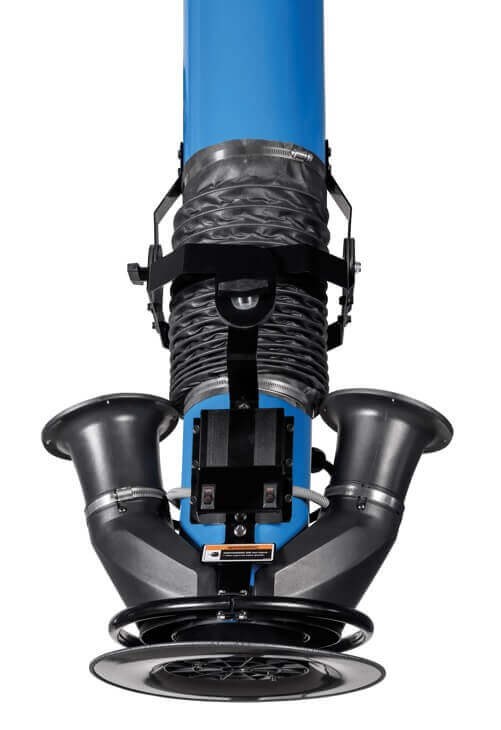

Durable Bellmouth-Shaped Hood

Features a convenient 360-degree rotation for unlimited positioning. The FILTAIR® extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means fewer hood adjustments for longer welds.

Class-Leading Suction Power

A high-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.

Shop all our fume extractors, welding machine accessories, and welding safety equipment from Welders Supply.

PROCESSES

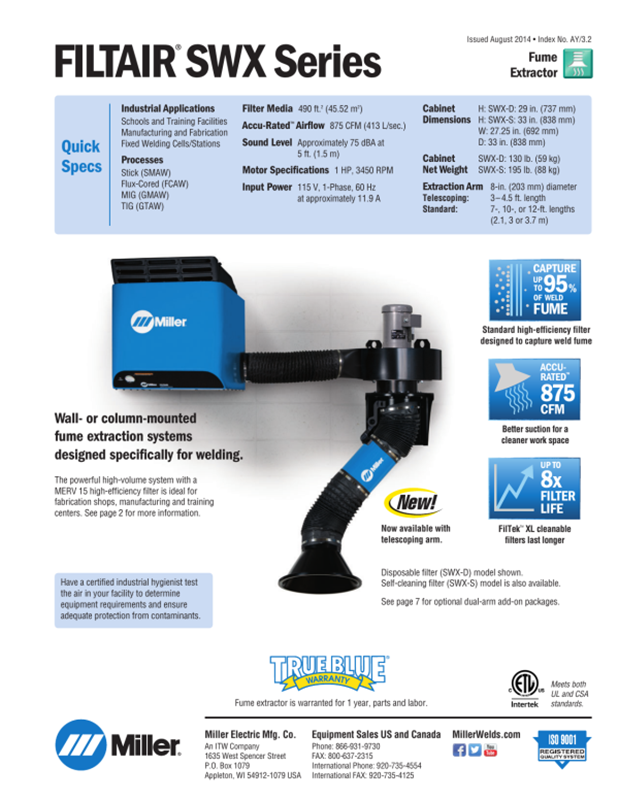

• FILTAIR® SWX Dual-Arm Add-On Package 951521 Spec Sheet
