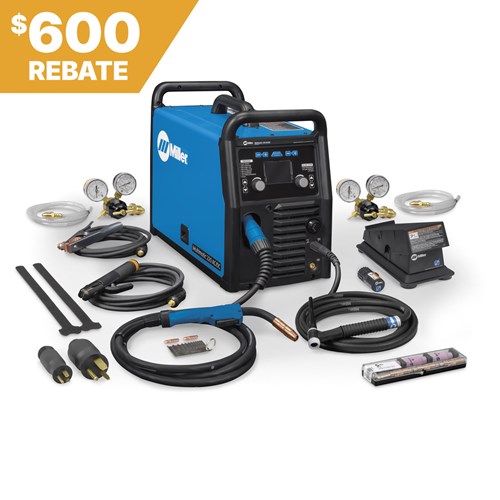

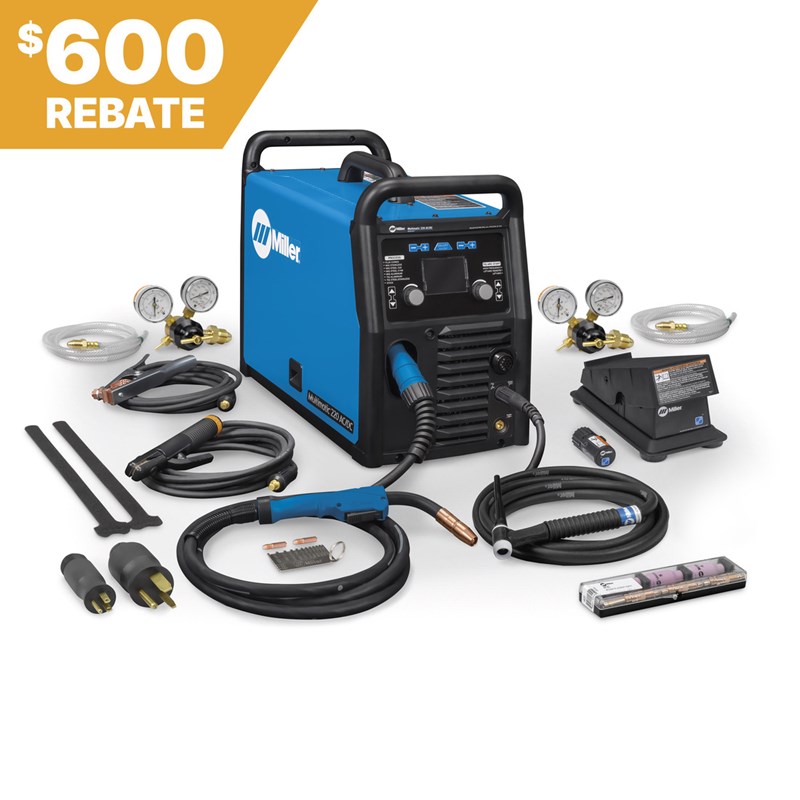

Miller Multimatic 220 AC/DC Multiprocess welder #907757 - Included accessories

Miller Multimatic 220 AC/DC Multiprocess welder #907757 - Top view

Miller Multimatic 220 AC/DC Multiprocess welder #907757 - Side view

Miller Multimatic 220 AC/DC Multiprocess welder #907757 - Interface panel

Miller Multimatic 220 AC/DC Multiprocess welder #907757 - Ports & dials

Miller Multimatic 220 AC/DC Multiprocess welder #907757 - Rear view

Miller Multimatic 220 AC/DC Multiprocess welder #907757 - Front view

Miller Multimatic 220 AC/DC Multi-Process Welder #907757

Name: Multimatic 220 AC/DC Multi-Process Welder #907757
Brand: Miller Welding
SKU: 907757
Rating: 5.0 (4 reviews)

Part Numbers: 907757

UPCs: 715959669276

4 Reviews

UPGRADED VERSION: Wireless Foot Control Pkg (+$1200) +$100

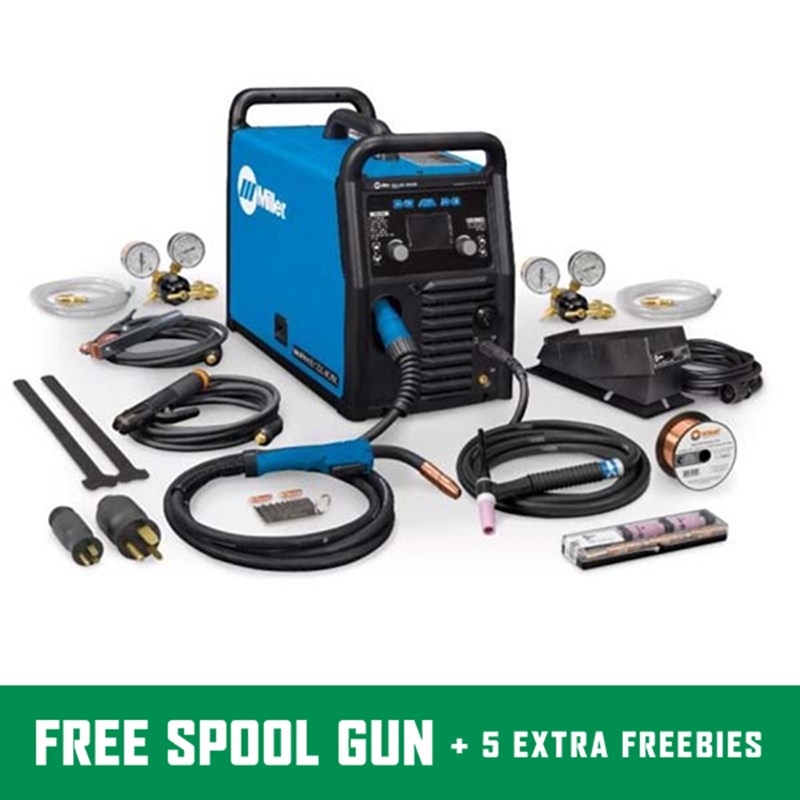

Buy it as a bundle and SAVE ()

Miller Multimatic 220 AC/DC Multi-Proces...

Spool Gun

$4,199.00 + Free Shipping $4,199.00*

SAVE $0.00

Qualifies for IRS 179 Sale

$4,199.00 + Free Shipping $4,199.00*

SAVE $0.00

Qualifies for IRS 179 Sale

Call 844-682-0205 or CHAT for more options

Features
Specs
Documents
Videos
Accessories
Consumables
Reviews
FAQS

Only 56 lbs
MIG
AC/DC TIG
DC Stick
Miller Multi-Voltage Plug
Single Phase
3-Year Miller Warranty

Miller Multimatic 220 AC/DC Multiprocess Welder #907757

The Miller Multimatic 220 AC/DC Multiprocess welder is a hobbyist and small shop's dream! With the freedom to weld any process; MIG, Flux-Cored, Stick, and AC/DC TIG - with one portable, powerful welder. Demonstrates excellent arc quality on both 120 and 240 Volt power!

Coming standard with a color LCD screen, this multi-process welder also features Miller’s Auto-Set Elite™. Auto-Set Elite™ allows you to set TIG, MIG and Stick welding parameters automatically and only requires the user to enter metal thickness and tungsten electrode or welding wire diameter, and allows you to tune weld setting manually to fit your personal preferences. It uses Miller’s exclusive multi-voltage plug (MVP™) to run on either 120 volt or 240 volt input power and weighs only 56 pounds.

Download literature of this machine:

2024 Spec Sheet - Multimatic 220 Miller True Blue Warranty Multimatic vs Millermatic Comparison

Processes

The Miller Multimatic 220 AC/DC is capable of MIG, AC/DC TIG, and DC stick welding. It handles steel thicknesses from 24 gauge to 3/8 inch for MIG and DC stick, and up to 1/4 inch for TIG. For aluminum, it manages 18 gauge to 3/8 inch with MIG and 24 gauge to 1/4 inch with TIG.

MIG (GMAW) and Flux-cored (FCAW) - 24 ga.–3/8 in. steel, 18 ga.–3/8 in. aluminum
AC/DC TIG (GTAW) and Pulsed TIG (GTAW-P) - 24 ga.–1/4 in. steel and aluminum
DC stick (SMAW) - 16 ga.–3/8 in. steel

Miller multi-process welder with MIG, Stick & AC/DC TIG welding capabilities

Upgrade & Save

Save on Multimatic 220 accessories by upgrading to one of the bundles below.

Wireless Foot Control Pkg (+$1200) +$100

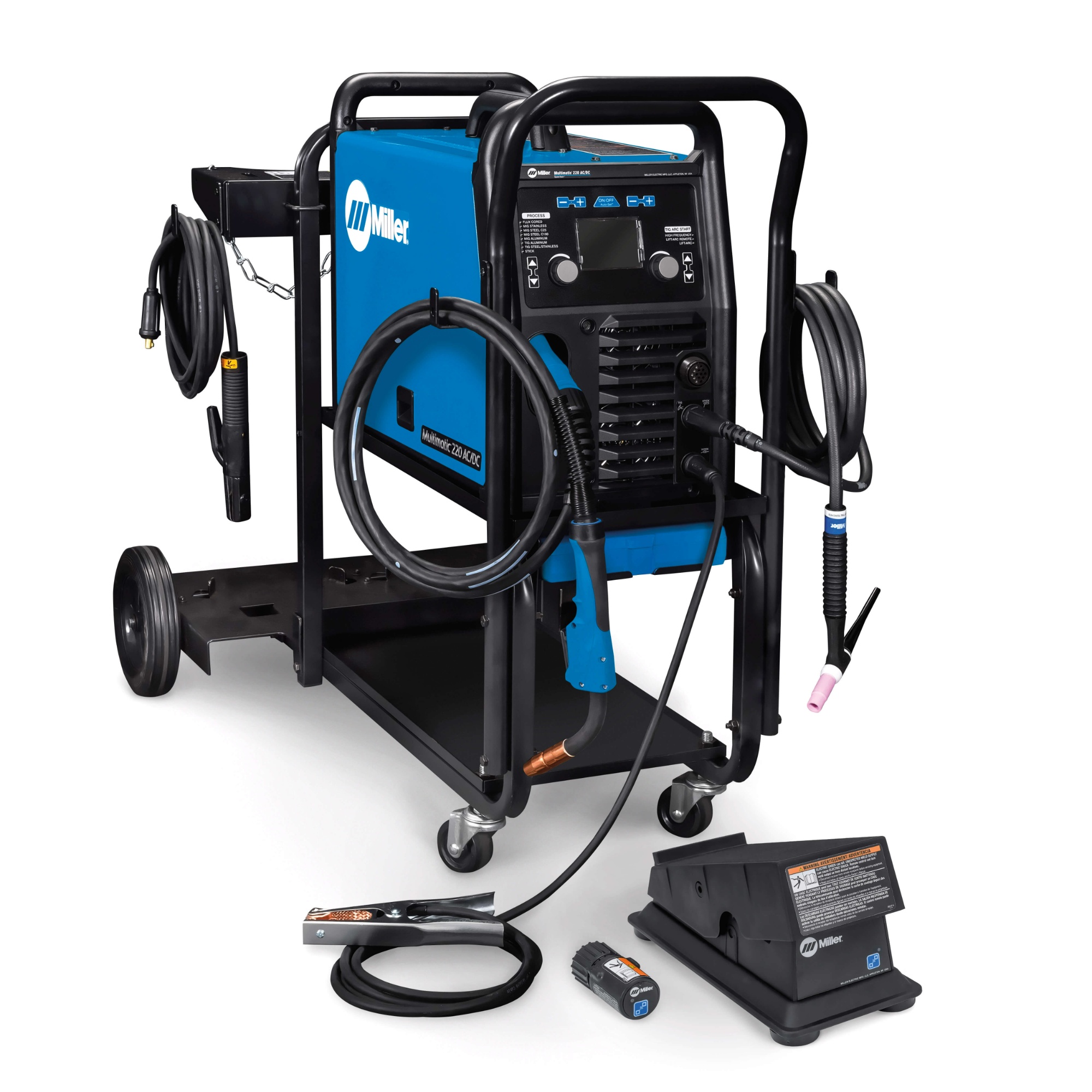

Welding Cart + Wireless Foot Control Pkg (+$1700) +$506

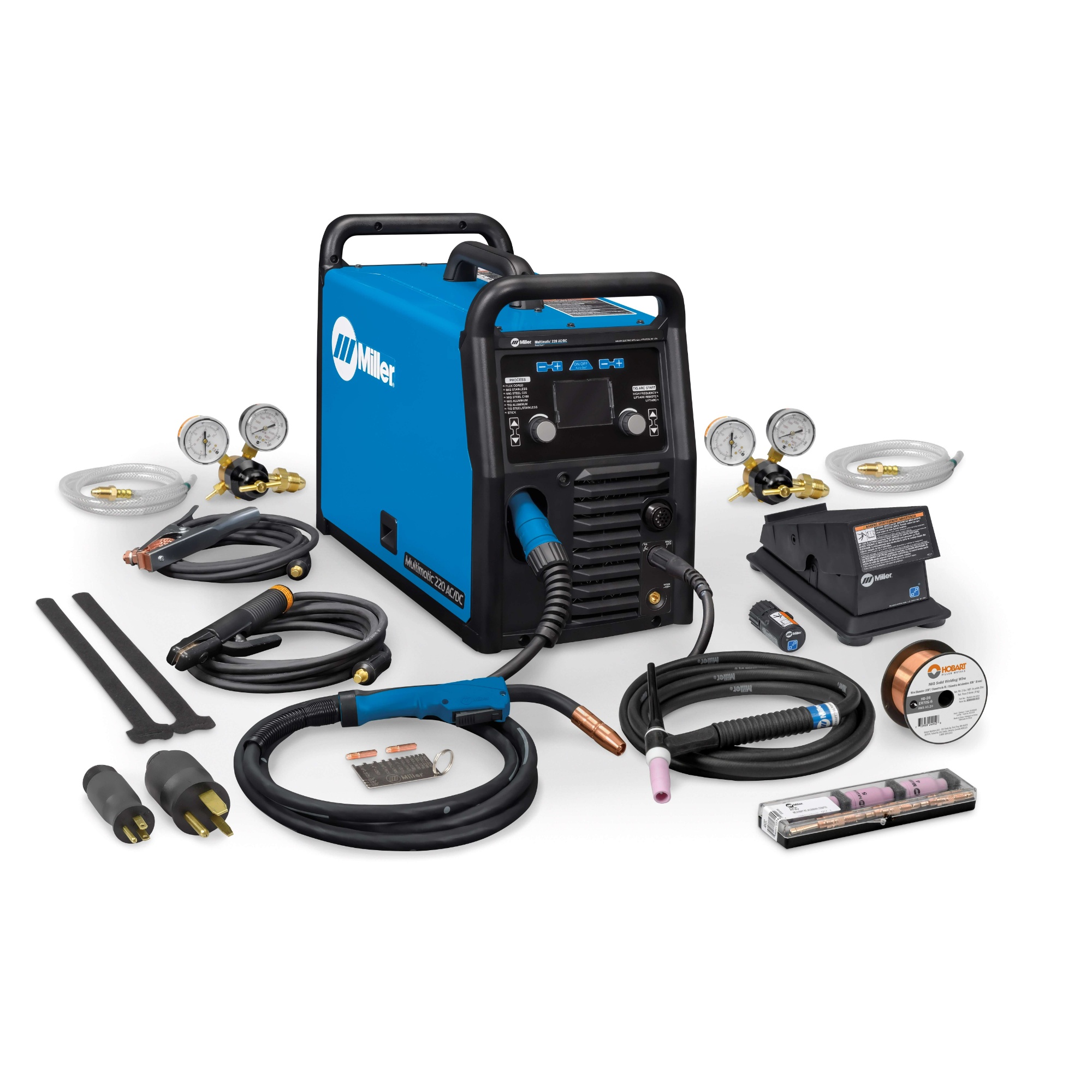

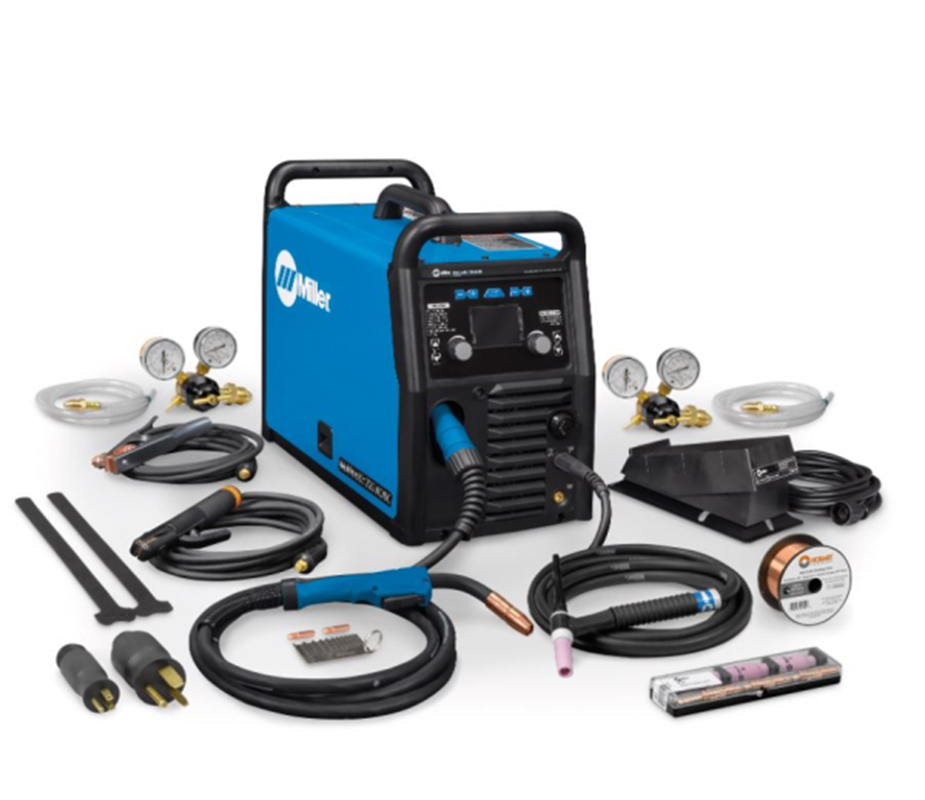

What's Included

Multimatic® 220 AC/DC
6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
10 ft MDX™-100 MIG Welding Gun
13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
RFCS-14 HD foot control with 20 ft (6 m) cord
10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
Two Argon and AR/CO2 mix regulator/flow gauge with hoses
Spool of Hobart® .030 in (0.8 mm) solid wire
Two contact tips for .030 in (0.8 mm) wire
Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
AK2C TIG torch accessory kit
Material thickness gauge #229895
Hook-and-loop cord wraps

Not Included: Safety Equipment, Spool gun for aluminum MIG welding, Shielding gas

Miller Multimatic 220 Multiprocess Welder with AC/DC TIG #907757 - What's Included

Standard Features of the Miller Multimatic 220 AC/DC Multiprocess Welder 907757

The Miller Multimatic 220 AC/DC offers amperage ranges of 30-230A for MIG, 20-210A for TIG, and 30-200A for stick welding. When connected to 110V power, it provides rated outputs of 105A for MIG, 130A for TIG, and 90A for stick. On 220V power, rated outputs increase to 170-200A for MIG, 210A for TIG, and 200A for stick.

This machine is a completely portable, all-in-one welding package that comes with:

Intuitive LCD Screen
Manual Mode with Additional Adjustments
AC/DC TIG (TIG welds aluminum)
AC Balance - adjustable from 60-80%
AC Frequency - adjustable from 60-150 Hz
DC Pulse - adjustable from OFF-150 pulses per second (PPS)
Tungsten Size Selection
TIG Post-Flow - adjustable from Auto-25 seconds (accessible through service menu)
Stick: DIG Control
Lift-Arc™ and High-Frequency TIG Starts
Two Gas Connections (MIG and TIG)
Pro-Set™ in TIG and Stick Manual Modes
Quick Select™ Drive Roll
Standard 14-Pin Connector

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Browse All Miller Welders Miller Welding Accessories Welding Safety Equipment

Check out the wide selection of multi-process welders and Miller welding supplies at the best prices online, from Welders Supply.

Other Versions of the Multimatic 220 Multiprocess Welder:

Miller MULTIMATIC 220 AC/DC Multiprocess Welder General Specifications:
Input Voltage	110/115/120 V 220/230/240 V
Input Phase	1-Phase
Input Hz	50 / 60 Hz
Weldable Metals	Aluminum Stainless Steel Steel
Output Amperage Range	MIG: 30–230 A AC/DC TIG: 20–210 A DC stick: 30–200 A
Current Type	AC / DC
Max Open Circuit Voltage	45 VDC
Spool Gun Compatibility	Spoolmate™ 100, Spoolmate 150
Wire Feed Speed	1,5 m/min - 15.2 m/min 60 IPM - 600 IPM
Weld Output	CC / CV
Portability	Handle(s) Running Gear / Cart (Optional)
Industrial Applications	Light fabrication Maintenance and repair Auto body Farm/home

SHIPPING DIMENSIONS
Height:	17.50 Inches
Width:	11.25 Inches
Length:	21.50 Inches
Weight:	56 Lb(s) 0 Oz

Multimatic 220 AC/DC: It Does, so You Can TooGetting Started With the Multimatic 220 AC/DCTop 5 Things To Know About the Multimatic 220 AC/DC

Accessories

DUAL CYLINDER RACK CONVERSION KIT FOR CART 30...

$240.40

View

ER4043 X 36" 1LB Tube General Purpose Aluminu...

$11.60

View

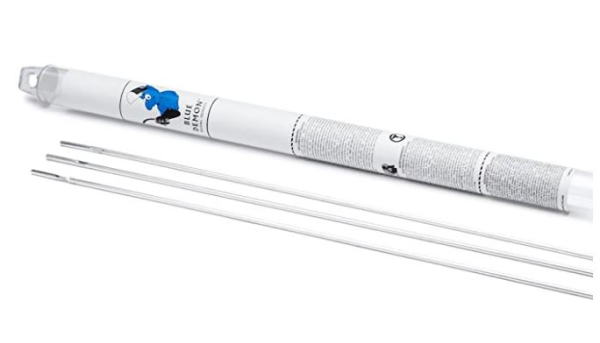

ER5356 Aluminum TIG Rod 1lb Tube - #BD5356 #E...

$11.74

View

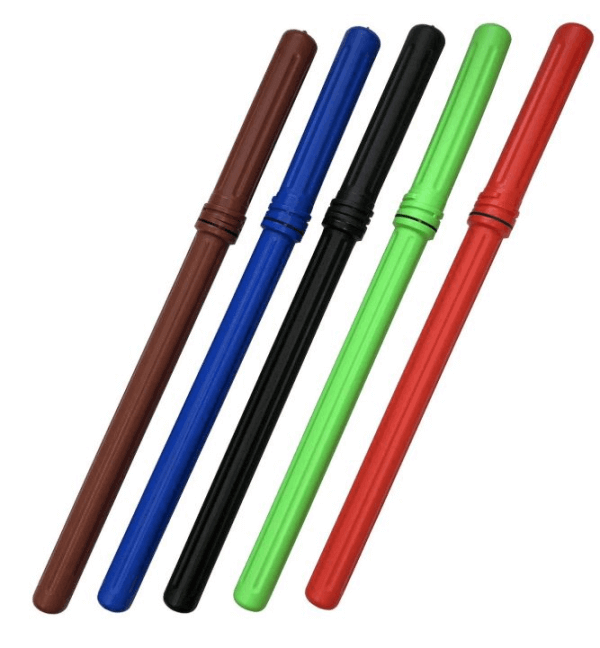

Blue Demon Multi Welding Rod Storage Tube RST-36-MULTI5

Rod Storage Tube - 2in x 36in #RST-36 #RST-36...

$24.90

View

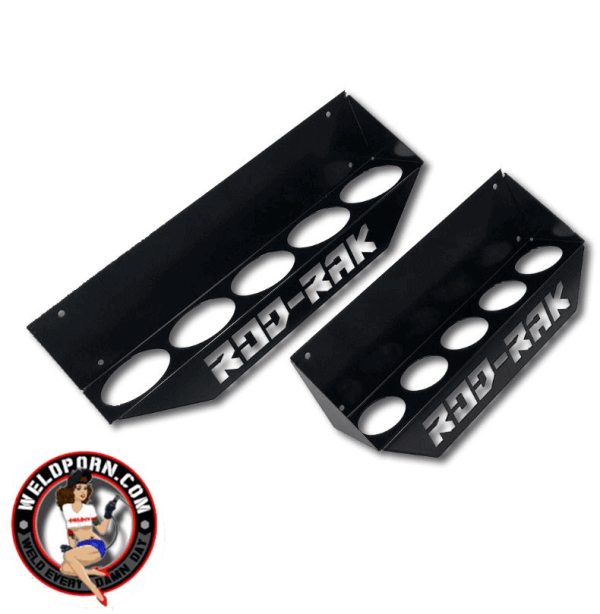

Rod-Rak #RodRak

$48.60

View

Small Cart for Millermatic/Multimatic/Diversi...

$326.85

View

Tig Filler Metal - Aluminum 1 LB #er4043

$9.99

View

Weld Porn Pinky Pouch / Finger Guard #WPPINKY...

$30.00

View

Weldcraft™ A-150, Rubber, 12.5 ft., 25 mm. Di...

$239.00

View

Welding Cart & Dual Cylinder Rack Running Gea...

$549.05

View

Consumables

.023" Wire Contact Tip (5-pk) #199730

$10.90

View

Replacement Millermatic MIG Welder Drive Roll

.024, .030-.035V, .035VK Drive Roll #261157

$28.65

View

.030" Contact Tip (5-pk) #186419

$10.90

View

.030" Wire Contact Tip (5-pk) #199387

$12.60

View

.030-.035 V-Knurl Drive Roll #186413

$26.45

View

.030-.045 V-Knurl Drive Roll #202926

$37.60

View

.035" Contact Tip (5-pk) #186406

$10.90

View

199388 spoolmate 150 .035 contact tip 5 Pack

.035" Wire Contact Tip (5-pk) #199388

$12.60

View

Package of 10 Miller AccuLock MDX-100 Contact Tips replacements cheap in bulk

AccuLock MDX-100 Contact Tips (10 PER PACKAGE...

$15.50

View

AccuLock™ MDX Diffuser for MDX™-100 MIG Guns ...

$30.00

View

Miller AccuLock MDX Consumables Kit 1880272 for use with MDX-100 MIG guns

AccuLock™ MDX™ Consumables Kit, .023" (0.6mm)...

$48.60

View

Miller AccuLock MDX Consumables Kit 1880273 for use with MDX-100 MIG guns

AccuLock™ MDX™ Consumables Kit, .030" (0.8mm)...

$48.75

View

Miller AccuLock Consumables Kit for use with MDX-100 MIG guns

AccuLock™ MDX™ Consumables Kit, .035" (0.9mm)...

$48.75

View

AccuLock™ MDX™ Contact Tip for 0.030" Wire (1...

$220.00

View

AccuLock™ MDX™ Contact Tip for 0.035" Wire (1...

$220.00

View

AccuLock™ MDX™ Contact Tip for 0.045" Wire (1...

$220.00

View

Where can I buy replacement Miller AccuLock™ MDX™ MIG Gun Liner 10' welding cover

AccuLock™ MDX™ MIG Gun Liner 10' #LM1A-10

$23.55

View

AccuLock™ MDX™ Small Thread-On Gasless Nozzle...

$11.90

View

AccuLock™ MDX™ Small Thread-On Nozzle, 1/2" O...

$39.00

View

AccuLock™ MDX™ Small Thread-On Nozzle, 1/2" O...

$40.00

View

Hobart HB-28 ER70S-6 .024 Mig Welding Wire ch...

Starting at $17.38

View

Hobart HB-28 ER70S-6 .030 Mig Welding Wire ch...

$16.00

View

Hobart HB-28 ER70S-6 .035 Mig Welding Wire ch...

$14.60

View

Push Roll, .030-.035 Wire #186414

$26.45

View

RCCS-14 Finger Tip Control #043688

$374.50

View

Spoolmate 150 Nozzle (2-pk) #050622

$35.00

View

Spoolmate Replacement Nozzle #186405

$8.35

View

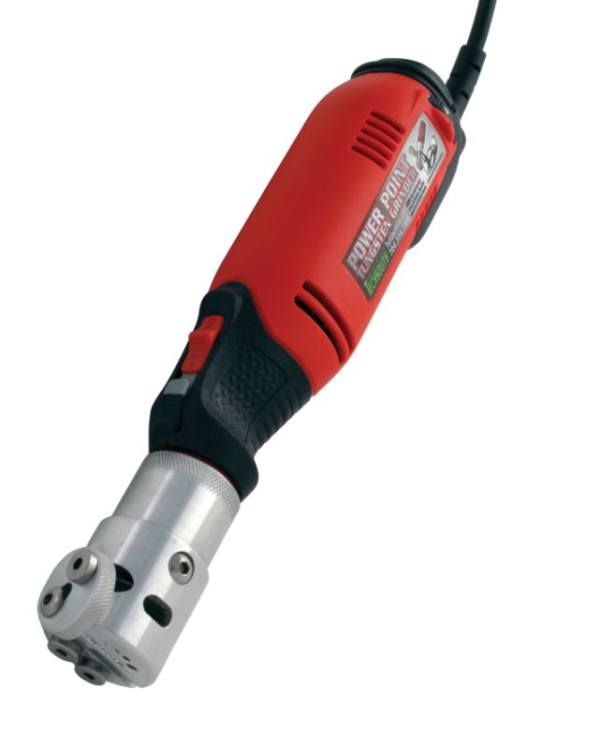

TechSouth Power Point Adjustable Head Tungste...

$275.00

View

Weldcraft Ceriated Accessory Kit #AK2C

$66.10

View

WELDCRAFT FX ACCESSORY KIT #AK-150MFC

$471.10

View

Weldporn® Tig Torch Box #WP-TACKLEBOX-TIG

$98.00

View

MDX™-100 MIG Welding Gun, 10ft, .030-.035 wir...

$197.55

View

Miller Multimatic® 220 AC/DC Welder Protective Cover #301524 for sale

Multimatic® 220 AC/DC Protective Cover #30152...

$130.50

View

Miller TIG Welder Rotary Fingertip Control #151086

Rotary Fingertip Control, East/West, 14-pin p...

$342.35

View

Spoolmate 100 #300371

$525.00

View

Spoolmate 150 #301272

$739.00

View

Wireless Foot Control #301580

$1,201.00

View

1 reviews found

Customer Reviews Write a Review

Sandra D.

Terri . . .in Customer Service Rocks!!

Reviewed on 12/11/2018

Any trouble ordering . . call and ask for Terri . .she was fantastic and helped me thru the entire process!! YOU ROCK TERRI!!!

Manufacturer Reviews

Shawn Production

We had the opportunity to field test this machine in our structural fab shop. We were able to utilize every process on this machine, it worked flawless. Even on larger projects, it held up perfectly. its a excellent machine in a compact size.

Aldo

This machine is awesome! I can officially say the welding World of my garage is complete with just this Multimatic 220 AC/DC. If you can weld, this machine takes out all the annoying guessing work with the set up and lets you unfold your welding skills.

Stephen

I'm an amateur welder with very little experience. I bought this welder for home projects and equipment repairs. I was amazed at how simple the Miller 220 is to setup and get welding. My first project was to weld a carrying platform for a track chair that connected to my truck hitch receiver. The Miller 220 took all the guesswork out of welding configurations and I only had to adjust its basic settings once. A few videos on welding techniques was all I needed and I was off and running. I would highly recommend this welder to anyone even if you have little experience.

Product Questions and Answers

Q - What is max thickness Multimatic 220 is rated for? A - 3/8", but it will TIG weld 24ga to 1/4"

Q - What's the largest spool that can be used with Multimatic 220? A - The Miller Multimatic 220 AC/DC can accommodate a wire spool up to 8" in diameter.

Q - What cart works with the Multimatic 220? A - The Miller Small Cart (#301239) is a compact cart designed for single-cylinder setups and works with machines like the Millermatic, Multimatic, and Diversion welding machines. It has a 2-wheel design, holding one gas cylinder, and offers easy mobility for smaller setups. The Miller Welding Cart & Dual Cylinder Rack Running Gear (#951770) is a larger cart designed to hold two gas cylinders, making it ideal for setups that require multiple gases or more frequent welding tasks. This cart provides enhanced stability and storage with additional space for accessories, cables, and tools, making it more versatile for heavy-duty use.

Q - Can the Multimatic 220 be used with a spool gun? A - Yes. The Multimatic 220 is compatible with the Miller Spoolmate 150 (#301272) and the Miller Spoolmate 100 (#300371) spool guns, which are ideal for aluminum welding. Exclusively at Welders Supply, you'll get a free, compatible spool gun with your order (limited time offer, while supplies last).

Q - Will the Multimatic 220 TIG weld aluminum? A - Yes, the Miller Multimatic 220 AC/DC can TIG weld aluminum. It features both AC and DC TIG welding capabilities, with the AC mode specifically used for aluminum welding.

Q - What thickness of aluminum will the Miller Multimatic 220 weld? A - The Miller Multimatic 220 can weld up to 3/8” aluminum (18 gauge) with your MIG gun, and up to ¼” thick aluminum (24 gauge) with your TIG gun.

Q - Will the Multimatic 220 weld stainless steel? A - Yes, the Miller Multimatic 220 AC/DC can weld stainless steel. Thanks to the Multimatic’s TIG high-frequency start feature, it’s the perfect machine for welding stainless steel and aluminum.

How to set up your Multimatc 220 AC/DC welder for the first time

Power Connection:
- Use the multi-voltage plug to connect to a 120V or 240V outlet. Line up the arrows, tighten the collar, and plug into the wall.
- Turn on the power switch located at the rear of the machine.
Choose Welding Process:
- Use the interface arrows to select your welding process: MIG, stick, DC TIG, or AC TIG.
Auto Set Elite Feature:
- Turn on the Auto Set Elite for automatic parameter setup.
- Input wire/rod/tungsten diameter and material thickness. The machine will auto-adjust to optimal settings.
Manual Adjustments (Optional):
- If needed, fine-tune parameters like wire feed and voltage for MIG, or amperage for stick/TIG. Refer to the parameter chart inside the machine door.
Gas Setup:
- Attach gas cylinders for MIG and TIG (two connections are available).
- Secure the cylinder, install the regulator, and adjust flow to 20-35 cfh based on the process.
Process Switching:
- Keep both MIG and TIG connections ready. Simply pull the MIG gun trigger or use the TIG foot control to switch processes. The machine automatically adjusts polarity.
