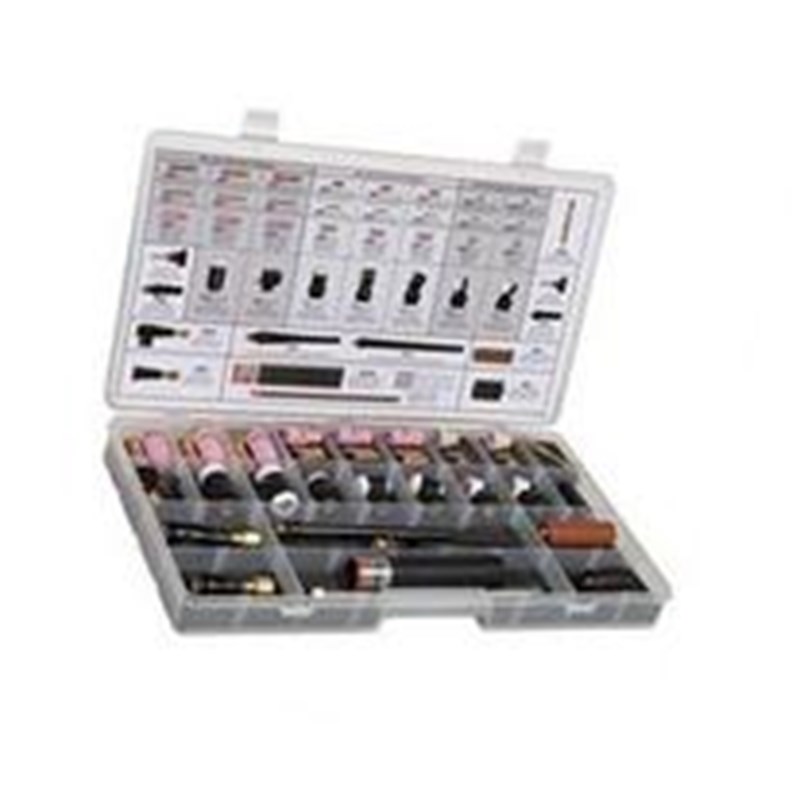

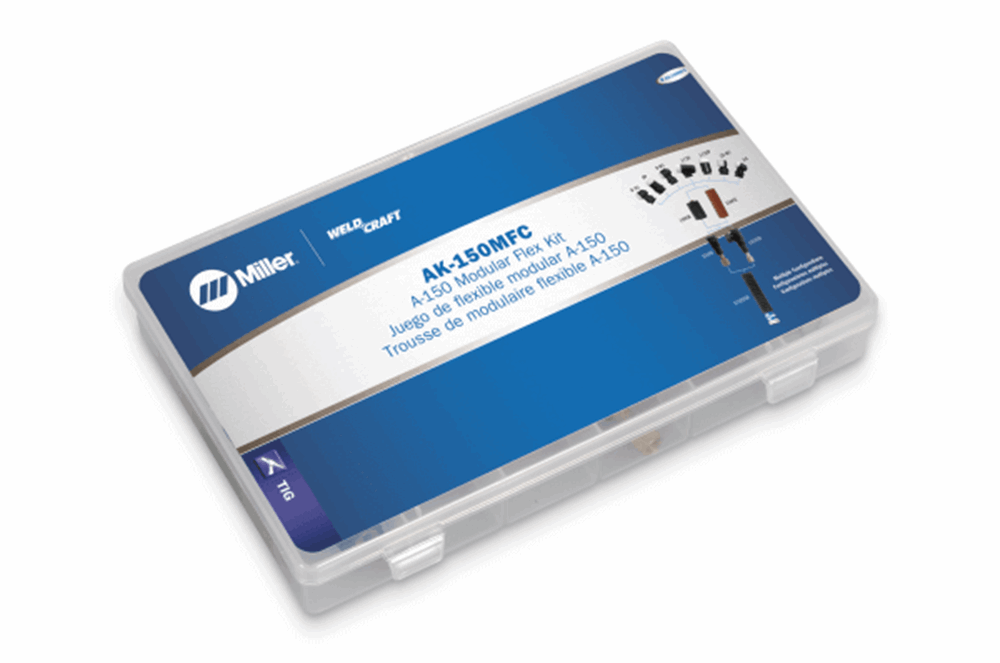

Miller Weldcraft FX Accessory Kit #AK-150MFC
Part Number: AK-150MFC
UPC: 608201243884
$471.10
$993.02*
SAVE $521.92
Documents
VideosMiller Weldcraft FX Accessory Kit #AK-150MFC

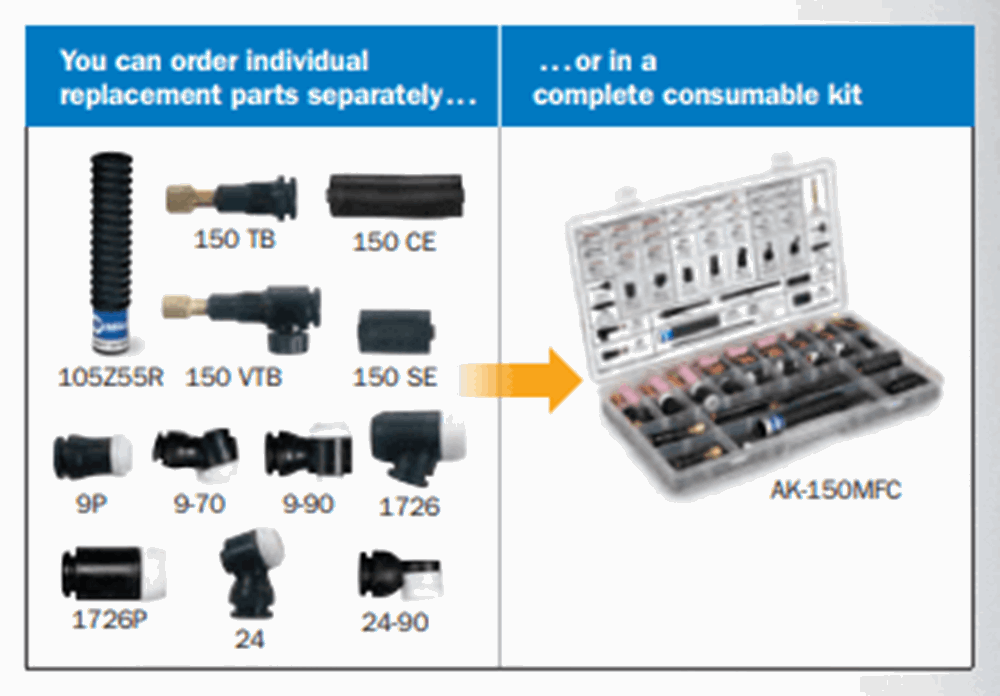

WHAT'S INCLUDED
- 150TB torch body
- 150VTB torch body
- 150CE element, coil
- 150SE element, solid
- 105Z55R handle
- .040", 1/16". 3/32" Ceriated tungsten electrodes For 80-amp set-up
- 24 (60° torch head)
- 24-90 (90° torch head)
- 53N20 wrench
- 1/16", 3/32" collet and collet body
- #5, #6 lava nozzles For 125-amp set-up
- 9-70 (70° torch head)
- 9-90 (90° torch head)
- 9P (180° torch head)
- .040", 1/16", 3/32" collet and collet body

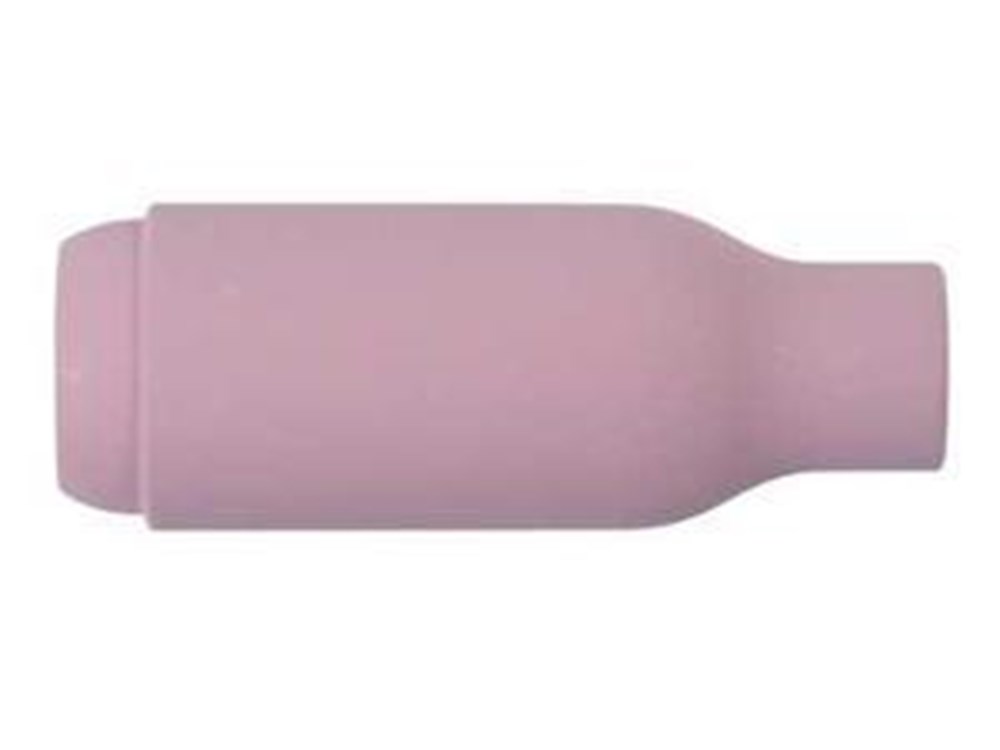

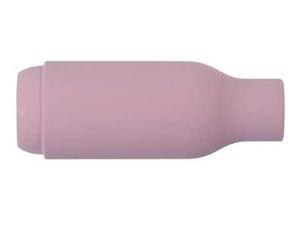

- #4, #5, #6 alumina nozzles
- Back caps - short, medium and long For 150-amp set-up
- 1726 (70° torch head)
- 1726P (180° torch head)
- .040", 1/16", 3/32" collet and collet body
- Back caps - short, medium and long
Order an accessory kit online or contact Welders Supply for more information on our welding equipment options.
GENERAL SPECIFICATIONS
| Title | Weldcraft FX Accessory Kit #AK-150MFC |
| Warranty | True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 5.30 Inches |
| Width: | 16.80 Inches |
| Length: | 11.10 Inches |
| Weight: | 3 Lb(s) 10 Oz |
Consumables
Product Questions and Answers
Q - Is this air cooled?
A - It's designed for the air cooled WP-17 Series TIG torch.
Q - What torch is this for?
A - The standard WP-17 Series TIG torch.
How to Assemble a #9 TIG torch:
- Choose Your Parts.
Choose your handle/insulator, tungsten, collet(that holds the tungsten), collet body and consumables.
- Attach Collet Body.
Attach collet body to bottom of the torch.
- Slide Collet.
Slide collet through the top. Insert back cap onto the torch.
- Slide Tungsten and Cup.
Slide tungsten through the collet. Slide cup over the tungsten stick out.
