Miller Spoolmate 150 #301272

Part Number: 301272
UPC: 715959617178
$739.00 + Free Shipping $739.00*
SAVE $0.00
  • 1-Year Power Warranty
  • MIG Welding

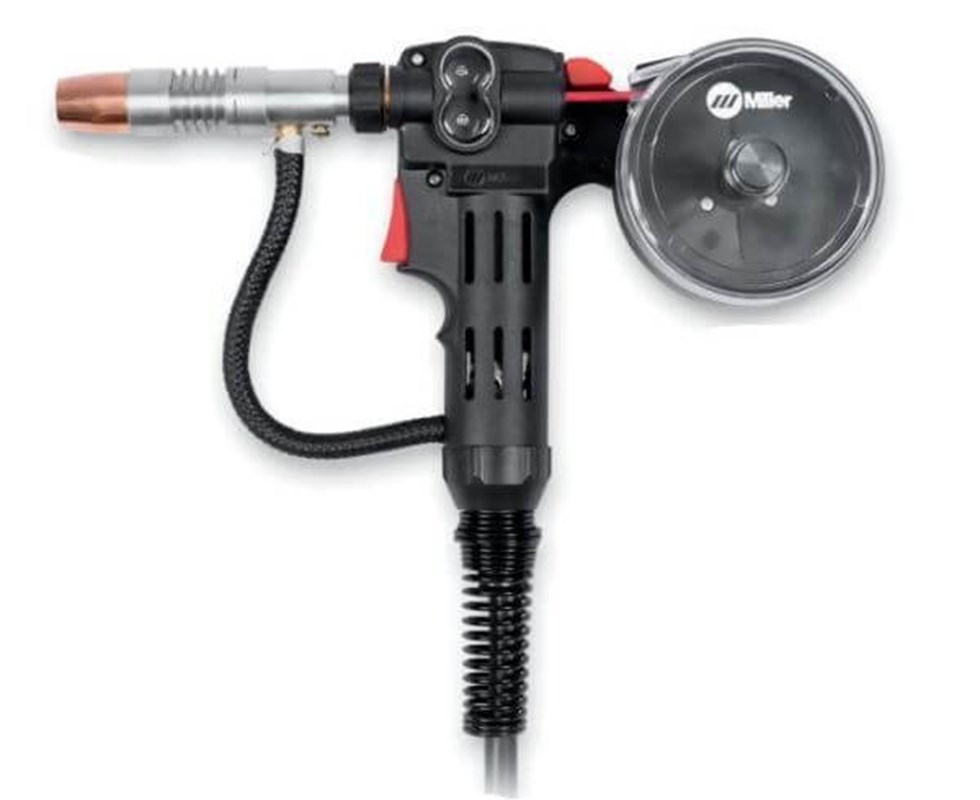

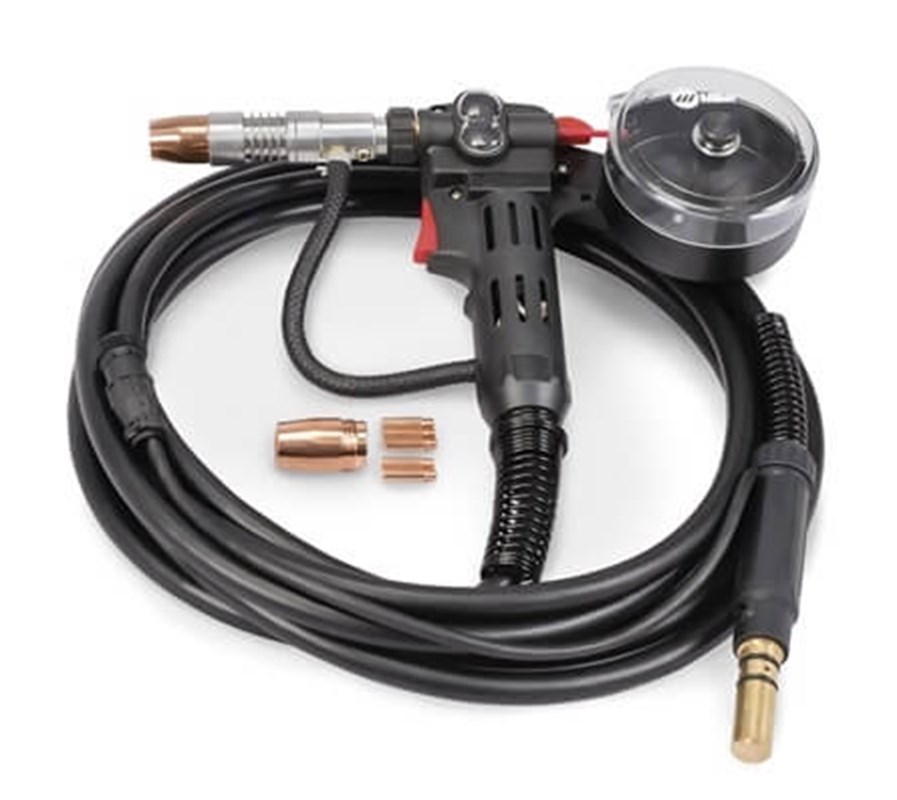

Miller Spoolmate 150 #301272

Miller Welding AccessoriesThe Miller Spoolmate 150 #301272 from Welders Supply is a perfect addition for your Millermatic 211.  It’s handy, convenient, effective and affordable. The direct connect cable makes it simple and easy to change over for work on aluminum. Burn back is avoided with a well-designed recessed contact tip (which also makes for much easier welding). With dual V-knurled drive rolls, handling wire has never been easier. There is an adjustable lever so you can easily load or unload wires. The drive roll tension is also simple to adjust, making it much more convenient to feed different types of wire. As the job changes, your equipment will be faster and easier to change right along with it. Everything might change, but you will remain consistently productive.

Miller Spoolmate 150 #301272 Performs Better For A Longer Time

The Miller Spoolmate 150 #301272 from Welders Supply is sturdy and long-lasting with a heavy-duty, cast-aluminum drive motor and gearbox. You’ll be able to approach your work from a better angle, thanks to a 20-foot cable. The cable has heavy-duty strain relief, so you’ll be free of having kinks in the line. The entire unit is designed for maximum safety and performance.

Lowest Prices Online for the Miller Spoolmate 150

Welders Supply is your online source for excellent equipment like the Miller Spoolmate 150. We have the lowest possible price on the Spoolmate 150, and if you add on some other essentials to your order you can take advantage of our free shipping on all orders over $300 (within the continental US).

Miller Spoolmate features include:

  • Direct Connect cable allows for easy changeover and set-up on aluminum.
  • Recessed contact tip for easier welding and prevention of burn back issues.

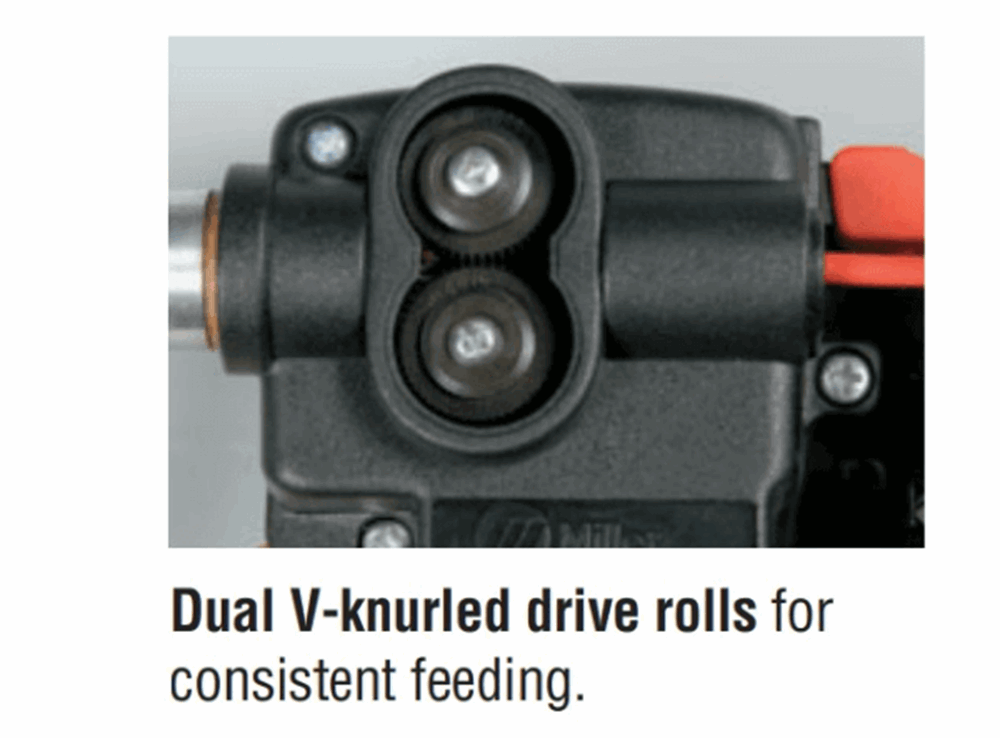

  • Dual V-knurled drive rolls for consistent feeding.

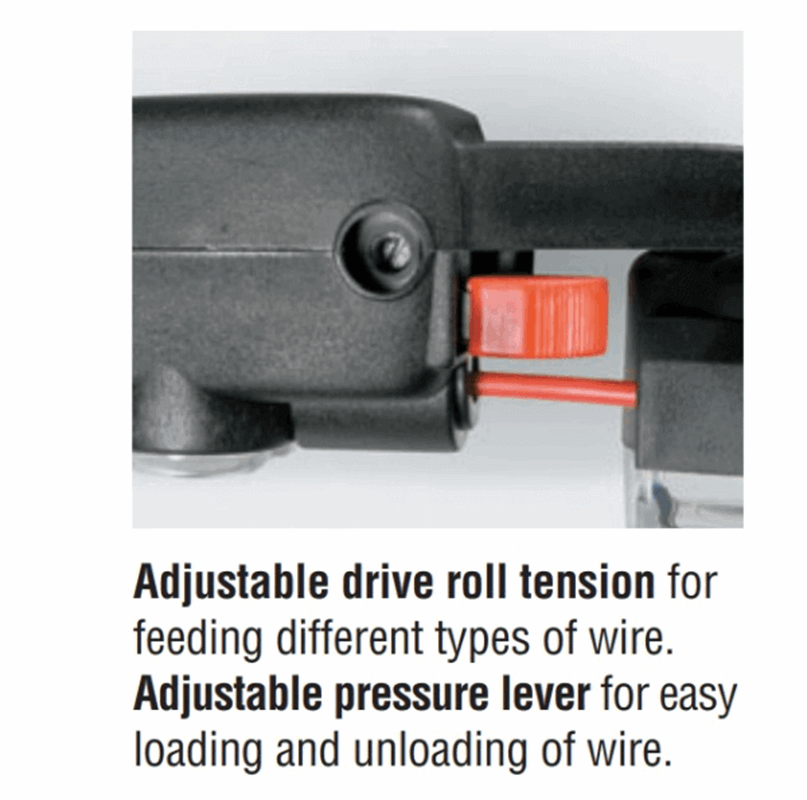

  • Adjustable pressure lever for easy unloading and loading of wire.
  • Adjustable drive roll tension for feeding different types of wire.
  • Heavy-duty cast-aluminum gearbox and drive motor.

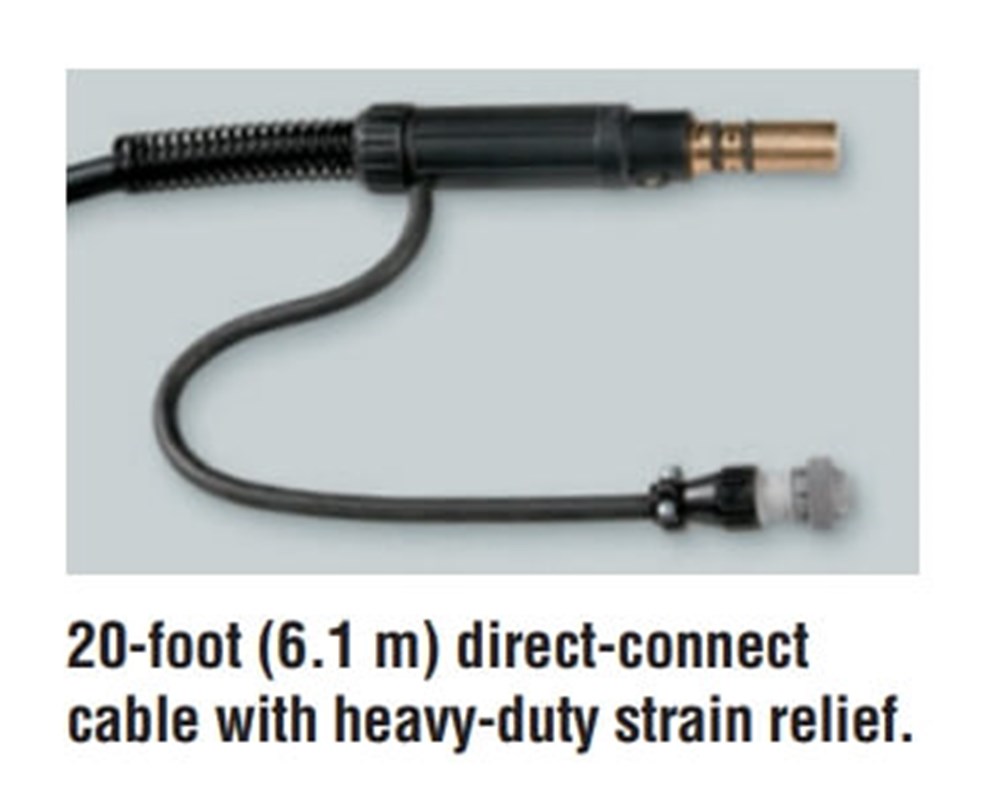

  • 20 ft. cable with heavy-duty strain relief to protect against kinking



View our large selection of welding machine accessories, welding helmets, and welding machines available here at the lowest prices possible.

Other Versions of the Miller Spoolmate Spool Gun:

Miller Spoolmatic 30A #130831 Specs

Welding Output Rating 150 A at 60% duty cycle
Wire Diameter Capacity .030 - .035 in (0.8 - 1.6 mm) 4000 and 5000 series aluminum, steel and stainless steel
Wire Speed 115-715 IPM dependent on power source
Max Spool Size Capacity 4 in (102 mm)
Cable Length 30 ft (9.144 m)
Net Height 11.5 in (291 mm)
Net Length 12.5 in. (318 mm)
Net Width 3 in (76mm)
Net Weight 7.33 lb (3.3 kg) with cable assembly
Processes MIG (GMAW) with aluminum, steel and stainless steel
Heavy Industrial Applications Light aluminum fabrication
Home maintenance and repair
Auto and marine repair
Warranty 1 year - Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 13.50 Inches
Width: 4.50 Inches
Length: 17.50 Inches
Weight: 9 Lb(s) 2 Oz

Product Questions and Answers


Q - What tips does this come with? A - Two .030 and two .035 contact tips are included.
Q - Are the tips for the Spoolmate 100 and 150 interchangeable? A - No, the contact tips aren't interchangeable.
Q - What is the wire speed on this? A - 115 to 715 IPM, depending on the power source being used.

Have a question about this product? Submit your question using the form below

Related Products

199387 Miller Welding .030" Wire Contact Tip (5-pk) #199387 214 purchased
Save $6.35
$12.60
$18.95

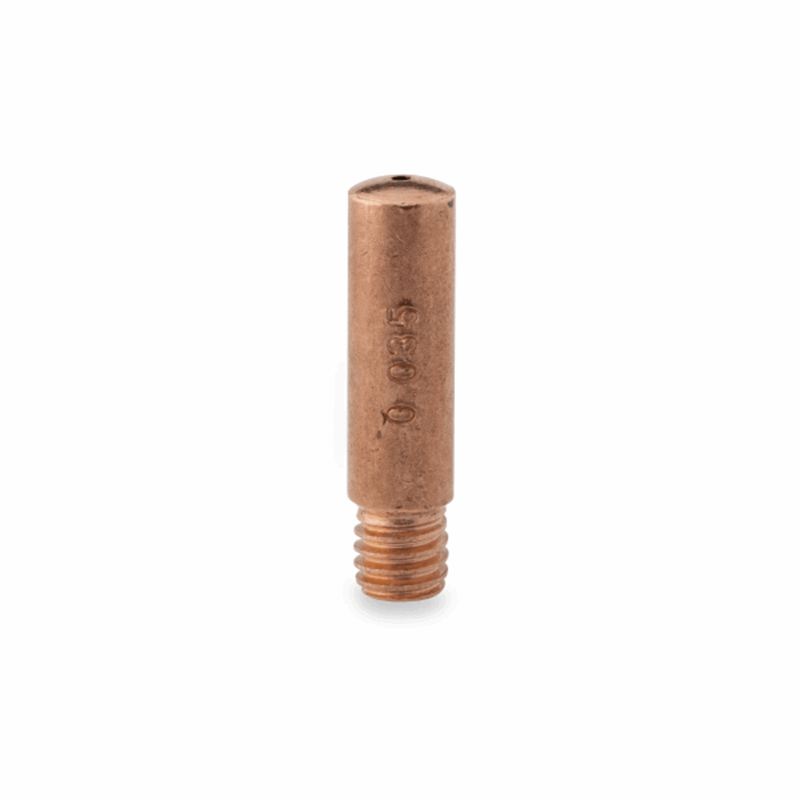

199388 spoolmate 150 .035 contact tip 5 Pack Miller Welding .035" Wire Contact Tip (5-pk) #199388 214 purchased
Save $6.35
$12.60
$18.95
Miller Heavy Duty MIG/Stick Welding Gloves #263339 Large, #263340 X-Large Miller Welding Heavy Duty Mig/Stick Gloves #263339 1631 purchased
Save $12.25
$33.25
$45.50

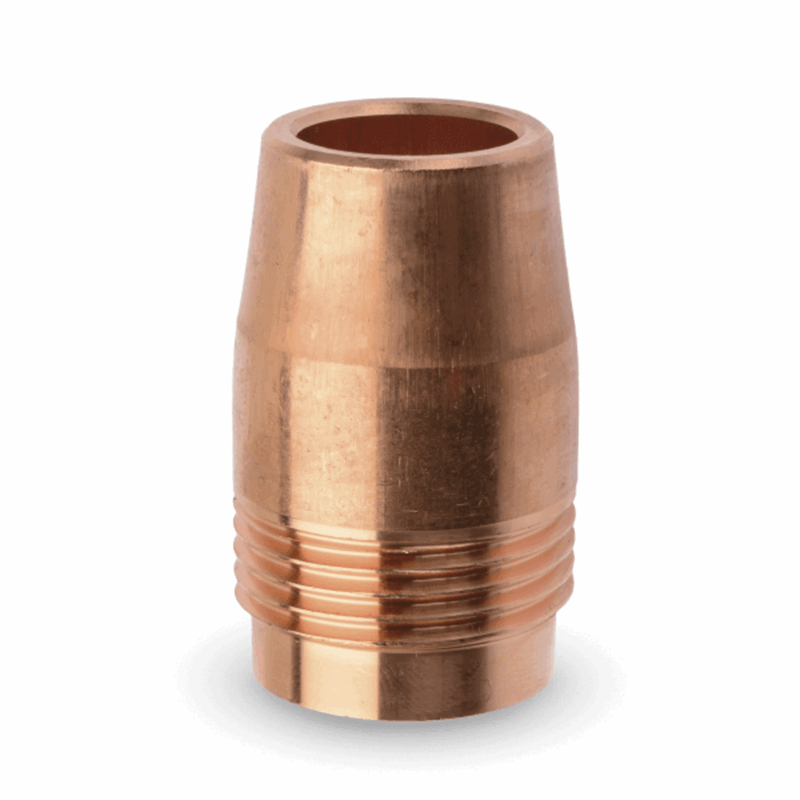

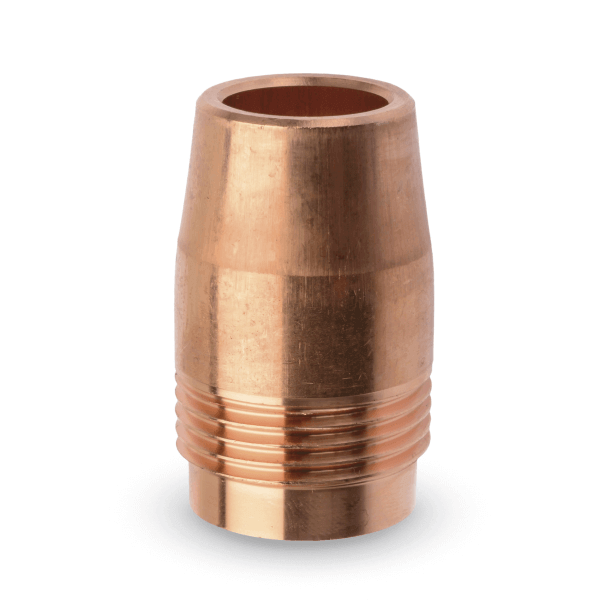

spoolmatic 150 nozzle 2 Pack Miller Welding Spoolmate 150 Nozzle (2-pk) #050622 73 purchased
