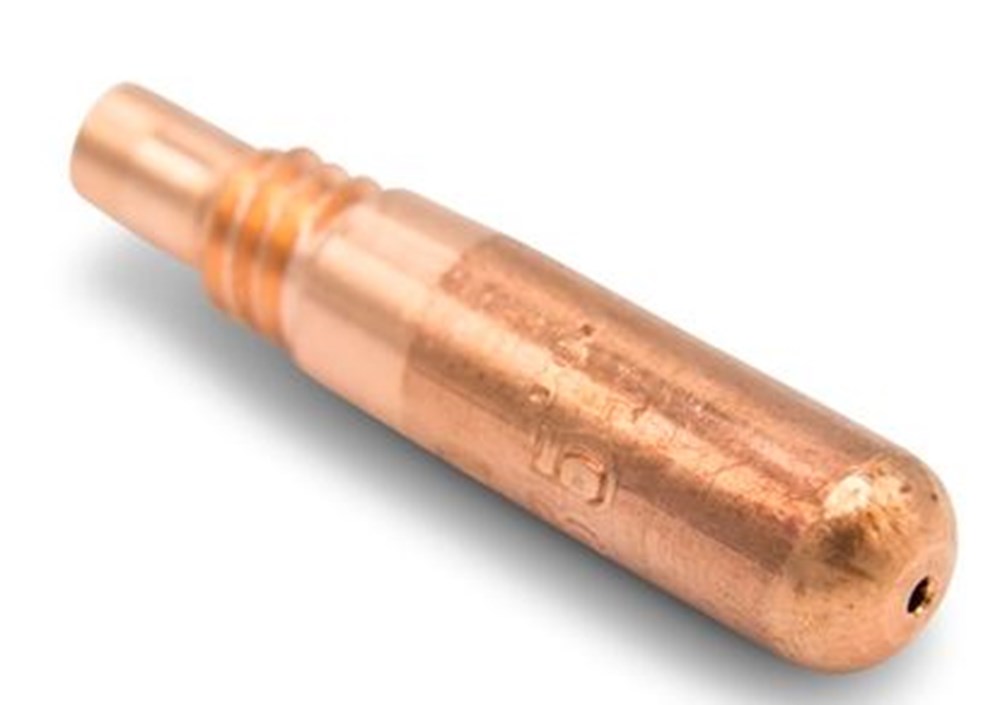

Miller AccuLock MDX-100 Contact Tips (10 PER PACKAGE)

Miller AccuLock MDX-100 Contact Tips (10 PER PACKAGE)

Consumables Smaller consumables and components to access hard-to-reach weldments.

Optimized Wire Feeding
Contact tip is aligned and centered with the liner lock when the diffuser is tightened creating a flawless wire feed path. Reduces burnbacks, birdnesting and erratic arc.

Quick Replacement
Coarse thread speeds contact tip replacement.

Tapered Connection
Tapers lock the contact tip to the diffuser and the diffuser to the neck for excellent electrical conductivity.

Cooling Tail
Contact tip tail is cooled inside the diffuser by shielding gas.

Contact Tips (10 per package)
T-M023 .023 in. (0.6 mm)
T-M030 .030 in. (0.8 mm)
T-M035 .035 in. (0.9 mm)
T-M045 .045 in. (1.2 mm)
T-M047 3/64 in. (1.2 mm)

Nozzles
NS-M1200B Brass, 1/2 in. ID, flush
NS-M1200C Copper, 1/2 in. ID, flush
NS-MFLX Gasless nozzle

Diffuser

D-M100

Monocoil Replacement Liners 10 ft. Liner
LM1A-10 .023/.025 in. (0.6 mm)
LM2A-10 .030/.035 in. (0.8/0.9 mm)
LM3A-10 .035/.045 in. (0.9/1.2 mm)

Power Pin Caps
2200170 .023/.030 in. (0.6/0.8 mm)
2200171 .030–.045 in. (0.8–1.2 mm
