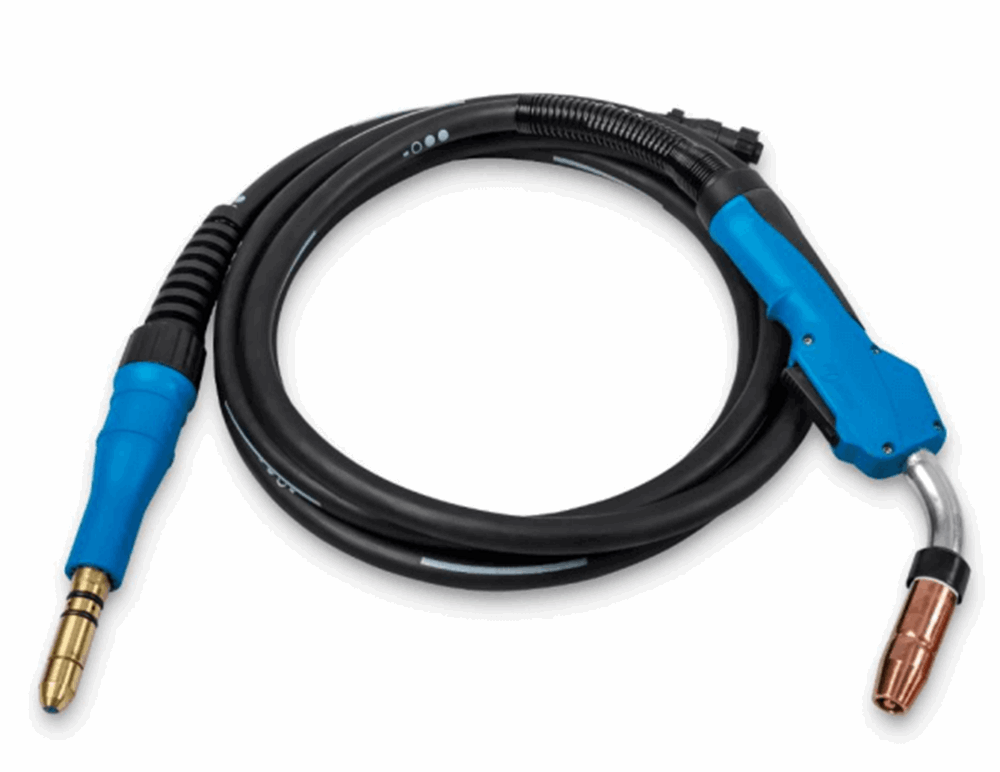

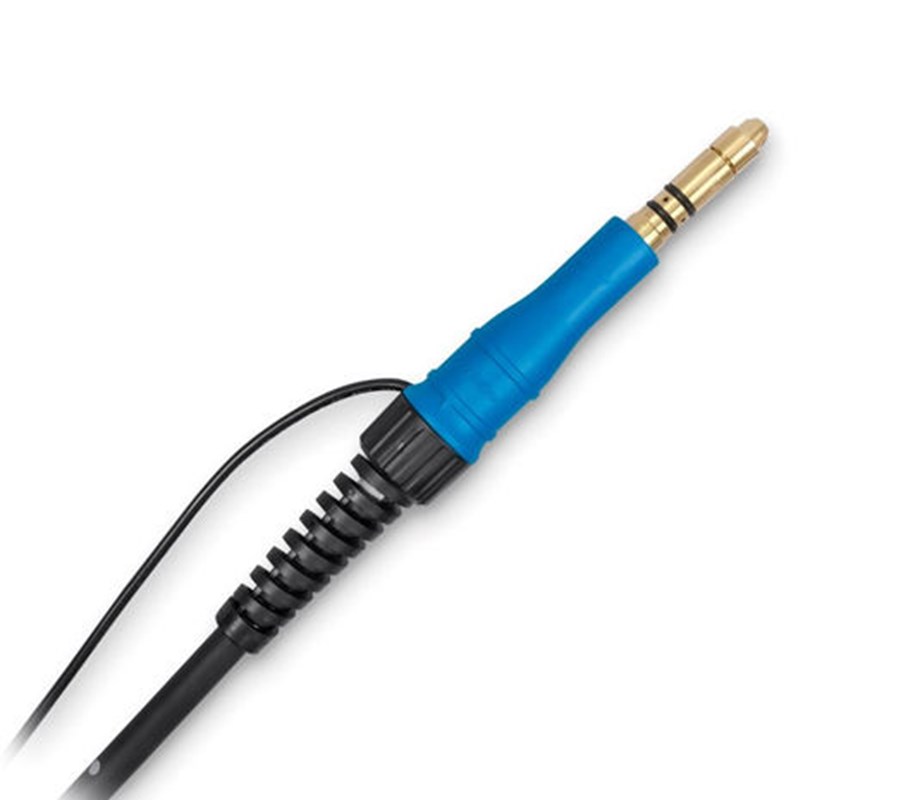

Miller MDX™-100 MIG Welding Gun, 10ft, .030-.035 wire, AccuLock™ MDX Consumables #1770028

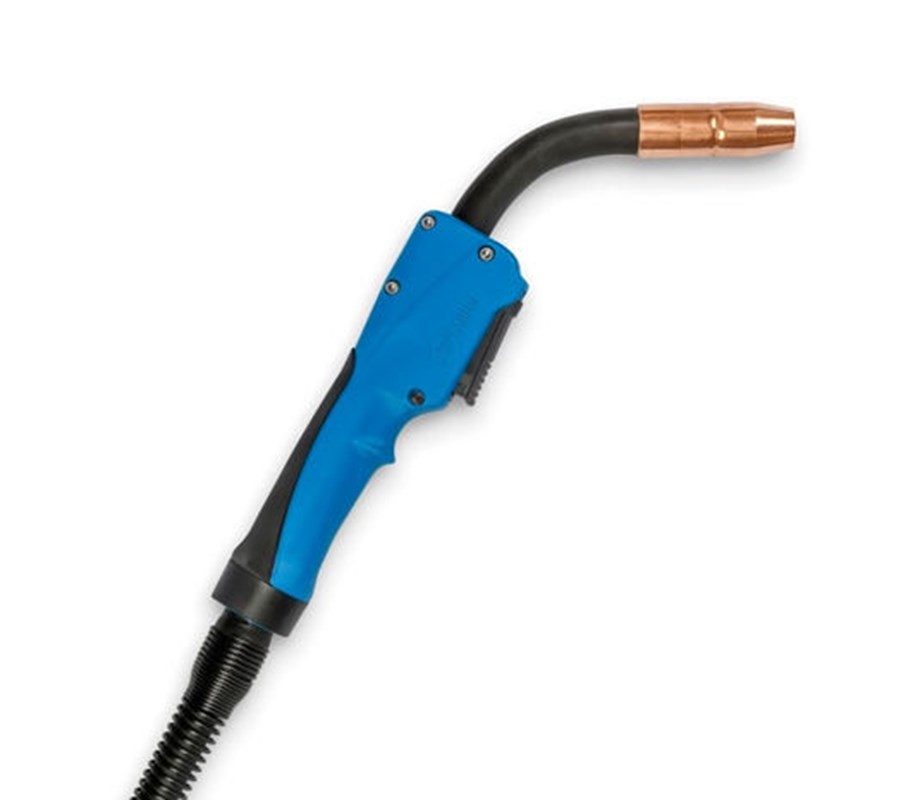

The Miller MDX 100 MIG gun has been redesigned with a few new features. The new ergonomic handle features and overmolding for improved grip and a rear swivel strain relief. The gun’s AccuLock consumables with dual-locked, front-loading liner ensures smooth, consistent wire feeding for reliable operation. The best welding gun is the one you never have to think about because it’s comfortable, it’s durable and it gets the job done. MDX Series MIG guns have been designed to be exactly that. The new ergonomic handle features overmolding for improved grip and a rear swivel strain relief for reduced welder fatigue. The gun’s AccuLock™ consumables with dual-locked, front-loading liner ensures smooth, consistent wire feeding for reliable operation.

MDX 100 Features
• 10 foot length
• .030-.035 Liner Included
• AccuLock Consumables
• 100% Duty Cycle @ 100A CO2 | 60% With Mixed Gas

Compatible With

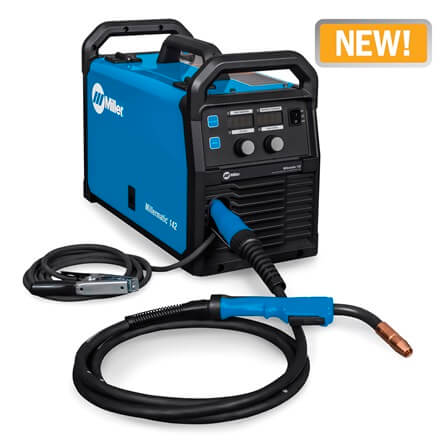

• Millermatic 141 and 211
• Multimatic 215 and 220 AC/DC

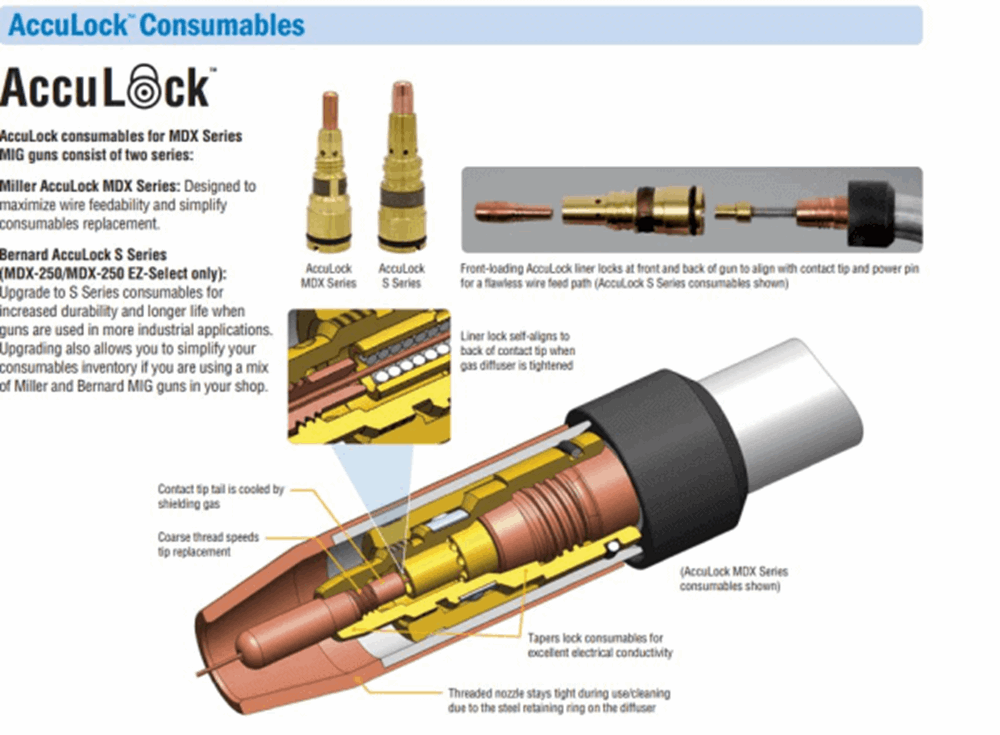

Miller AccuLock MDX series consumables are designed to maximize wire feedability and simplify consumables replacement.

AccuLock MDX Features
Superior Feeding - The front-loading liner is centered and locked at both ends of the gun (without the use of set screws) to ensure smooth wire delivery to the contact tip. Plus, error-proof liner trimming ensures accurate replacement every time for reduced burnbacks, birdnests and erratic arc/wire chatter.

Long-Life Consumables - Tapered mating surfaces between the AccuLock contact tip and gas diffuser lock tips in place for maximized electrical conductivity and longer tip life.

Threaded Nozzle - Stays tight during use and cleaning due to the steel retaining ring on the diffuser.

Compatible With
• Millermatic 141 and 211
• Multimatic 215 and 220 AC/DC

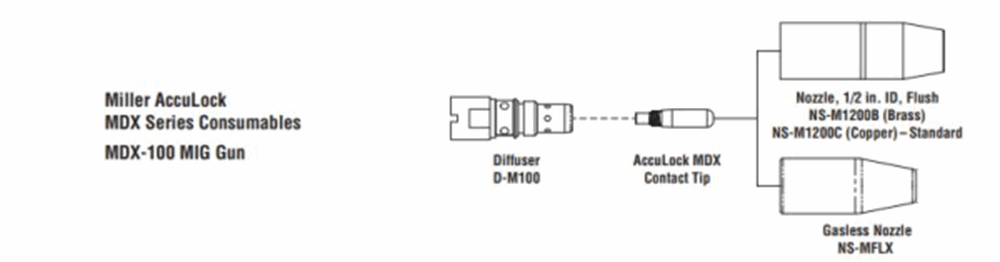

Miller AccuLock MDX Consumables - Smaller consumables and components to access hard-to-reach weldments.

Contact Tips (10 per package)
T-M023 .023 in. (0.6 mm)
T-M030 .030 in. (0.8 mm)
T-M035 .035 in. (0.9 mm)
T-M045 .045 in. (1.2 mm)
T-M047 3/64 in. (1.2 mm)

Nozzles
NS-M1200B Brass, 1/2 in. ID, flush
NS-M1200C Copper, 1/2 in. ID, flush
NS-MFLX Gasless nozzle

MDX Spec Sheet
