Miller Multimatic® 220 AC/DC Complete Pkg w/ Welding Cart & Wireless Foot Control #951000104

Miller Multimatic® 220 AC/DC Multi-Process Welder, Complete Package #951000104

Includes A Wireless Foot Pedal For Enhanced TIG Control & Dual-Cylinder Cart

The versatile Miller Multimatic 220 AC/DC (120V/240V, 56 lbs) handles MIG, flux-cored, AC/DC TIG, and stick welding across 24ga-3/8" steel/aluminum (MIG), 24ga-1/4" steel/aluminum (TIG), and 16ga-3/8" steel (stick). This complete multi-process package includes a wireless foot pedal and dual-cylinder cart for enhanced portability. Setup is simplified via auto-polarity, process switching, quick-setting parameters like wire/tungsten diameter and material thickness.

Key features are color LCD interface, dual gas inlets, angled wire drive with Quick Select grooves, MDX front-loading MIG gun, Pro-Set manual modes, wide TIG adjustability. Its easy operation, cart mobility, and complete accessories suit hobbyists and small shops.

Download literature of this machine:

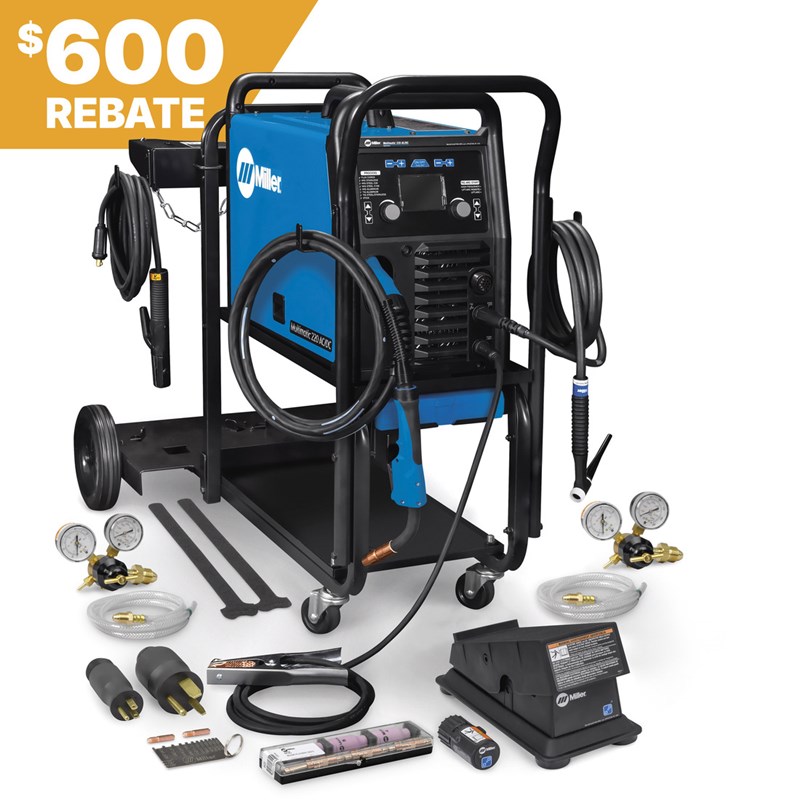

What's Included:

• Two contact tips for .030 in (0.8 mm) wire
• 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
• AK2C TIG torch accessory kit
• Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
• Two Argon and AR/CO2 mix regulator/flow gauge with hoses
• Material thickness gauge #229895
• 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
• 10 ft MDX™-100 MIG Welding Gun
• Multimatic® 220 AC/DC
• Hook-and-loop cord wraps
• Wireless Foot Pedal
• 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
• 12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
• Dual Cylinder Welding Cart (951770)
• Spool of Hobart® .030 in (0.8 mm) solid wire
• Not included: Safety Equipment, Spool gun for aluminum MIG welding, Shielding gas

Features of the Multimatic 220

• Pro-Set™ Feature Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue.
• Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
• 14-Pin Controlled Operator Alternatives: The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• Multi-Voltage Plug (MVP) Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• Dependable Arc Starts Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
• Weighing Only 56 Pounds The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
• Auto-Set™ Elite offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• QuickTech™ Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time. Automatically switches to the right process. Just hit the trigger or the foot control and the machin automatically changes. Automatically recalls the settings from the last process used.
• All in One Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
• Generator Compatible: The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
• Heavy-duty construction with 8-inch rubber rear wheels.
• Portable with included front handles, cable holders and a plastic consumable box.
• Easily move gas cylinders no greater than 7 inches (178 mm) in diameter or 65 pounds (29.5 kg) in weight with your welder.
• Eliminating the hassle of cord management, you gain the freedom to move and weld with ease with wireless foot pedal

Try these accessories with your new Multimatic 220 Multi-Process Welder:

+

Protective Cover

View Product

+

Spoolmate 150

View Product

+

MDX-100 MIG Gun

View Product

Welders Supply has the BEST online prices for Miller Welders and Miller welding accessories or all our quality safety equipment!

• Miller Multimatic 220 Spec Sheet
• Miller Multimatic 220 Spec Sheet Spanish
