Miller XMT® 400 ArcReach® Multi-Process Welder, RMD®/Pulse System (Tweco®) (208-575 V, 1/3PH) #951000112

Part Numbers: 951000112

Included with your purchase: ()

Miller XMT® 400 ArcReach® Multi-Process Welder, RMD®/Pulse System (Tweco®) (208-575 V, 1/3PH) #951000112
Miller XMT® 400 ArcReach® Multi-Process ...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$15,960.00 + Free Shipping
$15,960.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • ArcReach Smart wire feeder with drive rolls includedArcReach Wire Feeder Included
  • Multi-process MIG/TIG/stick welding machineMulti-Process Welding
  • Lightweight, portable welding power sourcePortable & Lightweight
  • 208-575 V Input
  • 1-Phase or 3-Phase Input
  • 10–38 V, 15–425 A Welding Output Range10–38 VDC, 15–425 A Output
  • Miller True Blue 3-Year WarrantyMiller 3-Year Warranty

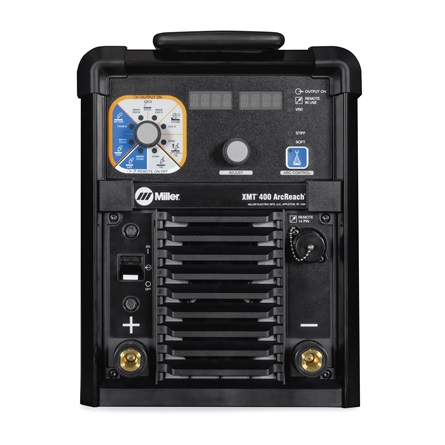

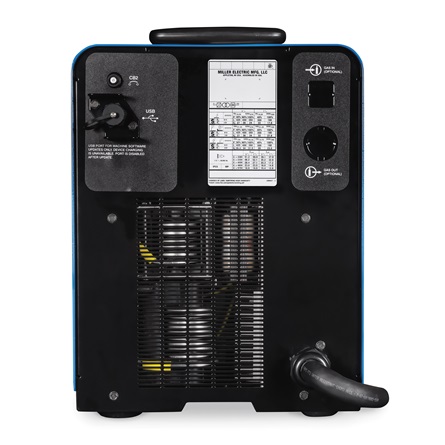

Miller XMT® 400 ArcReach® Multi-Process Welding Machine, RMD®/Pulse System (208-575 V, 1PH /3PH) #951000112

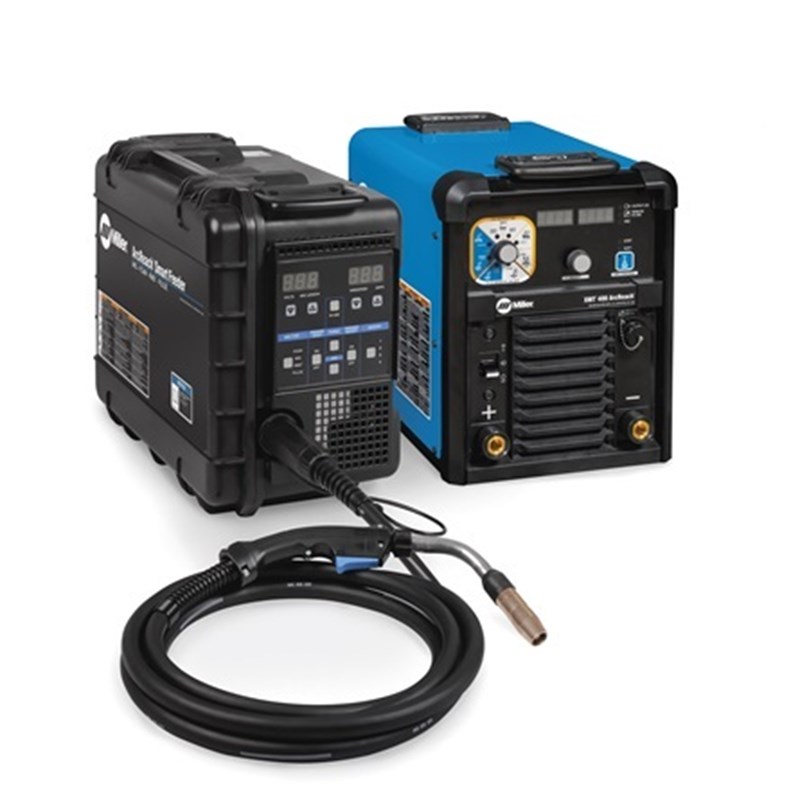

Miller’s XMT® 400 ArcReach® Multi-Process is the smallest, lightest multi-process welding machine in its amperage class and provides industry-leading arc performance with dedicated processes for Stick, TIG, FCAW and MIG welding. Get power from anywhere with Auto-Line™ Technology and make remote voltage adjustments with the arc on with ArcReach® & AWW™ technologies. The RMD®/Pulse System includes an ArcReach® Smart Wire Feeder and a Bernard® PipeWorx 300-15 MIG Gun. Built on the foundation of the XMT® 350, the XMT® 400 continues Miller’s legacy of excellent performance and reliability.

Download literature of this machine:

Miller True Blue warranty

What's Included:

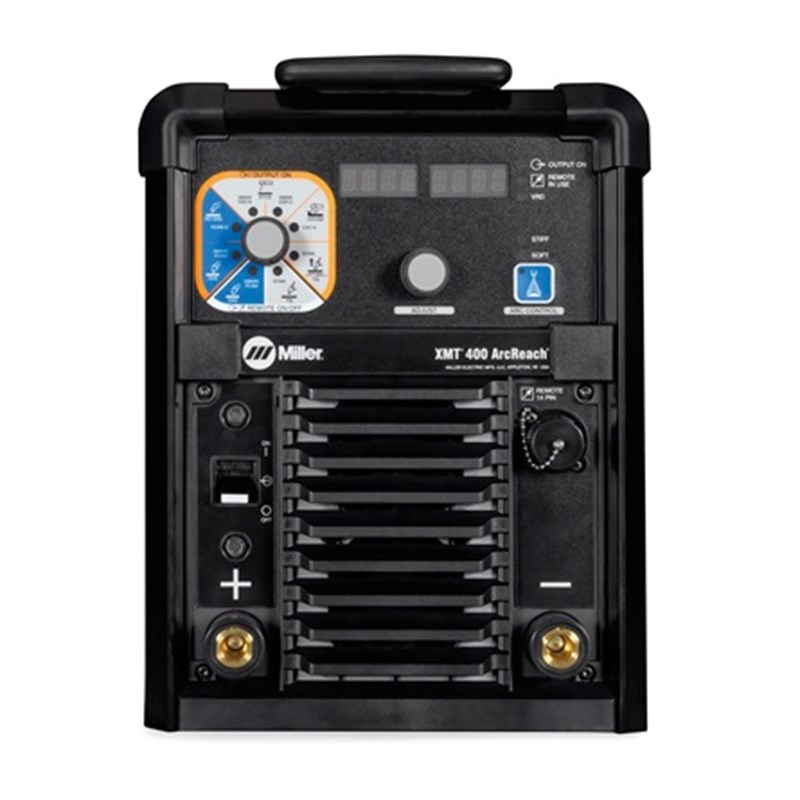

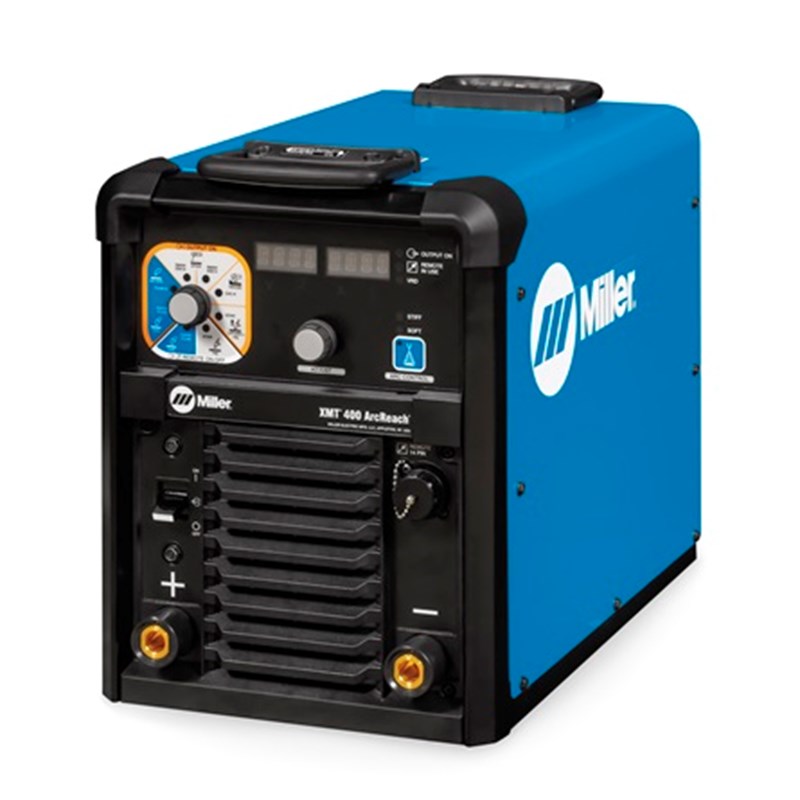

  • XMT 400 ArcReach power source

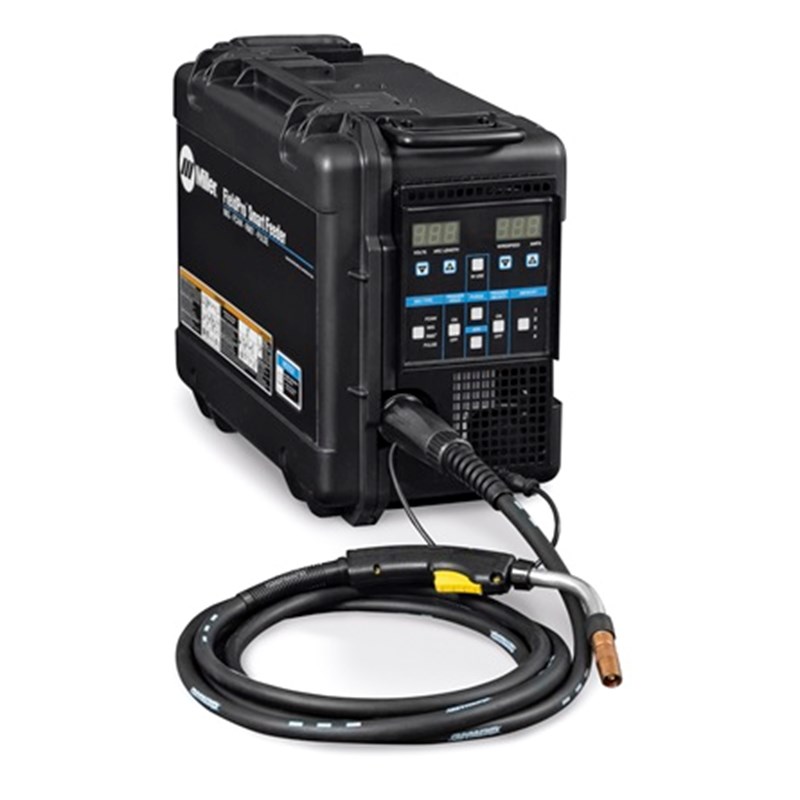

  • ArcReach® Smart Feeder with drive rolls
  • Bernard® PipeWorx 300-15 MIG gun

Processes:

  • MIG (GMAW)
  • Pulsed MIG (GMAW-P)*
  • RMD®*
  • Stick (SMAW)
  • TIG (GTAW)
  • Flux-cored (FCAW)
  • Air carbon arc cutting and gouging (CAC-A)
  • Rated: 5/16-inch
  • Induction heating**

*Available with ArcReach Smart Feeder only.
**Available with ArcReach Heater only.

Applications:

  • Construction
  • Shipbuilding
  • Power generation plants
  • Rental fleets
  • Maintenance repair operations (MRO)
  • Fabrication
Miller ArcReach technology for XMT 400 lets welders communicate with the power source without a cord

Weld Away From the Power Source


Highlights

  • ArcReach® Technology: Increase job site productivity and efficiency by making voltage adjustments remotely or at the ArcReach® wire feeder.
  • Dedicated Weld Processes: Dial in the exact arc you need with industry-leading arc performance across Stick, TIG, FCAW and MIG processes.
  • Auto-Process Select™: Decrease the chance of using incorrect weld processes with automatic process selection based on polarity.
  • Wind Tunnel Technology™: Internal airflow to protect electrical components and PC boards from dirt, dust & debris.
  • Auto-Line™ Technology: Automatically calibrates for proper operation when connected to any primary input from 208-575 V w/o requiring manual linking.
  • Cable Length Compensation (CLC™): Adjusts voltage based on cable length to provide the voltage they set, even hundreds of feet from the power source.

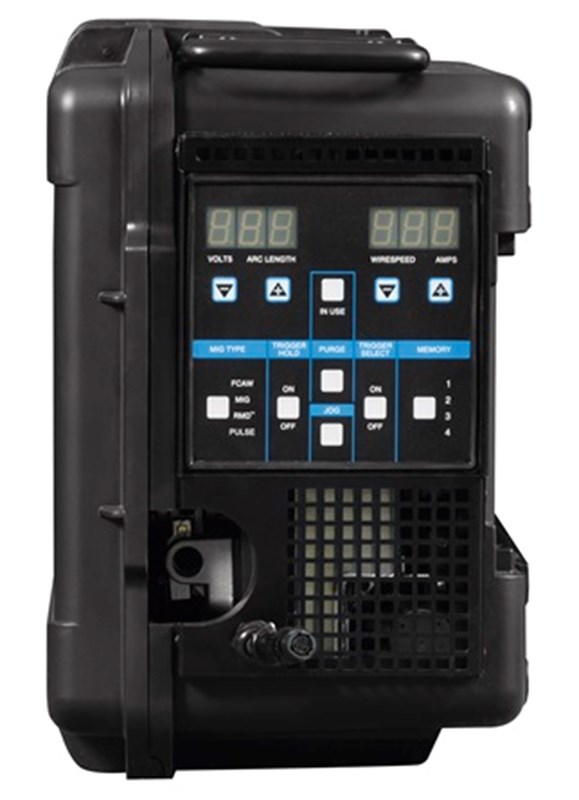

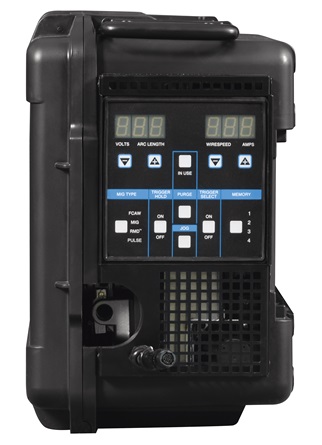

  • ArcReach® Smart Feeder: Delivers excellent RMD® and pulsed MIG welding up to 200 feet from the power source without control cords.
  • Easy Process Changeover: Connect the ArcReach® Smart Feeder to leads for RMD and Pulsed MIG welding with one wire and gas.

Benefits of the XMT 400 ArcReach #951000112:

  • ArcReach® technology allows weld operators to make parameter changes remotely or at the wire feeder instead of back at the power source, decreasing the chances of slip, trip and fall injuries.
  • Automatic control panel lockout prevents inadvertent parameter changes by other workers on the job site.
  • Weld operators can Adjust While Welding (AWW™) for faster, easier parameter changes, even while the arc is on. Only Miller offers this advanced solution.
  • ArcReach® heater compatibility lets welders take charge of preheat and bakeout applications up to 600 degrees Fahrenheit.
  • Extreme mobility as the XMT® 400 is the lightest and smallest machine in its amperage class.
  • The smart feeder’s durable design and lack of feeder control cords offer a reliable solution for harsh environments.
Miller XMT® 400 ArcReach® Multi-Process Welder - Key Features

Fast, Free Shipping & Easy Returns

Welders Supply offers quick shipping and seamless returns within 14 days. For exchanges, credits or refunds, ensure the product is in its original packaging with all manuals and accessories. A restocking fee of up to 25% may apply. For more details, contact our customer service team at 1-844-682-0205.

Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Miller & other top brands.
XMT® 400 ArcReach®, Tweco® (RMD®/Pulse System) - Specifications
Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Multiprocess
Pulsed MIG (GMAW-P)
Regulated Metal Deposition (RMD)
Stick (SMAW)
TIG (GTAW)
Industries Interests Construction and Fabrication
Heavy Equipment
Shipbuilding
Amperage 15 A - 425 A
Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel
Input Voltage 208 V
208/230/460 V
220/208 V
220/230/240 V
380/400 V
380/400/440 V
460 V
460/480 V
575 V
575/600 V
Rated Carbon Diameter 5/16 in (7.9 mm)
Input Phase 1- and 3-Phase
Input Hz 50/60 Hz
Current Type DC
Max Open Circuit Voltage 91 VDC
Metal Type Most Metals
Voltage Min 10 VDC
Voltage Max 38 VDC
Welding Mode CC/CV
Portability Handle(s)
Applications Boat/Yacht
Fabrication
Field Welding
Industrial Welding
Structural Welding
Warranty 3 Years
Miller's True Blue Warranty



SHIPPING DIMENSIONS

Height: 17.25 Inches
Width: 12.25 Inches
Length: 20.25 Inches
Weight: 75 Lb(s) 0 Oz
