Name: Multi-Handler 200 Multi-Process MIG/TIG/Stick Welder #500578
Brand: Hobart
SKU: MIL500578

Multi-Process Welding
240V Input
1-Phase Input
DC Output
CC
CV
Hobart 3-Year Warranty

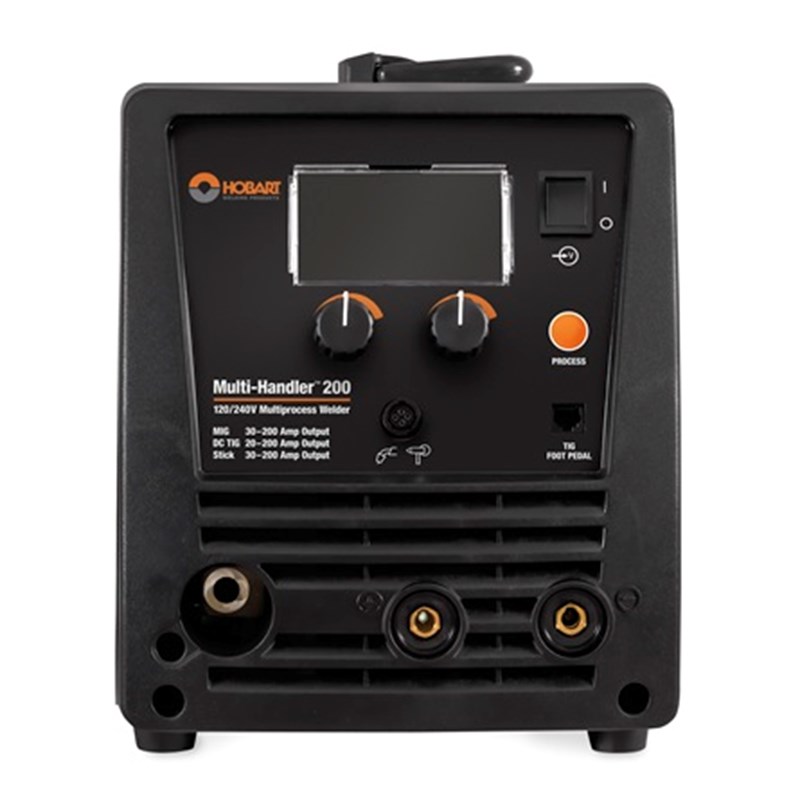

Hobart Multi-Handler 200 Multi-Process Welding Machine #500578

This multiprocess welder includes MIG, Flux cored, Stick, and DC TIG processes in one machine. The Multi-Handler 200 lets you stick weld materials up to 3/8" and TIG weld up to 3/16 inch.

Made by Hobart, a Miller Electric brand.

Highlights

Easy setup
Lightweight
Versatile
200 amps output
Multi-voltage plug (MVP) - choose 120 or 240 V input power

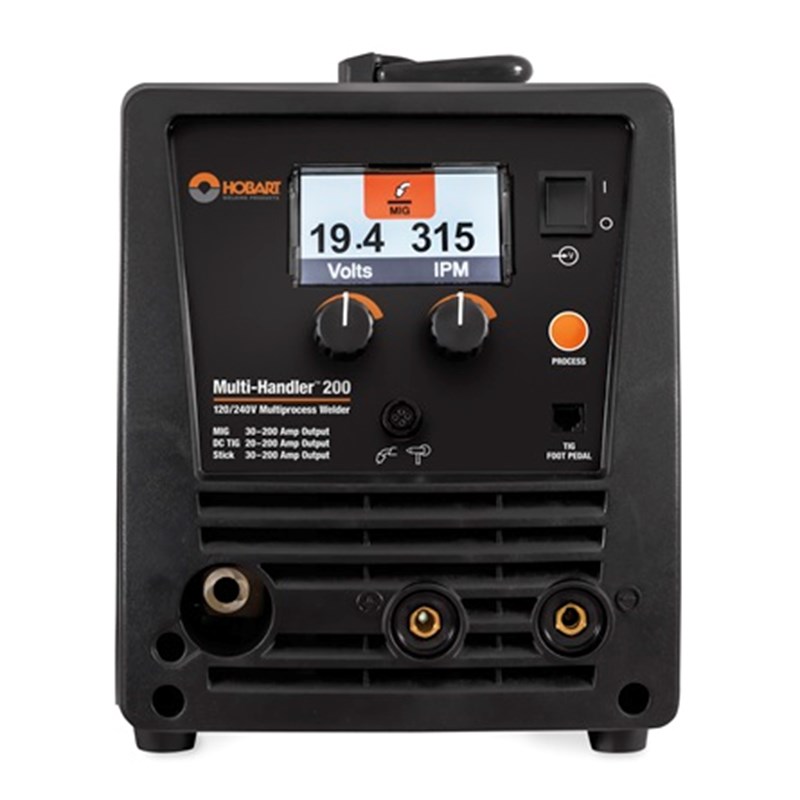

Color LCD screen
Quick process selection & parameter setting
Built-in parameter chart

Processes

Flux Cored (FCAW)
TIG DC (GTAW-DC)
MIG (GMAW)
Stick (SMAW)

Applications

Maintenance/repair
Construction
Auto body
Boat/marine
Farm/ranch
Metal art

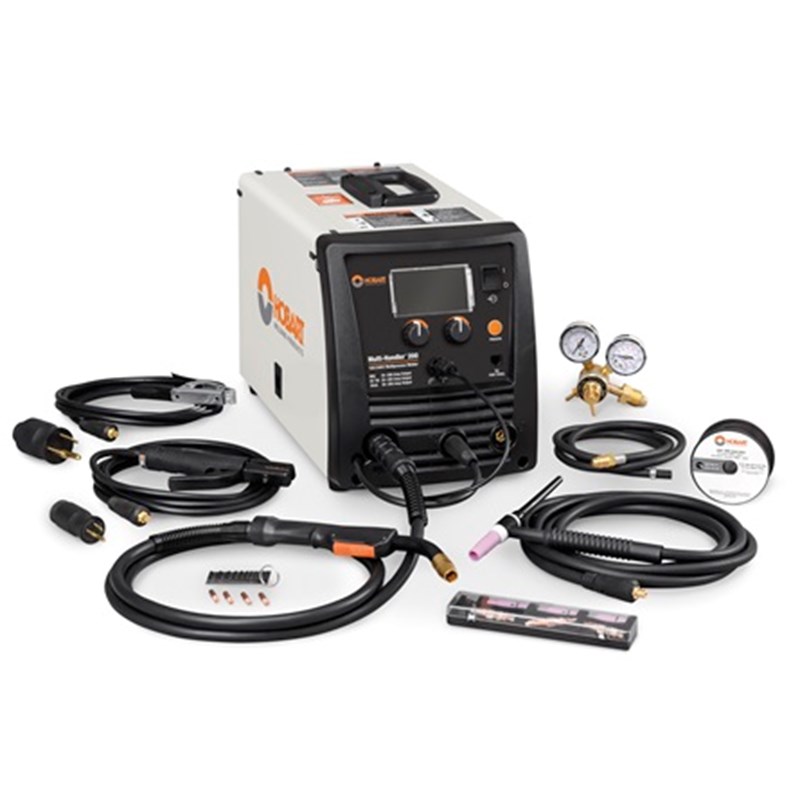

What's Included

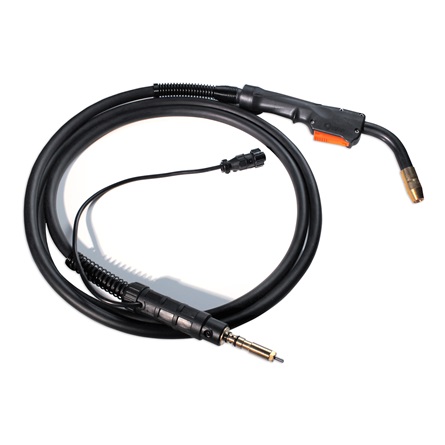

Comfortable 10 ft. (3m) HR-100 gun
10 ft. (3 m) electrode cable with heavy-duty holder
10 ft.(3m) work cable with clamp
Power cord and MVP plugs for 120 and 240 V
Built-in gas solenoid valve and dual-gauge regulator with gas hose.
Sample spool of .030 in. (0.8 mm) solid wire
Quick Select (TM) drive roll for .024 in (0.6mm) or .030/.035 in. (0.8/0/9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
.030 and .035 contact tips
Material Thickness Gauge
Insulator nozzles (#4,#5,#6), collet, collet body, electrode with 1/16 and 3/32 in. tungsten
12.5 ft. (3.8 m) TIG torch with backcap, nozzle

Not included: RFCS-RJ45 remote foot control, Shielding gas and safety equipment not included.

Capabilities of the Multi-Handler 200 Multiprocess Welder

Multiprocess Capabilities: Versatility with one machine that provides MIG, DC TIG and stick capabilities

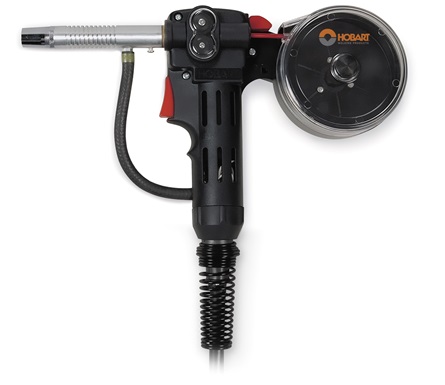

Spool Gun Ready: Spool guns enhance feedability and reduce “bird-nesting” associated with soft aluminum wires. No additional control box or adapter is required to connect the SpoolRunner™ 100 spool gun.

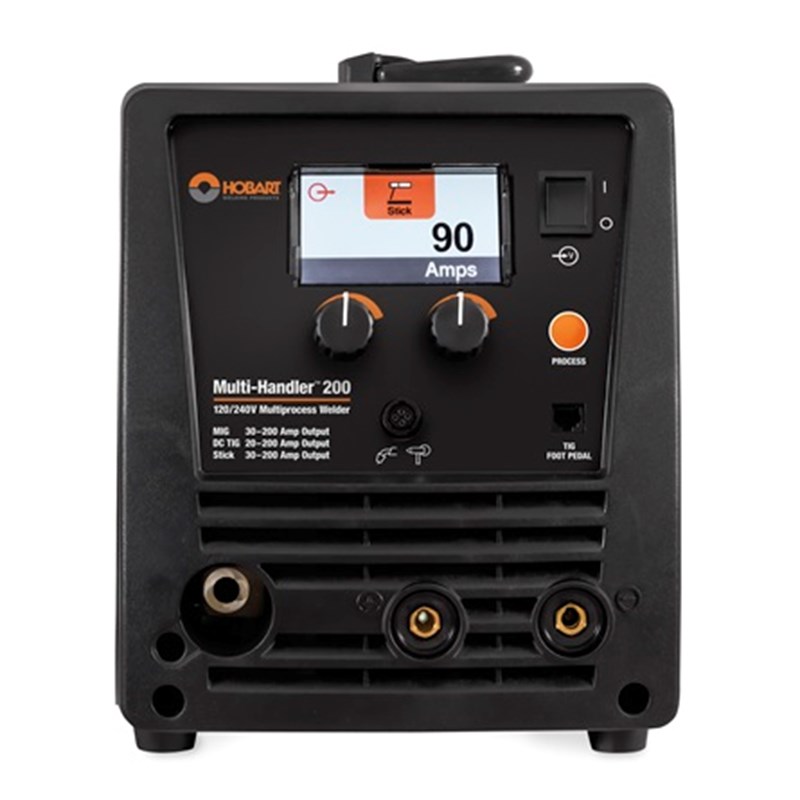

Easy-to-Use Interface: Two knobs and a process button make setting up or changing over this machine quick.
Dual-Voltage: Connect to common 120 or 240-volt power receptacles without any tools.
Quick Select Drive Roll: Makes setup quicker by offering three grooves- two for different size solid wire and a third for flux-cored wire.
Run in Technology: Experience smooth, spatter-free starts. The run-in feature automatically slows the wire feed speed to pre-set speed prior to arc initiation, improving arc starts.
Hobart 5/3/1 Warranty: Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems, one year on guns (MIG, plasma and TIG torches).

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Shop all Hobart and Miller welding equipment at the best prices online, from Welders Supply.

Multi-Handler 200 Multiprocess Welder - Specifications
Industries Interests	Racing Farm and Ranch
Amperage	30 A - 200 A
Material Thickness	Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm)
Input Phase	1-Phase
Input Hz	50/60 Hz
Max Open Circuit Voltage	63 VDC
Metal Type	Most Metals
Process	MIG (GMAW) Flux Cored (FCAW) Stick (SMAW) DC-TIG (GTAW-DC)
Welding Mode	CC/CV
Portability	Handle(s) Running Gear / Cart (Optional)
Weld Output	CC,CV
Applications	Welding Projects
Warranty	3 Years Hobart Warranty
