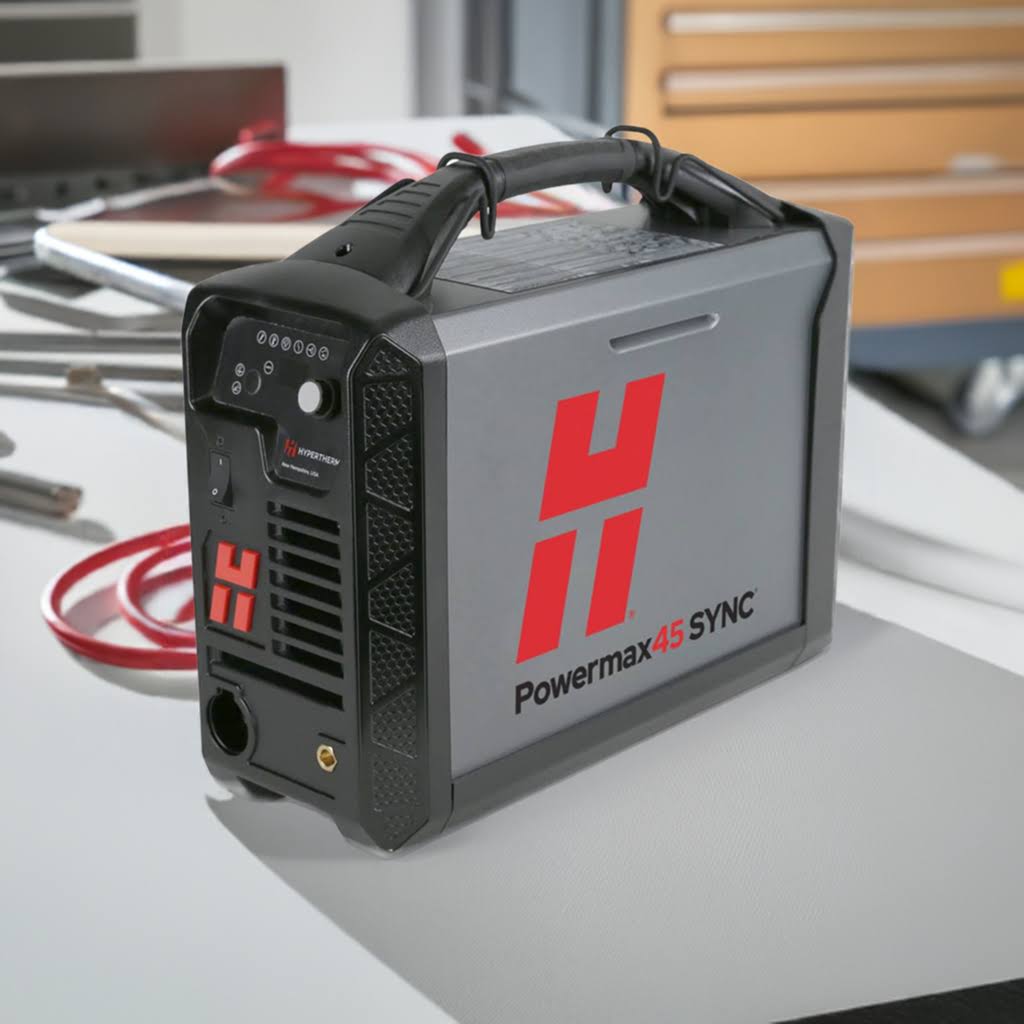

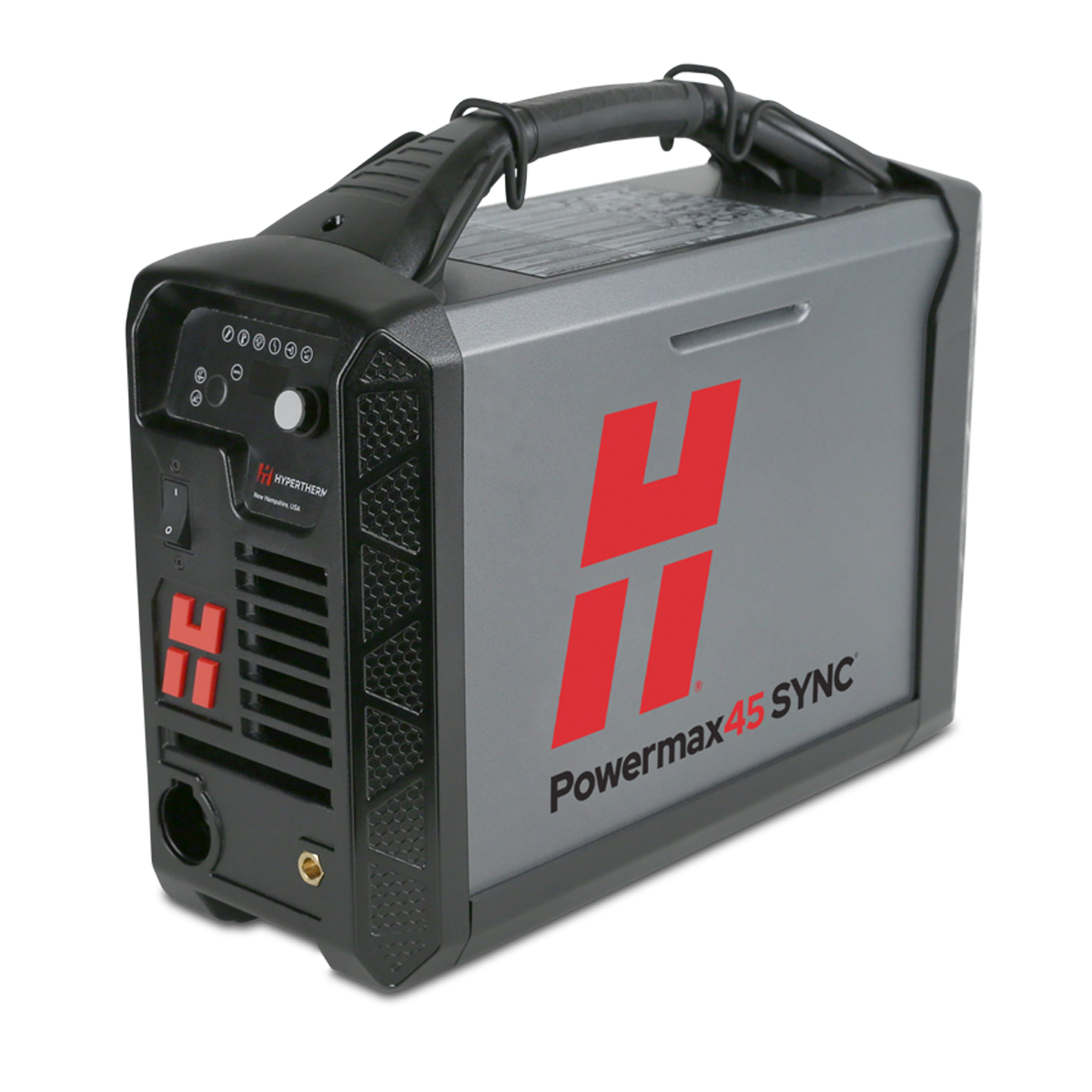

Name: Powermax45 SYNC Plasma Cutter w/ CPC Port, Power Supply Only (200-240V 1PH) #088571
Brand: Hypertherm
SKU: HYP088571

Power Supply Only
CPC Port for CNC Tables
200-240V Input
1-Phase Input
3-Year Power Warranty

Powermax45 SYNC Plasma Cutting Machine Power Supply w/ CPC Port (200-240V 1PH) #088571

Empower your cutting capabilities with the Hypertherm Powermax45 SYNC Power Supply featuring a CPC Port. Designed to optimize performance, this unit operates flawlessly on 200-240V. Seamlessly integrate additional equipment for enhanced functionality with the convenient CPC port. Engineered for reliability and precision, it's the essential component for industrial-grade cutting tasks. Elevate your workflow and unleash the full potential of your projects with the Powermax45 SYNC plasma cutter.

Free Hypertherm SmartSYNC consumable cartridge reader with Powermax45 SYNC machines

Hypertherm Powermax plasma cutter ROI Calculator button

What's Included

Powermax45 SYNC power supply w/ CPC port
Operator and Safety Manuals

Not included: SmartSYNC torch, SmartSYNC consumables

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Free consumable kit with Powermax45 SYNC 088571

Highlights

Powerful Cutting Capacity: Cuts 5/8" at 20 ipm and severs up to 1-1/8" at 5 ipm, ideal for tough materials and high-demand tasks.
CNC Connectivity: CPC port allows seamless integration with auxiliary equipment, expanding application options.
Reliable Ignition: SpringStart™ technology ensures smooth, consistent arc starts for each cut, enhancing cut quality.
Reduced Downtime: Quick consumable changes and extended cartridge life minimize interruptions, boosting productivity.
Smart Setup: RFID-enabled SmartSYNC technology auto-adjusts settings, reducing setup errors and training time.
Data-Driven Efficiency: Cartridge data analytics help optimize cutting performance and manage inventory efficiently.
Industrial Durability: Built for rugged environments, ensuring long-term, reliable performance.

Plasma Cutting Applications:

High-Volume Applications

Mechanized Cutting: Optimize production with automated or CNC cutting for precise, repeatable parts. Ideal for fabrication, shipbuilding, and heavy equipment.
Drag Cutting: Rapidly cut straight lines and simple shapes on thick materials. Suitable for scrap metal processing and construction.

Detail-Oriented Applications

Fine Feature Cutting: Achieve intricate cuts with minimal kerf width and dross. Perfect for automotive, aerospace, and mold and die industries.
Flush Cutting: Prepare edges for welding or beveling by cutting close to the base material. Commonly used in shipbuilding and structural fabrication.

Material Removal Applications

Max Removal Gouging: Aggressively remove metal for salvage, demolition, and heavy-duty repairs.
Max Control Gouging: Precisely remove metal for weld prep, surface cleaning, and creating grooves. Ideal for maintenance and repair.

Powermax45 SYNC Benefits:

Enhanced Productivity and Efficiency

Reduced downtime: Rapid consumable changes and extended lifespan minimize interruptions.
Optimized performance: SmartSYNC technology and cartridge data analytics optimize cutting parameters.
Lower operating costs: Minimize training, troubleshooting, and consumable waste.

Improved Operator Experience

Simplified operation: Intuitive design and on-torch controls for easy use.
Increased comfort: Flexible torch leads reduce operator fatigue.
Accurate results: Color-coded cartridges and automated settings prevent errors.

Superior Cutting Performance

Reliable ignition: SpringStart™ technology ensures consistent arc starts.
Versatile applications: Handle various cutting and gouging tasks with ease.
Optimized cut quality: Advanced cartridge design and precise amperage control for superior results.

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 XP Power Supply w/ CPC Port (220V) #088104

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V
Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz
