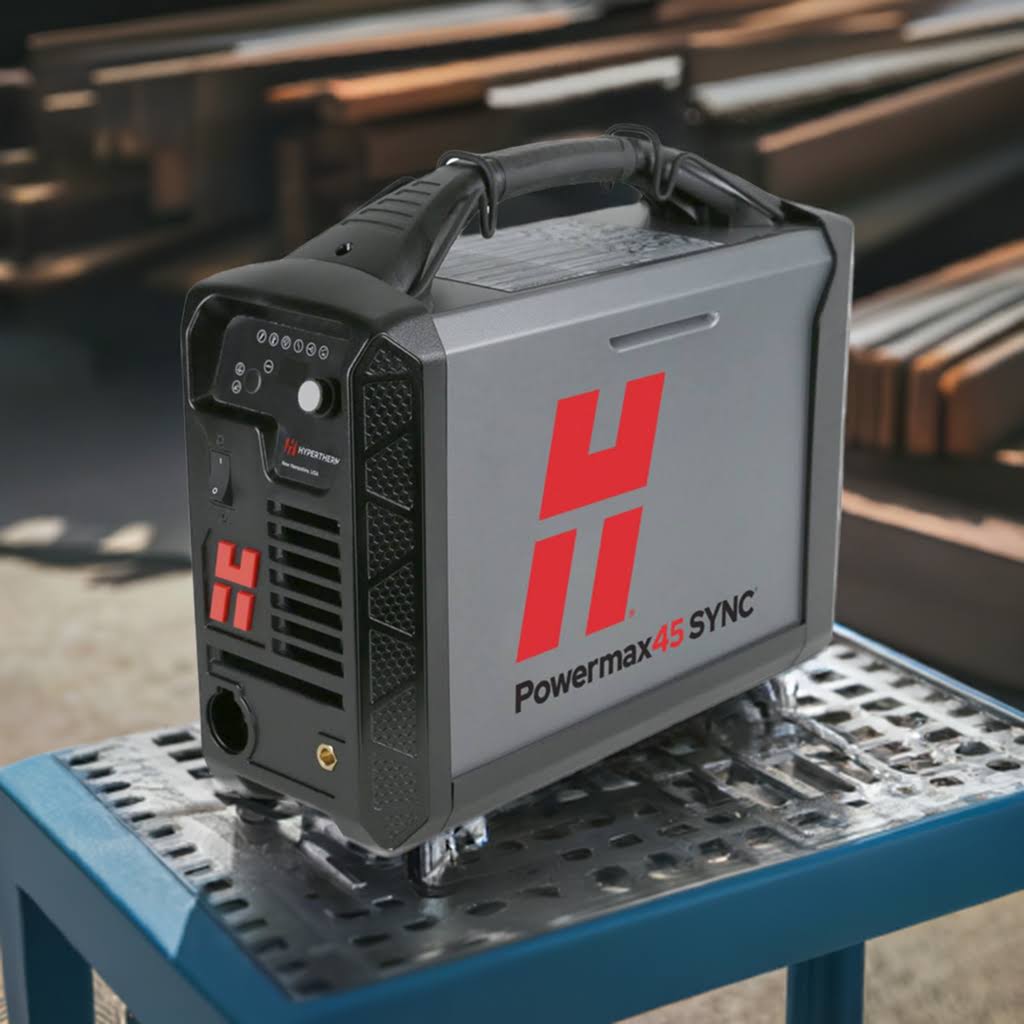

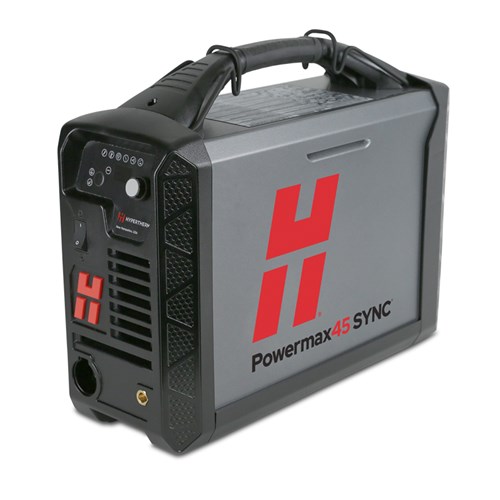

Name: Powermax45 SYNC Plasma Cutter w/ CPC & Serial Ports, Power Supply Only (200-240V 1PH) #088572
Brand: Hypertherm
SKU: HYP088572

Power Supply Only
CPC/Serial Port for CNC tables
200-240V Input
1-Phase Input
3-Year Power Warranty

Powermax45 SYNC Plasma Cutting Machine Power Supply w/ CPC & Serial Ports (200-240V 1PH) #088572

Experience unparalleled cutting precision with the Hypertherm Powermax45 SYNC power supply, equipped with both CPC and Serial Ports. Operating seamlessly on 200-240V, this unit is designed to elevate your cutting capabilities to new heights. Seamlessly integrate auxiliary equipment for enhanced functionality with the convenient CPC and Serial ports. Engineered for reliability and performance, it's the cornerstone of industrial-grade cutting operations. Power up your projects and unlock a new level of efficiency with the Powermax45 SYNC plasma cutter.

Free Hypertherm SmartSYNC consumable cartridge reader with Powermax45 SYNC machines

Hypertherm Powermax plasma cutter ROI Calculator button

What's Included

Powermax45 SYNC power supply w/ CPC & serial ports
Operator and Safety Manuals

Not included: SmartSYNC torch, SmartSYNC consumables

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Free consumable kit with Powermax45 SYNC 088572

Highlights

Enhanced CNC Connectivity: CPC and Serial ports allow seamless integration with auxiliary equipment, enhancing versatility.
Precise Cut Capacity: Cuts 5/8" at 20 ipm, with severance capability up to 1-1/8", ensuring high-quality results.
Industrial Power: Operates at 200-240V, delivering reliable, high-performance cutting for industrial applications.
Reduced Downtime: Quick consumable changes and end-of-life alerts minimize interruptions, boosting productivity.
Reliable Ignition: SpringStart™ technology ensures consistent, smooth starts for every cut.
Smart Setup: SmartSYNC technology auto-adjusts amperage, reducing setup errors and simplifying operation.
Rugged Design: Engineered for tough environments, ensuring long-lasting durability and reliable performance.

Plasma Cutting Applications:

Drag cutting: Maintain direct contact between the torch tip and the workpiece for precise, clean cuts at shallow angles.
Bevel cutting: Angle the plasma torch to create beveled edges on metal, perfect for weld prep or creating complex geometries.
Gouging: Remove unwanted material by using a plasma torch to carve or groove the metal surface with controlled depth.
Flush cutting: Cut flush to the surface to remove metal components with minimal standoff, leaving a smooth finish.
Extended reach cutting: Utilize a longer torch to access and cut in hard-to-reach or confined areas with precision.
Fine feature cutting: Achieve intricate cuts on small parts or thin materials with high precision and minimal heat distortion.

Powermax45 SYNC plasma cutting application chart

Powermax45 SYNC Benefits:

Simplified Operations

Reduces training and troubleshooting costs
Minimizes downtime for consumable changes
Provides data-driven insights for optimized operations

Ease of Use

Clear laser marking and color coding for easy cartridge identification
Automatic amperage and mode adjustments with SmartSYNC
End-of-life consumable detection for timely replacements
Reduced operator fatigue with flexible lead for hand torches

Maximized Performance

Versatility with various torch styles and application-specific cartridges
Extended cartridge lifespan for both handheld and mechanized cutting
On-the-fly amperage adjustments and cartridge changes for efficiency

Industry-Leading Reliability

Rugged design for industrial environments
Consistent starting with SpringStart technology
Minimized downtime due to exceptional reliability

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V
Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz
