Powermax45 SYNC Plasma Cutter - 230V, CPC Port, 180° Machine Torch, 50ft Lead #88581

Powermax45 SYNC plasma cutter business benefits

Powermax45 SYNC plasma cutter industry applications

Powermax45 SYNC plasma cutter torches & consumable cartridges

Powermax45 SYNC plasma cutter cut and gouge capacities

Powermax45 SYNC plasma cutter quick specs & gas information

Hypertherm Powermax45 SYNC Plasma Cutter w/ CPC Port, 180° Machine Torch, 50ft Lead (200-240V 1PH) #088581

Name: Hypertherm Powermax45 SYNC Plasma Cutter w/ 50' Machine Torch & CPC Port #088581
Brand: Hypertherm
SKU: HYP088581

Part Number: 088581

UPC: 662310523985

Rebate Forms:

Free SmartSYNC Cartridge Reader

$3,525.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

50' Leads
CPC Port for CNC Tables
180° Machine Torch
220-240V Input
1-Phase Input
3-Year Power Warranty

Hypertherm Powermax45 SYNC Plasma Cutter w/ CPC Port, 180° Machine Torch, 50ft Lead (200-240V 1PH) #088581

Experience precision cutting like never before with the Hypertherm Powermax45 SYNC plasma cutter. Operating at 230V, this cutter offers unmatched performance and reliability. Seamlessly integrate auxiliary equipment with the convenient CPC port for enhanced versatility. Maneuver effortlessly with the 180° machine torch, ensuring precise cuts from any angle. With an impressive 50ft lead, tackle projects of any scale with confidence and ease. Elevate your cutting game with the Powermax45 SYNC from Hypertherm - the ultimate solution for precision cutting.

Free Hypertherm SmartSYNC consumable cartridge reader with Powermax45 SYNC machines

Hypertherm Powermax plasma cutter ROI Calculator button

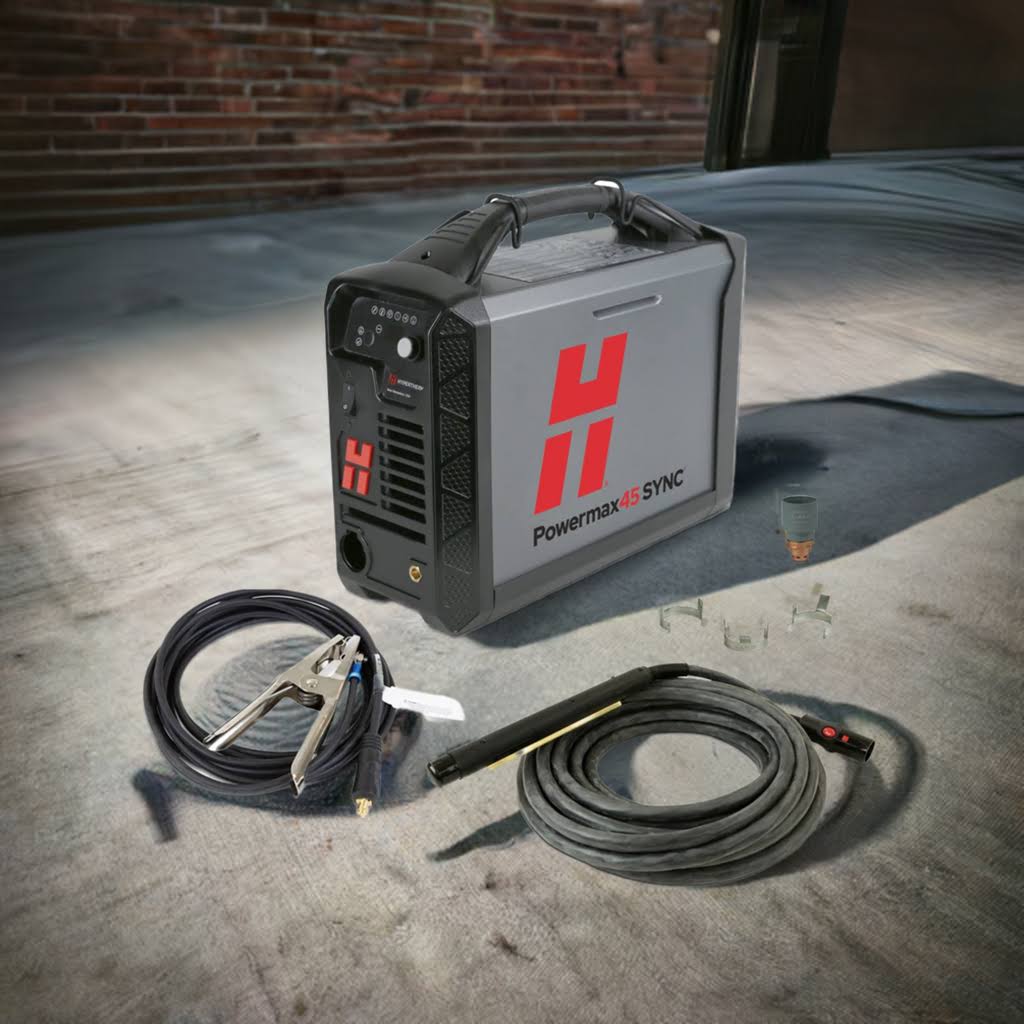

What's Included

Powermax45 SYNC power supply w/ CPC port
180° machanized SmartSYNC torch
50ft torch lead
50ft work clamp
10ft power cable
(1) Mechanized cutting cartridge
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

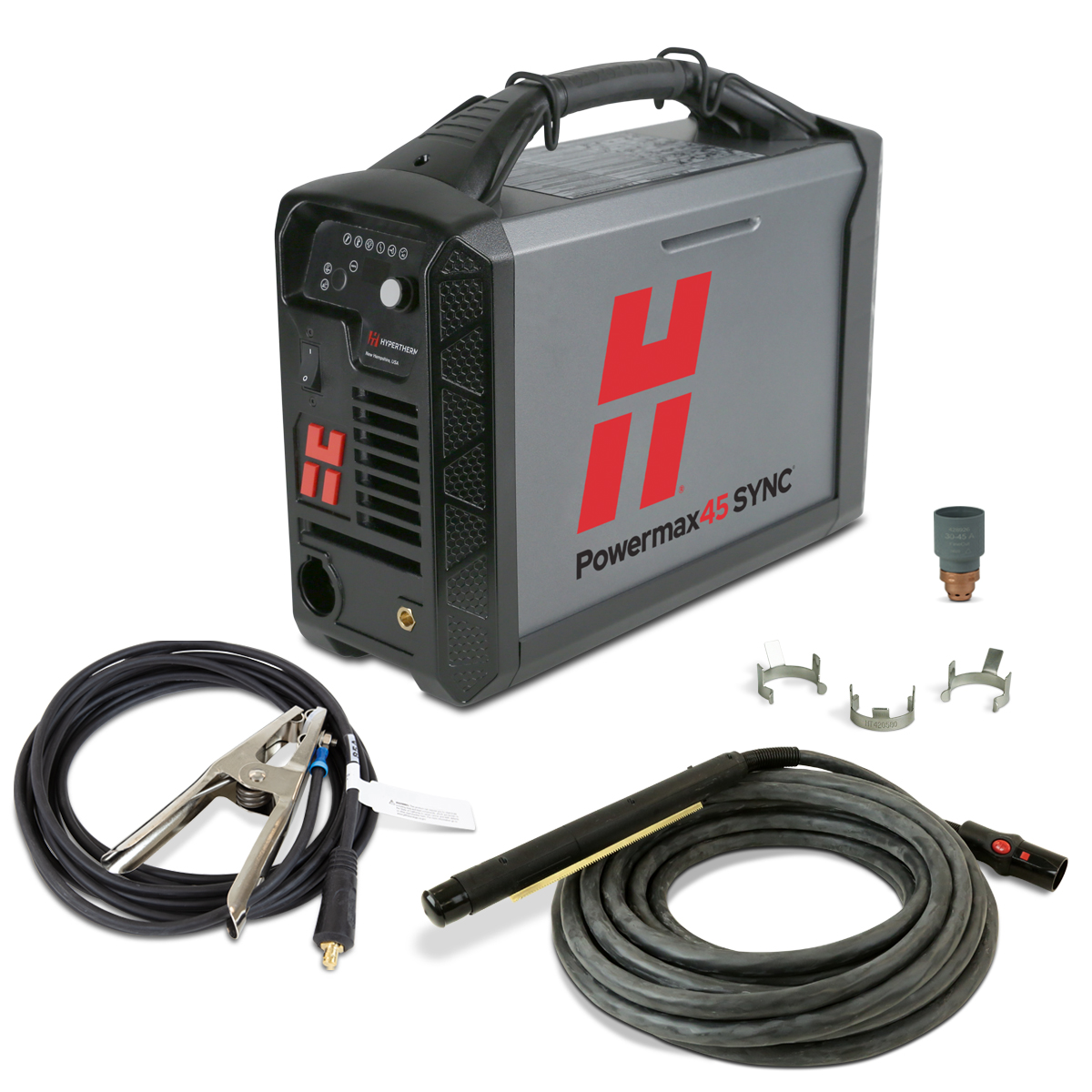

Powermax45 SYNC 088581 - What's Included

Highlights

Mechanized CNC Integration: CPC port enables easy connection with auxiliary equipment, expanding versatility.
Extended Reach: 50-foot lead provides flexibility for large projects, reducing repositioning needs.
Precision Cutting: 180° machine torch delivers accurate cuts from any angle, ideal for intricate and complex shapes.
Long Cartridge Life: SmartSYNC cartridges last up to 2x longer, reducing downtime and consumable costs.
Reliable Ignition: SpringStart™ technology ensures consistent starts for smooth, high-quality cuts.
Error-Free Setup: RFID-enabled SmartSYNC technology auto-adjusts settings, preventing setup errors.
Industrial Durability: Built to withstand harsh environments, ensuring reliable, long-term performance.

Plasma Cutting Applications:

Drag cutting: Slowly move the torch along the cutting path, applying pressure to maintain a stable cut.
Bevel cutting: Create angled cuts using a beveling head or by adjusting the torch angle.
Gouging: Remove material from a workpiece by creating a deep groove.
Flush cutting: Cut close to the edge of a workpiece without causing burn-through.
Extended reach cutting: Cut at a distance from the torch using a longer consumable.
Fine feature cutting: Create small, intricate shapes with precision.

Powermax45 SYNC Benefits:

Operational Efficiency

Streamlined operation: Reduces training and troubleshooting costs
Minimized downtime: Faster consumable changes, eliminates premature disposal
Data-driven insights: Optimizes cutting operations and inventory management

User-Friendly Design

Intuitive cartridges: Color-coded and laser-marked for easy identification
Smart setup: RFID-enabled SmartSYNC technology prevents errors
End-of-life detection: Eliminates guesswork in consumable replacement
Ergonomic design: Flexible torch lead reduces operator fatigue

Performance Enhancement

Versatile application: Easy switching between torch styles and cartridges
Extended lifespan: Up to 2x longer consumable life for handheld cutting
Consistent quality: Maintains cut quality throughout cartridge life
On-torch controls: Allows amperage adjustments and cartridge changes at the torch

Industrial-Grade Reliability

Rugged construction: SmartSYNC torches built for harsh environments
Consistent ignition: SpringStart™ technology ensures reliable starts
Minimal downtime: Industry-leading reliability for continuous production

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 XP w/ 50' 180° Machine Torch, CPC (220V) #088122

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V
Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz
