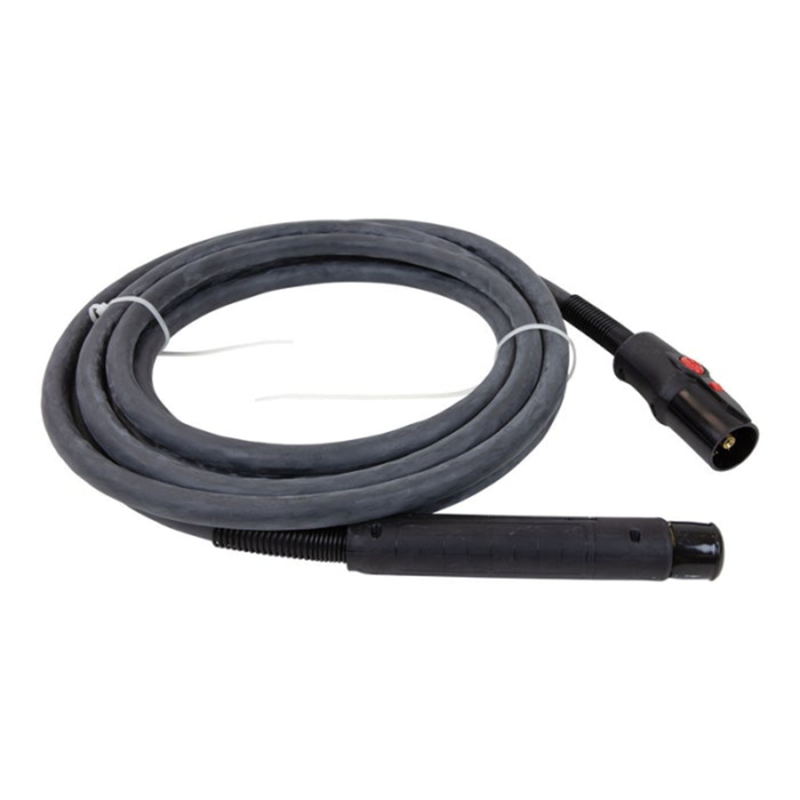

Hypertherm Powermax 25' SmartSYNC 90° Robotic/Mini Torch #059731

Name: Powermax 25' SmartSYNC 90° Robotic/Mini Torch #059731
Brand: Hypertherm
SKU: 059731

Hypertherm Powermax 7.6 m (25' ) SmartSYNC 90° Robotic/Mini Torch #059731

For robotic jobs

The light weight, small size, and built-in positioning features of SmartSYNC robotic/mini torches enable easy integration and operation with light robot arms. Optional clamps and teach tools speed up integration.

Compatible with Hypertherm's SmartSYNC consumable cartridges.

Maximize performance

Tackle a wide range of jobs with easily interchangeable torch styles and application-specific Hypertherm cartridge consumables for various types of cutting and gouging.
Reduce training time with simplified set up and consistent performance.
Time-saving torch controls allow the operator to adjust the amperage on the fly and change consumables and applications without returning to the power supply.

Industry-leading reliability

SmartSYNC™ torches are engineered for rugged, industrial environments.
SpringStart™ technology ensures consistent starting and a more reliable torch.
Industry-leading reliability reduces production downtime.

Browse all Hypertherm Powermax SYNC plasma cutters, SmartSYNC torches and consumable cartridges available online from Welders Supply.

All Hypertherm SmartSYNC Torches
	Hand torches		Machine torches	Robotic/Mini torches
	75°	15°	180°	180°	90°	45°
15ft (4.5 m)				059733
25 ft (7.6 m)	059726	059723	059719	059734	059731	059729
35 ft (10.7 m)			059720
50 ft (15.2 m)	059727	059724	059721	059735	059732	059730
75 ft (22.8 m)	059728	059725	059722

SmartSYNC 90° Robotic/Mini Torch #059731 - Specifications
Torch type	Robotic/Mini
Lead length	25 ft (7.6 m)
Torch angle	90°
Compatible plasma cutters	All Hypertherm Powermax SYNC plasma cutter systems
Compatible consumables	All Hypertherm SmartSync consumable cartridges
Consumable change time	~10 seconds

NEW Hypertherm SmartSYNC Series

SmartSYNC™ torch automatically adjusts the amperage and chooses the right cutting mode.Hypertherm Powermax SYNC Explained Hypertherm Powermax SYNC Cartridge Installation When to Change Powermax SmartSYNC Cartridges
