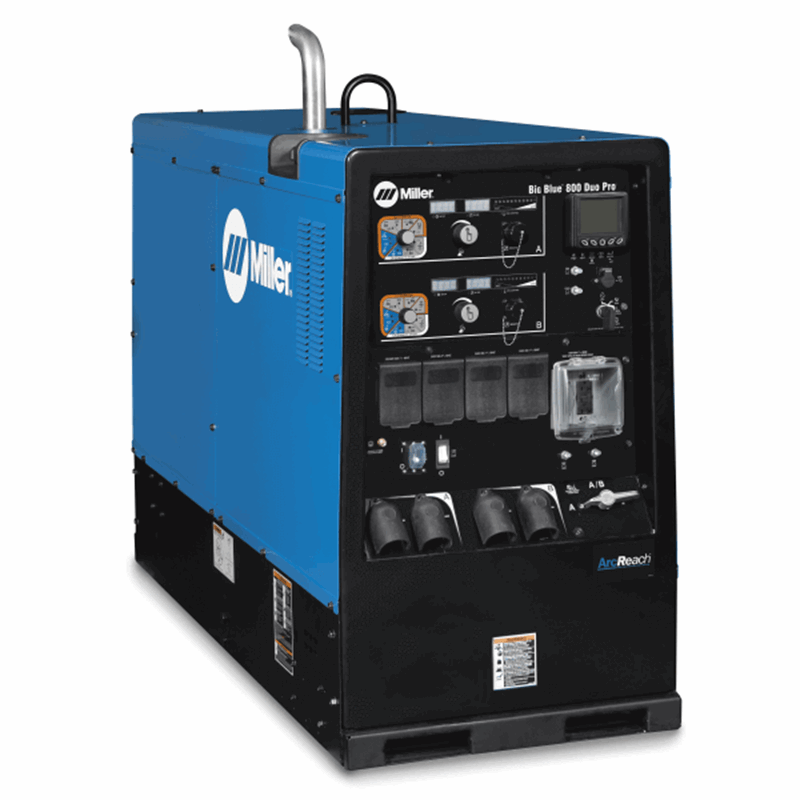

Miller Big Blue® 800 Duo Pro #907751
Miller’s Big Blue® 800 Series is the most powerful lineup of diesel welder/generators in the industry. If you want more power, the Duo Pro packs 800 amps of weld power and 27,000 watts of peak generator power. Plug in additional inverters and the Duo Pro becomes a multi-operator platform!
The digital meters are equipped with SunVisionTM technology that allows welding parameters to be viewed more clearly at any angle – especially in direct sunlight. With ArcReach® Remote Control Technology, the Duo Pro allows for remote control of the power source without a control cord. This means reduced maintenance, less time troubleshooting problems from damaged control cords, and no more costly control cord repairs. And with an HD powder coat with zinc-rich primer, your Miller Big Blue® Duo Pro is protected from rust and corrosion, so you can rely on it for years to come.
A complete multi-process & multi-operator welder/generator that delivers two independent pipe quality arcs in one complete package. Upgrade to the SF model to unlock advanced RMD® & Pulsed MIG processes with the FieldPro™ Smart Feeder.
What's Included:
- ArcReach® Remote Control Technology
- Vandalism Lockout Kit
Check out the wide selection of welding machines including MIG welders, TIG welders, Stick welders and Gas welding & cutting equipment available at Welders Supply Company.
Other versions of the Big Blue 800:
Processes:
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
- Stick (SMAW)
- Pulsed MIG (GMAW-P)
- RMD
- TIG DC (GTAW-DC)
Miller Big Blue 800 Duo Pro Specifications: | |
---|---|
Industries Interests | Construction Cross Country Pipeline Infrastructure Maintenance and Repair - Field Operations Mechanical Contracting Pipe Fabrication / Construction Work / Service Trucks |
Carbon Diameter | 1/2 in (12.7 mm) |
Cold Weather Starting Aids | Engine Block Heater Glow Plugs |
Current Type | DC |
Engine Brand | Deutz |
Engine Compliance | T4F |
Engine Idle Speed | 1350 RPM |
Portability | Lift Eye (Standard) Trailer (Optional) Fork Pockets |
Engine Weld Speed | 1800 RPM |
Fuel Tank Size | 25 Gallon |
Net Height | 46 in |
Fuel Type | Diesel |
Net Length | 69.5 in |
Horsepower | 65.7 hp |
Max Open Circuit Voltage | 85 VDC |
Net Weight | 1870 lbs |
Weldable Metals | Steel Stainless Steel |
Net Width | 28.5 in |
Single Phase Generator Continuous Power | 12000 W |
Warranty | Engine Warranties Miller's True Blue Warranty |
Single Phase Generator Peak Power | 15000 W |
Sound Rating | Idle: 71.3 dB / Weld: 78.9 dB |
Three Phase Generator Continuous Power | 20000 W |
Three Phase Generator Peak Power | 27000 W |
Amperage Range | 20 - 800 |
SHIPPING DIMENSIONS |
|
Height: | 48.00 Inches |
Width: | 30.00 Inches |
Length: | 71.00 Inches |
Weight: | 1920 Lb(s) 0 Oz |
