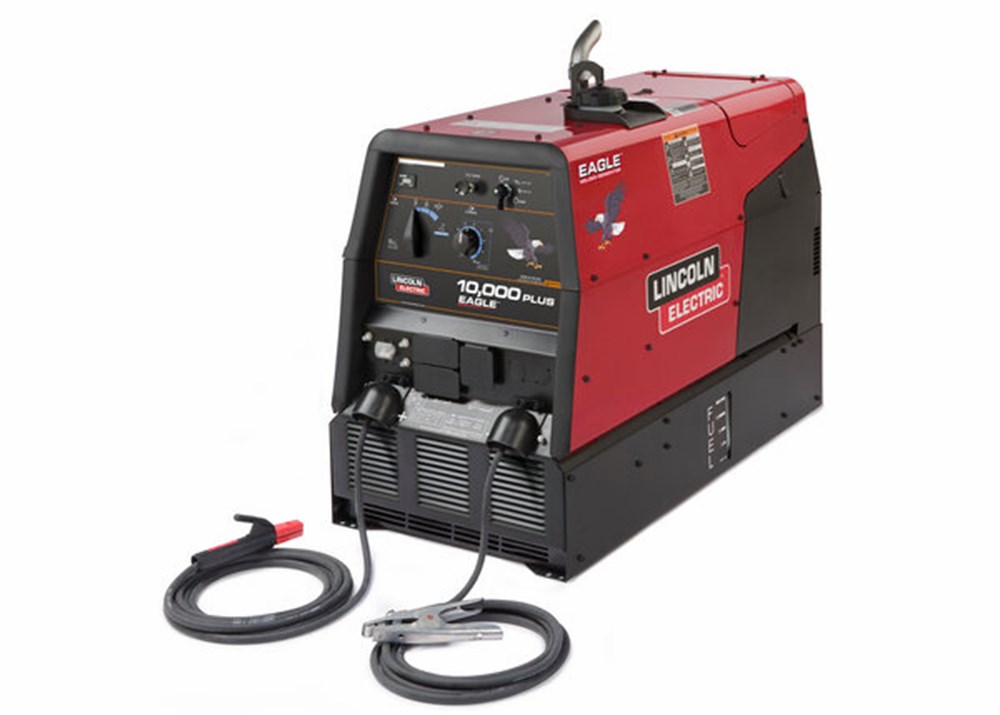

Lincoln Electric Eagle™ 10,000 Plus Engine Driven Welder (Kohler®) #K2343-3

Lincoln Eagle™ 10,000 Plus Engine Driven Welder (Kohler®), Multi-Process #K2343-3

Efficiency, Power, and Durability Combined

The Lincoln Electric Eagle 10,000 Plus is a versatile and rugged welding machine best for the construction site, maintenance crews, and even farmers and ranchers. The Eagle 10,000 Plus has the ability to handle MIG, Stick, Flux Core, and TIG welding giving you the ability to tackle a range of welding tasks. The 10,500 watts of surge AC generator power and 9,000 watts of continuous power plus the 12-gallon fuel tank make it perfect for more than just your welding needs. It can power lights, power tools, Lincoln Electric inverter, plasma cutter, and even emergency power. Designed with a fully protected engine the Eagle 10,000 Plus has a low noise output while maintaining its power and durability. The DC welding output is incredibly smooth and allows for a variety of stick electrode types. Soar with the Lincoln Electric Eagle 10,000 Plus for all your welding and generator needs.

Features of the Eagle™ 10,000 Plus

• Includes 20 ft. (6.0 m) of #2 electrode cable, electrode holder, 15 ft. (4.5 m) of #2 work cable and work clamp to get You started!
• Totally Enclosed Case
• Versatile DC Welding
• 10,500 Watts Surge Single-Phase AC Generator Power
• 23 HP Kohler® Gasoline Engine

Make Work Fly with an Eagle™ 10,000 Plus!

A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Eagle™ 10,000 Plus does a variety of basic welding jobs. And with 10,500 watts of surge AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power.

Totally Enclosed Case

• Engine is fully protected.
• 3 service access doors.
• Low noise - 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.

Versatile DC Welding

• Smooth DC welding output for a broad range of stick electrode types.
• MIG, flux-cored and basic TIG welding in constant current mode (with optional equipment).

Welding Accessories Included

• 20 ft. (6.0 m) of #2 electrode cable
• Electrode holder
• 15 ft. (4.5 m) of #2 work cable and work clamp to get you started!
• 10,500 Watts Surge Single-Phase AC Generator PowerSurge for motor starting.
• 9,000 watts continuous power for generator, plasma cutter or inverter welder.
• Lights, grinder, power tools.

23 HP Kohler® Gasoline Engine

• 2 cylinder, 4 cycle overhead valve air-cooled design.
• Oil drain extension for easy oil changes.
• 12 gallon tank for extended run times.
• Only 1.3 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.

Rugged Reliability

• Welding and AC generator outputs rated at 104°F (40°C).

A constant voltage (CV) power source is recommended for wire feeder applications. The across-the-arc Lincoln Electric LN-Series wire feeders may be used with a constant current (CC) power source, such as the Eagle™ 10,000 Plus, for non-critical applications where weld quality and deposition properties are not critical.

Shop all engine driven welders and welding safety equipment available online from Welders Supply.
