Miller Big Blue® 400 Pro (Kubota) Engine-Driven Welder #907732

Name: Big Blue® 400 Pro (Kubota) Engine-Driven Welder #907732
Brand: Miller Welding
SKU: 907732
Rating: 5.0 (3 reviews)

Part Number: 907732

UPC: 715959649476

3 Reviews

$23,057.00 + Free Shipping $23,057.00*

SAVE $0.00

Qualifies for IRS 179 Sale

Features
Specs
Documents
Videos
Accessories
Consumables
Reviews
FAQS

Kubota V1505 Diesel Engine
120V Engine Block Heater
Stick Welding
MIG Welding
TIG Welding
3-Year Miller Warranty

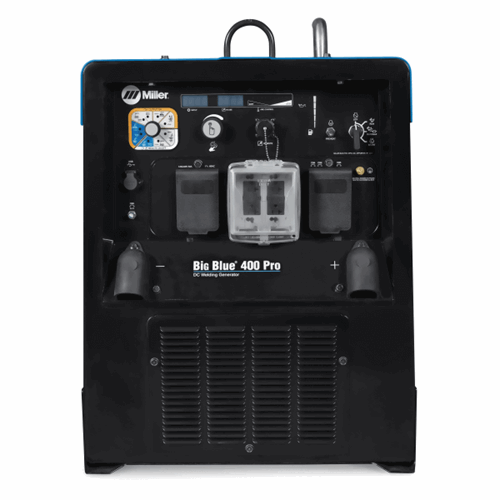

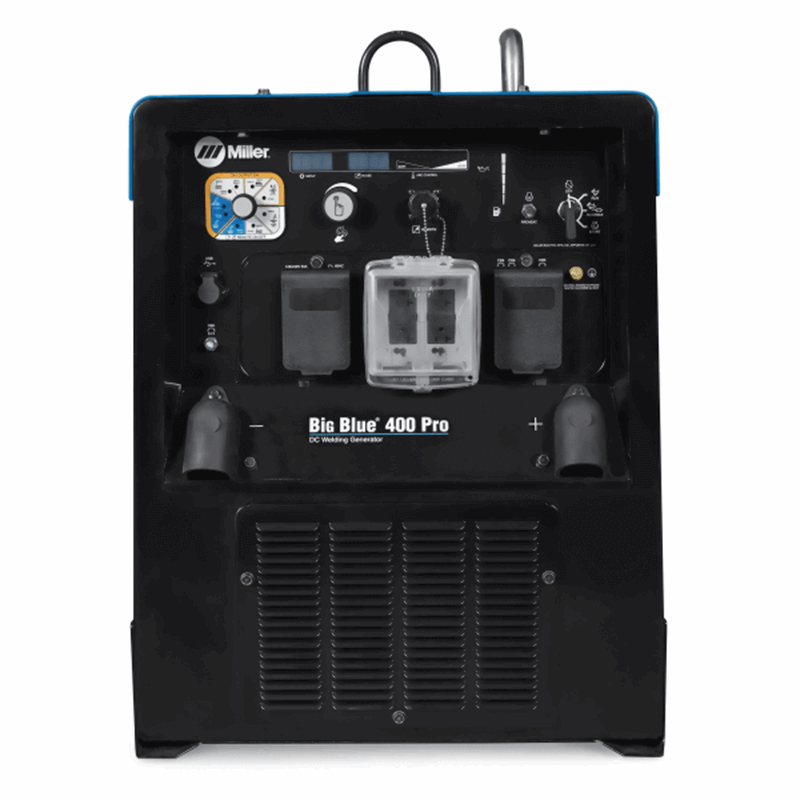

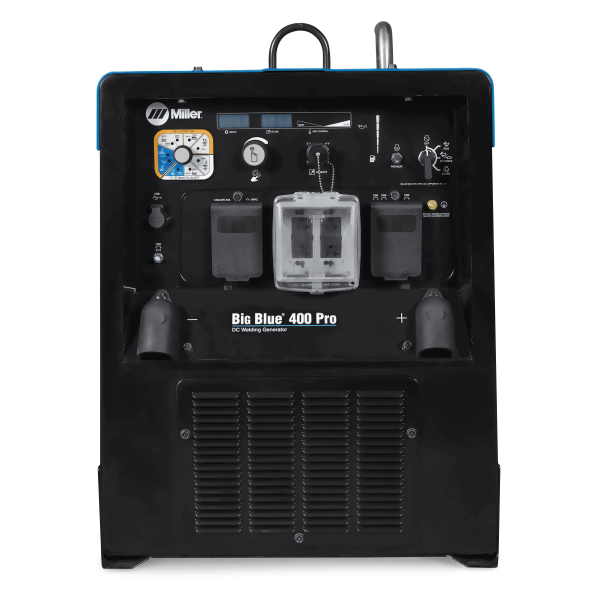

Miller Big Blue® 400 Pro (Kubota) #907732

The Big Blue 400 Pro is designed with a focus on ease of use, overall reliability, and fuel efficiency for reduced costs and a more profitable job. In other words, it's designed for professionals, by professionals.

Heavy-Duty Low-Speed Kubota V1505 Industrial Diesel Engine

Used in industrial applications around the world, the V1505 is designed to run 10,000 hours before major overhaul. Backed by worldwide support and service.

Quiet Operation

Allows for effective communication and improves work site safety.

Digital Meters with SunVision™

Enables welding parameters to be viewed with greater clarity at virtually any angle. Meters easy-to-read even in direct sunlight.

Industrial USB Port

Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.

Auto Remote Sense™ (ARS)

Detects if remote control is plugged into the 14-pin receptacle and eliminates the confusion of a remote/panel switch.

Simple-to-Set Controls

Requires no elaborate procedure - just select process and weld!

HD Powder Coat

All painted sheet metal is pretreated with a zinc-rich primer to provide extra protection against rust & corrosion (comparable to stainless steel).

Advanced Features for the Professional Welder

Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion.
Infinite arc control available in the Stick and Wire modes for easier fine-tuning of tough-to-weld materials and out-of-position applications.
Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.

Low OCV Stick (VRD)

When activated, reduces the open-circuit voltage to 15 volts when the power source is not in use, increasing operator safety without compromising arc starts.

Other Standard Features

Output contactor control, automatic idle, thermal overload protection, and 120-volt engine block heater.

View our other welding machines, welding machine accessories, and safety equipment.

Other Versions of the Miller Big Blue® 400:

Miller Big Blue® 400 Pro (Kubota) Specifications
Title	Big Blue® 400 Pro (Kubota)
Industries Interests	Construction Fabrication Infrastructure Maintenance and Repair - Field Operations Mechanical Contracting Pipe Fabrication / Construction Work / Service Trucks
Processes	Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Stick (SMAW) TIG DC (GTAW-DC)
Cold Weather Starting Aids	Engine Block Heater Glow Plugs
Engine Brand	Kubota
Engine Compliance	T4F
Engine Idle Speed	1500 RPM
Engine Weld Speed	1800 RPM
Fuel Tank Size	11.5 Gallons
Fuel Type	Diesel
Horsepower	20.2 hp
Weldable Metals	Steel Stainless Steel
Rated Output	400 A at 24 V, 100% Duty Cycle 350 A at 27 V, 100% Duty Cycle 300 A at 32 V, 100% Duty Cycle
Single Phase Generator Continuous Power	10000 W
Single Phase Generator Peak Power	12000 W
Sound Rating	Idle: 66 dB, Weld: 71.6 dB dB
Carbon Diameter	3/16 in (4.8 mm)
Current Type	DC
Max Open Circuit Voltage	85 VDC
Amperage Range	20 - 400
Net Width	26.25 in
Net Height	32 in
Net Length	56 in
Net Weight	950 lbs
Warranty	Engine Warranties Miller's True Blue Warranty
Portability	Lift Eye (Standard) Trailer (Optional)
Weld Output	CC

SHIPPING DIMENSIONS
Height:	34.00 Inches
Width:	28.25 Inches
Length:	58.00 Inches
Weight:	1000 Lb(s) 0 Oz

Big Blue 400 Pro #907732 Spec Sheet

Accessories

Consumables

Bobcat™ / Trailblazer® / Big Blue® Full KVA A...

$148.30

View

RHC-14 REMOTE HAND CONTROL W/CABLE 20 FT #242...

$462.00

View

Spark Arrestor, Muffler #300585

$472.25

View

Spoolmatic 30A #130831

$2,049.00

View

SuitCase® 12RC, BTB 300A Gun #951580

$4,402.00

View

Miller 24 VAC Welding Machine Weld Control Unit #137549

WC-24 Weld Control #137549

$567.75

View

Wireless Remote Antenna Adapter Kit #300749

$185.70

View

Protective Cover for Miller Big Blue 350/450 #195301

Big Blue® 350 PipePro/400 Pro/450 Duo CST Pro...

$644.75

View

120 or 240 VAC Single-Phase Full KVA Plug Kits for Miller Power Supplies

Bobcat™ / Trailblazer® / Big Blue® Full Singl...

$124.15

View

Highway Mid Frame Trailer #301438

$4,400.00

View

Manufacturer Reviews

Andrew

I'm a 798 Pipeliner. I have always been a die hard Lincoln man. It was time for me to purchase a new machine. I tested out side by side the same day the Lincoln SAE 300 Mp, MP Classic & the Miller Big Blue 400. I have just put the Big Blue 400 Pro on my welding rig. The Miller offered so much more control on the settings then the Lincoln. The price value for what the Miller offered compared to the Lincoln was much better. And the new Wireless Interface remote system is outstanding. With this remote you can adjust any setting on the fly from the ditch that you could do standing in front of the machine. I made fun & insulted my friends (in a friendly manner) when they bought their Miller's. Now it's their turn, they are killing me:)

Chantz

I typically use my machine on all types of metal mainly pipeline construction. It welds great and has so many options to use. Has great generator power as well to use on farm repair projects.

Rob

Purchased this for American Welding Academy welding school. We are using this to give students a "real " feel of what it is like welding on an engine driven machine. They love it. This is a sweet machine that can be dialed in for just about any job. Love Miller and Big Blue!!
