Miller Dynasty® 300 Multiprocess Welder, Foot Control Contractor Pkg w/ ArcReach® SuitCase® 12 Wire Feeder #951000099

Welding type:

MIG

TIG

Stick
Power supply:

220V Single Phase

220V 3 Phase

460V
Material type:

Mild Steel

Stainless Steel

The Miller Dynasty® 300 multiprocess welder, Foot Control Contractor Package with ArcReach® SuitCase® 12 Wire Feeder offers unparalleled flexibility and portability for professional welding applications. Designed to operate on 208–600V single or three-phase power, the system delivers a rated output of 250 A at 20 VDC with a 60% duty cycle, and 400 A at 26 VDC with a 40% duty cycle, ensuring reliable performance across demanding job sites.

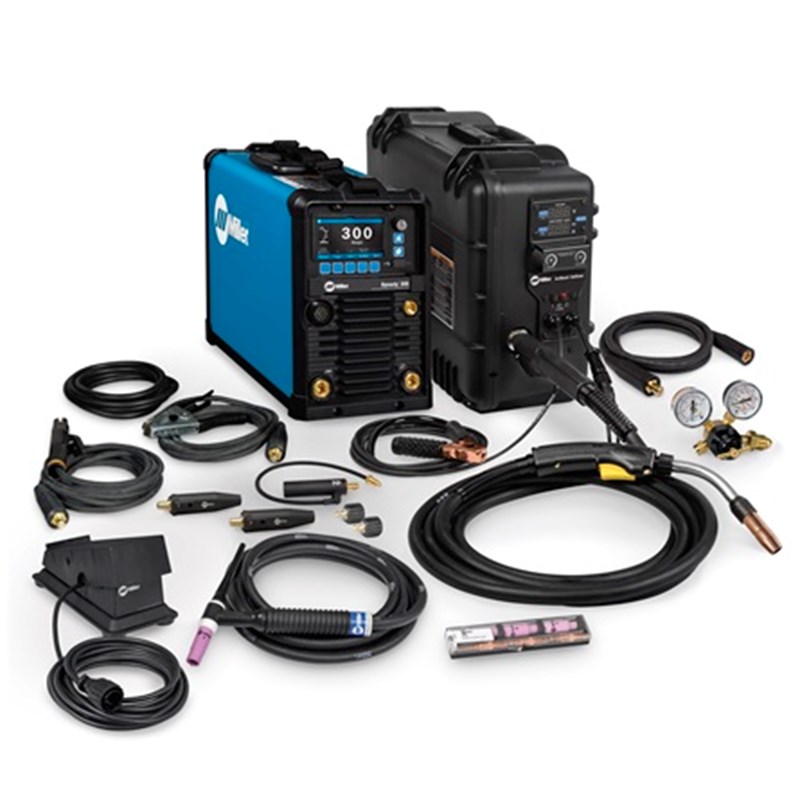

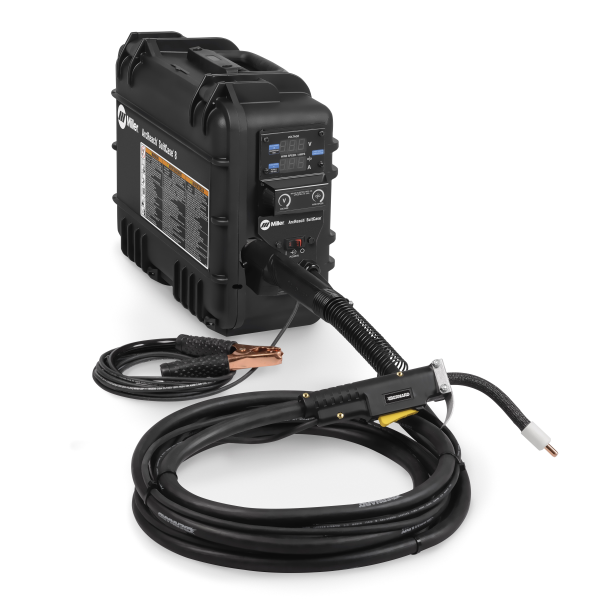

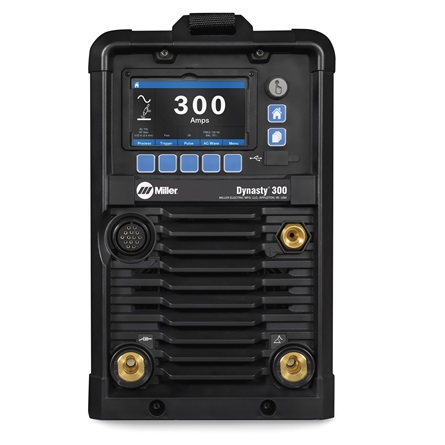

With advanced features like ArcReach® technology, operators can adjust welding parameters directly at the feeder, minimizing trips to the power source and maximizing efficiency. The package includes a Dynasty® 300 power source, wired foot control, and an ArcReach® SuitCase® 12 Wire Feeder, supporting a full range of welding processes including TIG, Stick, MIG, and Flux-Cored welding.
Download literature of this machine:
Enjoy fast, free shipping on the Miller Dynasty® 300 Multiprocess Welder, Foot Control Contractor Package with ArcReach® SuitCase® 12 Wire Feeder (208–600V) #951000099. If you're not completely satisfied with your purchase, take advantage of our easy returns process. For assistance, contact Welders Supply customer support at 1-844-682-0205.
Specifications - Dynasty® 300 Multiprocess, Foot Control Contractor Package w/ ArcReach® SuitCase® 12 | |
---|---|
Processes | Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW)MIG (GMAW) MultiprocessStick (SMAW) TIG AC (GTAW-AC) TIG DC (GTAW-DC) TIG (GTAW) |
Industries Interests | Shipbuilding Construction and Fabrication |
Amperage | 1 A - 300 A |
Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
Rated Carbon Diameter | 3/16 in (4.8 mm) |
Current Type | AC / DC |
Max Open Circuit Voltage | 60 VDC |
Portability | Handle(s) Running Gear / Cart (Optional) Strap |
Weld Output | CC/CV |
Input Phase | 1- and 3-Phase |
Input Hz | 50/60 Hz |
Applications | Aluminum Welding Mobile Fabrication & MRO Welding Automation Welding Education and Training |
SHIPPING DIMENSIONS |
|
Height: | 13.60 Inches |
Width: | 8.60 Inches |
Length: | 22.50 Inches |
Weight: | 274 Lb(s) 0 Oz |
