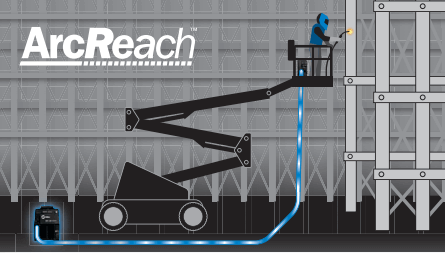

Arc Reach XMT 450 CC/CV 230/460 V #907481

XMT 450 CC/CV 230/460 V #907481

Name: XMT 450 CC/CV 230/460 V #907481
Brand: Miller Welding
SKU: 907481

Part Numbers: 907481

UPCs: 715959556590

Included with your purchase ():

XMT 450 CC/CV 230/460 V #907481

FREE!

Welders Supply Magnetic Cup Holder

Choose Options

FREE!

Welders Supply T-Shirt & Stickers

Size:

Design:

$6,967.00 + Free Shipping $6,967.00*

SAVE $0.00

Starts at $1,161.17/month with

$6,967.00 + Free Shipping $6,967.00*

SAVE $0.00

Starts at $1,161.17/month with

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

MIG Welding
Stick Welding
TIG Welding
3 Phase
220V
460V
3-Year Power Warranty

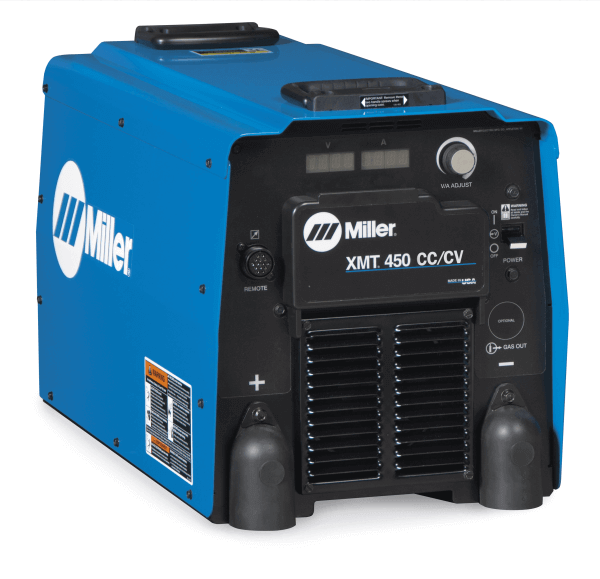

Miller XMT 450 CC/CV 230/460 V #907481

Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.

Standard 14-pin Receptacle

Has the flexibility to be used with spool guns, feeders, and remote controls.

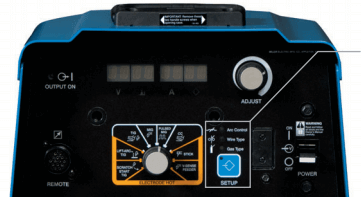

Welder friendly control panel

Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.

Reliability

Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.

Check out all of our welding machines including Miller welding machines from Welders Supply.

This product replaces these legacy models:

Miller Gold Star® 452 903374

PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A)

Flux Cored (FCAW)

MIG (GMAW)

Stick (SMAW)

Pulsed MIG (GMAW-P)

TIG DC (GTAW-DC)

Title	XMT® 450 CC/CV 230/460 V
Industries Interests	Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing
Weldable Metals	Aluminum Specialty Metals Stainless Steel Steel
Carbon Diameter	3/8 in (9.5 mm)
Input Voltage	220/230/240 V 460/480 V
Input Phase	3-Phase
Input Hz	60 Hz
Current Type	CC / CV DC
Max Open Circuit Voltage	90 VDC
Net Width	14.5 in
Net Height	17.25 in
Net Length	27.125 in
Net Weight	122 lbs
Warranty	Miller's True Blue Warranty
Portability	Handle(s) Running Gear / Cart (Optional)
Weld Output	CC / CV
