Miller Dimension™ 452 #903254
Part Number: 903254
Welding type:
MIG
TIG
Stick
Power supply:
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
MIG Welding
Stick Welding
TIG Welding
3-Phase Input
3-Year Power Warranty

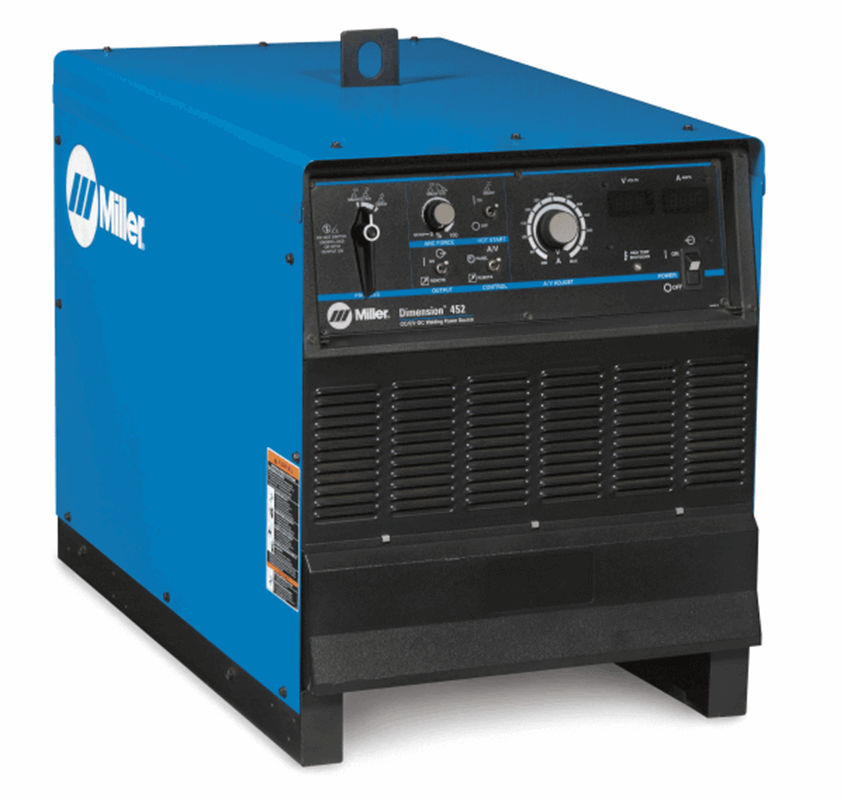

Miller Dimension™ 452 200-208/230/460 V 903254
Designed for heavy industrial welding applications, the Miller® Dimension multiprocess applications welder allows you to complete all project sizes with a 100 percent duty cycle for an extended arc-on time. Complete any task in tough to build industries like Aerospace, to Railcar, to Shipbuilding with the 3-phase welding machine. The easy to use control panel allows you to easily switch from following processes: Air Carbon Arc Cutting and Gouging (CAC-A), Flux Cored )FCAW), MIG (GMAW), Stick (SMAW), Submerged Arc (SAW) TIG (GTAW). The arc control panel built into the Miller Dimension™ 452 200-208/230/460 V 903254 further allows you to control the type and quality of welding necessary to get the job done the first time around.
Applications:
- Fabrication and Construction
- Heavy Manufacturing
- MRO — Maintenance/Repair
- Pressure Tank/Vessel Fabrication
- Pipe Welding
- Shipbuilding
- Refineries and Foundries
- Railcar Manufacturing
- Earth-Moving Equipment Manufacturing
Processes:
- MIG (GMAW)
- Stick (SMAW)
- TIG (GTAW)
- Flux-cored (FCAW)
- Air carbon arc (CAC-A)
cutting and gouging - Submerged arc (SAW)
Electronic Engine Display (Kubota USA Models Only)
Simultaneously see and analyze diagnostics for quick and easy servicing like:
- Fuel Level
- Engine Hours
- Coolant Temperature
- Oil Pressure
- Battery Volts
- Engine RPM
Miller Dimension™ 452 200-208/230/460 V 903254:
| Feature | Benefit |
|---|---|
| DC multiprocess capability | Provides versatility and outstanding arc performance in CV (MIG) and CC (stick, TIG, CAC-A). |
| Built-in arc control | Lets you get in tight without sticking the electrode. An electrode compensation circuit ensures consistent arc control performance regardless of the electrode size. |
| Internal digital voltage control (DVC) | Enables the operator to preset weld voltage in the CV mode prior to welding. |
| Line voltage compensation | Ensures consistent weld performance by keeping output power constant even if primary input power varies by ±10 percent. |
| Hot Start™ | Makes it easy to start difficult stick electrodes such as E-6010 and E-7018. |
| Power efficient | For exceptional value and return on your investment. |
| 115-volt duplex receptacle | Provides 15 amps of auxiliary power. |
| Thermal overload protection | Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked. |
| Power cord strain relief | Provided for your convenience at installation. |
| Fan-On-Demand™ | The cooling system operates only when needed. Reduces contaminants drawn into the machine and excess noise in work areas. |
| Digital voltmeter and ammeter | are easy to read, even at 30 feet (9.2 m). |
| Simple control panel | Features single range amperage/voltage adjustment. Provides easy and efficient operation. |
| 14-pin receptacle | Provides quick, direct connection to Miller 14-pin wire feeders and accessories. |
| Remote on/off capabilities | Allows the operator to turn the power source on and off from a distance. |
| Remote voltage control | Allows the operator to change the voltage from the feeder. |
| Enclosed circuit boards | Provides additional protection from contaminants resulting in a longer service life. |
| PC board protection | Prevents the wire feeder power or other stray voltages (less than 115 VAC) from harming the power source PC board. |
Warranty
Welder/generator is warranted by Miller for three years, parts and labor. The engine is warranted separately by engine manufacturer.
Check out the wide selection of multi-process welders, Miller welding machines, and welding helmets.
Processes:
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
- Stick (SMAW)
- Submerged Arc (SAW)
- TIG (GTAW)
Dimension™ 452 Specifications: |
|
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Carbon Diameter | 5/16 in (7.9 mm) |
| Current Type | DC |
| Input Voltage | 220/230/240 V 460/480 V |
| Input Phase | 3-Phase |
| Input Hz | 60 Hz |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
| Net Height | 30 in |
| Net Length | 38 in |
| Net Weight | 424 lbs |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Net Width | 23 in |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 24.00 Inches |
| Width: | 33.00 Inches |
| Length: | 40.00 Inches |
| Weight: | 438 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Is there something to put this on so it can be rolled around?
A - Yes, Miller Standard Running Gear, part #042886
Q - What is this rated at?
A - 200-208/230/460 V, 60 Hz
