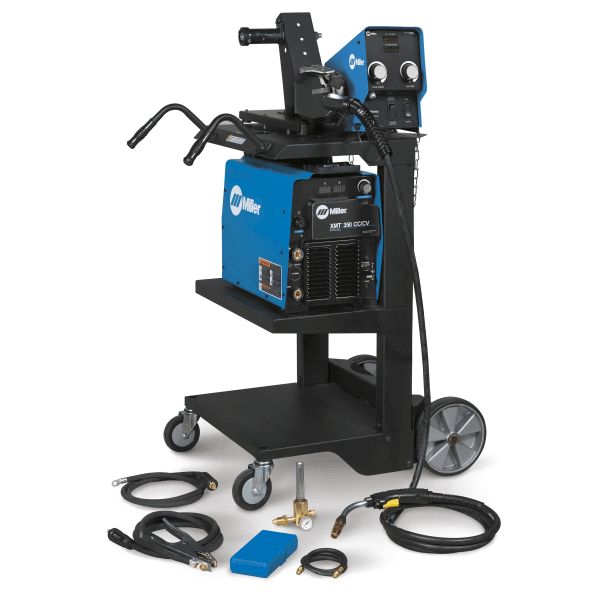

Miller XMT® 350 CC/CV, S-74D, MIGRunner™ Package #951314
Part Number: 951314
UPC: 715959548021
Welding type:
MIG
TIG
Stick
Power supply:
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
MIG Welding
Stick Welding
TIG Welding
Lightweight and Portable
1 or 3-Phase Input
3-Year Power Warranty
Miller XMT® 350 CC/CV, S-74D, MIGRunner™ Package #951314
Outstanding multiprocess inverter with built-in features providing the ultimate in productivity. Auto-Line provides link-free primary power operation.
What's Included:
- 10ft work cable with clamp
- 3ft gas hose
- 6ft 2/0 wire feeder to power source weld cable

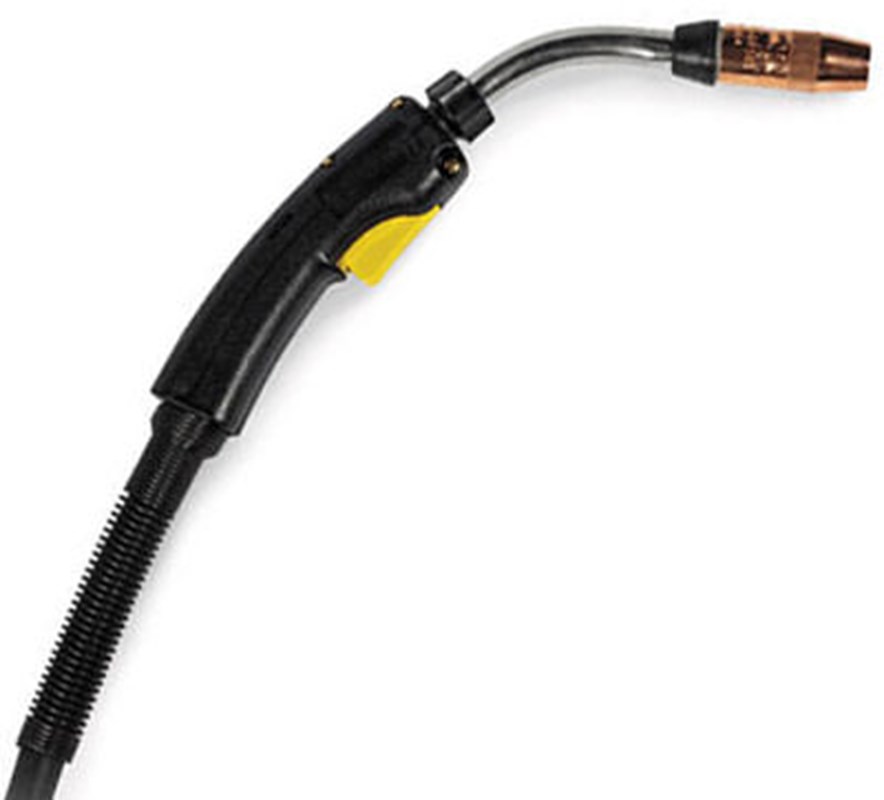

- Bernard Q300 Gun

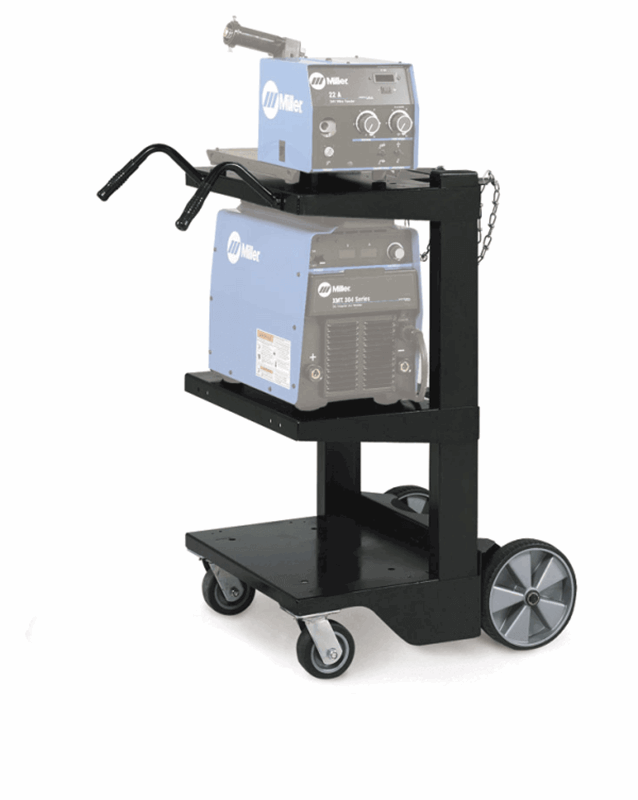

- MIGRunner Cart
- Regulator/flowmeter

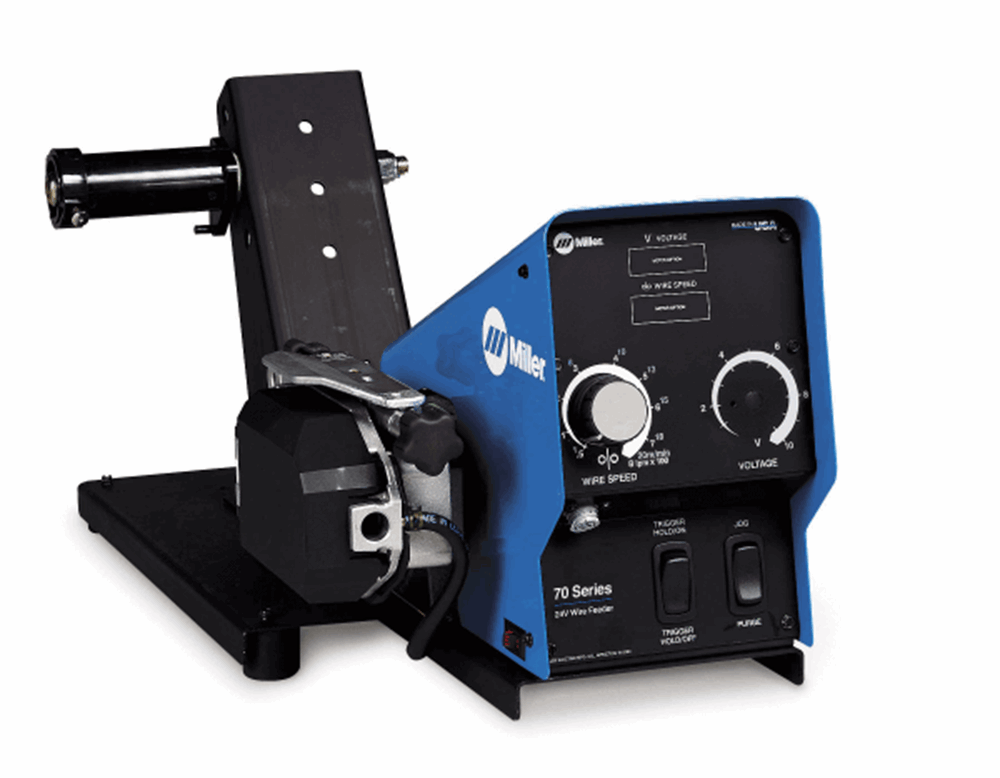

- S-74D wire feeder

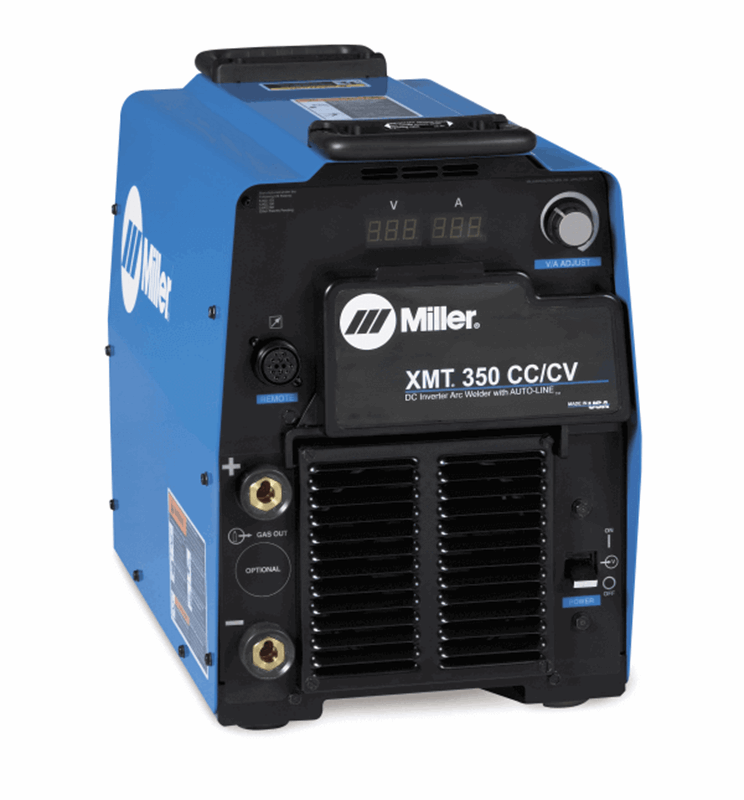

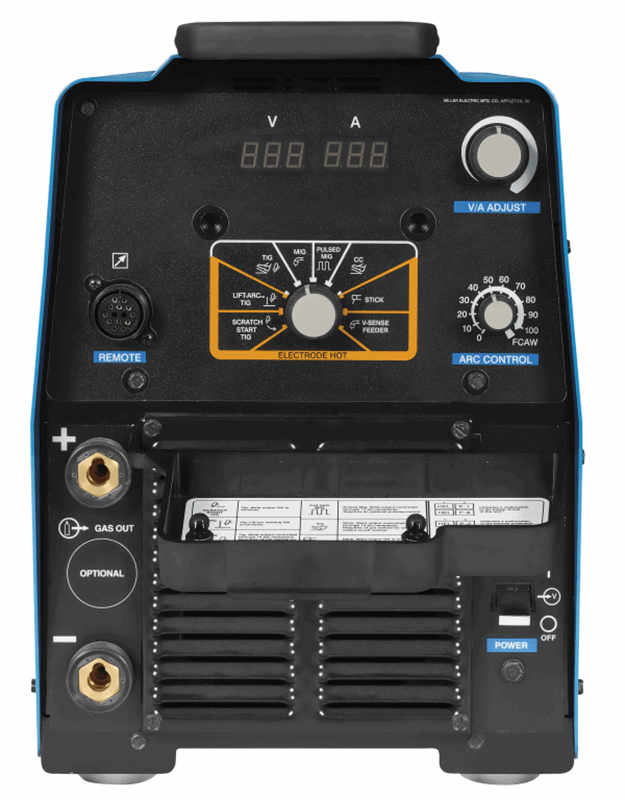

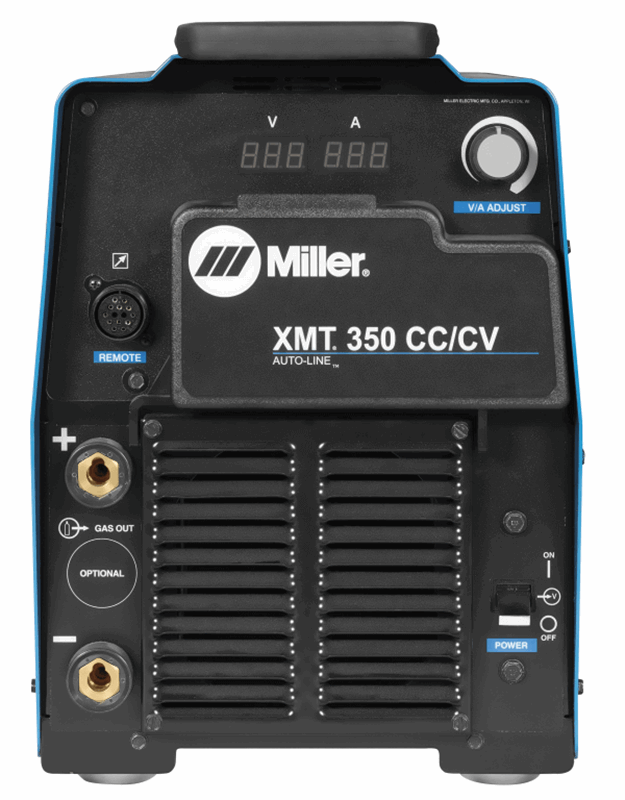

- XMT 350 CC/CV
Check out the wide selection of welders, Miller welders, or plasma cutting machines available at Welders Supply Company.
Other Versions of the Miller XMT® 350 CC/CV:
Processes:
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
- Stick (SMAW)
- TIG (GTAW)
Miller XMT® 350 CC/CV, S-74D, MIGRunner™ Package Specifications: | |
|---|---|
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Carbon Diameter | 1/4 in (6.4 mm) |
| Current Type | CC / CV |
| Input Voltage | 208 V 220/230/240 V 380/400/440 V 460/480 V 575 V |
| Input Phase | 1 and 3-Phase |
| Input Hz | 50 / 60 Hz |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
| Net Height | 17 in |
| Net Length | 24 in |
| Net Weight | 80 lbs |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Net Width | 12.5 in |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 26.00 Inches |
| Width: | 32.00 Inches |
| Length: | 54.00 Inches |
| Weight: | 281 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Looks like it has handles on top, how portable is it?
A - It's an 80 lb machine, so not something you'd want to carry any distance. It's pretty manageable for two people to move around short distances, though.
Q - What are the power requirements for this?
A - With Auto-Line, you can use anything between 208 and 575 v with either 3-phase or 1-phase power.
