Lincoln Electric Power MIG 262MP Multi-Process Welder, Aluminum One-Pak® w/ 25ft Push-Pull Gun #K5638-1

Part Numbers: K5638-1
UPCs: 15082713441
POWER MIG 262MP ALUMINUM ONE-PAK (PUSH PULL GUN) #K5638-1
Lincoln Electric Power MIG 262MP Multi-P...

Included with your purchase:

Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
Small
Medium
Large
1X Large
2X Large
3X Large
$8,853.00 + Free Shipping
$8,853.00 + Free Shipping

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

  • Multi-process welderMulti-Process Welding
  • 25ft push-pull MIG gun for aluminum25' Push-Pull Gun
  • 7-inch color display7" Color Display
  • 300A max DC outputDC TIG/Stick (300A Max Output)
  • Multi-voltage input welder208/230/460/575 V
  • Single phase welding machineSingle Phase, 60 Hz
  • Lincoln Electric hassle-free warranty3-Year Warranty

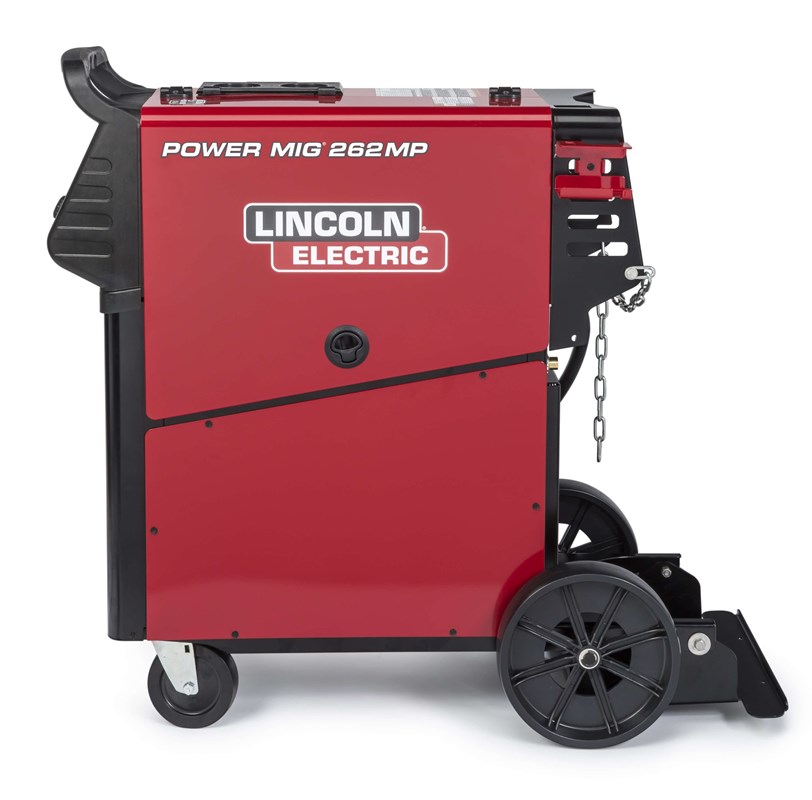

New: Lincoln Electric Power MIG 262MP multi-process welding machine

Lincoln POWER MIG® 262MP Aluminum One-Pak® Multi-Process Welder #K5638-1Lincoln Electric 3-year warranty

Professional Aluminum Welding Machine w/ 25ft Push-Pull MIG Gun

Introducing the Power MIG® 262MP Aluminum One-Pak® – an all-inclusive solution tailored for aluminum welding. This comprehensive package features the Magnum® PRO AL Front Trigger Gun G225A #K4797-2, a high-performance push-pull gun with a 25-foot length (7.6 meters). The gun works in tandem with your welder's internal drive roll, pulling aluminum wire as your welder pushes it - ensuring optimal reach and control.

Included in this package are the 64A Aluminum Drive roll kit, designed for precise feeding of 3/64 inch (1.2 mm) wire, and a 16-pound (7.3 kg) spool of SuperGlaze® 5356 wire. With these essential components, the Power MIG 262MP Aluminum One-Pak® empowers welders to achieve superior aluminum welds with ease and efficiency, whether tackling intricate projects or industrial applications.

Features of the POWER MIG 262MPLincoln POWER MIG® 262MP Multi-Process Welder #K5638-1

The feature-packed POWER MIG® 262MP Aluminum One-Pak®, is engineered to elevate your welding experience to new heights.

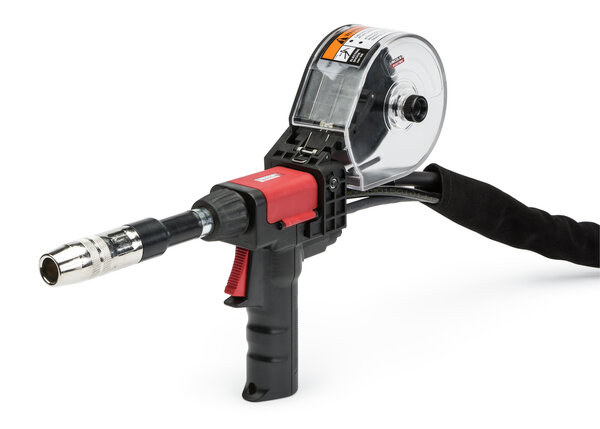

  • 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.

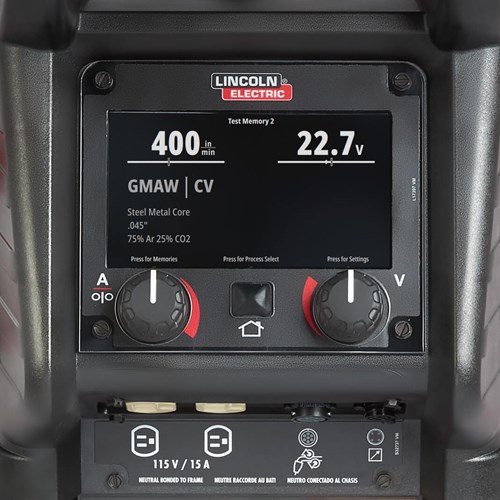

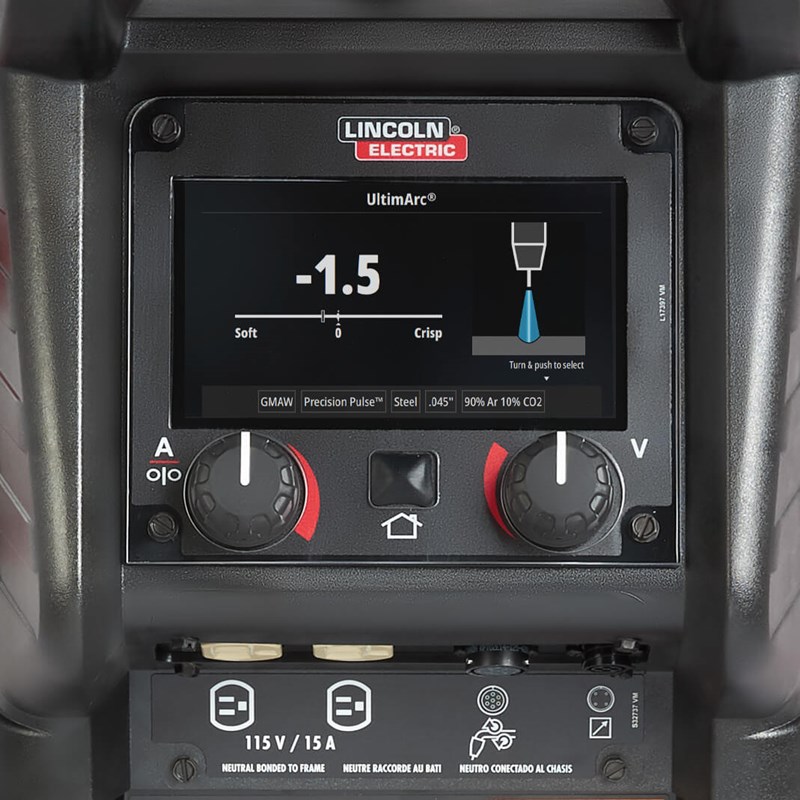

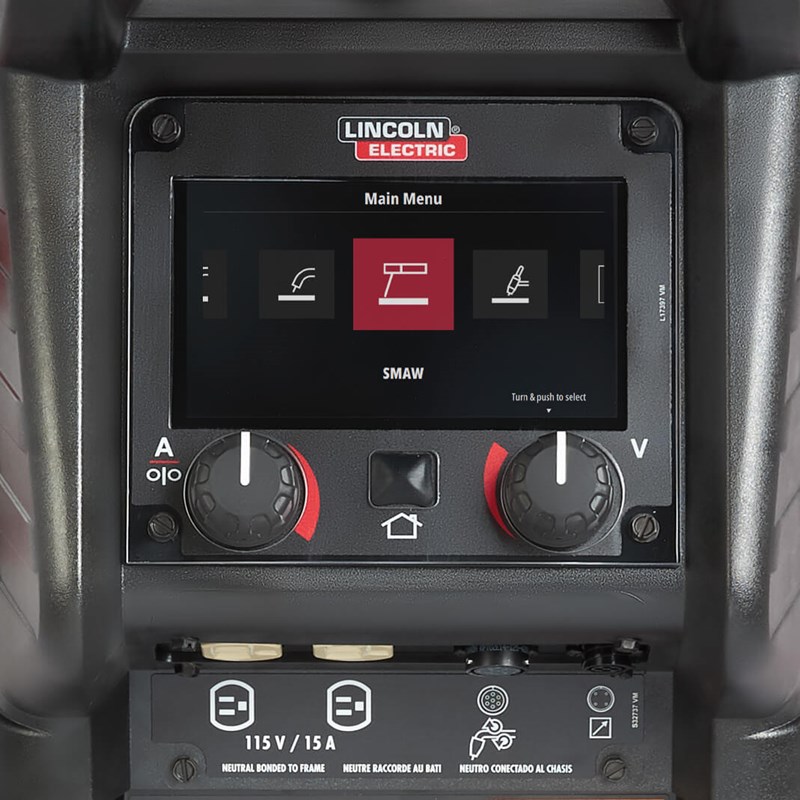

  • 7-Inch Color Display - Enhances communication between operator and machine.
  • Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
  • Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, and Pulsed MIG.
  • Synergic Control - Set weld procedures with one control.

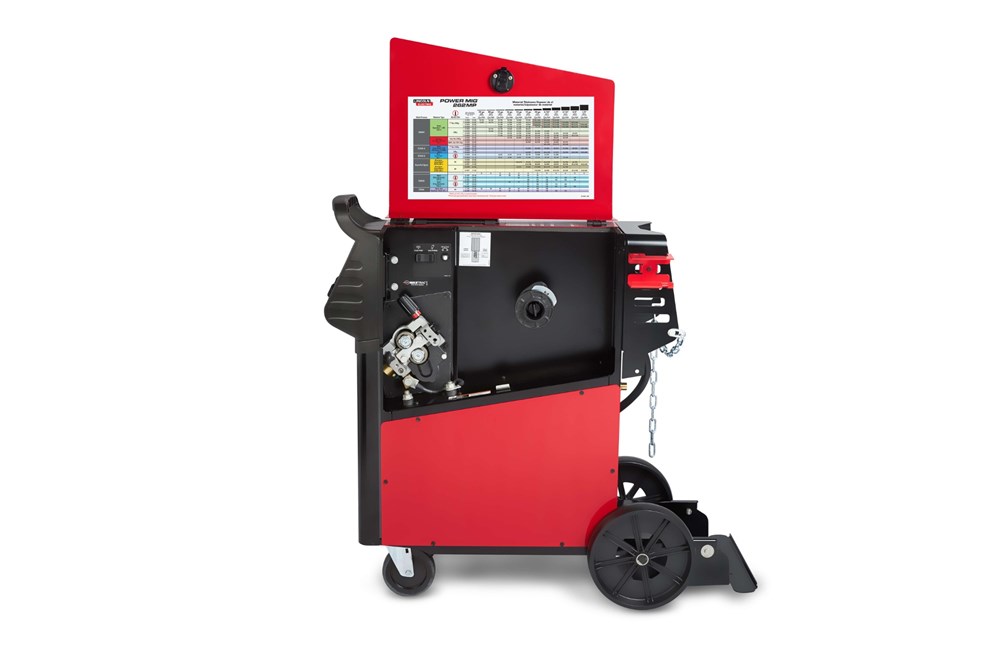

  • Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
  • Stick Settings for 6010 + 6011 - Superior performance with cellulosic electrodes.
  • 300 Amp Max Output - Perfect for autobody, general fabrication, education, and more.
  • Memory Recall - Easily save and access memories with the newly enhanced UI.

Lincoln Electric Power MIG 262 advanced features list

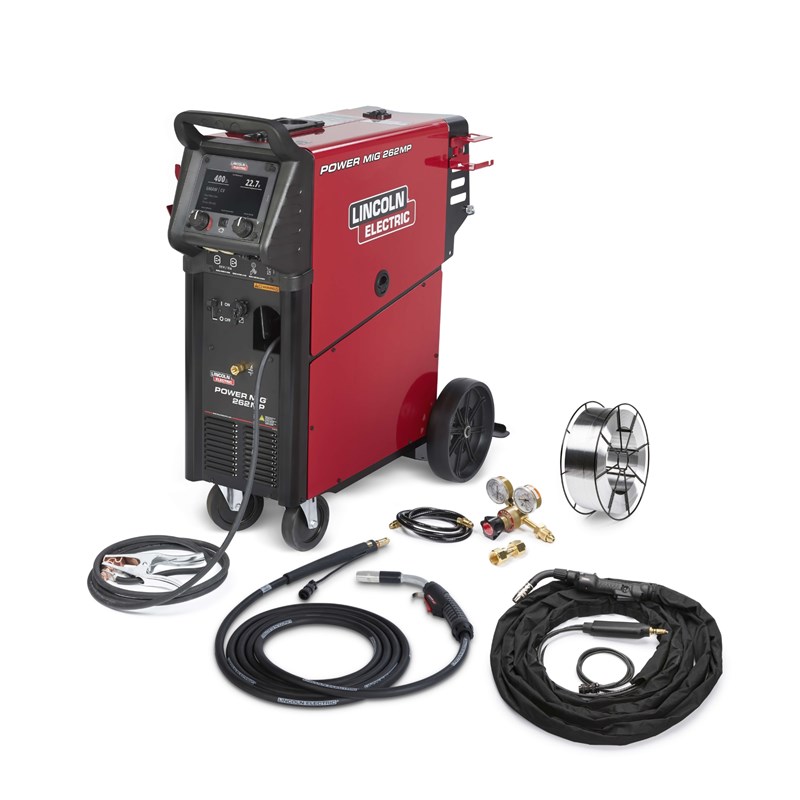

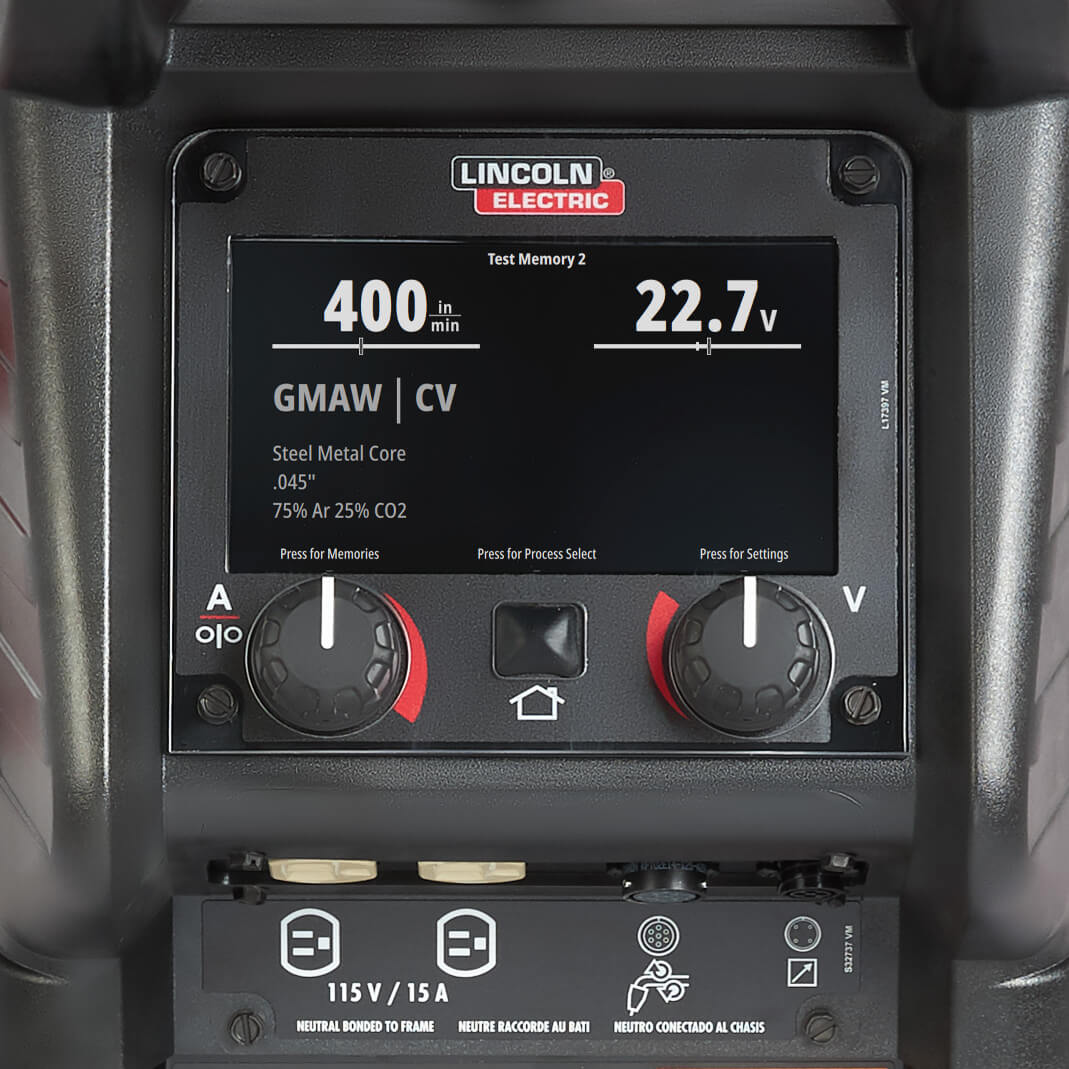

Color display control panel interface - Lincoln Electric Power MIG 262MPPOWER MIG® 262MP Aluminum One-Pak® #K5638-1 Includes

  • K4530-2 Magnum PRO 250L Welding Gun
  • K586-1 Adjustable Gas Regulator and Hose
  • KP1696-1 Drive Roll Kit 0.035/0.045 in
  • 10 ft Work Cable with Clamp
  • 10 ft Power Cable with Plug

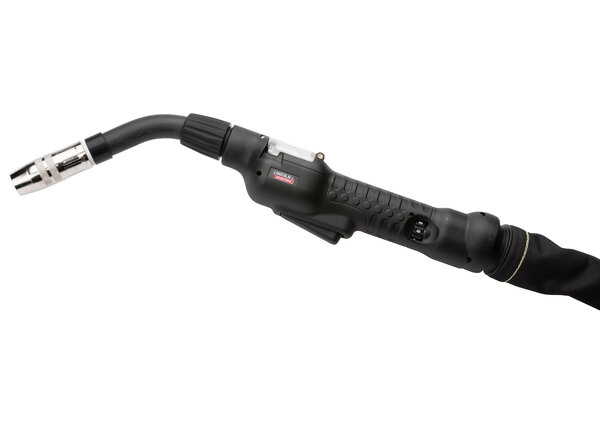

  • Magnum® PRO AL Front Trigger Gun G225A, 7 pin (25 ft.) (7.6 m)
  • KP1695-3/64A Aluminum Drive roll kit, 2-roll, 3/64 in. (1.2 mm)
  • SuperGlaze® 5356 3/64 in. (1.2 mm) 16 lb (7.3 kg) spool

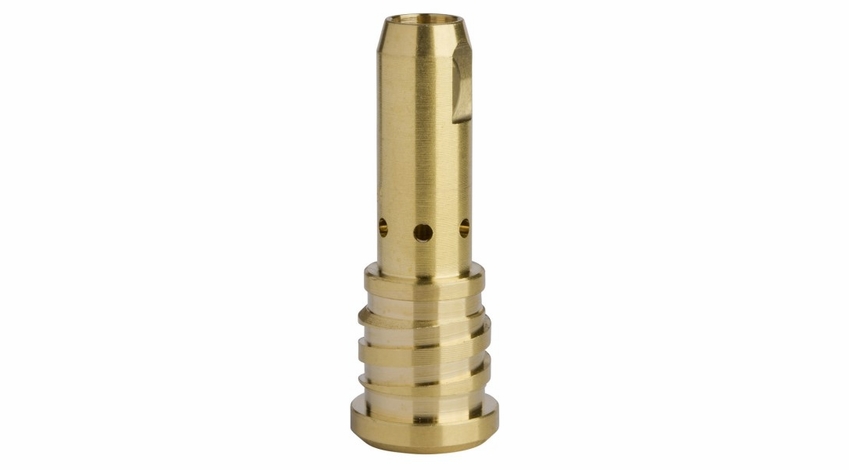

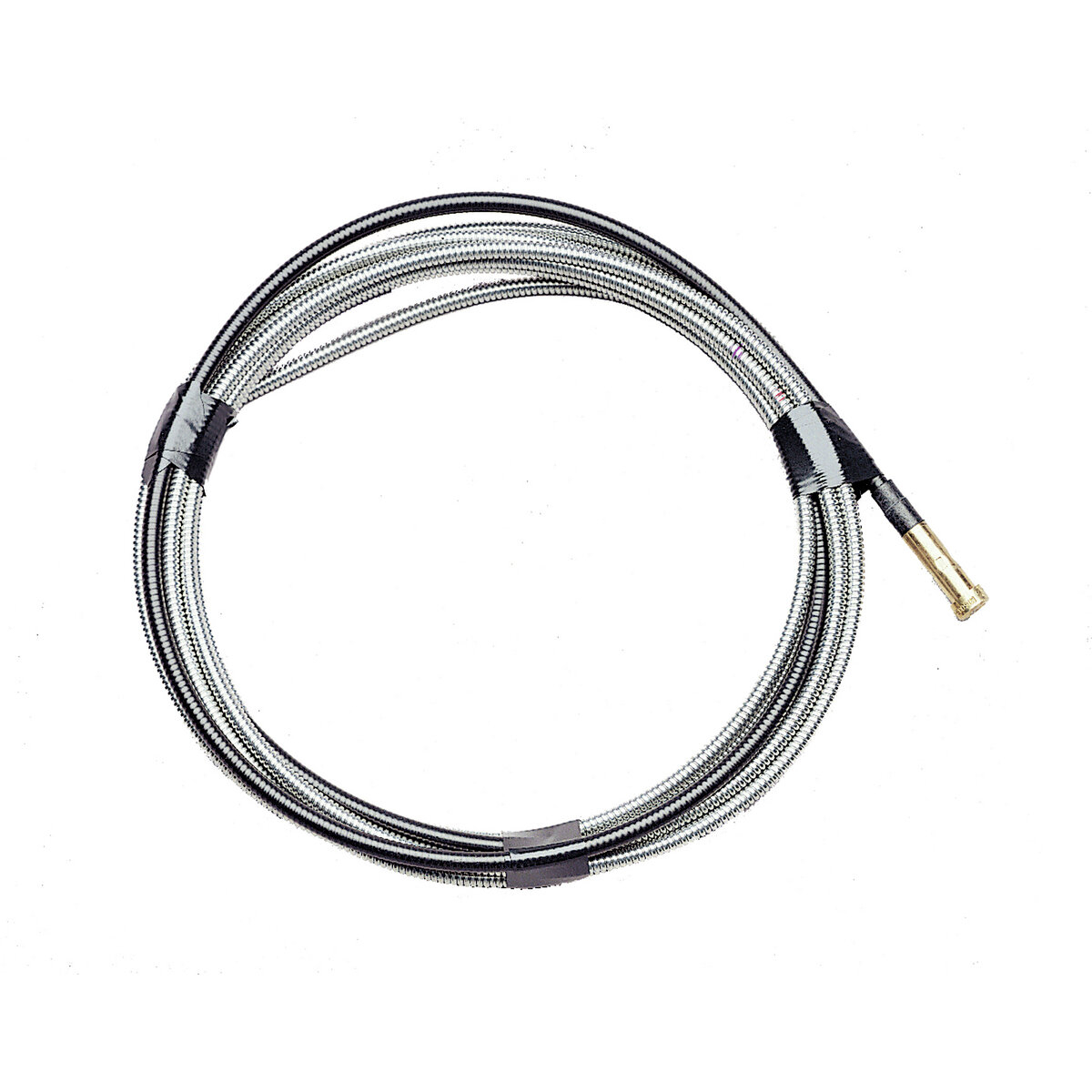

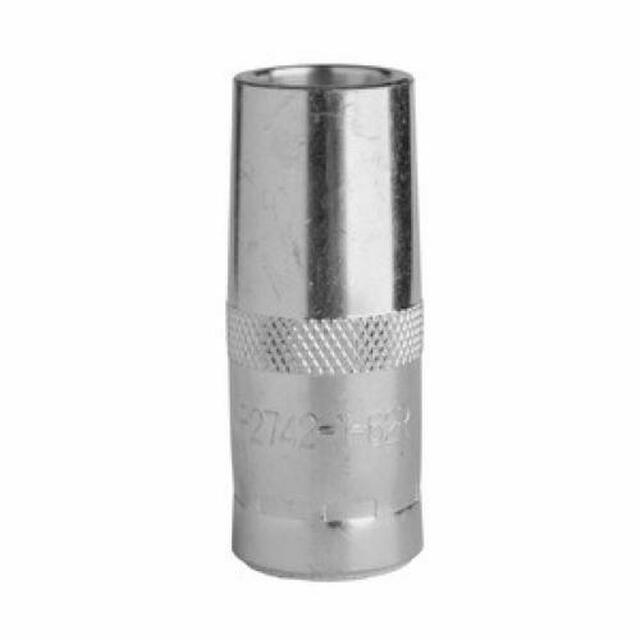

Consumables for the Power MIG 262MP

Shop all Lincoln welding products and welding safety equipment available online from Welders Supply.
Lincoln POWER MIG® 262MP Aluminum One-Pak® #K5638-1 Specifications
Input power

208/230/460/575 V
49.1/44/22.1/17.6 A
1-Phase
60 Hz

Output range 5-300 Amps
Rated output 230A/26.5V/60%
Polarity DC
Mode CC/CV
Welding processes

Stick (SMAW)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-Cored Self-Shielded (FCAW-S)
Flux-Cored Gas-Shielded (FCAW-G)

Typical applications

Automotive
General Fabrication
Heavy Equipment
Maintenance & Repair

Amphenol Pins (type of connector)

12

Warranty

Lincoln Electric 3-Year Warranty



SHIPPING DIMENSIONS

Height: 44.42 Inches
Width: 20.50 Inches
Length: 42.00 Inches
Weight: 265 Lb(s) 13 Oz
