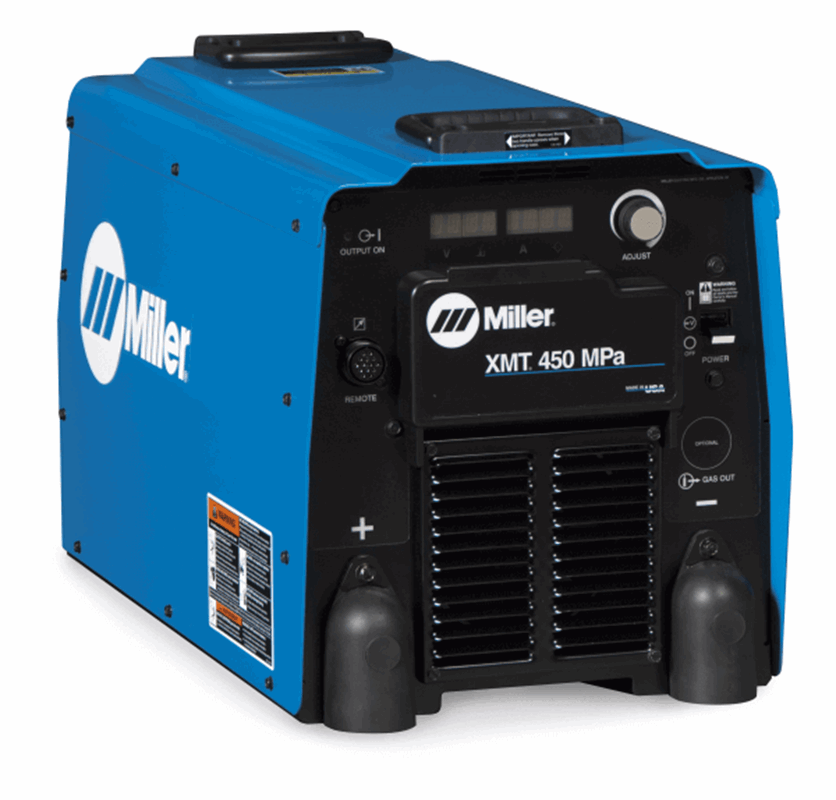

Miller XMT® 450 MPa 230/460 V 907479
Included with your purchase: ()

Welding type:

MIG

TIG

Stick
Power supply:

220V 3 Phase

460V
Material type:

Mild Steel

Stainless Steel

Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT 450 MPa offers built-in pulse programs for standard steels, high-strength steels and aluminum.
Advanced features for the professional welder - Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine-tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.
Standard 14-pin Receptacle - Has the flexibility to be used with spool guns, feeders, and remote controls.

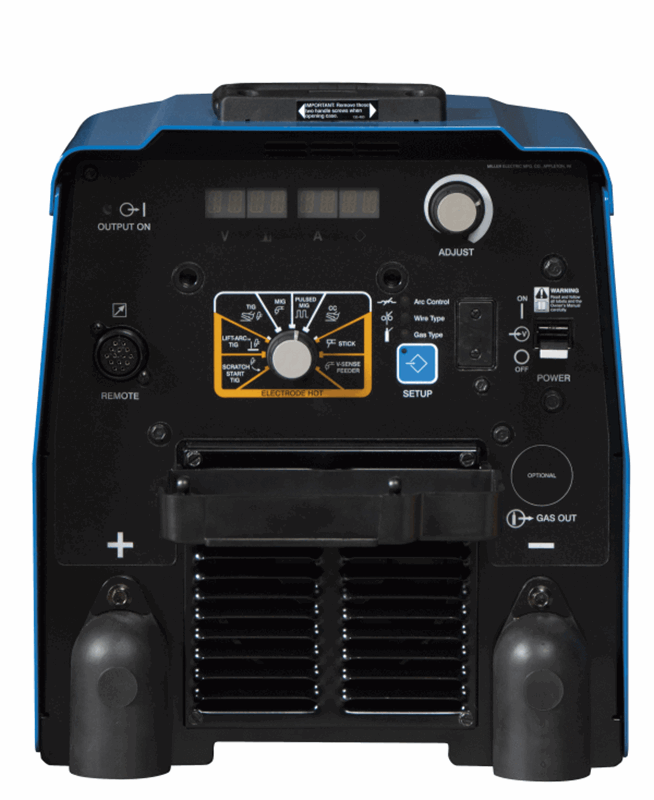

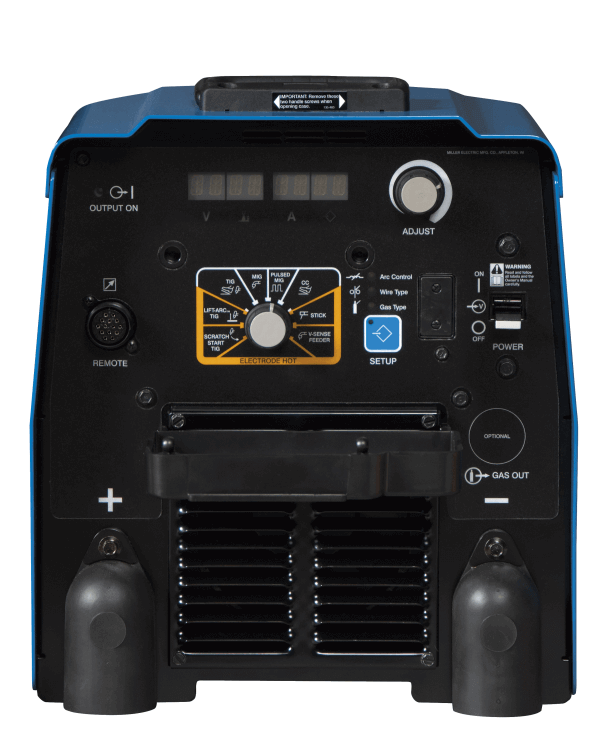

Welder friendly control panel - Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.
Reliability- Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through the machine.
Miller XMT® 450 MPa Specifications: |
|
Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Manufacturing Railcar Boat / Yacht Shipbuilding High Purity Processing |
Current Type | CC / CV CC CV |
Input Voltage | 220/230/240 V 460/480 V |
Input Phase | 3-Phase |
Portability | Handle(s) Running Gear / Cart (Optional) |
Net Height | 17.25 in |
Net Length | 27.25 in |
Net Weight | 122 lbs |
Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
Net Width | 14.5 in |
Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 17.00 Inches |
Width: | 19.00 Inches |
Length: | 29.00 Inches |
Weight: | 125 Lb(s) 0 Oz |
See Section 5-2 for more info.
Install strain relief of proper size for unit and input conductors. Route conductors (cord) through strain relief. Tighten strain relief.
Connect green or green/yellow grounding conductor to machine grounding terminal first.
Connect input conductors L1, L2, and L3 to weldin gpower source line terminals.
Reinstall side panel on welding power source.
