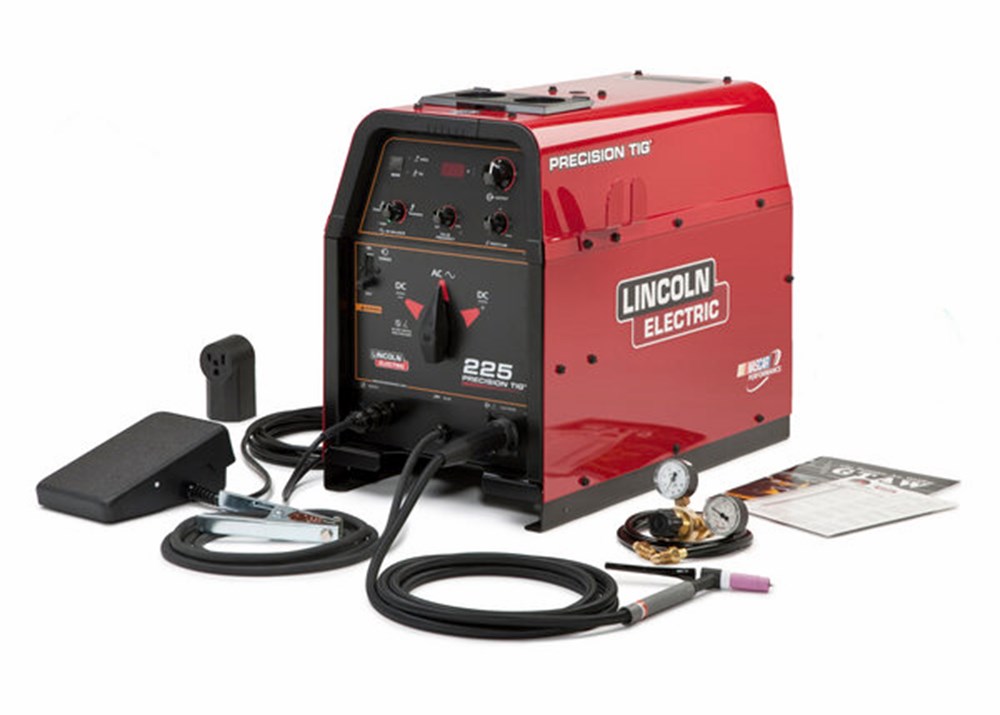

Lincoln Electric Precision TIG® 225 TIG Welder Ready-Pak® #K2535-1

Welding type:

TIG

Stick
Power supply:

The Lincoln Precision TIG Welder Ready-Pak is a reliable welding machine that offers the most extensive operating range in its class, from 5 to 230 amps, thanks to the featured patented Micro-Start II technology. This welding machine also features improved starting, and optimal arc stability that gives you the ability to achieve more precise welds and crater fills. The included 115V receptacles allow for powering a water cooler or other power tools. With the easy-to-use operator interface this welder best suits small auto and fabrication shops and vocational training schools.
Simplicity

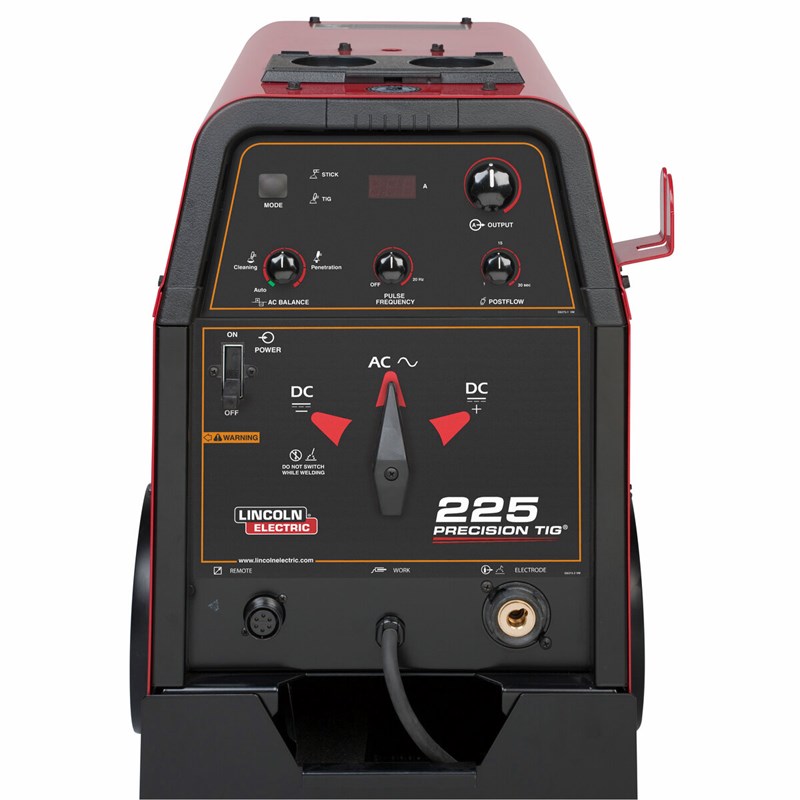

Easy-to-use operator interface - select mode, polarity and begin welding. When welding aluminum, AC Auto Balance® automatically provides for the optimal mix of cleaning
and penetration.
Adjust for any situation: cleaning, penetration and pulse
When welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control.
Enable the TIG pulser feature to minimize material distortion from excessive heat input. The TIG pulser can also help moderate filler metal deposition for consistent bead appearance.
Superior stick welder
Also offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes - even with Fleetweld® 5P+ (E6010).
Lincoln Precision TIG® 225 Ready-Pak® #K2535-1 Specifications | |
---|---|
Input power |
208/230V 40% Duty Cycle: 61/55A, 60% Duty Cycle: 52/47A 60 Hz 1-Phase |
Output range | 5-230A, Max OCV: 75V |
Rated output | 130A/40%, 110A/60% |
Welding processes |
TIG Stick |
Typical applications | Construction Automotive Brewery Distillery General Fabrication Maintenance & Repair Marine Applications Marine Fabrication & Repair Repair Welding |
SHIPPING DIMENSIONS |
|
Height: | 20.70 Inches |
Width: | 14.50 Inches |
Length: | 25.60 Inches |
Weight: | 215 Lb(s) 0 Oz |
