Lincoln Electric Precision TIG® 275 TIG Welder #K2619-1

Welding type:

TIG

Stick
Power supply:

220V Single Phase

The Lincoln Electric Precision TIG 275 is a versatile welder capable of TIG and Stick welding. Designed with Micro-Start II technology for improved starting and arc stability gives you precise welds and fills every time. Featured AC Auto Balance technology will automatically adjust the mix of cleaning and penetration of welding on aluminum or you can take full control and manually adjust the settings for serious control over the cleaning action and penetration.
Add the Advanced Pulse Control panel and take your welds to the next level with a TIG pulser to minimize material distortion from high heat input and control filler metal deposition for a consistent bead appearance. The Precision TIG 275 is the perfect welding machine for work on the construction site with its rugged and reliable design.
Simplicity through technology
AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration for welding on aluminum. Or, take full control - adjust the AC Balance® to increase or decrease cleaning action or penetration on aluminum.
Advanced Pulse Control panel (Optional on the Precision TIG 275)
Upgrade with the Advanced Control Panel to include the TIG pulser to minimize material distortion from excessive heat input. The TIG pulser can also help moderate filler metal deposition for consistent bead appearance.
Wide output range
Tackle either end of the material thickness spectrum with an amperage range of 2 to 340 amps

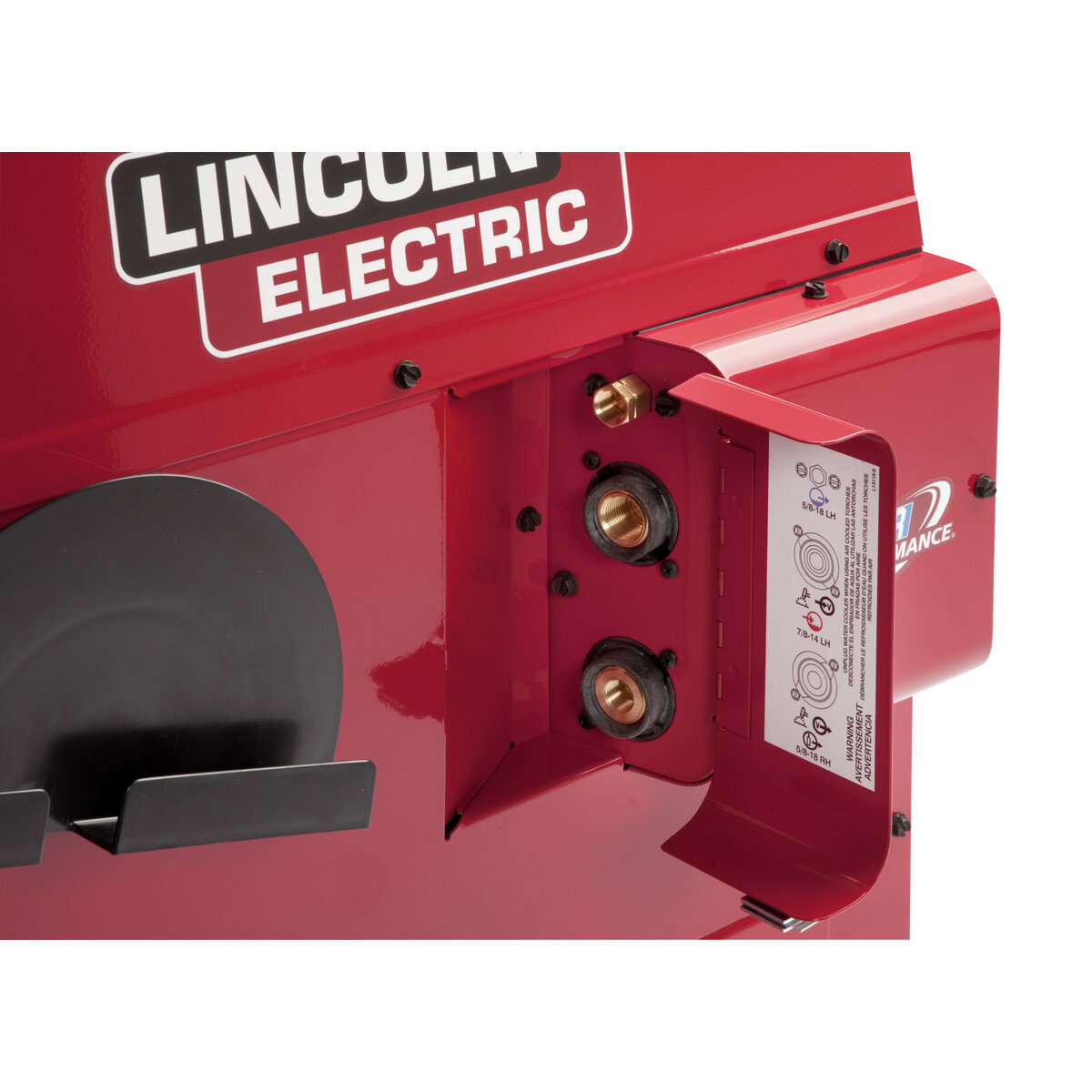

Side-mounted torch holder and connections
Enables simple cable management and protection, and a place for your torch when not in use.
Lincoln Precision TIG® 275 #K2619-1 Specifications | |
---|---|
Input power |
208/230/460V 40% Duty Cycle: 104/94/47A 60% Duty Cycle: 86/78/39A 60 Hz 1-Phase |
Output range | 2-340A Max OCV: 75V |
Rated output | 275A/40%, 225A/60% |
Welding processes |
TIG Stick |
Typical applications | Construction Automotive Brewery Distillery General Fabrication Maintenance & Repair Marine Applications Marine Fabrication & Repair Pharmaceutical Equipment |
SHIPPING DIMENSIONS |
|
Height: | 31.00 Inches |
Width: | 22.00 Inches |
Length: | 26.00 Inches |
Weight: | 397 Lb(s) 0 Oz |
