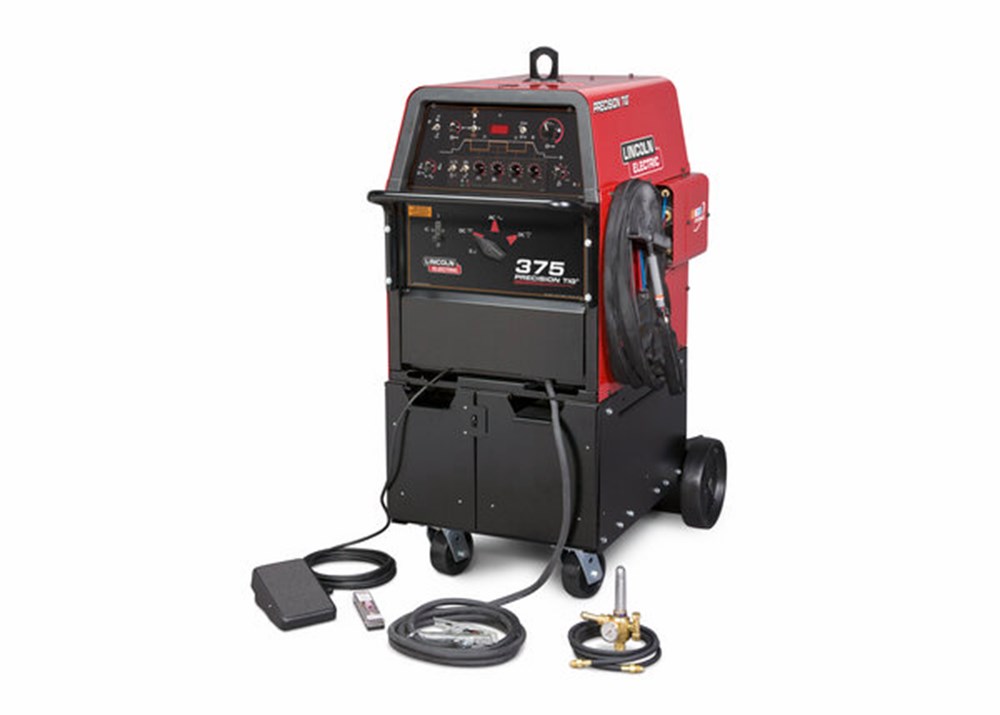

Lincoln Electric Precision TIG® 375 TIG Welder Ready-Pak® #K2624-1

Lincoln Precision TIG® 375 TIG Welder Ready-Pak®, Multi-Voltage Input #K2624-1

Heavy-Duty Professional Welder

The Lincoln Electric TIG 375 TIG Welder Ready-Pak includes a load of features to give you the advantage for all your TIG welding needs. The multi-voltage input means you won’t be limited by voltage accessibility and the best-in-class output range (2-420 amps) means you can handle material across the thickness spectrum.

The built-in TIG pulser can be activated to easily control heat input while welding, helping reduce distortion and burn-through on thinner materials. With the absolute highest duty cycle in its class, the Precision TIG 375 will give you perfect welds on thicker materials and give you the advantage on the toughest jobs.

Designed with AC Auto Balance, welding on aluminum has never been easier. It gives you the ability to automatically provide the optimal mix of cleaning and penetration. It only gets better with features like the Micro-Start II technology that will give you easier starting and improved arc stability making each weld and crater fill more precise.

Features of the Precision TIG® 375

• AC Auto-Balance® automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum.
• Or, take full control - adjust the AC Balance® to increase or decrease cleaning action or penetration on aluminum.
• Tackle either end of the material thickness spectrum with the widest operating range in its class from 2 to 420 amps
• Standard pulse functions enable better control over heat input, resulting in less warping and distortion on thin metals
• Features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.

SIMPLICITY, CONTROL AND RANGE

Simplicity through technology

AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration for welding on Aluminum. Or, take full control - adjust the AC Balance® to increase or decrease cleaning action or penetration on aluminum

Advanced Pulse Control panel (Standard on the Precision TIG 375)

Enable the TIG pulser to minimize material distortion from excessive heat input. The TIG pulser can also help moderate filler metal deposition for consistent bead appearance.

Wide output range

Tackle either end of the material thickness spectrum with an amperage range of 2 to 420 amps

Side-mounted torch holder and connections

Enables simple cable management and protection, and a place for your torch when not in use.

What's Included

• Under-Cooler Cart Water Cooler (K1828-1) Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870) Harris Gas Regulator/Flowmeter and 10 ft. (3.0 m) Hose Kit (3100211)
• PTW-20 250 amp water cooled TIG torch w/ 25 ft. (7.6 m) cable (K1784-4)
• Zippered Torch Cover for TIG Torch with 25 (7.6m)
• Cable Assembly (K918-2) Parts Kit for PTW-20 Series Torches contains a long back cap
• 1/16 in, 3/32 in, 1/8 in collets
• 1/16 in, 3/32 in, 1/8 in collet bodies
• 1/16 in, 3/32 in, 1/8 in 2% Ceriated tungsten
• Three Alumina nozzles (5/16 in, 3/8 in, 7/16 in orifices) (KP510) Water Hose (2 included) (S19558-4) 15 ft (4.5 m)
• 2/0 Work Cable and Clamp (K2150-1)
