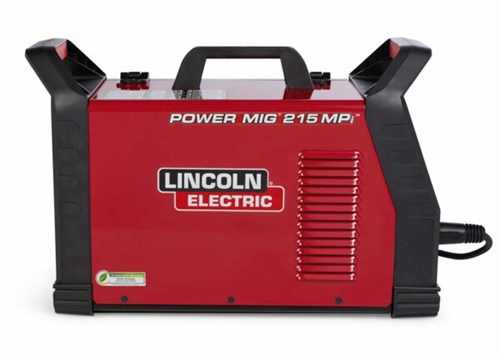

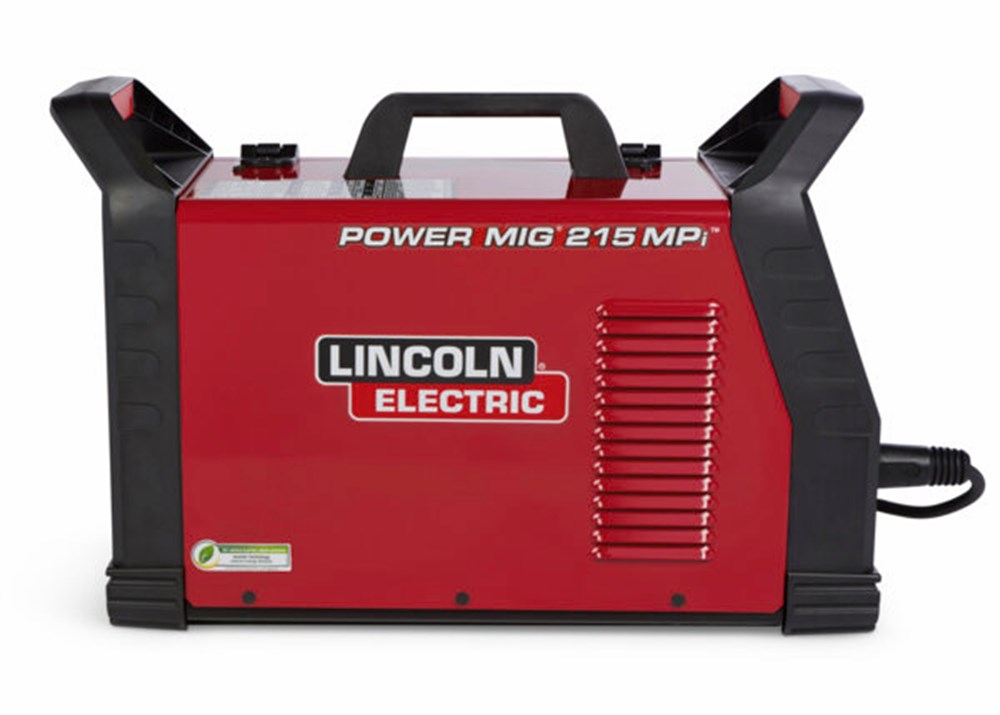

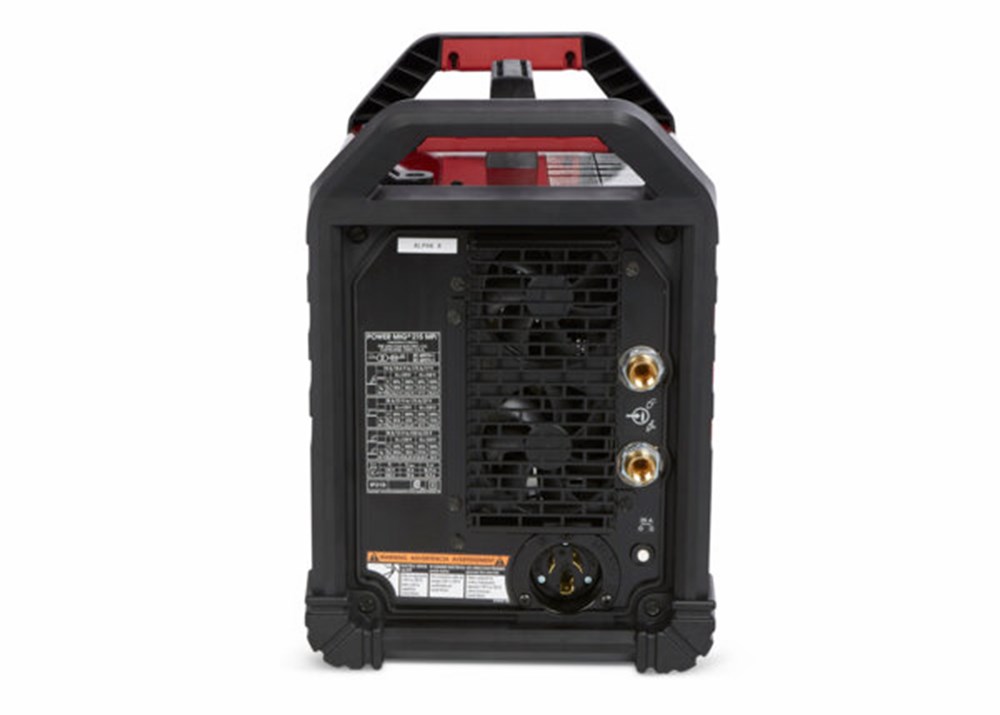

Lincoln POWER MIG® 215 MPi™ Multi-Process Welder TIG One-Pak® #K4878-1
Smart. Easy-To-Use. Reliable.
Lincoln Electric designed and built the Power MIG 215 MPi to be one of the highest-quality machines in its class on the market. It is easy to use, reliable, and powerful. It has MIG, TIG, stick, and flux-cored welding capabilities and comes with loads of exclusive features. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder. It has a sleek and rugged design for increased portability and comes with a 3-year warranty. Make your next project a breeze with the Power MIG 215 MPi. It is commonly used for automotive, brewery, and repair applications.
Features of the POWER MIG® 215 MPi™
- Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG.
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.

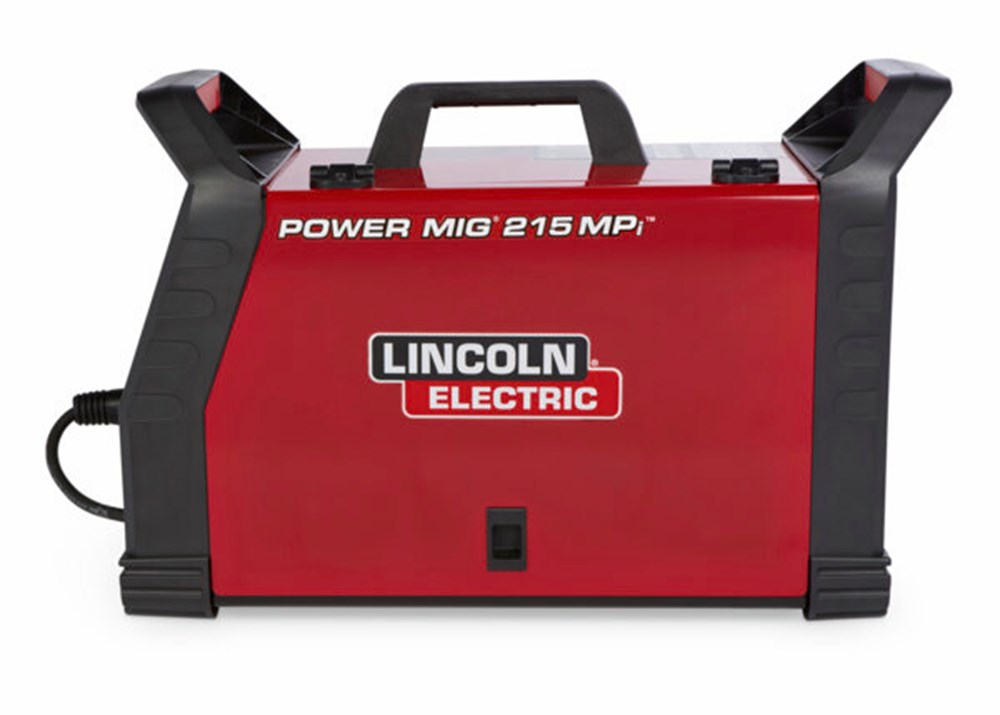

- Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
- Built in TIG Solenoid and Foot Pedal Adapter - The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required.

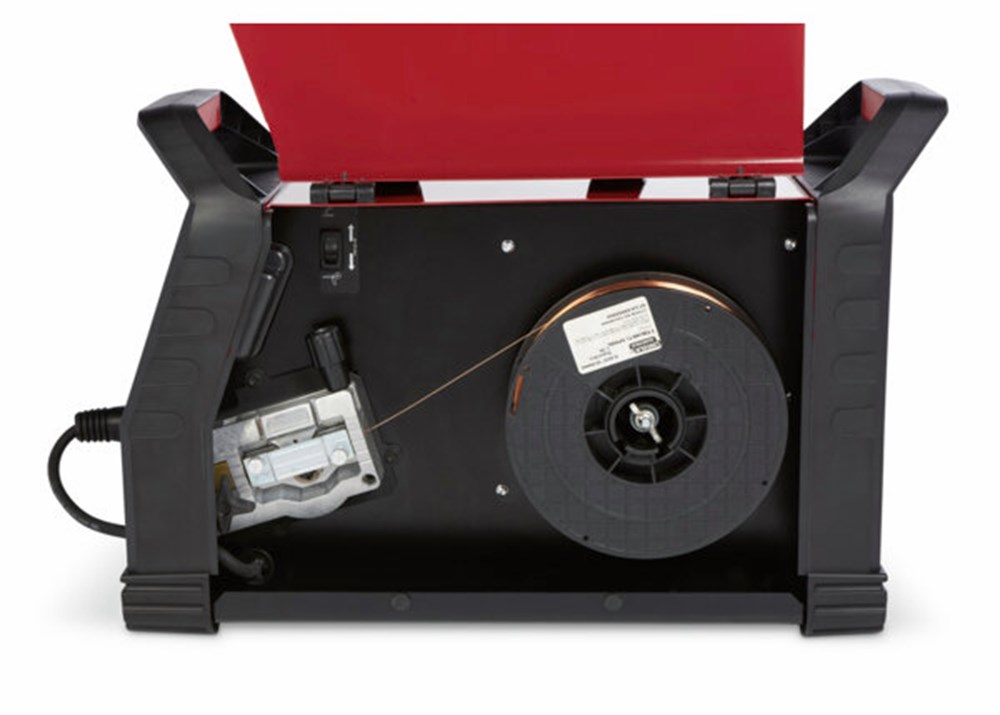

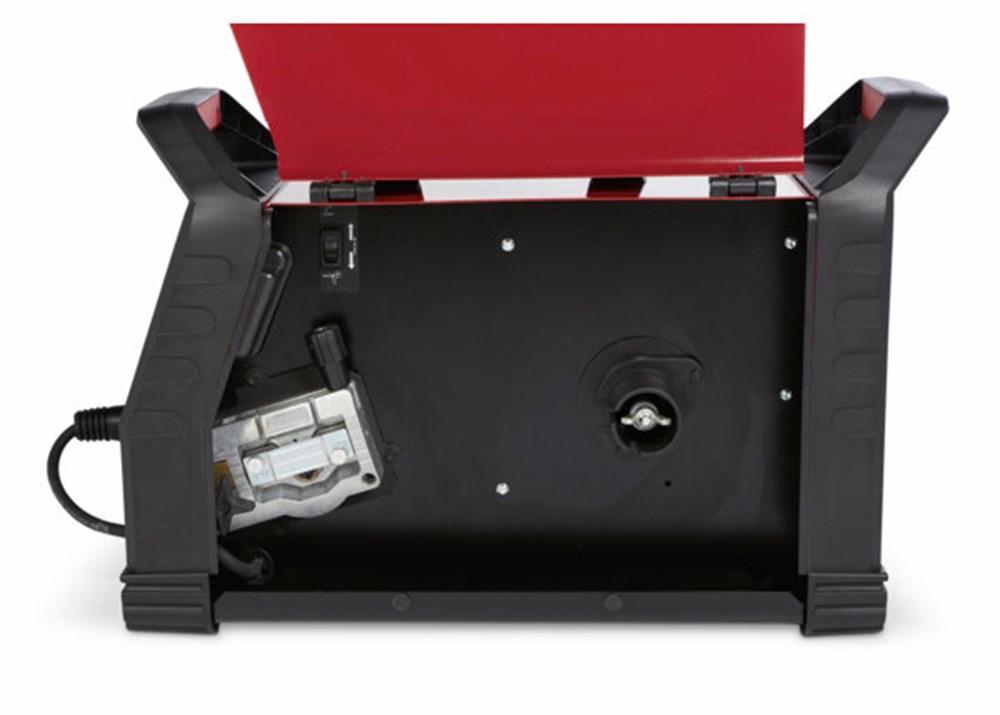

- Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
- Ready.Set.Weld® Technology – Simplifies setup by recommending optimal welding parameters for each welding procedure.
- ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome.
- Memory Capability - Easily recall saved settings to get welding faster.
- Lightweight and Portable - Only 48 lbs.

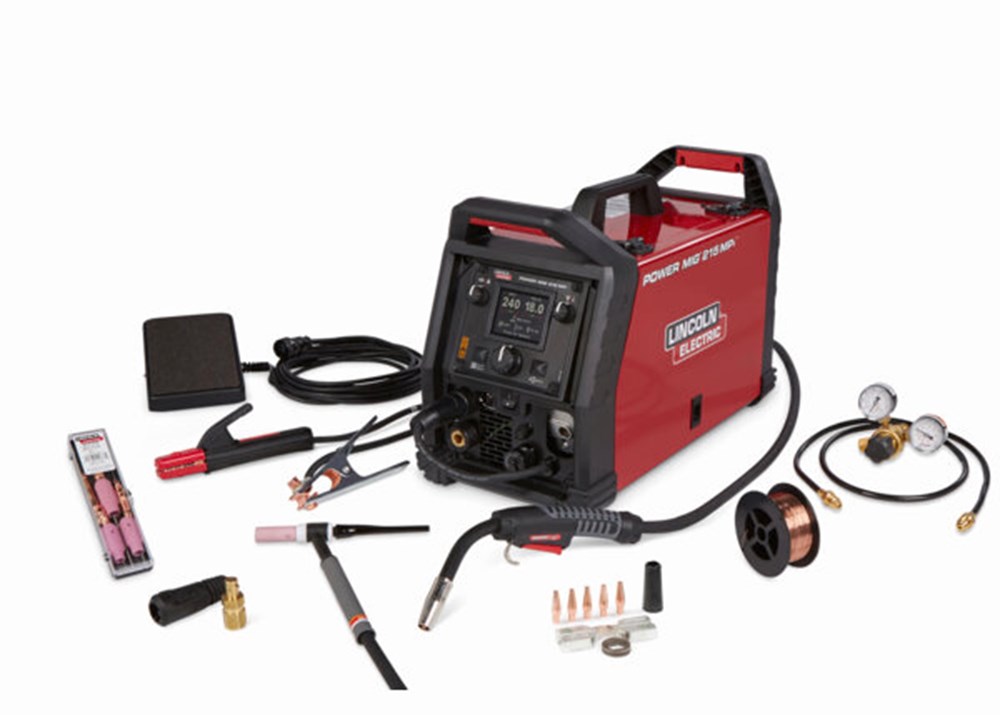

What's Included

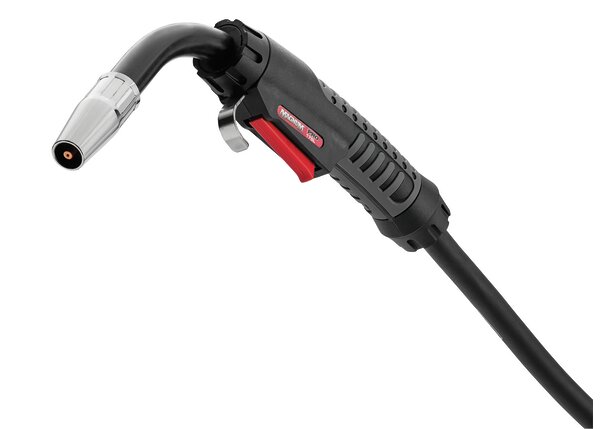

- Magnum® PRO 175L Gun 10 ft. (3.0 m) (K4076-1)
- 230V to 120V power cord adapter
- Work Cable and Clamp
- Electrode Holder and Lead Assembly
- Adjustable Gas Regulator and Hose

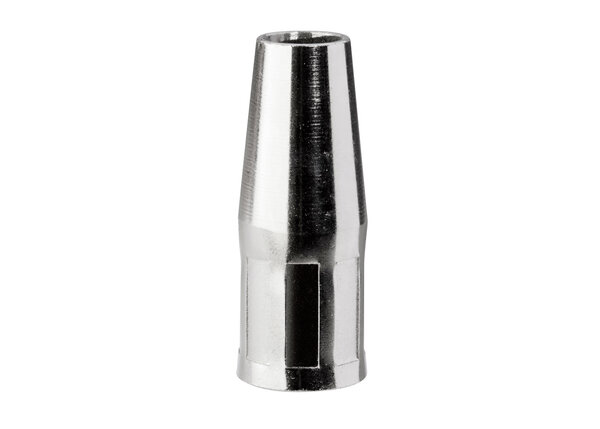

- Gas and Gasless Nozzles
- Gun Cable Liner (pre-installed in gun)
- Spindle Adapter

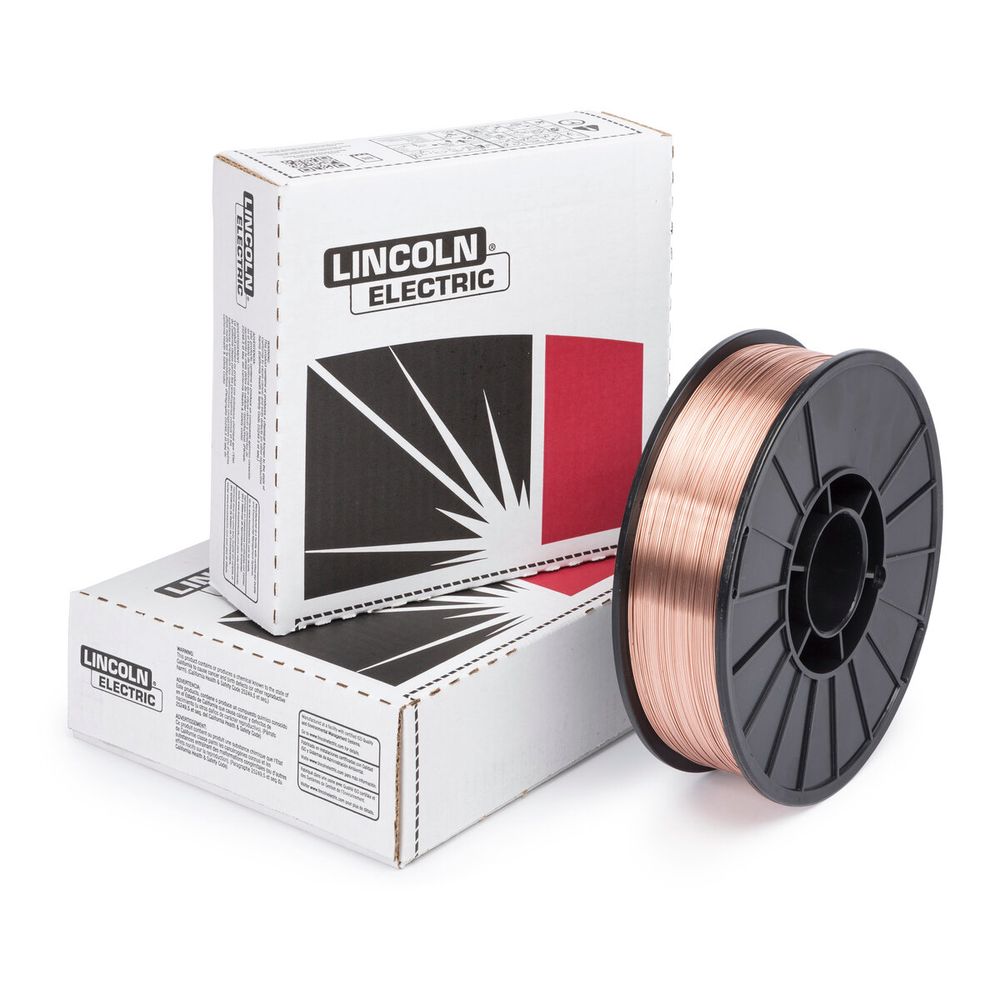

- Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire

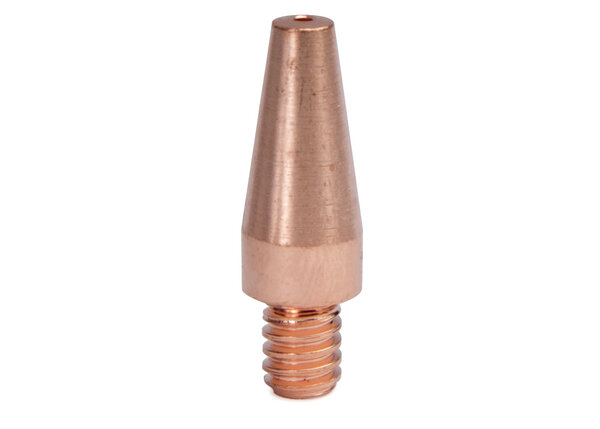

- 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips
- 0.025 - 0.030 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls
- 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls
- 0.025 - 0.035 in. (0.6 - 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides

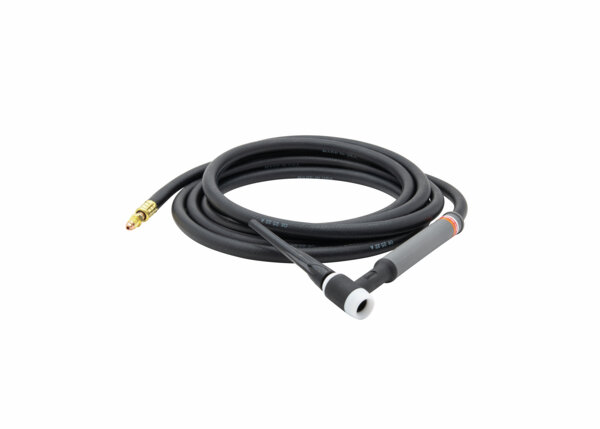

- PTA-17 Ultra-Flex TIG Torch 12.5 ft. (3.8 m) (K1782-1)
- Twist Mate TIG Torch Adapter ( K1622-1)

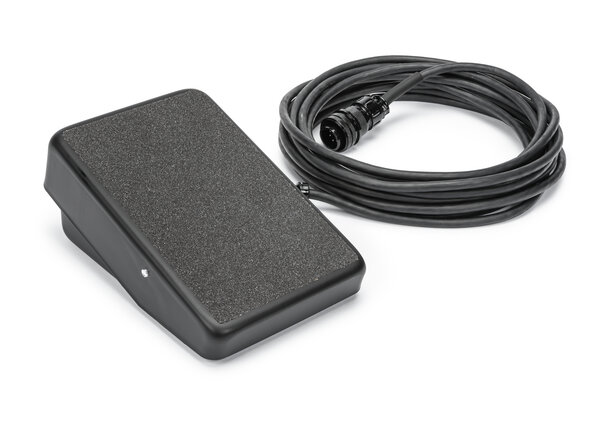

- Foot Amptrol (K870)
- Parts Kit for PTA-17V TIG Torch (KP508)
Shop all welding machines and welding safety equipment available online from Welders Supply.
This product replaces these legacy models:
POWER MIG® 215 MPi™ Multi-Process Welder Aluminum One-Pak® - Specifications | |
---|---|
Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | MIG: 105A/19.25V/40% 80A/18V/100% |
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | TIG: 130A/15.2V/40% 100A/14V/100% |
Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | Stick: 85A/23.4V/40% 60A/22.4V/100% |
Phase 1: Input Current at Max Rated Ouput #1 (Current) | 22A |
Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | MIG: 215A/24.8V/30% 120A/20V/100% |
Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | TIG: 175A/17V/30% 110A/14.4V/100% |
Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) | Stick: 175A/27V/30% 110A/24.4V/100% |
Phase 1: Input Current at MAX Rated Output #2 (Current) | 29A |
Machines Processes | Stick (SMAW) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) |
IEC Rating | IP21S |
Max Rating | 220A |
Output Range by Mode | MIG: 20-220A |
Number of Operators per Machine | 1 |
Machines Communication Technology | digital |
Work Lead Connector Type | Dinse |
Welding Gun Cable Assembly Length | Magnum PRO 175L |
Work Cable Length | 10 FT |

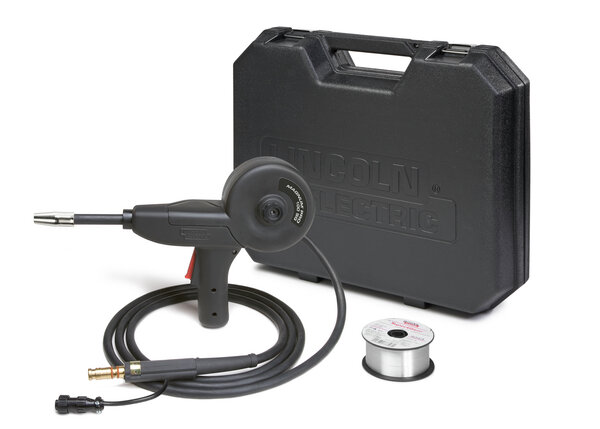

Spool Gun Compatible (Duty) | Light |
Wire and TIG Feeders | |
UI type | TFT - Graphic |
Wire Feeders Processes | MIG |
Flux Cored | |
Contact Tips Included | Yes |
Maximum Wire Thickness | 0.045 in (1.1 mm) |
Minimum Wire Thickness | 0.025 in (0.6 mm) |
Sample MIG Wire Included | Yes |
Input Voltage | 120/230 |
Input Current | 120V: 15A, 230V: 15.9A |
Input Hertz | 60 |
Input Power | 120/230/1/60 |
Input Phase | 1 |
Mode Icon | CC/CV |
Output Range | 120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V |
Polarity | DC |
Rated Output | 120V: 105A/19.3/40% 230V: 215A/24.8V/30% |
Typical Application | Automotive Brewery Distillery General Fabrication Maintenance & Repair Repair Welding |
Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
Height: | 15.08 Inches |
Width: | 10.88 Inches |
Length: | 23.14 Inches |
Weight: | 48 Lb(s) 0 Oz |
