Miller XMT® 400 ArcReach® Multi-Process Welder, MIG/Flux-Cored System (Tweco®) (208-575 V, 1/3PH) #951000113

Part Numbers: 951000113

Included with your purchase: ()

Miller XMT® 400 ArcReach® Multi-Process Welder, MIG/Flux-Cored System (Tweco®) (208-575 V, 1/3PH) #951000113
Miller XMT® 400 ArcReach® Multi-Process ...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$11,348.00 + Free Shipping
$11,348.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • ArcReach Smart wire feeder with drive rolls includedSuitcase Feeder & MIG Gun Included
  • Multi-process MIG/TIG/stick welding machineMulti-Process Welding
  • Lightweight, portable welding power sourcePortable & Lightweight
  • 208-575 V Input
  • 1-Phase or 3-Phase Input
  • 10–38 V, 15–425 A Welding Output Range10–38 VDC, 15–425 A Output
  • Miller True Blue 3-Year WarrantyMiller 3-Year Warranty

Miller XMT® 400 ArcReach® Multi-Process Welding Machine, MIG/Flux-Cored System (208-575 V, 1PH /3PH) #951000113

Miller’s XMT® 400 ArcReach® Multi-Process is the smallest, lightest multi-process welding machine in its amperage class and provides industry-leading arc performance with dedicated processes for Stick, TIG, FCAW and MIG welding. Get power from anywhere with Auto-Line™ Technology and make remote voltage adjustments with the arc on with ArcReach® & AWW™ technologies. The MIG/Flux-Cored System includes an ArcReach® SuitCase® 12 Feeder and Bernard® BTB Gun 300 A. Built on the foundation of the XMT® 350, the XMT® 400 continues Miller’s legacy of excellent performance and reliability.

Download literature of this machine:

Miller True Blue warranty

What's Included:

  • XMT® 400 ArcReach®
  • ArcReach® SuitCase® 12 Feeder w/ Drive Rolls
  • Bernard® BTB Gun 300 A w/ AccuLock™ Consumables

Processes:

  • MIG (GMAW)
  • Pulsed MIG (GMAW-P)*
  • RMD®*
  • Stick (SMAW)
  • TIG (GTAW)
  • Flux-cored (FCAW)
  • Air carbon arc cutting and gouging (CAC-A)
  • Rated: 5/16-inch
  • Induction heating**

*Available with ArcReach Smart Feeder only.
**Available with ArcReach Heater only.

Applications:

  • Construction
  • Shipbuilding
  • Power generation plants
  • Rental fleets
  • Maintenance repair operations (MRO)
  • Fabrication
Miller ArcReach technology for XMT 400 lets welders communicate with the power source without a cord

Weld Away From the Power Source


Highlights

  • ArcReach® Technology: Increase job site productivity and efficiency by making voltage adjustments remotely or at the ArcReach® wire feeder.
  • Dedicated Weld Processes: Dial in the exact arc you need with industry-leading arc performance across Stick, TIG, FCAW and MIG processes.
  • Auto-Process Select™: Decrease the chance of using incorrect weld processes with automatic process selection based on polarity.
  • Wind Tunnel Technology™: Internal airflow to protect electrical components and PC boards from dirt, dust & debris.
  • Auto-Line™ Technology: Automatically calibrates for proper operation when connected to any primary input from 208-575 V w/o requiring manual linking.
  • Cable Length Compensation (CLC™): Adjusts voltage based on cable length to provide the exact voltage set, even hundreds of feet from the power source.

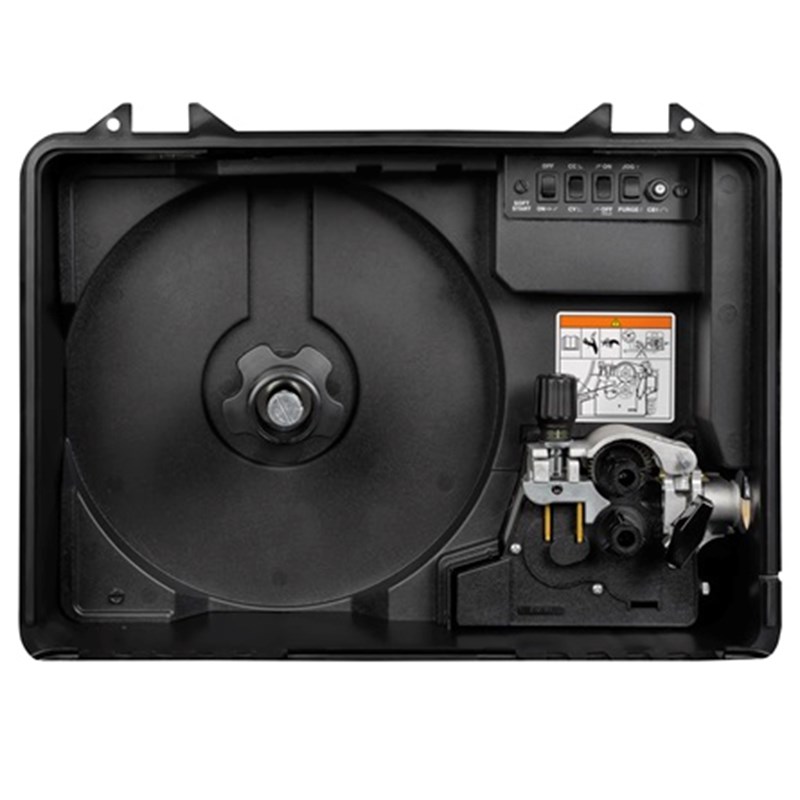

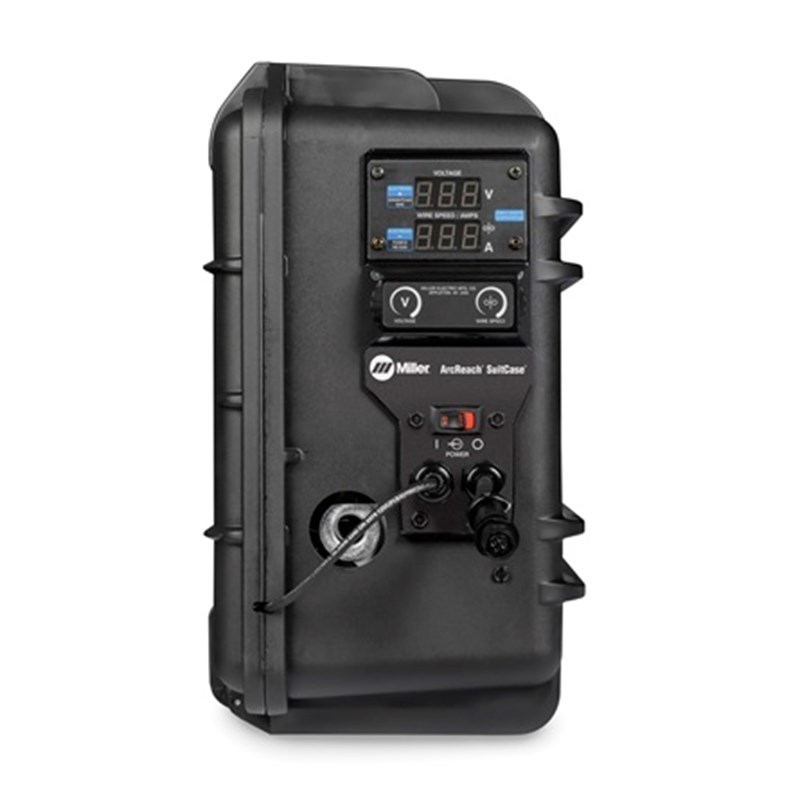

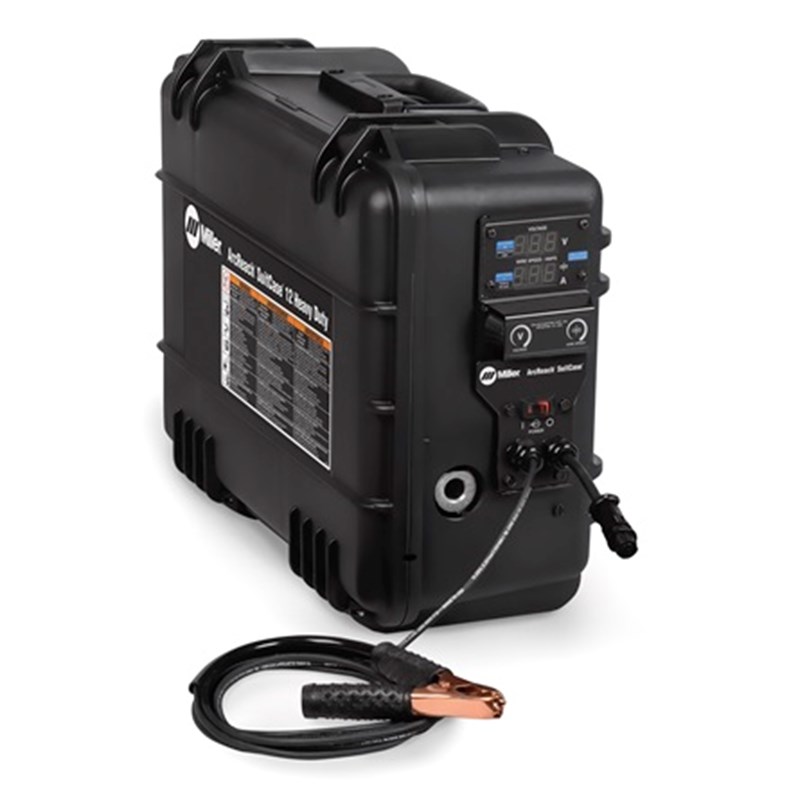

  • ArcReach® SuitCase® 12: Features heavy-duty drive motor, remote voltage/wire feed speed adjustments, easy process changeover & impact-resistant case.

Benefits of the XMT 400 ArcReach #951000113:

  • ArcReach® technology enables welders to adjust parameters remotely or directly at the wire feeder, reducing slip, trip, and fall hazards.
  • Automatic control panel lockout secures settings against unintended changes by others on site.
  • Adjust While Welding (AWW™) allows parameter adjustments during welding, enhancing speed and efficiency. Only Miller offers this unique feature.
  • ArcReach® heater compatibility supports preheat and bake-out operations up to 600°F.
  • Lightweight and compact, the XMT® 400 offers unmatched mobility in its amperage class.
  • The smart feeder’s rugged, cord-free design ensures reliable performance in challenging environments.
Miller XMT® 400 ArcReach® Multi-Process Welder - Key Features

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE and demo items. For more details, contact our customer service team at 1-844-682-0205.

Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Miller & other top brands.
XMT® 400 ArcReach®, Tweco® (MIG/Flux-Cored System) - Specifications
Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Multiprocess
Pulsed MIG (GMAW-P)
Regulated Metal Deposition (RMD)
Stick (SMAW)
TIG (GTAW)
Industries Interests Construction and Fabrication
Heavy Equipment
Shipbuilding
Amperage 15 A - 425 A
Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel
Input Voltage 208 V
208/230/460 V
220/208 V
220/230/240 V
380/400 V
380/400/440 V
460 V
460/480 V
575 V
575/600 V
Rated Carbon Diameter 5/16 in (7.9 mm)
Input Phase 1- and 3-Phase
Input Hz 50/60 Hz
Current Type DC
Max Open Circuit Voltage 91 VDC
Metal Type Most Metals
Voltage Min 10 VDC
Voltage Max 38 VDC
Welding Mode CC/CV
Portability Handle(s)
Applications Boat/Yacht
Fabrication
Field Welding
Industrial Welding
Structural Welding
Warranty 3 Years
Miller's True Blue Warranty



SHIPPING DIMENSIONS

Height: 17.25 Inches
Width: 12.25 Inches
Length: 20.25 Inches
Weight: 75 Lb(s) 0 Oz
