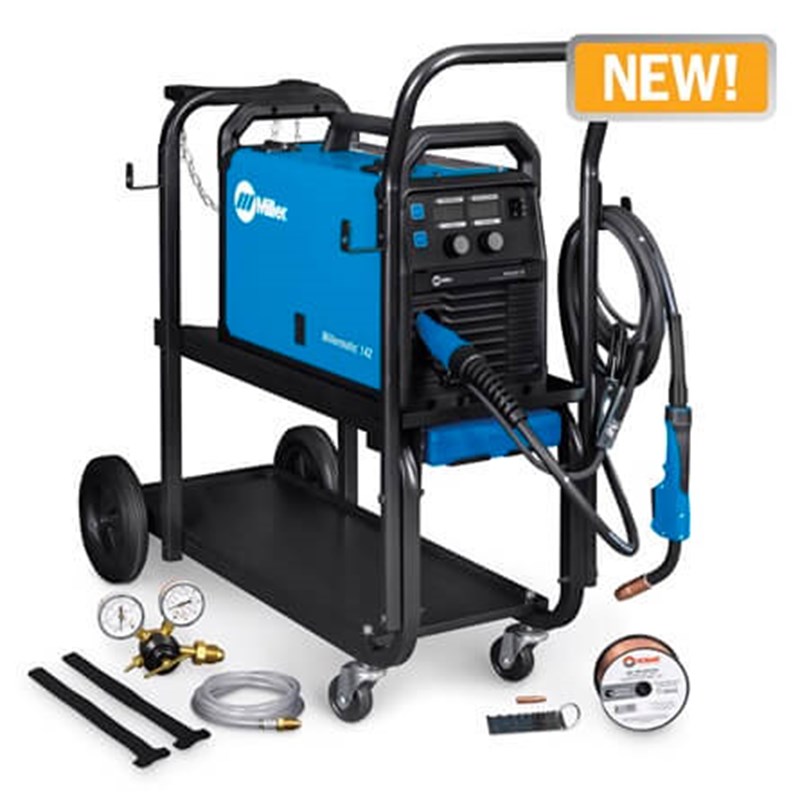

Miller Millermatic® 142 MIG Welding Machine w/ Cart #951000072
Portable MIG/Flux Cored 120V Welder (24 gauge – 3/16" mild steel) w/ Running Gear/Cylinder Rack
Auto-Set™ Technology
Experience the ultimate convenience with Auto-Set™, a revolutionary feature that automatically configures your welder to the optimal parameters. Say goodbye to the tedious task of manual parameter adjustment. With Auto-Set™, simply input the wire diameter and material thickness, and you're ready to weld with unmatched accuracy and efficiency.
Segmented Display
The intuitive segmented display of the Millermatic® 142 empowers you to set the machine precisely and accurately in both Manual and Auto-Set modes. Enjoy enhanced visibility and control, ensuring seamless operation and superior weld quality.
120V Input Power
Versatility meets convenience with the 120V household input power compatibility of the Millermatic® 142. Say farewell to special power requirements and enjoy the flexibility to weld in any location with ease.
Unmatched Performance and Protection
Smooth-Start™ Technology
Bid farewell to spatter and uneven starts with Smooth-Start™ technology. This innovative feature delivers a smooth, spatter-free start, establishing the Millermatic® 142 as the premier choice in the 120V MIG welding category.
Auto Spool Gun Detect™
Experience unparalleled convenience with Auto Spool Gun Detect™, which automatically recognizes when a MIG gun or spool gun is connected. Say goodbye to manual switching, streamlining your workflow for maximum efficiency.
Quick Select™ Drive Roll
Streamline your setup process with the Quick Select™ Drive Roll, offering three grooves for different wire sizes, including flux-cored wire. Enjoy accelerated setup times and seamless transitions between welding tasks.
Generator Compatibility
Experience uninterrupted welding performance with generator compatibility, allowing the Millermatic® 142 to operate at full output when powered by generators with 5,000-watt output or higher. Enjoy consistent performance even in remote locations or areas with limited power supply.
Applications:
- Car Restoration
- Garage/Shop
- Metal Art
- Welding Projects
What's Included:
- Millermatic 142
- 10-ft. (3 m) MDX™-100 MIG Welding Gun
- 10-ft. (3 m) work cable with clamp
- 6.5-ft. (2 m) power cord with plug
- Argon and AR/CO2 mix flow gauge regulator with gas hose
- Hobart® spool of .030-in. (0.8 mm) solid wire
- Two contact tips for .030-in. (0.8 mm) wire
- Quick Select drive rolls for .024-in (0.6 mm) or .030/.035-in. (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire
- Material thickness gauge (#229 895)
- Hook-and-loop cord wraps

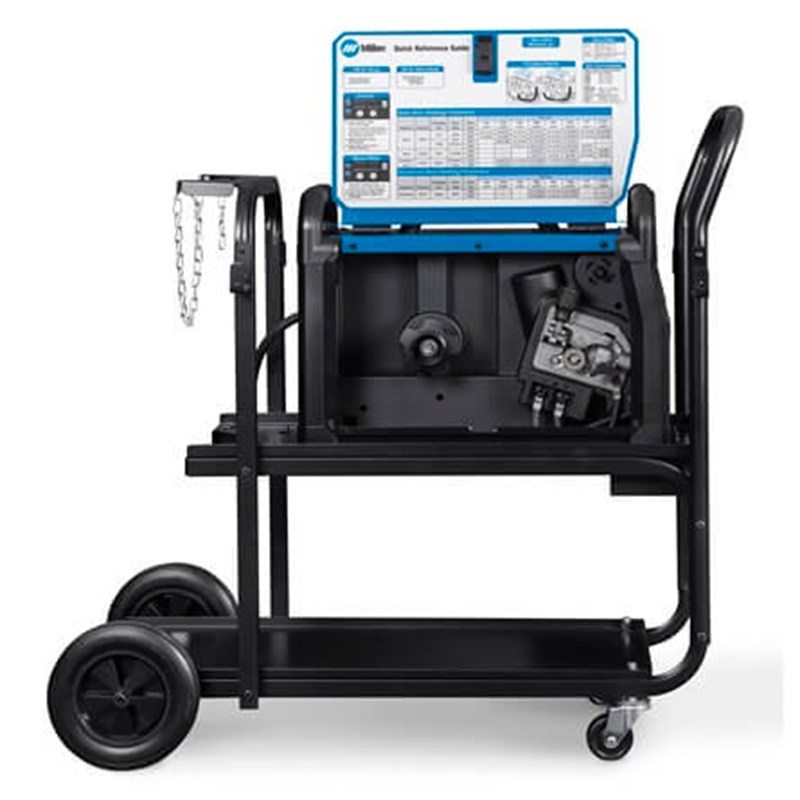

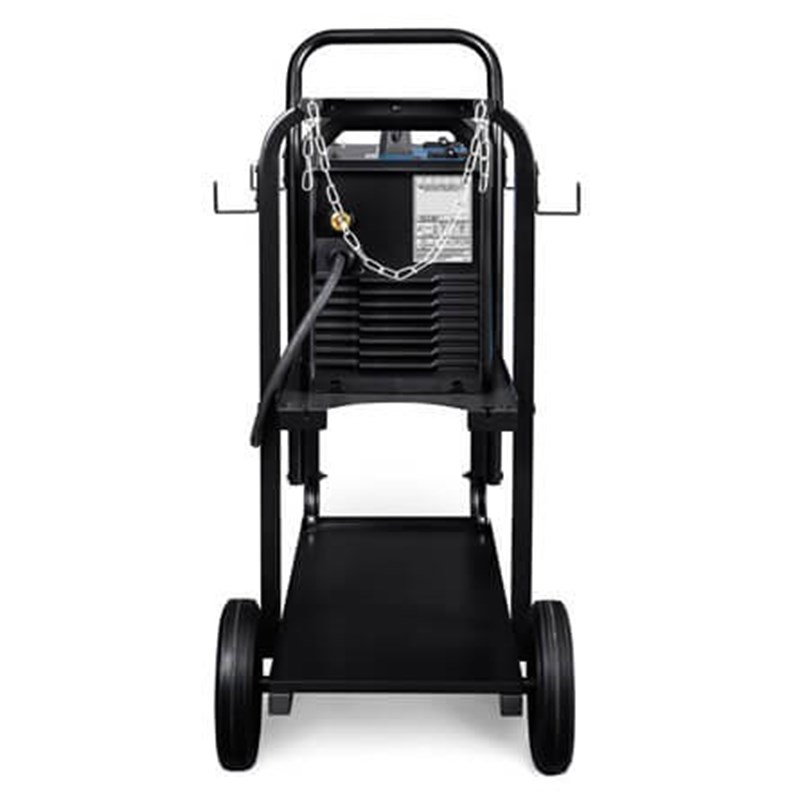

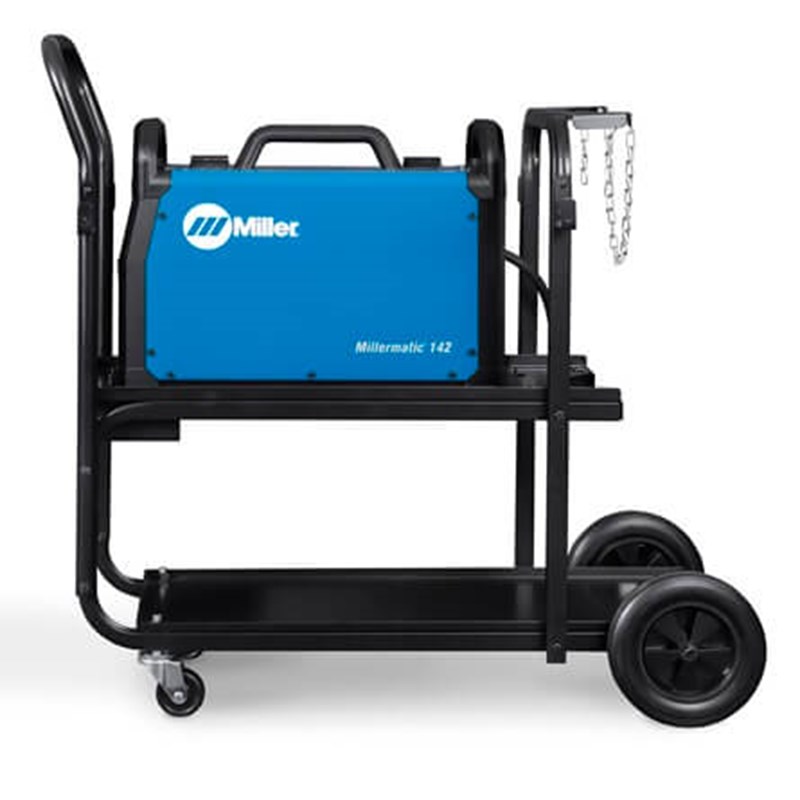

- Small running gear/cylinder rack
- NOT included: Shielding gas for welding with solid wire (GMAW), Spool Gun for welding aluminum, Personal safety products (helmet, gloves)
Try these accessories with your new Millermatic 142 Auto-set MIG Welder:
+
Aluminum Spool Gun
View Product+
Dual Cylinder Kit
View Product+
MDX-100 MIG Gun
View Product
Check out the wide selection of MIG welders from Miller and other top brands, available at Welders Supply Company.
Millermatic® 142 MIG Welder #951000072 - Specifications | |
---|---|
Processes | Flux Cored (FCAW) MIG (GMAW) |
Title | Millermatic® 142 MIG Welder |
Industries Interests | Racing Farm and Ranch Manufacturing Welding Education and Training |
Amperage | 30 A - 140 A |
Material Thickness | Aluminum 18 ga. (1.2 mm) - 14 ga. (1.9 mm) Mild Steel 24 ga. (0.8 mm) - 3/16 in. (4.8 mm) |
Weldable Metals | Aluminum Stainless Steel Steel |
Input Voltage | 110/115/120 V |
Input Phase | 1-Phase |
Input Hz | 60 Hz |
Current Type | DC |
Rated Output | 100 A at 19 V, 60% duty cycle 80 A at 18 V, 100% duty cycle |
Max Open Circuit Voltage | 30 VDC |
Wire Feed Speed | 1.5 m/min - 15.2 m/min 60 IPM - 600 IPM |
Wire Diameter | Stainless 0.024 in. - 0.03 in. Stainless 0.6 mm. - 0.8 mm. Solid Steel 0.6 mm. - 0.8 mm. Solid Steel 0.024 in. - 0.03 in. Flux Cored 0.03 in. - 0.035 in. Flux Cored 0.8 mm. - 0.9 mm. |
Spool Size | 8 in. |
Portability | Handle(s) Running Gear / Cart (Optional) |
Weld Output | CV |
SHIPPING DIMENSIONS |
|
Height: | 14.63 Inches |
Width: | 9.75 Inches |
Length: | 20.00 Inches |
Weight: | 33 Lb(s) 0 Oz |
