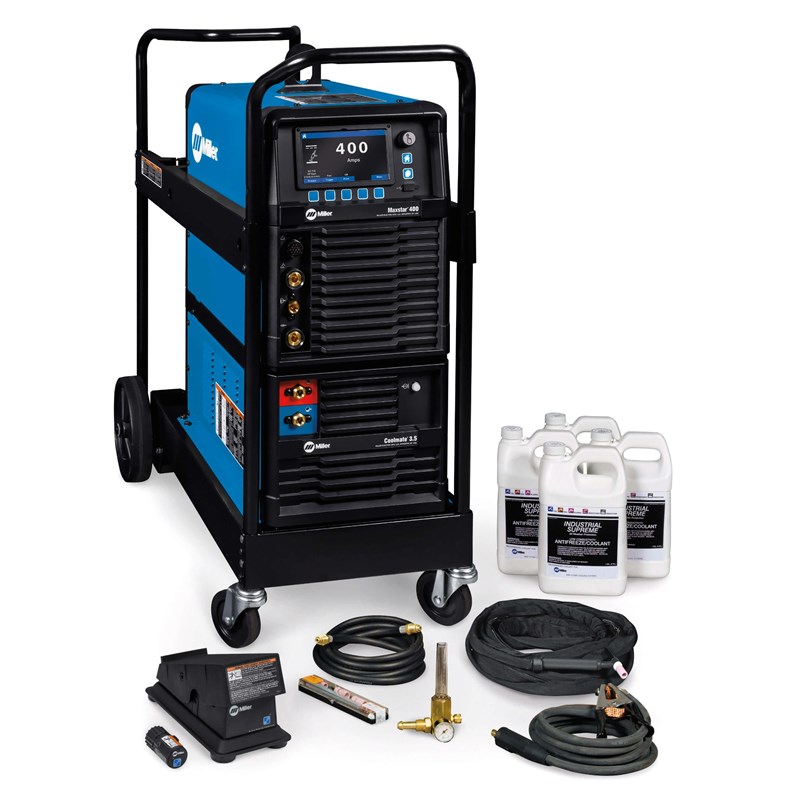

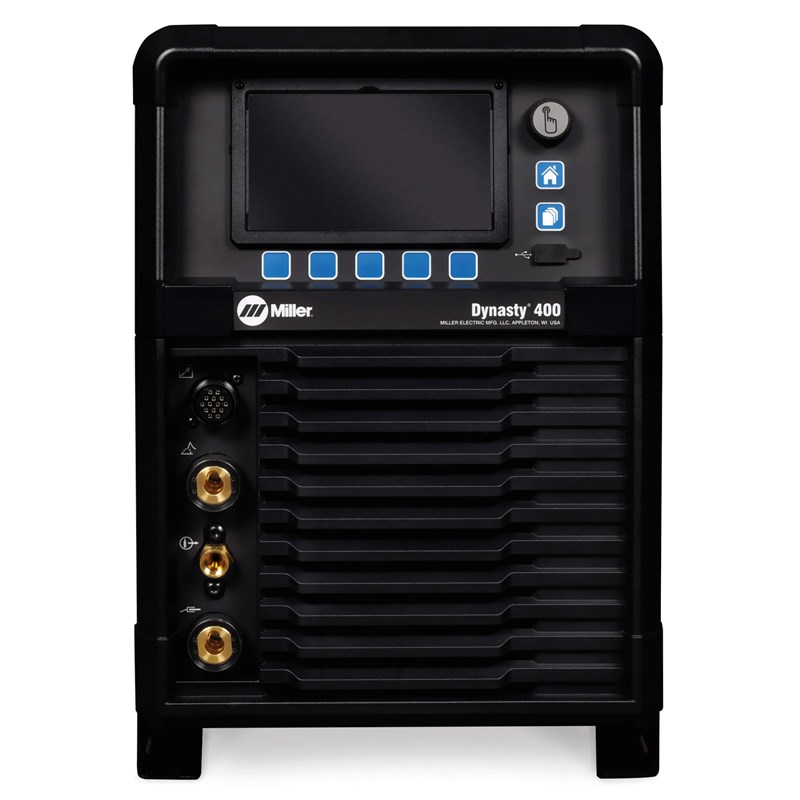

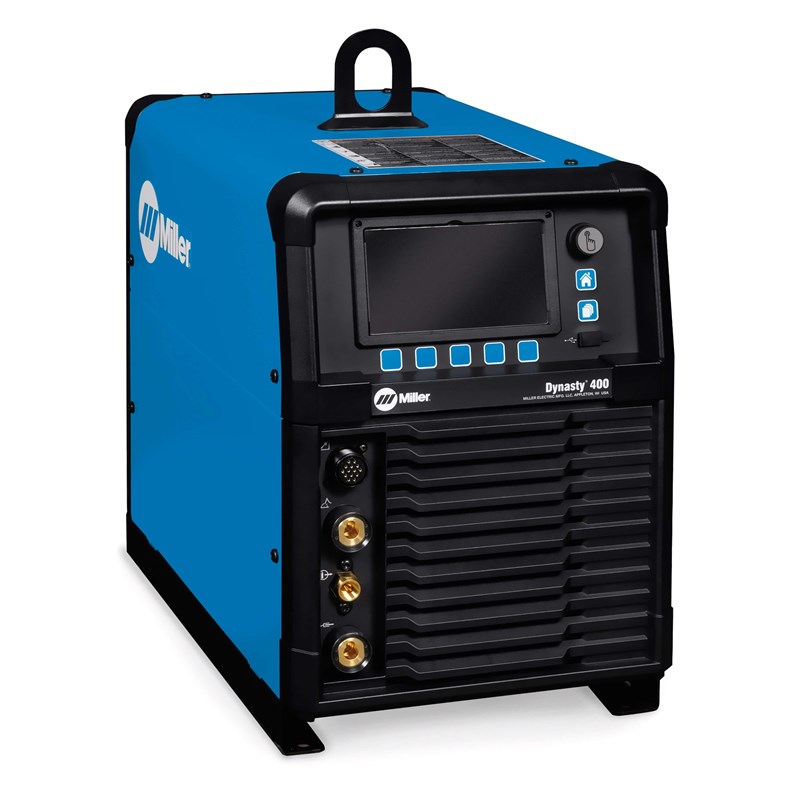

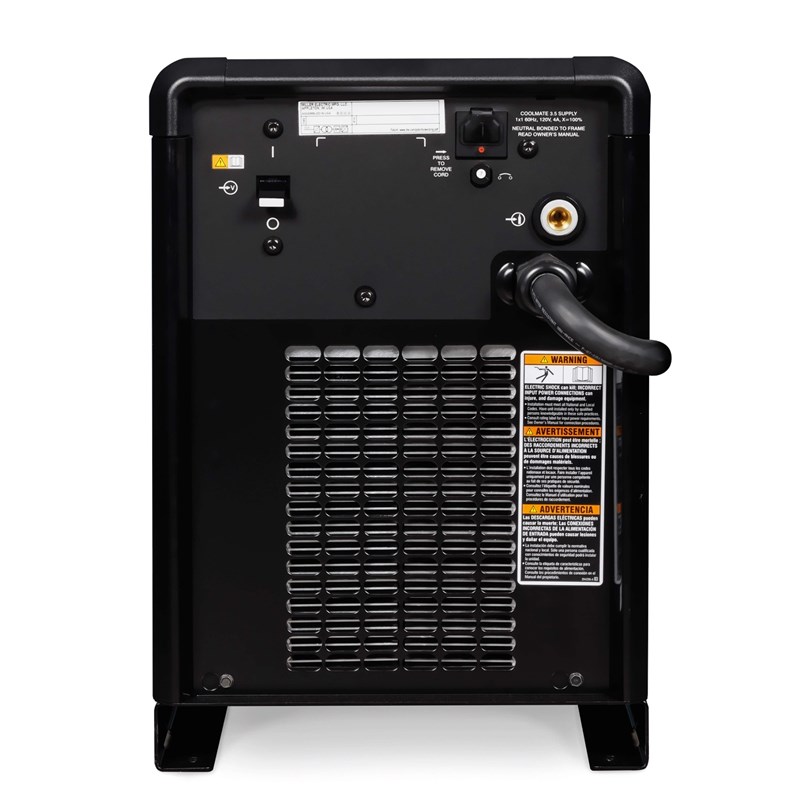

Miller Dynasty® 400 TIG/Stick Welder, Wireless Foot Control Complete Pkg (208-600 V) #951000002

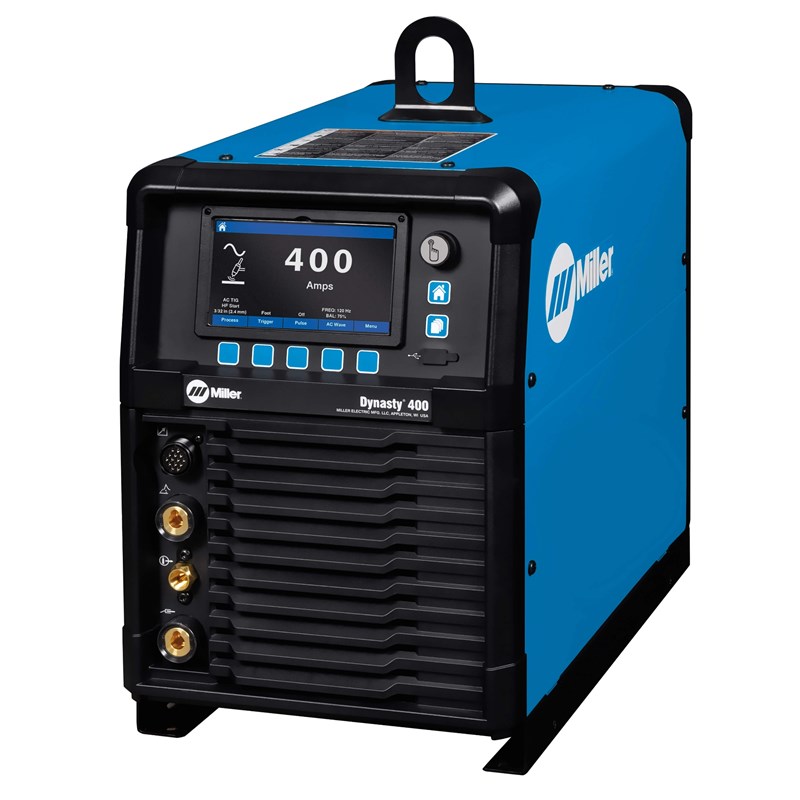

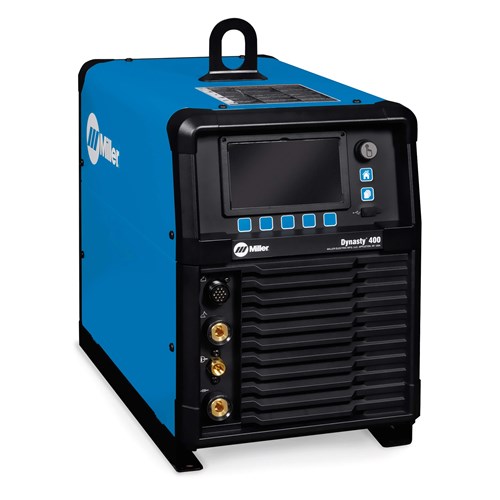

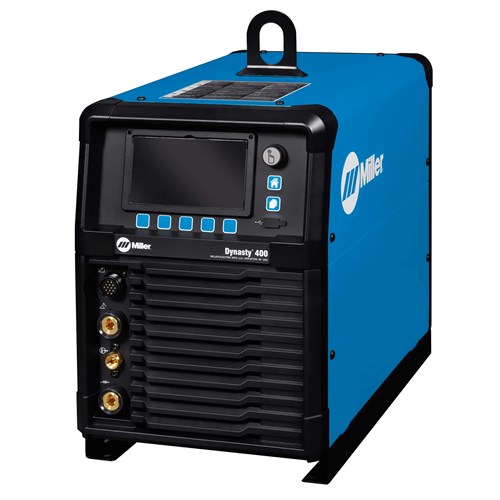

• Dynasty 400 power source
• 8 ft power cord (no plug)

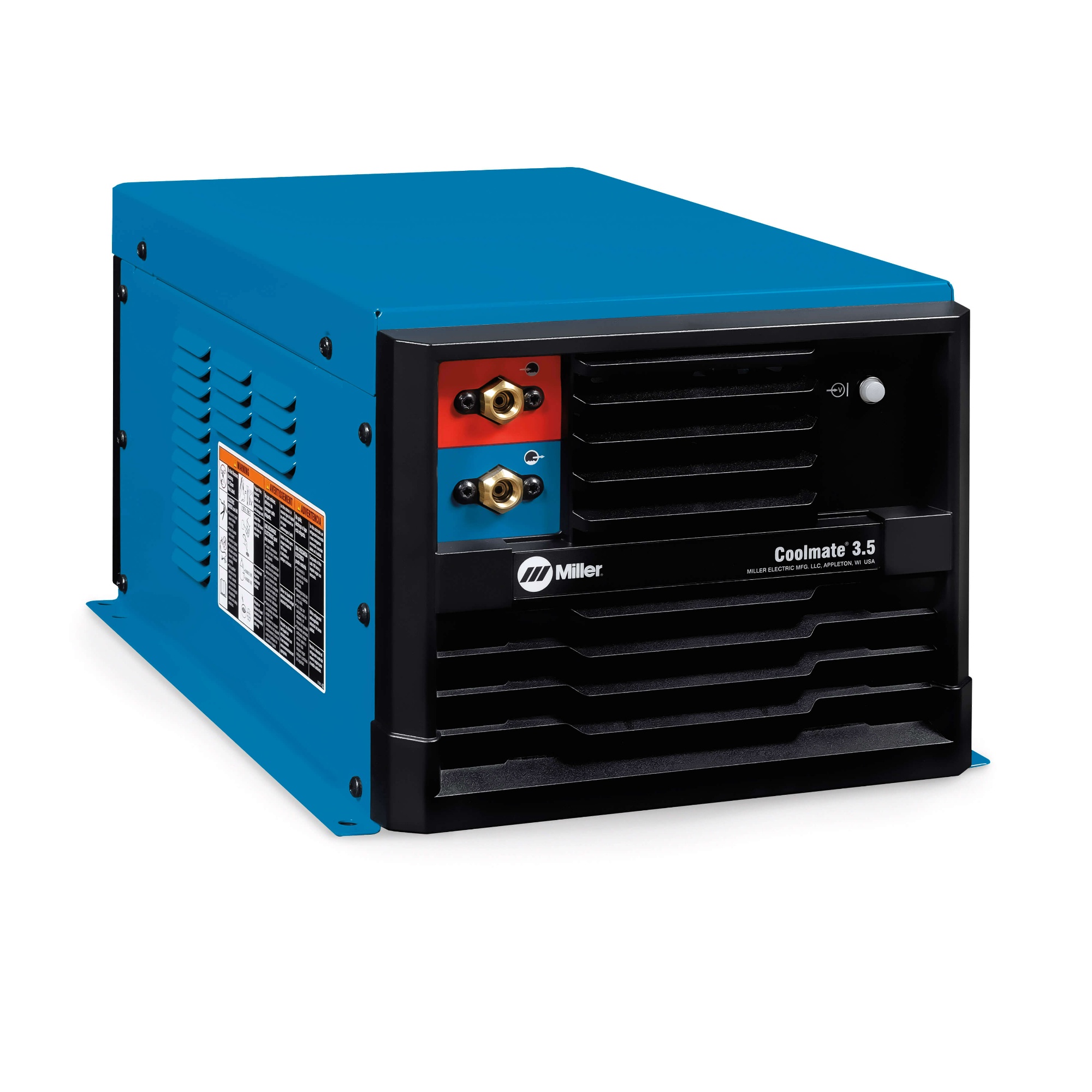

• CoolmateTM 3.5

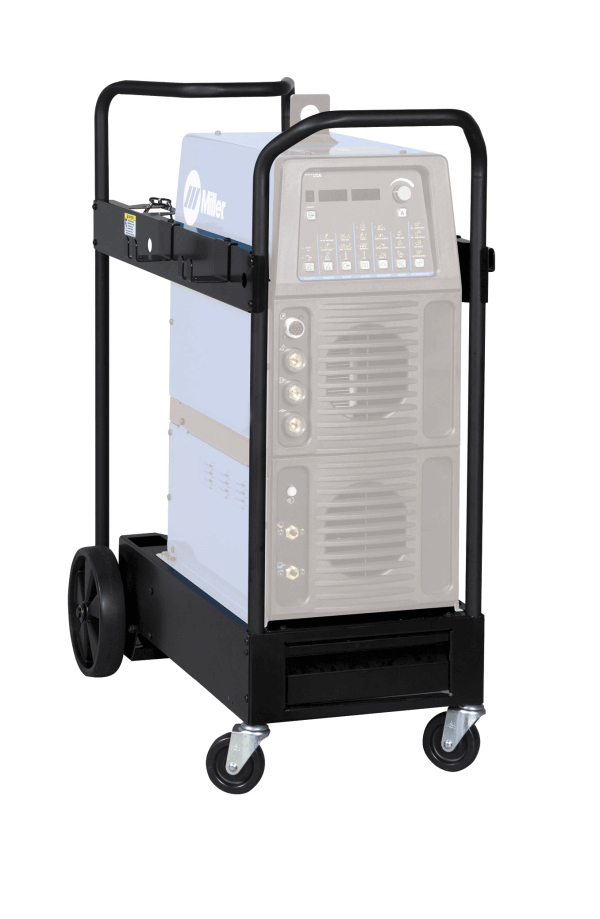

• RunnerTM cart
• Coolant (4 one-gallon bottles)

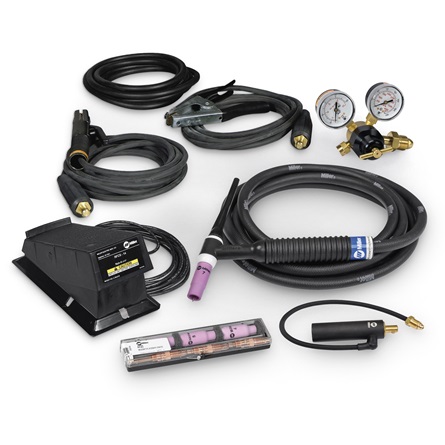

• W-375 torch kit (see page 6 for contents)

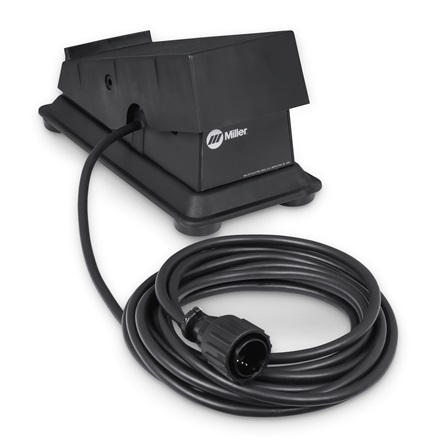

• Wireless foot control

Applications

• Precision fabrication
• Heavy fabrication
• Pipe and tube fabrication
• Aerospace
• Aluminum ship repair
• Anodized aluminum fabrication

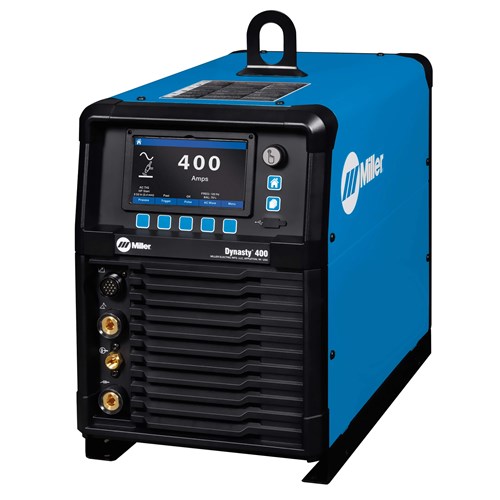

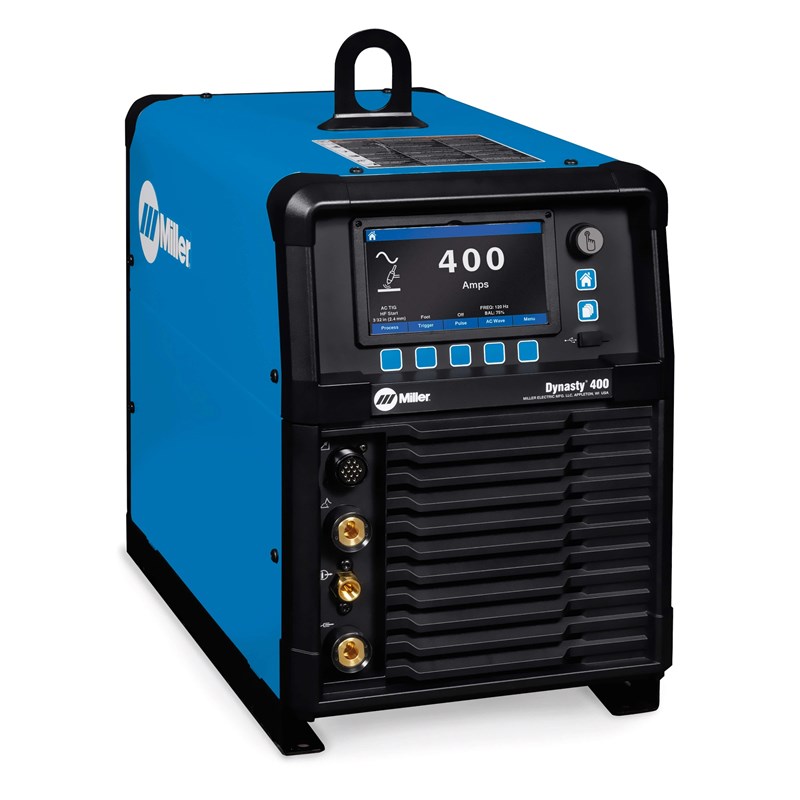

Intuitive Interface LCD Display - Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.

AC and DC TIG Features - AC TIG Features Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode. Extended AC balance (30–99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum. AC frequency (20–400 hz) controls the width of the arc cone and the force of the arc. DC TIG Features Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.

Program Memory - Allows easy naming, saving and recalling of favorite weld settings.

Locks and Limits - Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).

USB Port - Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.

Pro-Set Feature (professional settings) - This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.

AC Frequency Control - Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

Auto-Line™ Technology - For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–600 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.

Stick Features - Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.

QuietPulse™ - Activate QuietPulse by selecting sine or triangular waveshape to reduce audible noise.

AC Waveforms - Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds. Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action. Sine wave is for customers that like a traditional arc. It is quiet with good wetting. Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.
