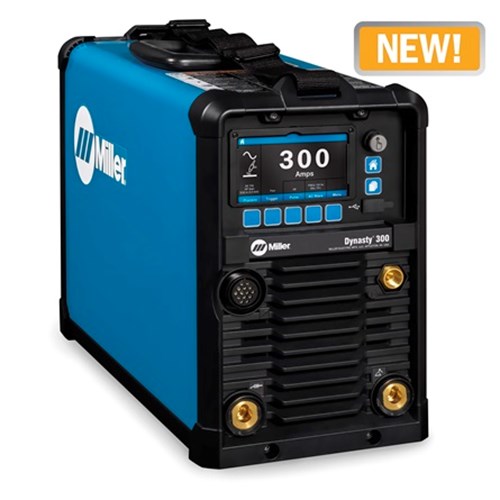

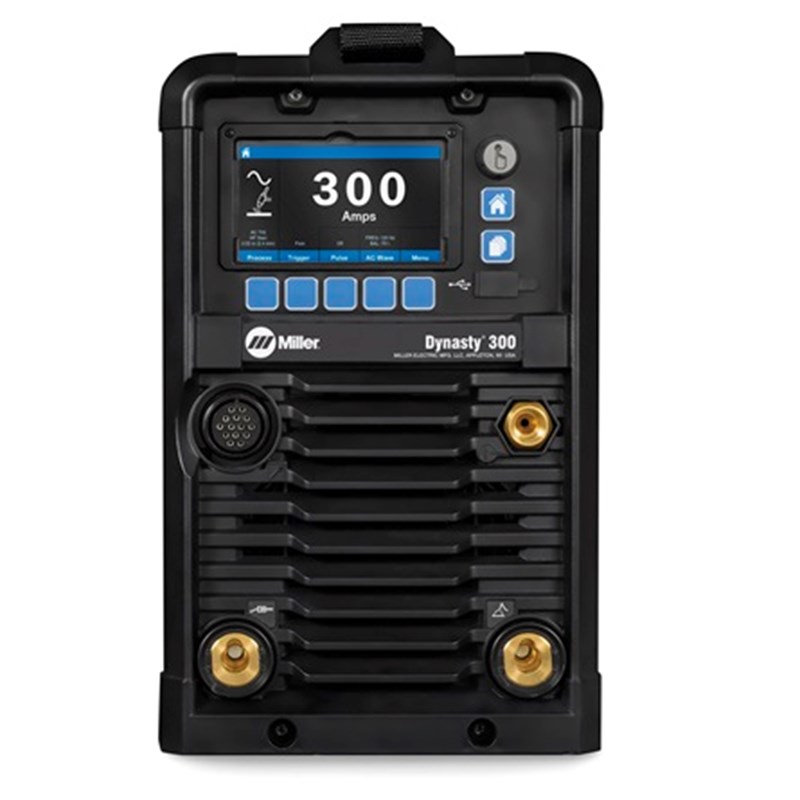

Miller Dynasty® 300 AC/DC TIG/Stick Welder, CPS w/ Auto-Line (208-600 V) #907818

Miller Dynasty 300 (Auto-Line 208-600V) CPS TIG Welding Machine #907818

The Miller Dynasty 300 combines power and portability, weighing 55 pounds and welding up to ⅜ inch thick material. Capable of AC/DC TIG, Pulsed TIG and Stick welding, this machine also comes equipped with an integrated 120V cooler power supply for the Coolmate™ 1.3.

What sets the Dynasty® 300 208-600 V, CPS apart

• AC/DC TIG - Can TIG weld aluminum as well as steel/stainless steel and other alloys
• Cooler Power Supply (CPS) - Integrated 120V dedicated-use receptacle for Coolmate 1.3
• Portable TIG/Stick Performance - Lightweight at 55lbs, the Dynasty 300 can easily be moved around the work site

Processes

• Air Carbon Arc Cutting and Gouging (CAC-A)
• Stick (SMAW)
• TIG (GTAW)
• TIG AC (GTAW-AC)
• TIG DC (GTAW-DC)

Applications

• Shipbuilding
• Manufacturing
• Heavy Equipment
• Railcar
• Aerospace
• Construction and Fabrication

What's Included

• Dynasty 300
• 8 ft (2.4 m) primary cord
• Adjustable Shoulder Strap
• (2) 50 mm Dinse style connectors

Features of the Dynasty® 300 208-600 V, TIGRunner

• Locks and Limits - provides control of weld parameter ranges, minimizing deviation from the welding procedure specification (WPS)
• USB Port - front panel port provides the ability to easily update software, back-up settings and transfer saved welding programs from one unit to the next
• Cooler Power Supply (CPS) is an integrated 120-volt dedicated-use receptacle for the Coolmate™ 1.3
• Cooler-On-Demand™ feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler
• Stick Features - Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• AC Frequency Control - Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.

This product replaces these legacy models:

• Dynasty 280 DX TIG/Stick Welder (208-575V) #907551
• Dynasty 280 DX TIG/Stick Welder (Auto-Line 208-575 V) w/ CPS Part #907514
• Dynasty® 280 #907550

Spec Sheet

• Miller Dynasty® 300 #907818 - Spec Sheet

Processes

• Air Carbon Arc Cutting and Gouging (CAC-A)
• Stick (SMAW)
• TIG (GTAW)
• TIG AC (GTAW-AC)
• TIG DC (GTAW-DC)

General Specifications

Certifications

• CSA Certificate of Compliance 80123304

• Miller Dynasty® 300 #907818 - Spec Sheet
