Miller Dynasty® 280 907550
Part Number: 907550
UPC: 715959578264
Welding type:
TIG
Stick
Power supply:
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
8' (2.4m) Primary Cord
Lightweight & Portable
Weldcraft™ W-280 (WP-280) TIG Torch
Stick Welding
1 & 3-Phase Input
3-Year Miller Warranty

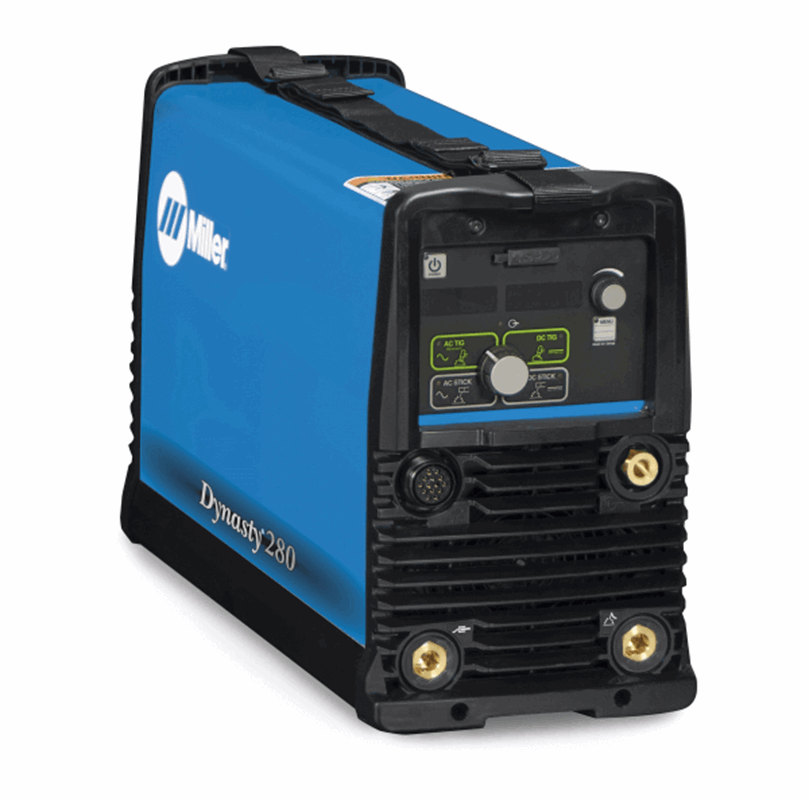

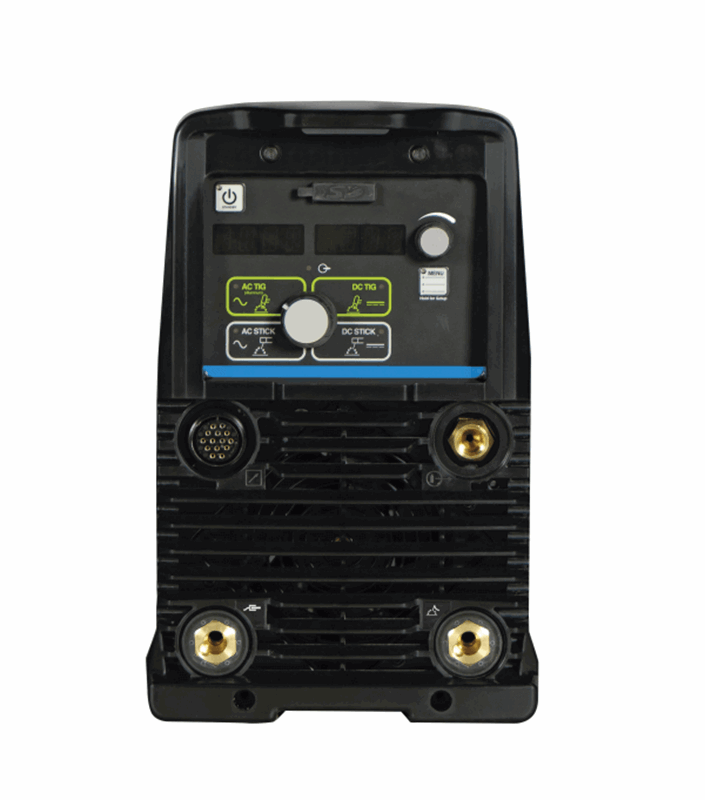

Miller Dynasty® 280 208-575 V 907550
The Dynasty 280 Series combines portability with exceptional versatility. This AC/DC TIG/Stick welder features an energy-efficient inverter design and Auto-Line™ technology that enables you to plug into single phase or three phase outlets ranging from 208 to 575 V with no manual linking needed. It can weld up material up to 3/8" thick, but is compact enough and light enough (52 lbs) to carry with the included shoulder strap.
What's Included:
- Dynasty® 280
- 8 ft. (2.4 m) primary cord
- Adjustable shoulder strap
- Quick Reference Guide
- (2) 50 mm Dinse style connectors
Features:
- Base and Deluxe Models Available
- Portable with adjustable shoulder strap
- Upgradable and Expandable

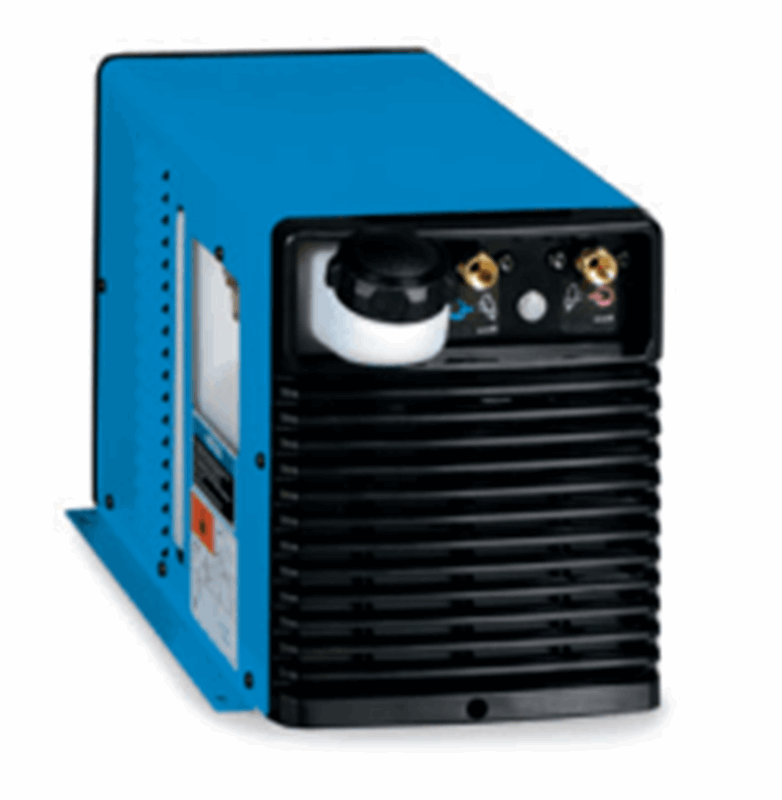

- Cooler Power Supply (CPS)
- Auto-Line Power Management Technology
- Pro-Set Feature (professional settings)
- Stick Features (AC/DC)

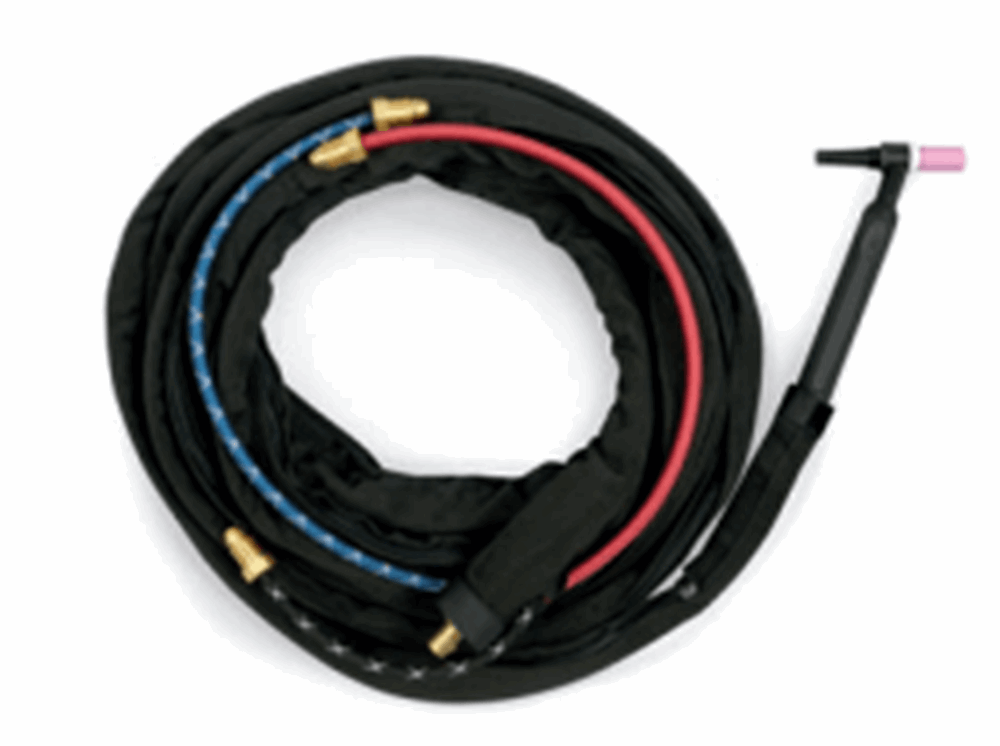

- Weldcraft™ W-280 (WP-280) TIG Torch
Browse all of our welding machines including multi-process welding machines, welding machine accessories, and safety equipment available for purchase online
OTHER VERSIONS:
- 907551 Dynasty 280 DX Solo Unit
- 907537 Dynasty 280 with CPS
- 907514 Dynasty 280 DX with CPS
- 907537002 Dynasty 280 with CPS and Tigrunner Cart
- 907514001 Dynasty 280 DX with CPS and TigRunner Cart
- 951466 Dynasty 280 with CPS Complete Package With Foot Control
- 951468 Dynasty 280 DX with CPS Complete Package With Foot Control
- 951469 Dynasty 280 DX with CPS Complete Package With Wireless Foot Control
Dynasty 280 Series Specifications | |||||
|---|---|---|---|---|---|
Welding Mode |
TIG (GTAW) |
Stick (SMAW) |
|||
Input Power |
3-phase | 1-phase | 3-phase | 1-phase | |
Welding Amperage Range |
2 - 280 A (AC) 1 - 280 A (DC) |
2 - 280 A (AC) 1 - 280 A (DC) |
5 - 280 A | 5 - 280 A | |
Rated Output |
235 A at 19.4 V, 60% duty cycle |
200 A at 28 V, 60% duty cycle |
180 A at 27.2 V, 60% duty cycle* |
||
Amps Input at Rated Load Output,50/60 Hz |
208 V |
19 | 33 | 22 | 34 |
230 V |
17 | 30 | 20 | 31 | |
400 V |
10 | 17 | 11 | 17 | |
460 V |
9 | 15 | 10 | 15 | |
575 V |
7 | 12 | 8 | 12 | |
KVA |
7.0 | 6.9 | 8.2 | 7.1 | |
KW |
6.7 | 6.8 | 7.9 | 7 | |
Max. Open-Circuit Voltage |
60 VDC (11 VDC**) | ||||
Material Cutting Thickness |
Steel: 0.004" (0.1mm) - .1875" (9.5mm) Aluminum: 0.012" (0.3mm) - .1875" (9.5mm) |
||||
Industries & Interests |
Aerospace, Boat / Yacht, Construction, Education / Training, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Mechanical Contracting | ||||
Portability |
Handle(s), Strap, Running Gear / Cart (Optional) | ||||
Dimensions |
H: |
13.6 in. (346 mm) | |||
W: |
8.6 in. (219 mm) | ||||
D: |
22.5 in. (569 mm) | ||||
Net Weight |
52 lb. (23.6 kg) 55 lb. (25 kg) with CPS |
||||
Warranty |
3 Years - Miller's True Blue Warranty | ||||
*Refer to owner's manual for 208 V output ratings and duty cycle
**Low OCV sense voltage for stick and Life-Arc™ TIG.
SHIPPING DIMENSIONS |
|
| Height: | 13.00 Inches |
| Width: | 17.00 Inches |
| Length: | 27.00 Inches |
| Weight: | 60 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - What's a good TIG torch to use with this?
A - The Weldcraft W-280 TIG torch (300990 ), the W-250 (300185) and the W-375 (301268 ) kits are all good picks.
Q - What input power does it need?
A - 208 – 575 V, 1-phase or 3-phase power
How to turn on Lockout feature:
- Press Amperage control to toggle between the lock off and code off displays.
Toggle control until [CODE] [OFF] is displayed.
- Turn encoder to select a lockout code number.
Select a number between 1 and 999. The number will appear on the amperage, right, display. Write down this code number, as you will need this number to turn this feature off or make changes to your settings.
- Toggle Amperage control until [LOCK] is displayed.
You may now select a lockout level to limit user control and adjustability of the machine. Exit the lockout feature by pressing Amperage and Gas/DIG controls at the same time.
