Dynasty 280 TIG/Stick Welder (With Cps) TIGRunner #907537002

TIG Welding
Stick Welding
1 & 3-Phase Input
Lightweight & Portable
Digital Meter Calibration
3-Year Miller Warranty

Miller Dynasty 280 (With Cps) Tigrunner #907537002

Capabilities: AC/DC TIG/Stick – Aluminum, Magnesium, Carbon Steel, Stainless Steel and Exotic Alloys

Material Thickness: 0.004 in. – 3/8 in.

Weight: 52 lb.

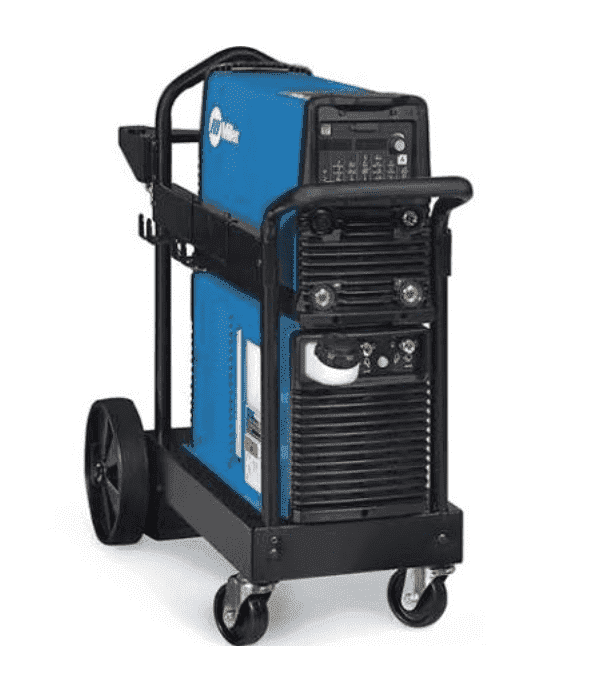

Quality Miller Machine comes with Cooler, Power Source, and Runner Cart

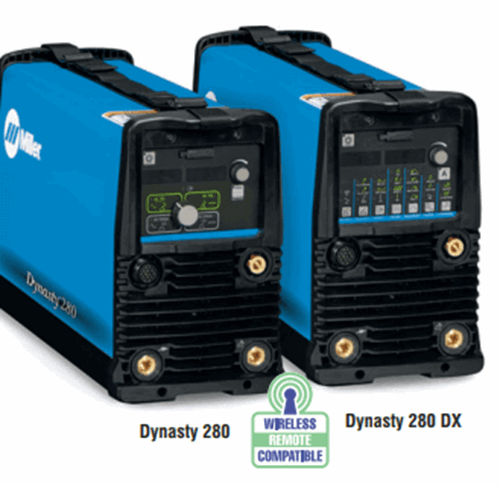

Miller Welding Equipment The Dynasty 280 DX provides operator-friendly, menu-driven features and is perfect for industrial manufacturing applications and heavy fabrication. For maximum capability — such as the high demands of precision fabrication — the Dynasty 280 DX offers full AC features, including advanced waveforms and wide ranges of balance and frequency.

Ideal for:

Pipe, tube, anodized aluminum
Aluminum ship repair
Aerospace industry

Features:

Update and expand: Front panel memory card data port provides the ability to easily update software and expand product features.
Pro-Set™ eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
Sleep timer conserves electricity: This programmable feature will power down the machine if it sits idle for a specific time.
Auto-line Power Management Technology Allows for any input voltage hookup (208 – 575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
Cooler Power Supply (CPS): An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the Dynasty also activates the receptacle to help prevent torch failure.
Blue Lightning™ high-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
Meter calibration allows digital meters to be calibrated for certification.
Wind Tunnel Technology™ protects internal electrical components from airborne contaminates, extending the product life.
Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.

AC TIG Features

Balance control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds. DX models provide extended ranges.
Frequency controls the width of the arc cone and can improve directional control of the arc.

AC Waveforms

Advanced squarewave: fast freezing puddle, deep penetration, and fast travel speeds.
Soft squarewave: for a soft buttery arc with maximum puddle control and good wetting action.
Sine wave: for customers that like a traditional arc. Quiet with good wetting.
Triangular wave reduces the heat input and is good on thin aluminum. Fast travel speeds.

DC TIG Features

Exceptionally smooth and precise arc for welding exotic materials.

AC/DC Stick Features

DIG control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes like E6010.
Hot Start™ adaptive control provides positive arc starts without sticking.
AC frequency control adds stability for smoother welds when AC Stick welding.
Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable

Comes Complete With:

Dynasty 280 power source with CPS
8 ft (2.4 m) primary cord

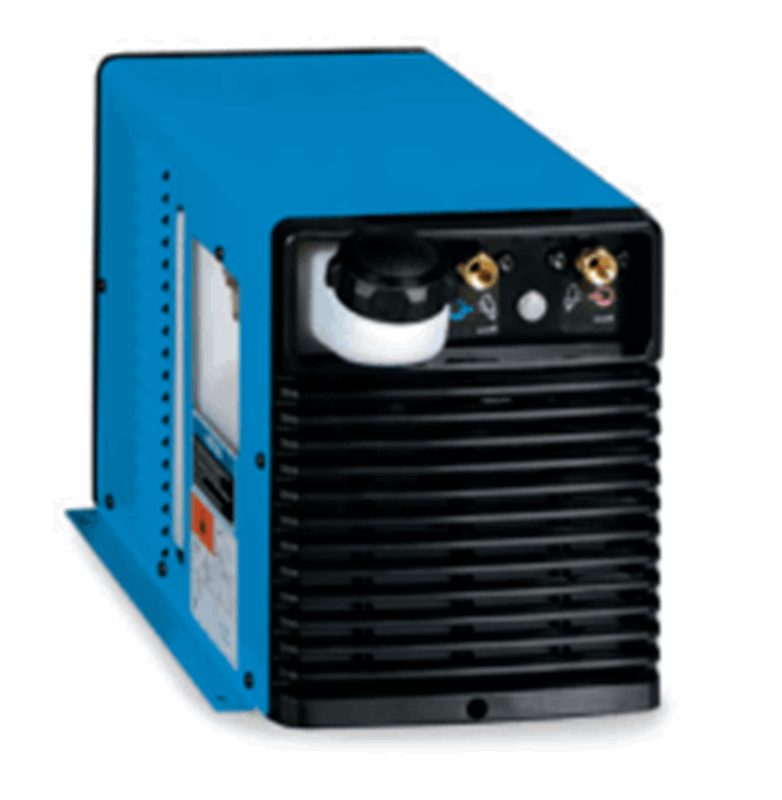

Coolmate™ 1.3
Small runner cart

View all of our Miller welding machines or view our full lines of quality welding machines including multiprocess welders and welding safety equipment.

OTHER VERSIONS:

907550 Dynasty 280 Solo Unit
907551 Dynasty 280 DX Solo Unit
907537 Dynasty 280 with CPS
907514 Dynasty 280 DX with CPS
907514001 Dynasty 280 DX with CPS and TigRunner Cart
951466 Dynasty 280 with CPS Complete Package With Foot Control
951468 Dynasty 280 DX with CPS Complete Package With Foot Control
951469 Dynasty 280 DX with CPS Complete Package With Wireless Foot Control

Dynasty 280 Series Specifications
Welding Mode		TIG (GTAW)		Stick (SMAW)
Input Power		3-phase	1-phase	3-phase	1-phase
Welding Amperage Range		2 - 280 A (AC) 1 - 280 A (DC)	2 - 280 A (AC) 1 - 280 A (DC)	5 - 280 A	5 - 280 A
Rated Output		235 A at 19.4 V, 60% duty cycle		200 A at 28 V, 60% duty cycle	180 A at 27.2 V, 60% duty cycle*
Amps Input at Rated Load Output, 50/60 Hz	208 V	19	33	22	34
	230 V	17	30	20	31
	400 V	10	17	11	17
	460 V	9	15	10	15
	575 V	7	12	8	12
	KVA	7.0	6.9	8.2	7.1
	KW	6.7	6.8	7.9	7
Max. Open-Circuit Voltage		60 VDC (11 VDC**)
Material Cutting Thickness		Steel: 0.004" (0.1mm) - .1875" (9.5mm) Aluminum: 0.012" (0.3mm) - .1875" (9.5mm)
Industries & Interests		Aerospace, Boat / Yacht, Construction, Education / Training, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Mechanical Contracting
Portability		Handle(s), Strap, Running Gear / Cart (Optional)
Dimensions	H:	13.6 in. (346 mm)
	W:	8.6 in. (219 mm)
	D:	22.5 in. (569 mm)
Net Weight		52 lb. (23.6 kg) 55 lb. (25 kg) with CPS
Warranty		3 Years - Miller's True Blue Warranty
