ESAB Fabricator 186i AC/DC Welder AC/DC Stick/TIG Welder #W1006301
Part Number: W1006301
UPC: 0822635023847
$2,833.95
$3,306.46*
SAVE $472.51
Welding type:
TIG
Documents
Videos
Stick Welding
AC/DC TIG Welding
187-253 V , 50/60 Hz Input
1-Phase Input
3-Year Warranty

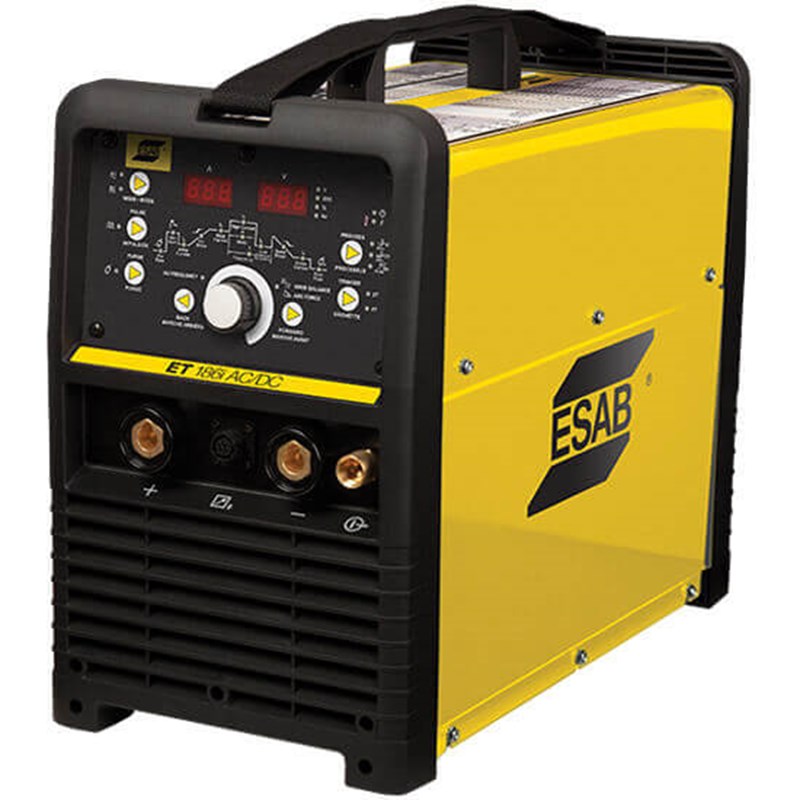

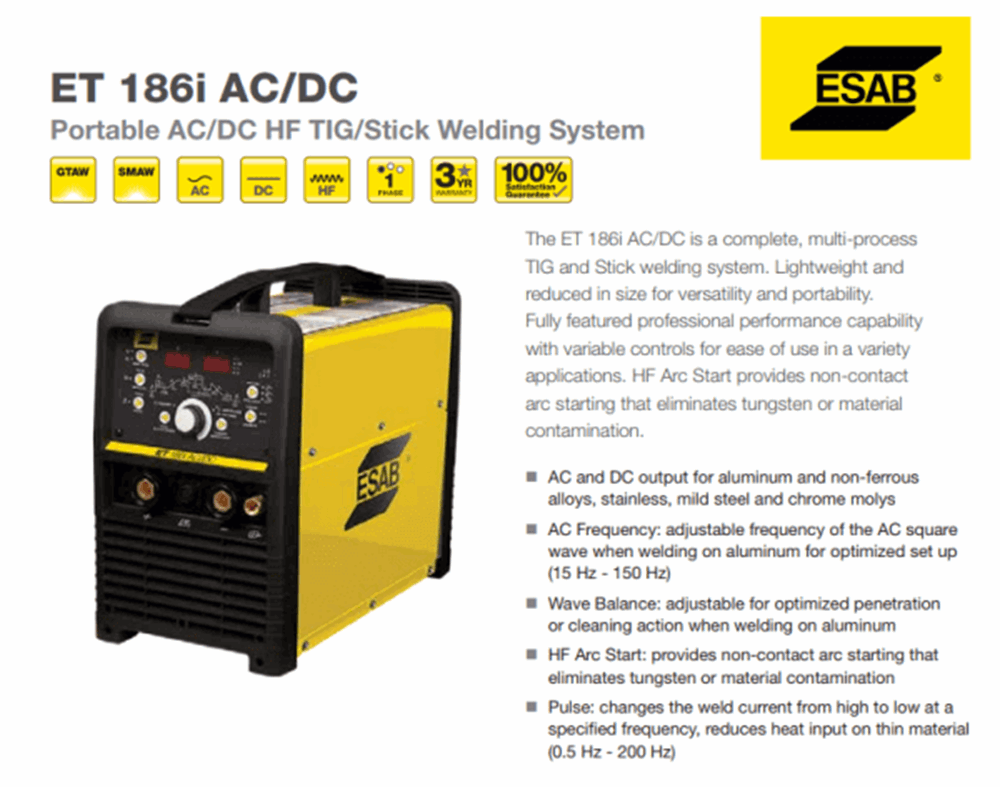

ESAB Fabricator 186i AC/DC Stick/TIG Welder #W1006301
Multi-Process, Stick & TIG welding system for a wide range of professional and hobbyist applications. Offering both AC and DC output for use with aluminum and non-ferrous alloys, this setup gives you crisp arcs and the ability to use indoors and outdoors. Backed by ESAB's great 3-year warranty for extra peace-of-mind.
PROCESSES
- SMAW/MMA (Stick)
- GTAW-AC (TIG AC)
- GTAW-DC (TIG DC)
- GTAW (TIG)
WHAT'S INCLUDED
- ET 186i AC/DC inverter power supply
- Electrode holder with 13ft (4m) lead
- Work clamp with 10ft (3m) lead
- 26 TIG torch 12.5ft (3.8m) lead with integrated controls and accessories
- Input power cable/plug 9ft (2.75m)
- Victor argon flowguage regulator 12.5ft (3.8m) hose
- Electrode bonus
- Shoulder strap
- Operating manual/CD
Highlights
- AC/DC Output Versatility: Weld aluminum, non-ferrous alloys, stainless, mild steel, and chromoly with precision AC/DC outputs.
- Adjustable AC Frequency: Optimize aluminum welding setups with adjustable AC wave frequency from 15 Hz to 150 Hz.
- Wave Balance Control: Fine-tune aluminum welding for maximum penetration or superior cleaning action with adjustable wave balance.
- HF Arc Start Technology: Achieve clean, non-contact arc starts to prevent tungsten and material contamination.
- Pulse Welding Feature: Control heat input on thin metals with high-low pulse currents adjustable from 0.5 Hz to 200 Hz.

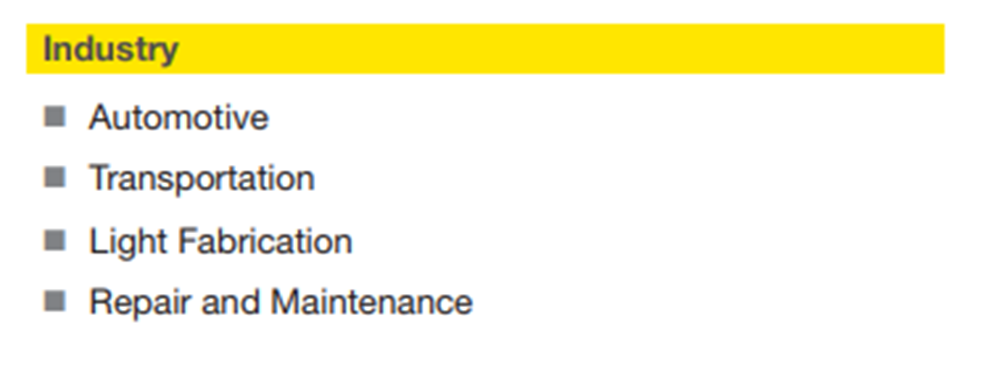

APPLICATIONS
- Repair and Maintenance
- Automotive
- Transportation
- Light Fabrication
TIG (GTAW)
- AC and DC output for aluminum and non-ferrous alloys, stainless, mild steel & chrome molys.
- AC Frequency: Adjustable frequency of the AC square wave when welding on aluminum for optimized set up.
- Wave Balance: Adjustable for optinmized penetration or cleaning action when welding on aluminum.
- Pulse: Changes the weld current from high to low at a specified frequency, reduces heat input on thin material.
- Preflow & Postflow: Enables independent control over shielding gas before and after the weld.
- Upslope / Downslope & Crater modes: Eliminates blow holes on starting and cracking at the end of the weld.
- Hot Start: Ensures consistent arc starting.
- HF Arc Start: Provides non-contact arc starting that elimates tungsten or material contamination.
- Lift TIG Start: Provides optimized TIG arc starting without the use of high frequency.
STICK (SMAW)
- Fixed Hot Start & Adjustable Arc Force Control for optimum Stick electrode performance.
Other Features:

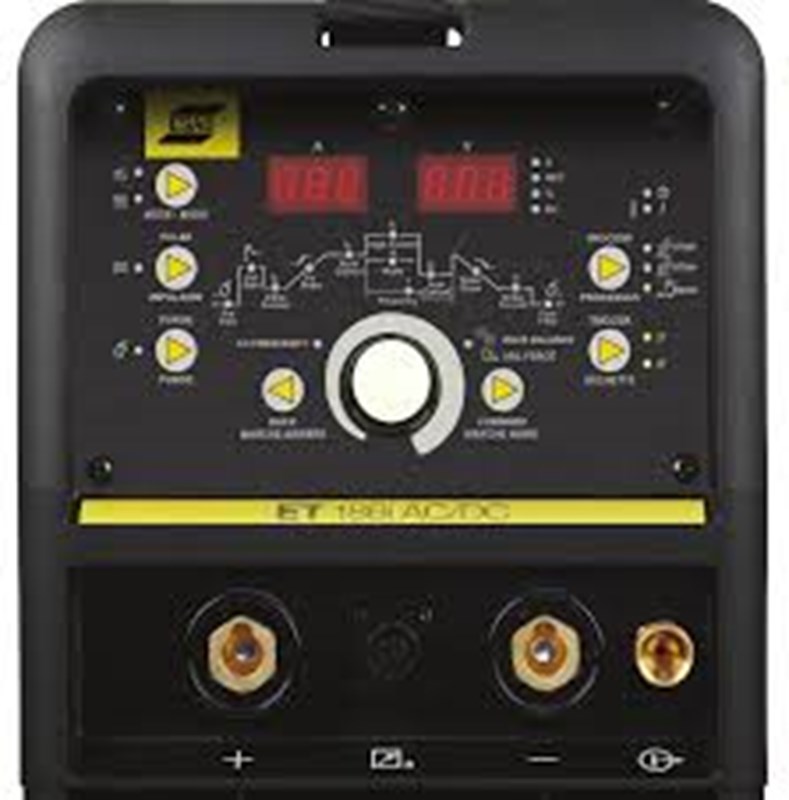

- Digital Meters: Voltage and Amperage; Preview and Hold Capability for easy set up.
- Trigger Control: 4T (Latch) eliminates operator fatigue.
- Gas Purge: Ensures gas lines are purged at start of weld.
- Comprehensive Setup Chart: Weld set up guide for optimum welding performance over a wide range of materials.
- Remote Receptacle: Enables connection of remote control devices like a foot pedal and torch slide control
- Excellent Portability: Lightweight at 48.4 lbs
- Overload Protection: Shuts down the power source to protect the internal electrical components from overheating.
- Meets IP23S Standards: Suitable for outdoor use.
For more great values, view our large selection of Mig, Tig, and Stick welders.
This product replaces these legacy models:
- Thermal Arc Fabricator 252i Multi-Process Welder (208–230V 1PH) #W1004401
- MiniArc 161LTS MIG Welder w/ Case (115/230V 1PH) #558102202
The ESAB Fabricator #W1006301 replaces these legacy models:

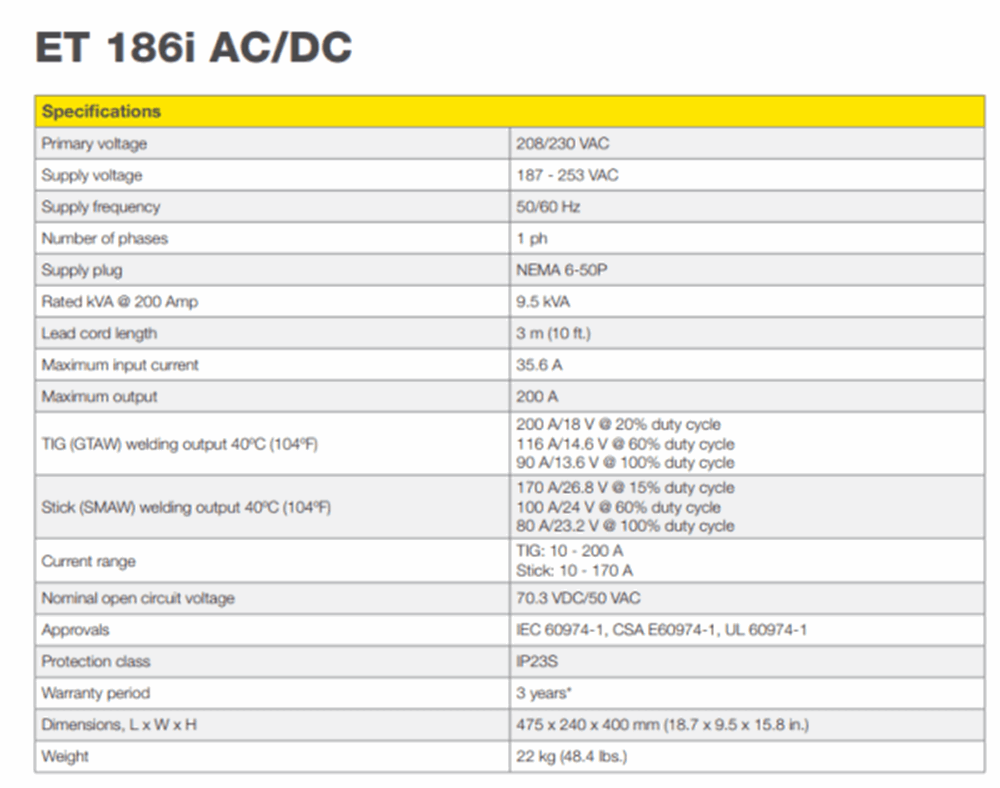

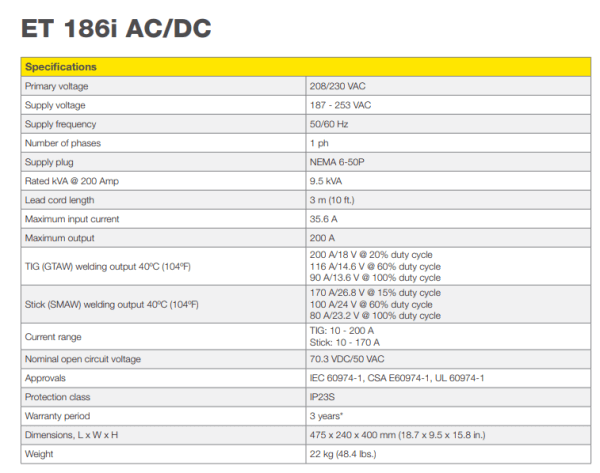

| Specifications - ESAB ET 186i AC/DC | |
|---|---|
| Primary voltage | 208/230 VAC |
| Supply voltage | 187 - 253 VAC |
| Supply frequency | 50/60 Hz |
| Number of phases | 1 ph |
| Supply plug | NEMA 6-50P |
| Rated kVA @ 200 Amp | 9.5 kVA |
| Lead cord length | 3 m (10 ft.) |
| Maximum input current | 35.6 A |
| Maximum output | 200 A |
| TIG (GTAW) welding output 40ºC (104ºF) | 200 A/18 V @ 20% duty cycle 116 A/14.6 V @ 60% duty cycle 90 A/13.6 V @ 100% duty cycle |
| Stick (SMAW) welding output 40ºC (104ºF) | 170 A/26.8 V @ 15% duty cycle 100 A/24 V @ 60% duty cycle 80 A/23.2 V @ 100% duty cycle |
| Current range | TIG: 10 - 200 A Stick: 10 - 170 A |
| Nominal open circuit voltage | 70.3 VDC/50 VAC |
| Approvals | IEC 60974-1, CSA E60974-1, UL 60974-1 |
| Protection class | IP23S |
| Warranty period | 3 years (power source) |
SHIPPING DIMENSIONS |
|
| Height: | 15.80 Inches |
| Width: | 9.50 Inches |
| Length: | 18.70 Inches |
| Weight: | 48 Lb(s) 6 Oz |
Consumables
Product Questions and Answers
Q - Will this pulse weld?
A - Yes, the range is 0.5Hz through 200Hz.
Q - What torch do I need to TIG weld with this?
A - You'll need the TIG Torch and Accessories, part #W4013600.
How to Ground the Workpiece:
- Locate a Suitable Ground.
Find a location to connect the workpiece to the earth in a safe place.
- Connect to Workpiece.
Connect ground clamp to the workpiece.
- Make Ground Connection.
Make direct connection from the workpiece to the earth by connecting the ground clamp to the suitable ground location.
