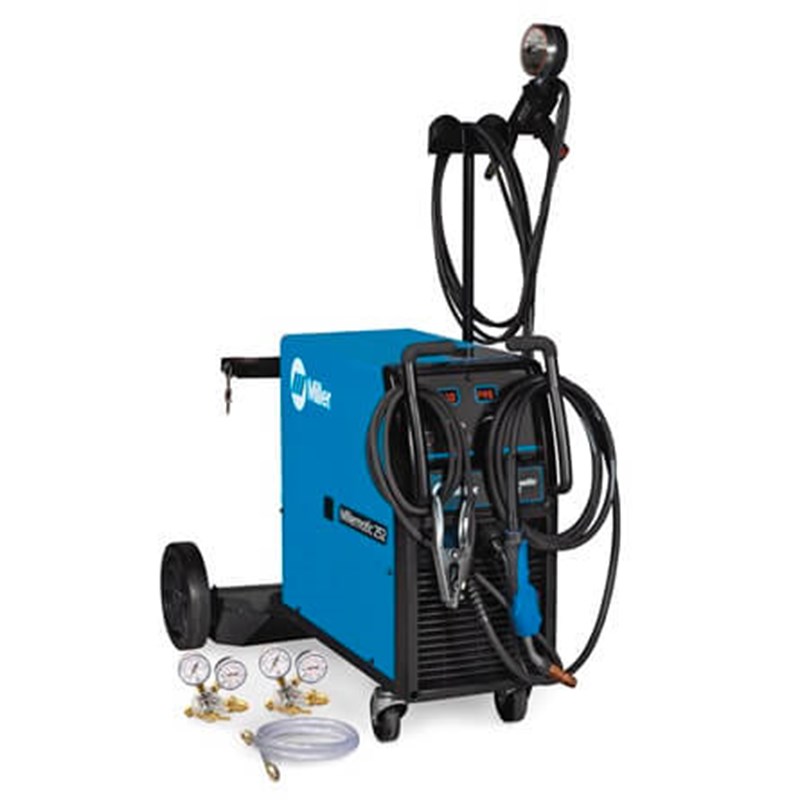

Millermatic® 252 MIG Welder Spoolgun Aluminum Package 200(208)/230V (#951960) or 230/460/575V (#951961)
The Millermatic 252 stands out with its class-leading output of 250 A at 28 VDC, making it a powerful choice for professional welders. This version is specifically designed for aluminum welding, featuring an Auto Gun Detect system that simplifies operation. By pulling the trigger on the MIG gun, spool gun, or push/pull gun, the machine automatically powers on or off and instantly recognizes and recalls the voltage, wire feed speed, and timer settings for the active gun. The innovative Push-Pull Gun connects directly without the need for additional modules, enhancing efficiency.
Included with this model are the Factory-installed running gear with EZ-Change™ Single Low Cylinder Rack, .030/.035 in reversible drive rolls, and the Spoolmatic 30A #130831, all of which streamline your setup and operation. Additionally, the Dual EZ-Change™ Low Cylinder Rack with an Elevated Gun and Cable Rack #300337 ensures that your welding process is as smooth and hassle-free as possible. This comprehensive package is designed to meet the rigorous demands of aluminum welding, offering both convenience and high performance.

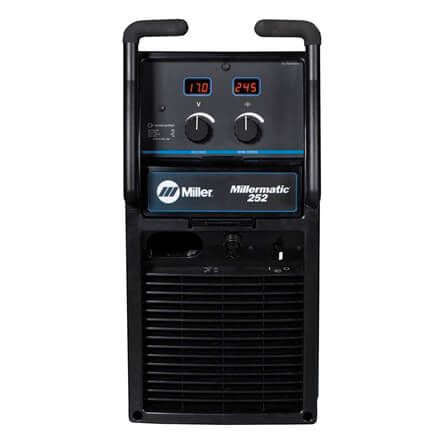

The large digital front panel with digital timer on the Millermatic 252 lets you control:
- Preset voltage
- Wire feed speed controls for standard run-in, pre/post flow, burnback & spot/delay (switch) timer menu

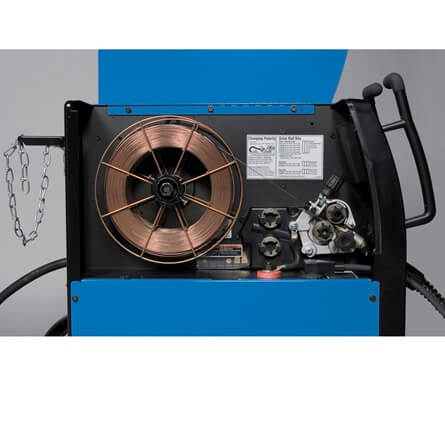

The cast aluminum drive system features no-tool quick-change reversible drive rolls and an easy to set scaled tension knob. It also includes a convenient flip-down welding parameter chart for easy access.
Features of the Millermatic 252 Aluminum MIG Welder
- Highest Output in its welding class – Weld longer on high-end applications. (250 A at 28 VDC)
- Auto Gun Detect – Automatically detects and recalls the voltage, wire feed speed and timer of the active gun, allowing the operator to simply pull the trigger on the MIG gun, spool gun, or push/pull gun.
- Angled, Dual-Gear Driven, Cast Aluminum Drive System – Limits wire hang-ups by directly feeding the wire through the gun. The drive system features no-tool quick-change, reversible drive rolls, and an easy-to-set, scaled tension knob.
- EZ-Access Consumable Compartment and Parameter Chart – Convenient flip-down compartment, providing fast access to parameter chart and consumables. Ensures you set the parameters right the first time.
- Large, Digital Front Panel with Built-in Digital Timers Menu – Allows the operator to preset the voltage and wire feed speed. Standard run-in, pre/post flow, burn back, spot/delay (stitch) timer menu.
- Push-Pull Gun Direct Connect – Your wire will feed consistently and with plenty of power for the bigger jobs. Compatible with the Miller Spoolmate 200 Series spool gun with wire feed speed control and the Spoolmatic 15A or 30A spool guns.
- EZ-Change Low Cylinder Rack – Easily roll cylinders on and off the rack with no lifting! This saves the operators back and protects from potential workman’s comp claims.
- 15 ft. MIG gun
WHAT'S INCLUDED:
- 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/ Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
- 10 ft (3 m) industrial power cord
- 10 ft (3 m) work cable and clamp
- Argon mix regulator/flow gauge and hose
- Factory-installed lowered running gear/cylinder rack
- .030/.035 in. reversible dual-groove drive rolls
- Extra contact tips
- Factory-installed running gear with EZ-Change™ Single Low Cylinder Rack
- .030/.035 in reversible drive rolls
- Spoolmatic 30A #130831

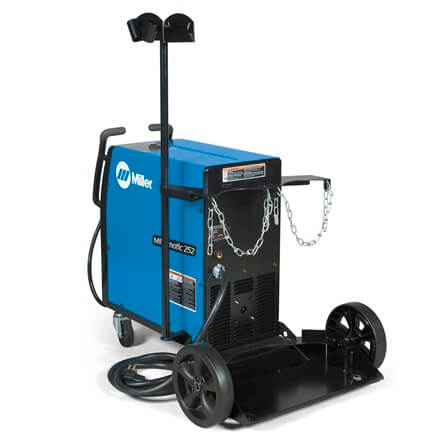

- Dual EZ-Change™ Low Cylinder Rack w/ Elevated Gun and Cable Rack #300337
Applications:
- Aluminum Welding
- Fabrication
- Farm and Ranch
- In-Plant Maintenance and Repair
- Manufacturing
- Metal Art/Sculpture
- Motorsports (car, truck, bike, etc.)
- Schools/Training
Fast, Free Shipping & Easy Returns
Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!
Try these accessories with your new Millermatic 252 Aluminum MIG Package:
+
Elevated Gun/Cable Rack
View Product+
Protective Cover
View Product+
EDW Adapter Cord
View ProductView our large selection of Miller products or shop all Mig, Tig, Stick and Gas welders at the best values online.
This product replaces these legacy models:
Other Variations:
- 951961 - 230/460/575V Volt Wire Welder (Select Attribute Dropdown Above)
Other Versions:
- 907321/907322 (select option) - Millermatic 252 MIG Welder 208/230V or 230/460/575V
Millermatic 252 #951960/951961 - Specifications | |
---|---|
Brand | Miller Electric |
Model | Millermatic 252 |
SKU | 951960 & 951961 |
Processes | MIG (GMAW) Welding Flux Cored (FCAW) Welding |
Current Type | DC |
Input Power | 200(208)230 V, 1-phase, 60 Hz 230/460/575 V, 1-phase, 60 Hz |
Rated Output Specs | 200 Amps at 28 VDC, 60% duty cycle 250 Amps at 28 VDC, 40% duty cycle |
Welding Amperage Range | 30 A - 300 A |
Max Open Circuit Voltage | 38 V |
Material Thickness | Mild Steel 24 ga - 0.5 in Aluminum 18 ga - 0.5 in |
Wire Feed Speed | 1.3 m/min - 17.8 m/min 50 IPM - 700 IPM |
Wire Diameter | .023 - .045 in (0.6 - 1.2 mm) Solid Steel .023 - .045 in (0.6 - 1.2 mm) Stainless Steel .030 - .045 in (0.8 - 1.2 mm) Flux Cored |
Max Spool Size Capacity | 12 in (305 mm) |
Portability | Handle(s) Running Gear / Cart (Standard) |
Industries Interests | Metal Fabrication Maintenance and Repair Farm/Home Light Industrial |
Weldable Metals | Mild Steel Stainless Steel Aluminum |
Warranty | 3 Years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 30.00 Inches |
Width: | 19.00 Inches |
Length: | 40.00 Inches |
Weight: | 207 Lb(s) 0 Oz |
