XR™-Aluma-Pro™ Lite Push-Pull Guns #300948

XRâ„¢-Aluma-Proâ„¢ Lite Push-Pull Guns #300948 Side View

XRâ„¢-Aluma-Proâ„¢ Lite Push-Pull Guns #300948 Front View

XRâ„¢-Aluma-Proâ„¢ Lite Push-Pull Guns #300948 Easy Access View

XRâ„¢-Aluma-Proâ„¢ Lite Push-Pull Guns #300948 Features

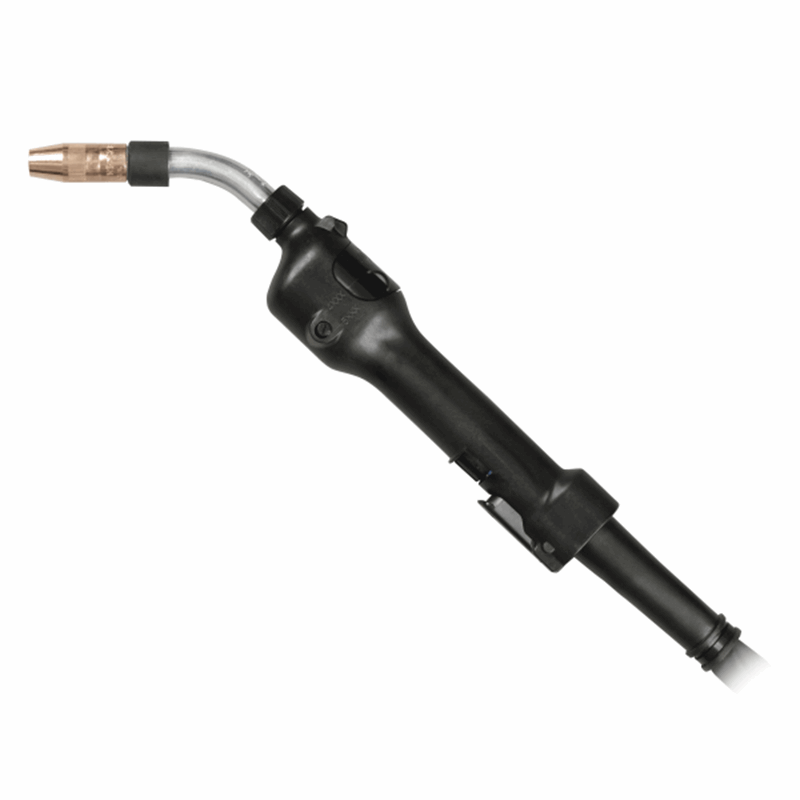

Miller XR™-Aluma-Pro™ Lite Push-Pull Guns #300948

Part Number: 300948

UPC: 715959571739

$2,579.00 + Free Shipping $2,579.00*

SAVE $0.00

Features
Specs
Documents
Videos
Consumables
FAQS

Miller XR™-Aluma-Pro™ Lite Push-Pull Guns #300948

Lightest weight gooseneck-style gun features rear trigger that allows access to hard-to-reach welds.

WHAT'S INCLUDED

Extra Contact Tips

Best Feeding Performance

Dual wire tension settings for 4000- or 5000 series aluminum to ensure the very best wire feeding performance and arc consistency.

Heavy-duty Construction

All internal components are designed to provide long lasting performance and feeding precision.

Replaceable Feed Cable Liner

Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.

Multiple Configurations

Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference. Available in air- or water-cooled versions with 15, 25, or 35 ft. (4.6, 7.6, or 10.6 m) cable lengths. Bernard® Centerfire™ consumables provide superior gas coverage and arc performance.

Complete Your System

XR-Aluma-Pro Lite guns work in conjunction with XR-Control wire feeders[link] and Millermatic® 252 [link]and Millermatic 350P [link] power sources to provide the best solution for push-pull applications.

Purchase XR™-Aluma-Pro™ Lite Push-Pull Guns or view related products.

PROCESSES

Pulsed MIG (GMAW-P)

GENERAL SPECIFICATIONS

Title	XR™-Aluma-Pro™ Lite Push-Pull Guns
Industries Interests	Farm and Ranch Manufacturing Metal Art / Sculptures Construction DIY / Home Hobbyist Boat / Yacht
Amperage Rated Output	175 A at 60% Duty Cycle
Cable Length	25 ft
Head Angle	45
Torch Handle Type	Plastic handle with rear mount trigger and wirefeed speed control
Torches Type	Air Cooled Push Pull
Wire Size	.030–.047 in.* (0.8–1.2 mm) aluminum wire
Net Width	1.9 in
Net Height	4 in
Net Length	15 in
Net Weight	2 lbs
Warranty	Miller's True Blue Warranty

SHIPPING DIMENSIONS
Height:	9.00 Inches
Width:	19.00 Inches
Length:	23.00 Inches
Weight:	15 Lb(s) 8 Oz

XR™-Aluma-Pro™ Lite Push-Pull Guns #300948 Spec Sheet (English)

Consumables

Product Questions and Answers

Q - What size wire can it handle? A - .030 to .047" aluminum wire

Q - How much does it weigh? A - 2 lbs.

How to Adjust tension at Feeder:

Check Parts.
Check for proper size drive rolls.
Unlock arm.
Open tension arm.
Cut Desired Wire.
Pull and hold the wire. Cut off the end of the wire to desired length.
Thread Wire.
Thread wire thru inlet guide, along roll groove, and into wire conduit. Close tension arm.
Close Tension Arm.
Close tension arm.
