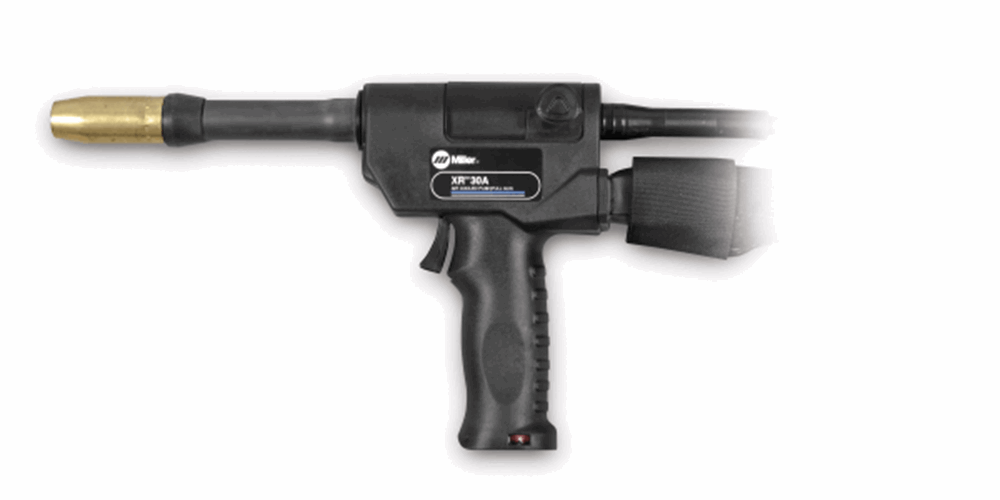

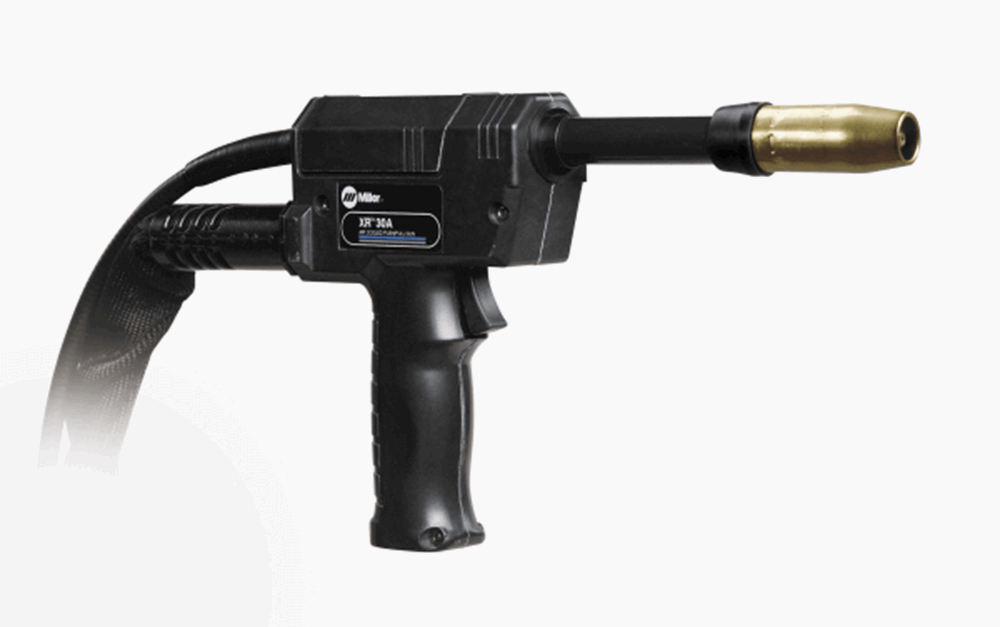

Miller XR™Pistol 30 ft. Air, Quick Disconnect #198128
Part Number: 198128
UPC: 715959244695
$3,108.00
$3,108.00*
SAVE $0.00
Documents
VideosMiller XR™Pistol 30 ft. Air, Quick Disconnect #198128

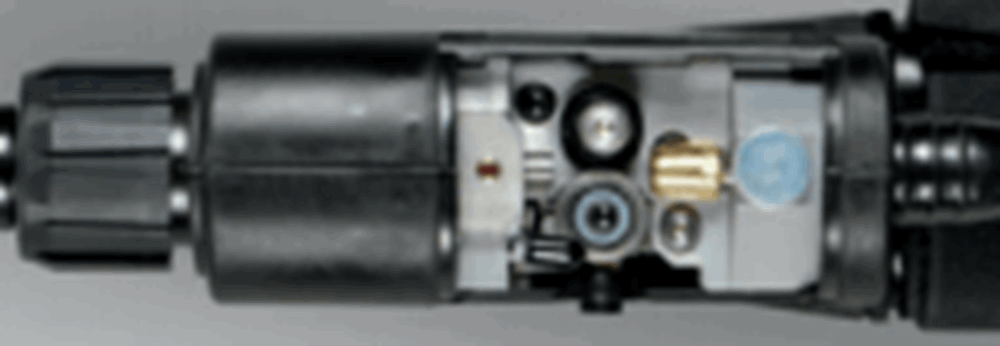

Heavy-duty Construction
All internal components are designed to provide long lasting performance and feeding precision.
Replaceable Feed Cable Liner
Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.
Trigger Hold
Reduce fatigue by allowing operators to weld without holding gun trigger. (Feature available when paired with XR-Control.)
Contact Tips
Accepts single-turn, quick-change FasTip™ and Bernard® Centerfire™ contact tips.

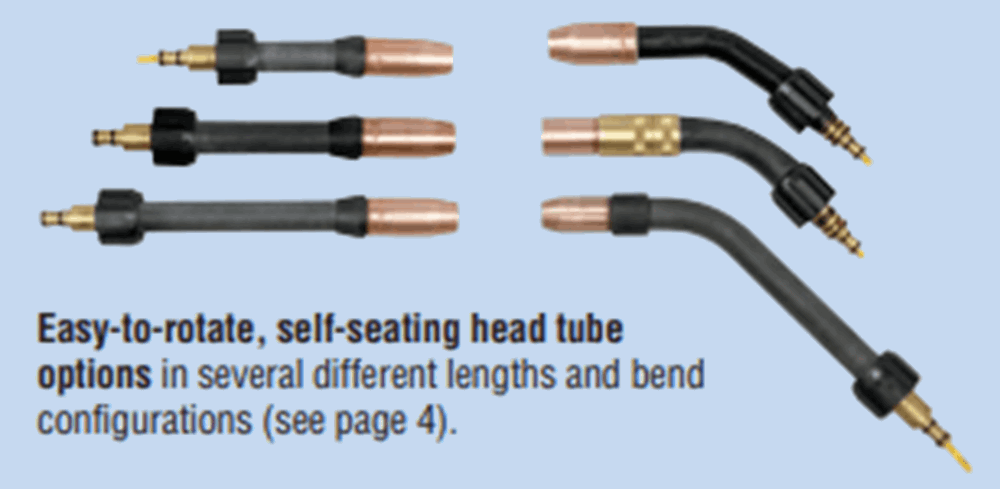

Multiple Configurations
Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.
Complete Your System
XR-Pistol guns work in conjunction with XR-Control wire feeders to provide the best solution for push-pull applications.
View welding machines, masks and other welding machine accessories for sale at Welders Supply.
PROCESSES
Aluminum Welding
GENERAL SPECIFICATIONS
| Title | XR™Pistol 30 ft. Air, Quick Disconnect |
|---|---|
| Industries Interests | Manufacturing Railcar Shipbuilding |
| Amperage Rated Output | 200 @ 100% |
| Cable Length | 30 ft |
| Head Angle | 180 degree |
| Torch Handle Type | Pistol Grip |
| Torches Type | Push Pull |
| Wire Size | .030-1/16 |
| Net Width | 1.875 in |
| Net Height | 7.375 in |
| Net Length | 10.625 in |
| Net Weight | 2.2 lbs |
| Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 1.88 Inches |
| Width: | 7.38 Inches |
| Length: | 10.63 Inches |
| Weight: | 25 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Does this have trigger hold?
A - Yes, it has a trigger hold if paired with the XR-Control.
Q - What contact tips does this use?
A - It will accept both quick-change FasTip and Bernard Centerfire contact tips.
