All Categories/ SHOP BY BRAND/ Hypertherm/ Powermax Plasma Cutters/ By Hypertherm
REPLACED BY #083347 Powermax65 (200-600 V CSA) 75° & 15° Hand Torches ,25’, CPC Port and Voltage Divider #083307
Powermax65 (200-600 V CSA) 75° & 15° Hand Torches ,25’, CPC Port and Voltage Divider #083307
Powermax65 (200-600 V CSA) 75° & 15° Hand Torches ,25’, CPC Port and Voltage Divider #083307
Powermax65 (200-600 V CSA) 75° & 15° Hand Torches ,25’, CPC Port and Voltage Divider #083307

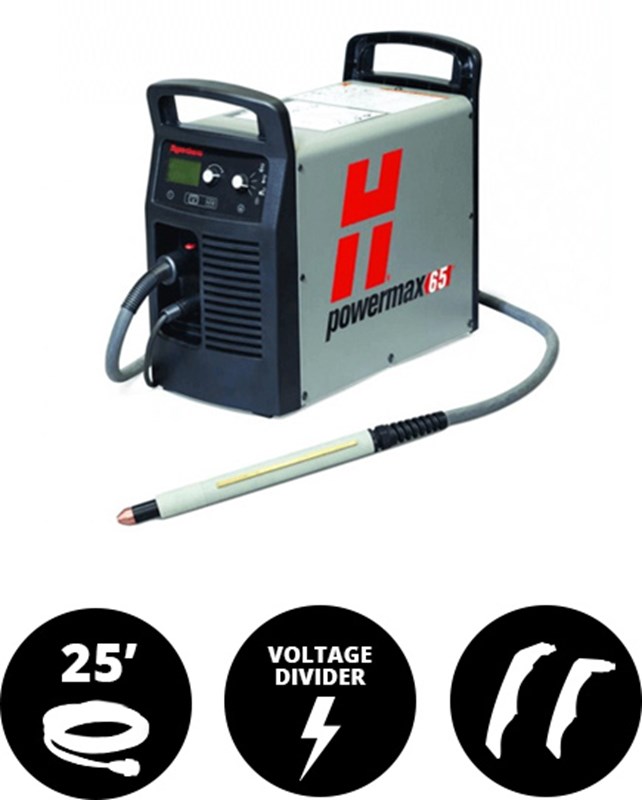

Hypertherm Powermax 65 (200-600V CSA) 75° & 15° Hand Torches, 25’, CPC Port and Voltage Divider #083307

Part Number: 083307
This Item Has Been Discontinued and has been replaced by Powermax65 SYNC Plasma Cutter w/ 50' 75° & 15° Hand Torches (200-600V 1/3PH) #083347 - Level up today!

Cut capacity:

3/4" Capacity

3/4" Capacity

Plasma Torch Type:

Handheld

Handheld

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 3/4 inch cut capacity plasma cutter3/4" Cut Capacity
  • Portable plasma cutterLightweight and Portable
  • Mechanized torch included75° & 15° Hand Torches
  • 25ft torch leads25' Leads
  • CPC port for CNC plasma cuttingCPC Port
  • Hypertherm 3 year warranty3-Year Power Warranty
  • Student rebate availableFirst Time Student Rebate

The Hypertherm Powermax 65 #083307 Offers Extended Warranty & More Features

Hypertherm Powermax 65 (200-600V CSA) 75° & 15° Hand Torches, 25’, CPC Port and Voltage Divider #083307

Hypertherm Powermax 65 #083307 product overview video

Equipped with the Smart Sense monitoring system, the Hypertherm Powermax 65 automatically adjusts gas pressure based on your selected mode and torch lead length, ensuring seamless performance.

The Hypertherm Powermax 65 (200-600V CSA) 75° & 15° Hand Torches, 25’, CPC Port and Voltage Divider #083307 is a cutting and gouging powerhouse that doesn’t disappoint. Its sheer amount of force cuts through 20 mm thickness at speeds of 20 inches per minute. Just as impressive, it tackles a thickness of 25 mm at 10 ipm – all on autopilot mode.

The Powermax 65 (#083307) delivers manual cuts through 32 mm at 5 ipm. Standard depth is rated at 16 mm. Gouges are created with an impressive 10.7 pounds per hour, creating a groove measuring 3.5 mm in depth and 6.6 mm in width.

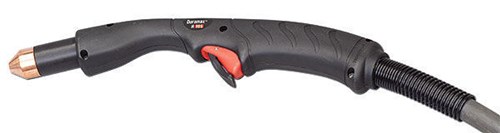

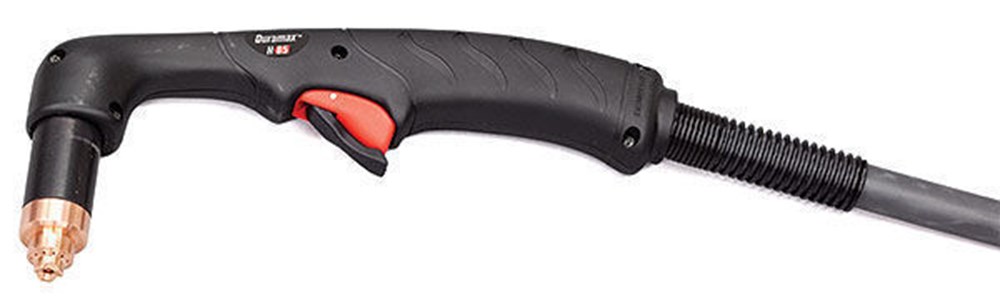

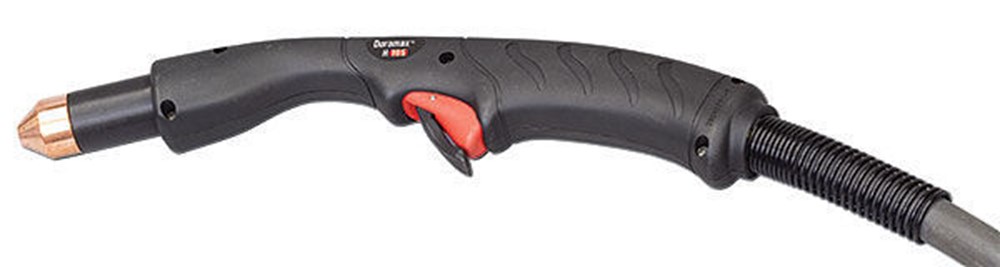

The 25-foot hand torch and 75° and 15° mechanized torches mean the Hypertherm Powermax 65 is versatile enough to handle an impressive array of jobs.

Mechanized Machine Torch Offers More Power and More Features

  • Handheld cutting up to 3/4" thickness and mechanized piercing up to 5/8"
  • Conical flow nozzle for increased cut quality and reduces dross buildup
  • No need to change air pressure . Smart Sense technology ensures a consistent and correct setting
  • Duramax torches are designed for high-impact and heat resistance
  • SpringStart technology ensures consistent starting and a reliable torch
  • Low maintenance

Stock up on consumables with the Powermax 65 handheld consumable kit or Powermax 65 mechanized consumables kit.

Warranty information for Hypertherm products

Register your Hypertherm product on the Hypertherm website

Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.

Other versions of the Powermax 65:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutters



Torches compatible with the Powermax 65:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Plasma Cutter Torches

Specifications
Input voltages CSA 200 – 600 V, 3-PH, 50/60 Hz
Input Current @ 9 kW CSA 200/208/240/480 V, 1-PH, 52/50/44/22 A
200/208/240/480/600 V, 3-PH, 32/31/27/13/13 A
Output current 20 - 65 A
Rated output voltage 139 VDC
Duty cycle @ 40°C (104°F) CSA 50% @ 65 A, 230 – 600 V, 1/3-PH
40% @ 65 A, 200 – 208 V, 1/3-PH
100% @ 46 A, 230 – 600 V, 1/3-PH
Open circuit voltage (OCV) CSA 295 VDC
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure		 Cutting: 189 l/min (400 scfh; 6.7 scfm) @ 85 psi (5.9 bar)
Gouging: 450 scfh; 212 l/min (7.5 scfm) @ 70 psi (4.8 bar)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
Cut Capacity 3/4"



Engine-driven generator operation
Engine drive rating System output current Performance (arc stretch)
15 kW 65 A Full
12 kW 65 A Limited
12 kW 40 A Full
8 kW 40 A Limited
8 kW 30 A Full



Production cut chart
Material Thickness Current Production cut speed*
inches mm amps ipm mm/min
Mild steel 10 GA 3 65 224 6100
1/4 6 65 116 3240
3/8 10 65 62 1500
1/2 12 65 40 1140
5/8 16 65 26 650
Stainless steel 10GA 3 65 296 8260
1/4 6 65 96 2850
3/8 10 65 52 1250
1/2 12 65 32 920
Aluminum 1/8 3 65 336 8800
1/4 6 65 152 4400
3/8 10 65 68 1650
1/2 12 65 48 1330

Hypertherm Powermax 65 Error Codes and Troubleshooting

Hypertherm Powermax 65 Error Codes Hypertherm Powermax 65 Error Codes

Additional Powertherm 65 errors and fault codes

Cut Charts for the Powermax65

SHIPPING DIMENSIONS
Height: 17.90 Inches
Width: 9.20 Inches
Length: 19.70 Inches
Weight: 64 Lb(s) 0 Oz

Product Questions and Answers

Q - What applications is this machine good for? A - The Hypertherm Powermax 65 is approved for drag cutting, fine feature cutting, max removal gouging, extended reach cutting, flush cutting, mechanized cutting, extended reach gouging, and max control gouging.
Q - How many torches does the Powermax 65 come with? A - This version of the Powermax 65 comes with two torches: 1x 75° and 1x 15°.
Q - What is the CPC port? A - The CPC port is a connection for a machine torch to be used with mechanized tables and systems, such as a CNC table.
Q - Is this all ready to go with a CNC table? A - Yes, this model has the CPC port and machine torch necessary to use with a CNC table, as well as track systems, pipe, or robotic cutting.
