Diesel Engine
12,000 W Peak Power
Mutli-Process MIG/TIG/Stick
DC Output
Easy-to-Use Digital Interface
3-Year Warranty

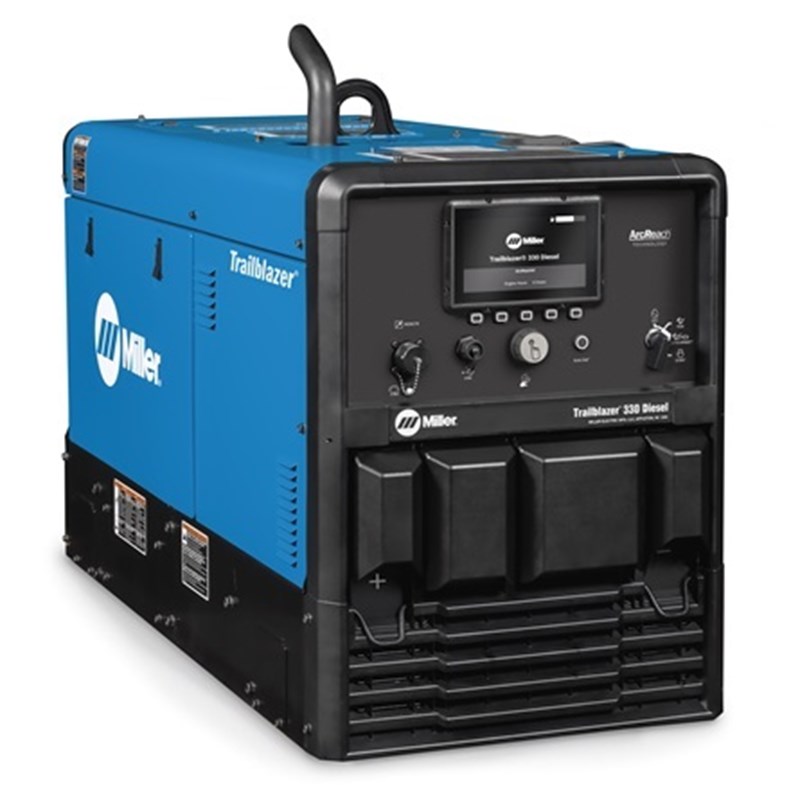

Miller Trailblazer® 330 Diesel Welder/Generator with Kubota Engine #907849

Miller’s Trailblazer® 330 diesel engine-driven welder features a robust Kubota engine and unbeatable arc performance, resulting in the smoothest, most stable arc in the industry. With a peak output of 12,000 W (10,500 W continuous), the Trailblazer® delivers more welding and auxiliary power than any other compact machine in the 300-amp class - and does so with impressive fuel efficiency and minimal noise for productive, profitable job sites.

Try It For Yourself! Launch Miller's Trailblazer 330 Simulator

What's Included:

Trailblazer diesel welder w/ Kubota engine #907849
Not included: Weld Leads

Output:

DC stick: 20–330 A
MIG/flux cored: 15–40 V
DC TIG: 20–330 A

Applications:

Fabrication
Maintenance
Repair
Structural Steel Work
Sheet Metal
Pipe

Miller Trailblazer® 330 Diesel Engine-Driven Welder (Kubota) #907849 with direct 10-pin spool gun connection for aluminum welding

Direct spool gun connection

Highlights

Dynamic DIG™: Automatically adjusts current for optimal arc performance based on application and technique, ensuring smoother, more consistent welds.
QuietPulse™: Modified DC pulse waveshape creates smoother transitions between peak and background amperage for quieter operation.
ArcReach®: Uses weld cables to relay commands, allowing remote adjustment of amperage and voltage from the operator's location.
Auto-Speed™: Matches engine speed to welding demands, reducing fuel use, maintenance costs and noise for safer, efficient operation.
High Output: 12,000 Watts peak, 10,500 Watts continuous
Multi-Process Welding: Supports MIG/flux cored, DC stick and DC TIG welding

Benefits of the Trailblazer 330 #907849:

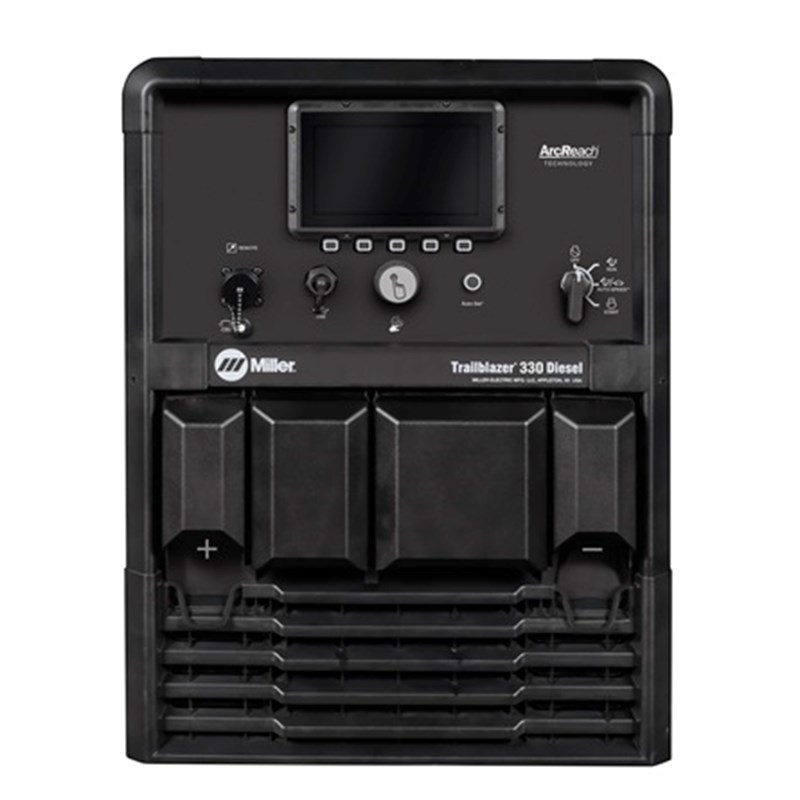

The digital interface quickens the machine setup and makes it less complicated.
Enjoy easy arc starts and less spatter with exceptional arc performance.

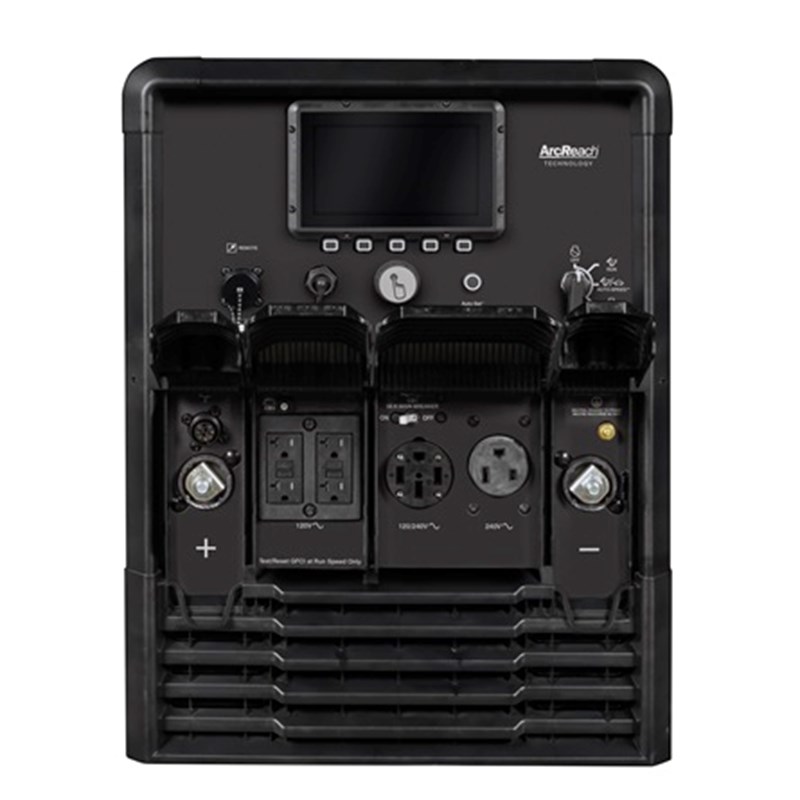

Separate weld and auxiliary power allow for full auxiliary power at any setting.
Daily maintenance is made easy by the welder’s intuitive design.

Download literature of this machine:

2024 Spec Sheet - Trailblazer 330 Diesel Trailblazer vs Bobcat - Product Comparison Miller True Blue Warranty

Miller Trailblazer 330 Diesel Engine-Driven Welder - Key Features

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE and demo items. For more details, contact our customer service team at 1-844-682-0205.

Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Miller & other top brands.

This product replaces these legacy models:

Trailblazer® 330 Diesel (Kubota) #907849 - Specifications
Processes	Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Pulsed TIG (GTAW-P) Stick (SMAW) TIG DC (GTAW-DC)
Industries Interests	Construction and Fabrication Heavy Equipment Railcar
Amperage	20 A - 330 A
Weldable Metals	Aluminum Stainless Steel Steel
Rated Carbon Diameter	1/4 in (6.4 mm)
Current Type	DC
Max Open Circuit Voltage	107 VDC
Portability	Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional)
Cold Weather Starting Aids	Glow Plugs
Engine Brand	Kubota
Engine Compliance	T4F
Engine Idle Speed	1800 RPM
Engine Weld Speed	Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output
Fuel Tank Size	11 Gallon
Fuel Type	Diesel
Horsepower	24.8 hp
Weld Output	CC/CV
Rated Output	CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle
Single Phase Auxiliary Continuous Power	10500 W
Single Phase Auxiliary Peak Power	12000 W
Sound Rating	74.7 dB @ idle and 80.2 dB @ max weld
Applications	Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Structural Welding
Warranty	3 Years Miller's True Blue Warranty
