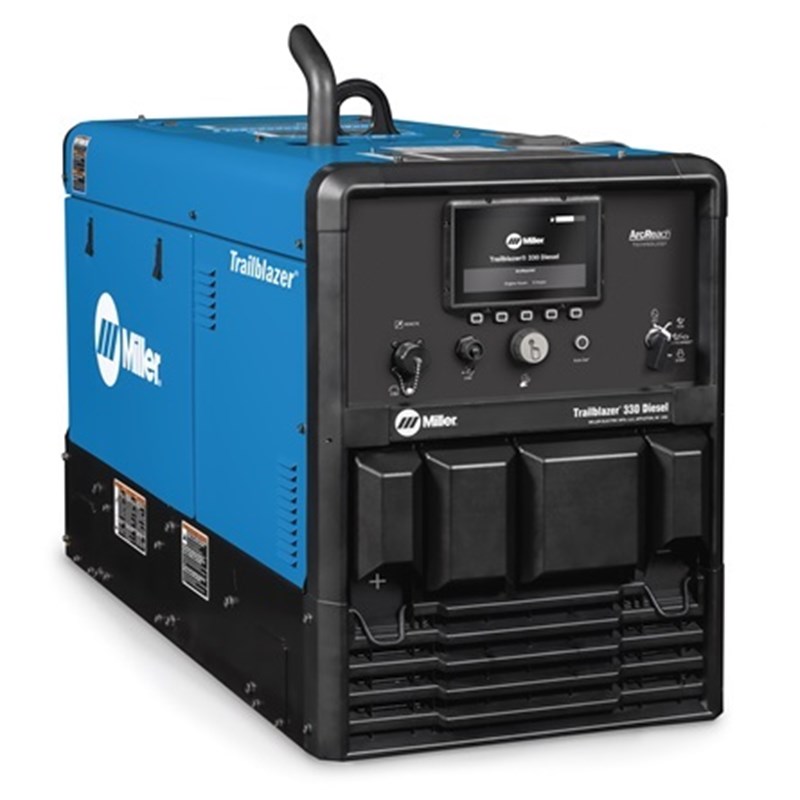

Miller Trailblazer® 330 Diesel Engine-Driven Welder (Kubota) w/ Excel™ Power #907849001

Miller Trailblazer® 330 Diesel Welder/Generator w/ Excel™ Power (Kubota Engine) #907849001

The Miller Trailblazer® 330 Diesel engine-driven welder features a robust Kubota engine coupled with Miller's proprietary Excel Power technology. This advanced system enables the welder to provide a consistent 120 V auxiliary power output even during idling.

The Trailblazer® delivers up to 12,000 W peak power and 10,500 W continuous power, solidifying its position as the most capable compact machine within the 300-amp class. Its impressive fuel efficiency and minimal noise contribute to productive and profitable work environments.

Try It For Yourself! Launch Miller's Trailblazer 330 Simulator

What's Included:

• Trailblazer diesel welder w/ Excel, Kubota engine #907849001
• Not included: Weld Leads

Output:

• 12,000 W peak power (10,500 W continuous)
• DC stick: 20–330 A
• MIG/flux cored: 15–40 V
• DC TIG: 20–330 A

Applications:

• Fabrication
• Maintenance
• Repair
• Structural Steel Work
• Sheet Metal
• Pipe

Direct spool gun connection

Highlights

• Dynamic DIG™: Automatically adjusts current to clear shorts, creating a consistent arc tailored to the application and welder.
• QuietPulse™: DC pulse welding with a modified waveshape reduces noise by providing a gradual transition between background and peak amperage.
• ArcReach® Technology: Adjusts amperage and voltage at the operator's location via existing weld cables.
• Auto-Speed™ Technology: Reduces fuel consumption, maintenance costs and noise by adjusting the engine speed to match weld and battery charge demands.
• Excel™ Power: A Miller exclusive - delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle!

Benefits of the Trailblazer 330 Diesel w/ Excel #907849001:

• The digital interface streamlines and simplifies machine setup.
• Exceptional arc performance offers easy arc starts and reduced spatter.
• Independent weld and auxiliary power ensure full auxiliary power at any setting.
• The intuitive design of the welder makes daily maintenance a breeze.



Download literature of this machine:

2024 Spec Sheet - Trailblazer 330 Diesel Trailblazer vs Bobcat - Product Comparison Miller True Blue Warranty

Fast, Free Shipping & Easy Returns

Welders Supply offers prompt, reliable shipping with hassle-free returns. Return products in original condition for exchange, store credit, or refund within 14 days. Restocking fees may apply. Contact customer service at 1-844-682-0205 for assistance.

Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Miller & other top brands.

This product replaces these legacy models:

• TRAILBLAZER 325 DIESEL #907799
• TRAILBLAZER 325 DIESEL, GFCI #907799002

Spec Sheets

• 2024 Spec Sheet (English) - Trailblazer 330 Diesel
• 2024 Spec Sheet (Español) - Trailblazer 330 Diesel

Operator Information

• Owner's Manual - Trailblazer 330 Diesel
• Parts Guide - Trailblazer 330 Diesel

Product Comparison

• Trailblazer vs Bobcat - Product Comparison
