Name: Cross Country® 300 Welder/Generator w/ Kubota® Diesel Engine (11,000W) #K4166-1
Brand: Lincoln Electric
SKU: LINK4166-1

22HP 11.6gal Diesel Engine
120/240V Output
1-Phase or 3-Phase Output
10000W 120/240V 1PH,
11000W 240V 3PH
Lincoln Electric 3-Year Warranty

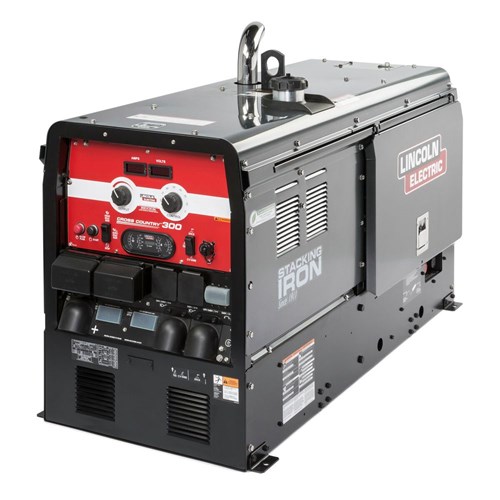

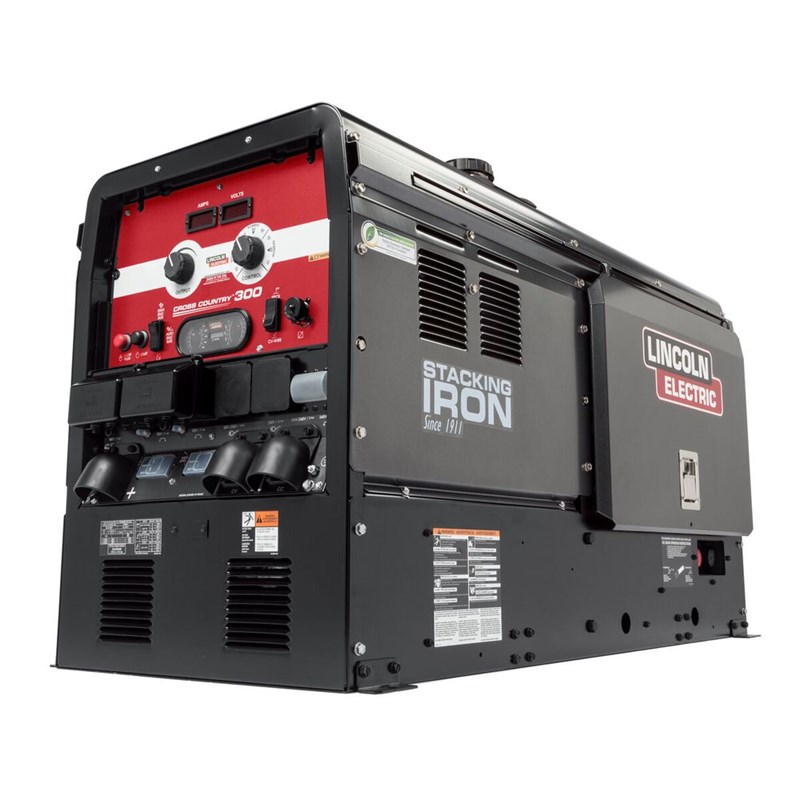

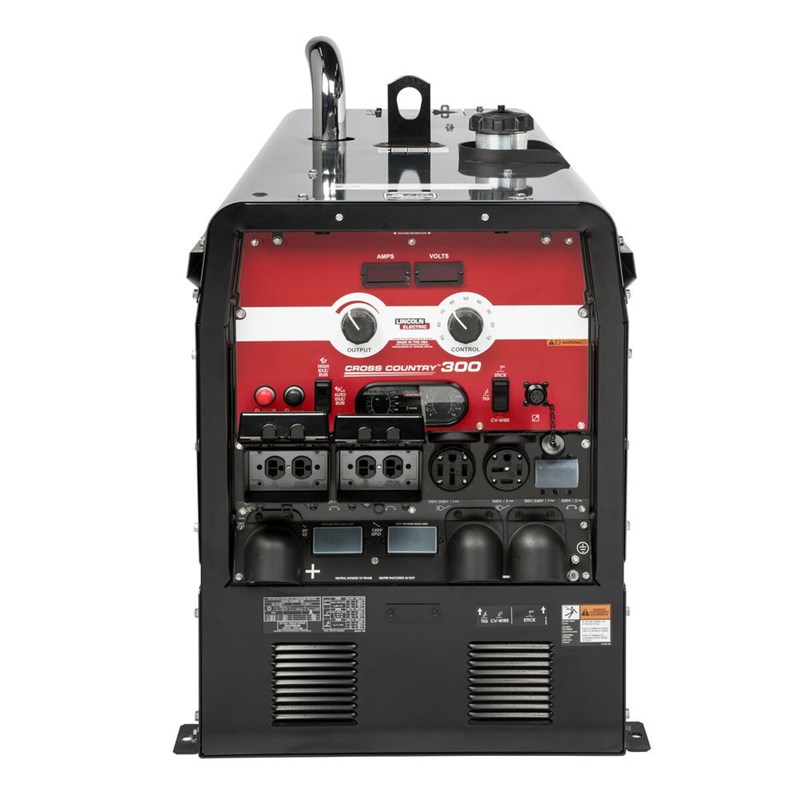

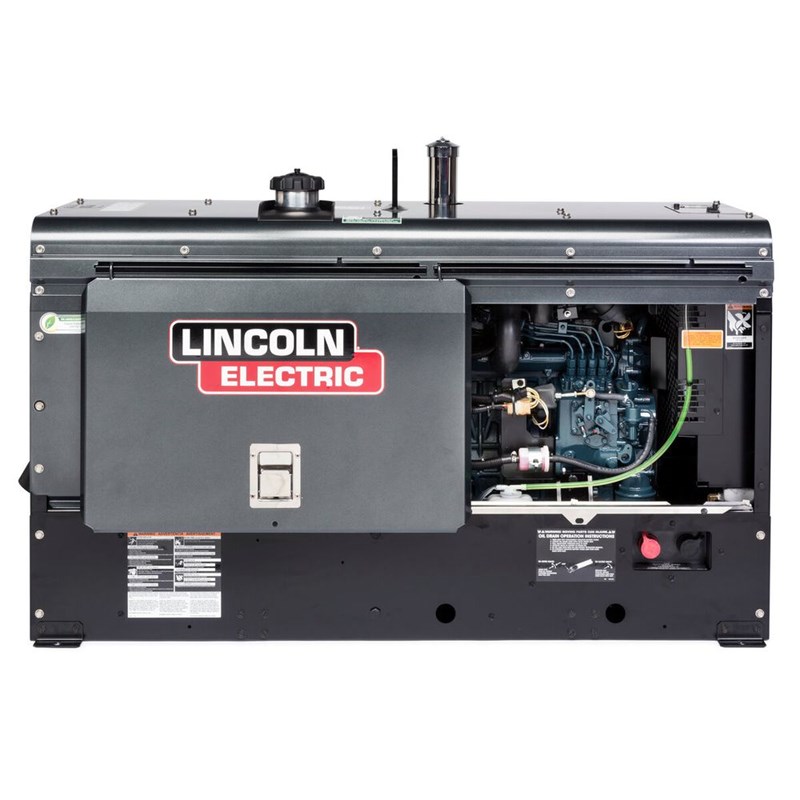

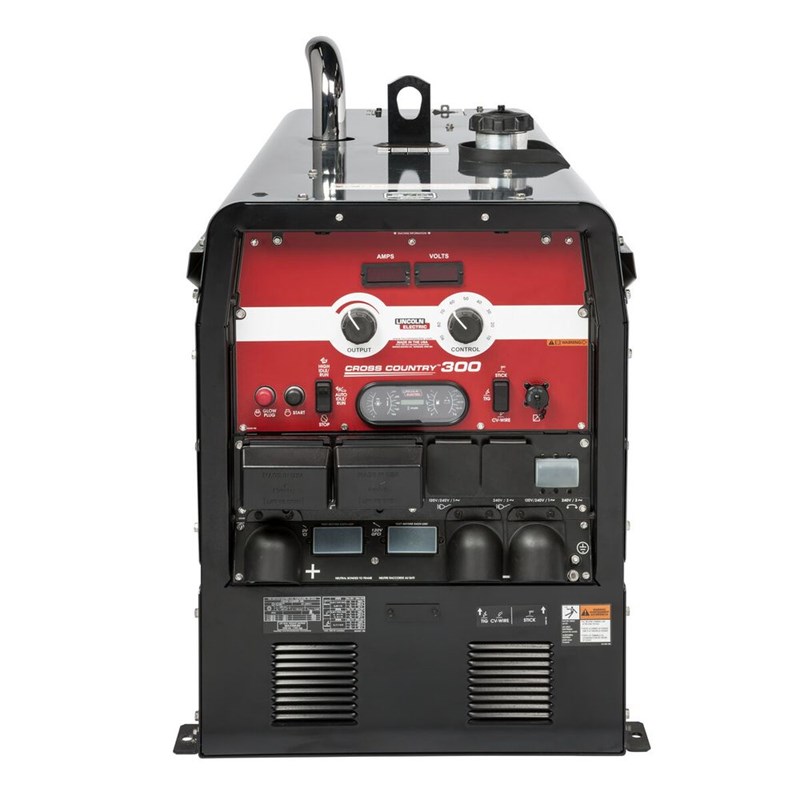

Lincoln Electric Cross Country® 300 Diesel Engine-Driven Welder/Generator with Kubota® Engine #K4166-1

The Lincoln Electric Cross Country® 300 (Kubota®) is a versatile welder/generator, specifically designed for pipeline welding applications.

Capable of DC multi-process welding, along with 120/240 VAC single-phase and 240 VAC three-phase auxiliary power, this unit delivers power and precision in a compact, lightweight design.

Powered by a Kubota® diesel engine, it features dual output control, enabling you to fine-tune the welding arc for optimal performance.

Its portability makes it ideal for fitting into truck beds, ensuring flexibility and convenience for fieldwork.

Highlights

DC multi-process welding for various applications
Compact, lightweight design to fit into truck beds
120/240 VAC single-phase and 240 VAC three-phase auxiliary power
Dual output control for precise welding arc adjustments
Powered by a reliable Kubota® diesel engine

Industries

Pipeline Welding
Construction
Maintenance & Repair
Oil & Gas
Heavy Fabrication

What’s Included

Cross Country® 300 Welder/Generator (Kubota®)

Benefits of the Cross Country® 300 Welder/Generator

Fits easily into truck beds for flexibility in remote job sites
Dual output control for quality welds across different applications
Provides both single-phase and three-phase auxiliary power for tools and equipment
Kubota® diesel engine ensures long-lasting performance in tough environments
Specifically optimized for pipeline welding

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all welder/generators or explore Lincoln Electric welding supplies at the best prices online.

Product Weights & Dimensions

Dimensions (H x W x D)	31.9 in x 25.3 in x 56.0 in (810 mm x 643 mm x 1422 mm)
Net Weight	1034 lbs (469 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	300A / 32V / 100% @ 104°F (40°C)
Max Rating	350A / 28V / 100% @ 104°F (40°C)
Output Range by Mode	Stick: 40 – 300 Amps, Touch Start TIG: 20 – 250 Amps, CV-Wire: 14 – 32 Volts
Open Circuit Voltage	80 Peak OCV @ 1800 RPM
Rated Gouging Carbon Diameter	1/4 in (6.5 mm)

Engine Driven Welders

Single Phase Auxiliary Output	10,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output	11,000 Watts Continuous, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R
Engine Brand & Model	Kubota® V1505
Engine Description	4 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower	22.0 hp (16.4 kW)
Engine Block Size & Displacement	91.4 cu. in (1.5 L), Bore x Stroke - 3.07 in x 3.09 in (78 mm x 78 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1350
Fuel Tank Size (US gal.)	11.6 US gal.
Fuel Tank Size (L)	44 L
Oil Capacity (qts.)	6.4 qts.
Oil Capacity (L)	6.0 L
Coolant Capacity (US gal.)	1.2 US gal.
Coolant Capacity (L)	4.5 L

Application

Typical Application

Construction
Cross Country Pipeline
Construction & Field Erection
High-strength Pipe
Maintenance & Repair
Oil & Gas
Pipeline & Offshore
Piping
Power Generation
Structural Fabrication
