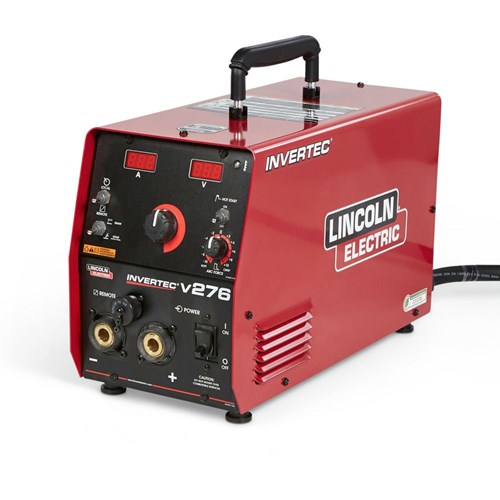

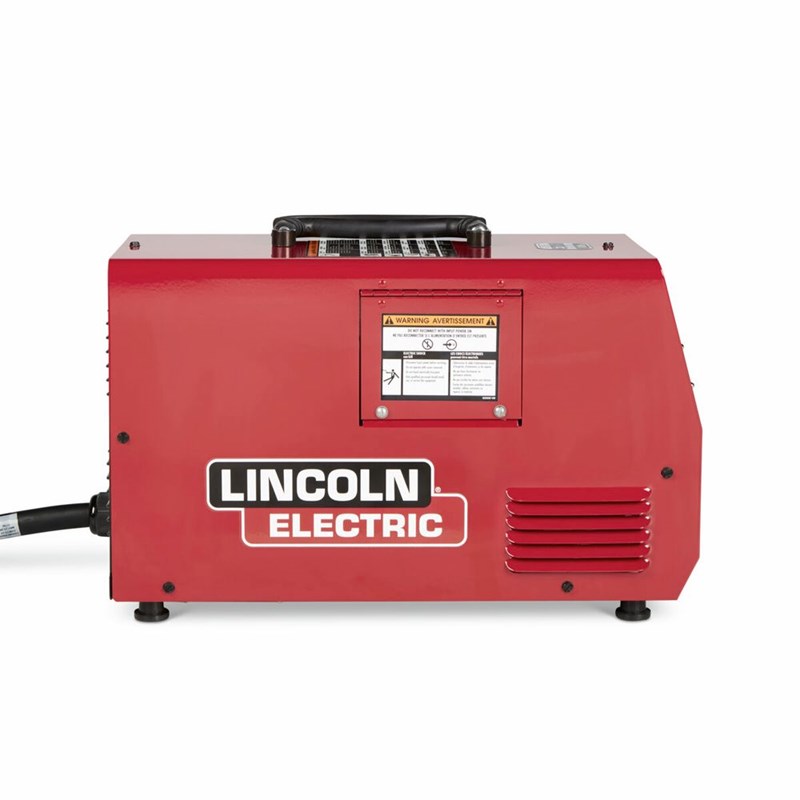

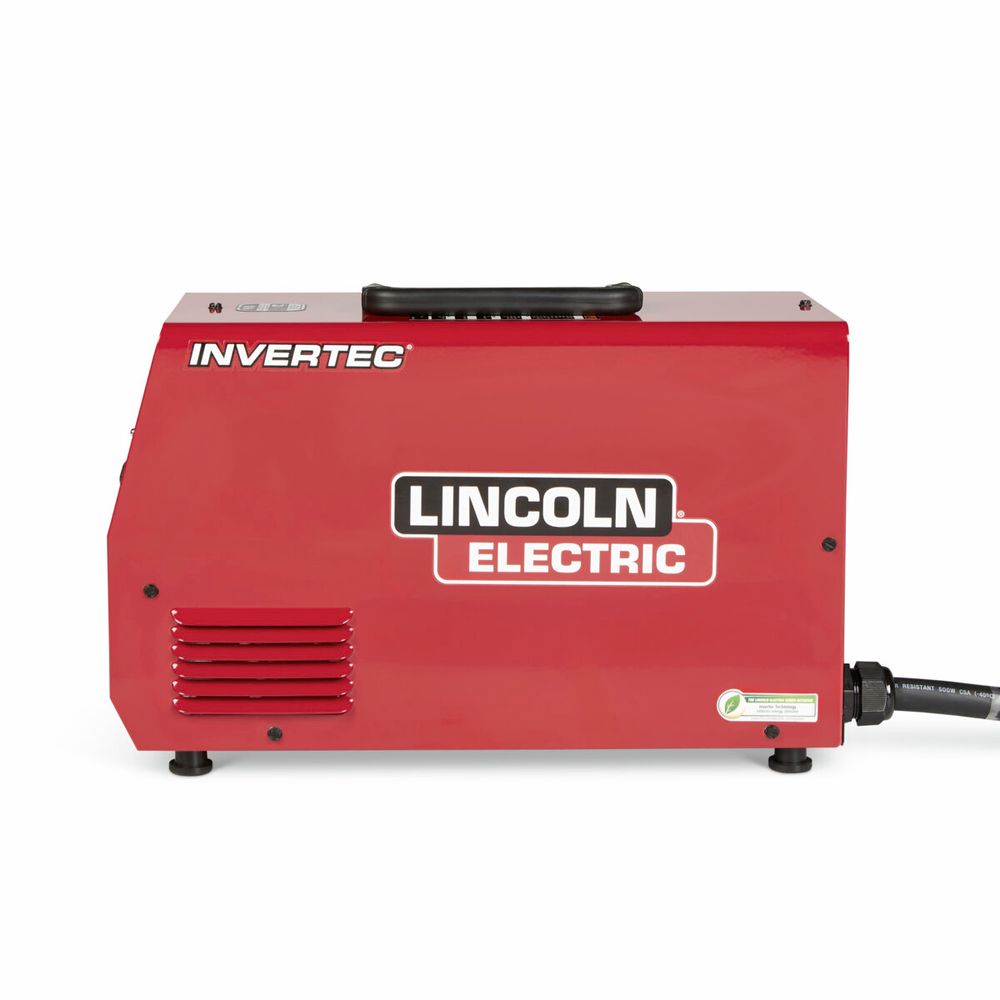

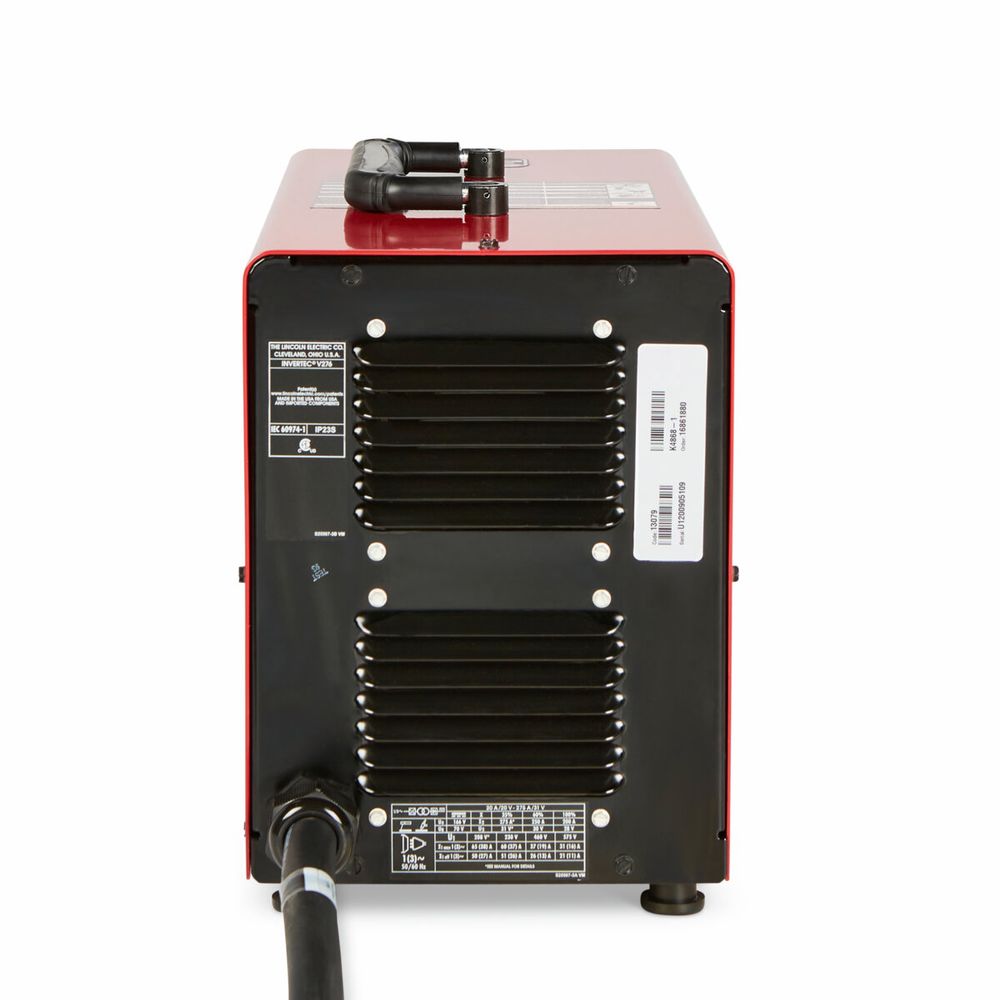

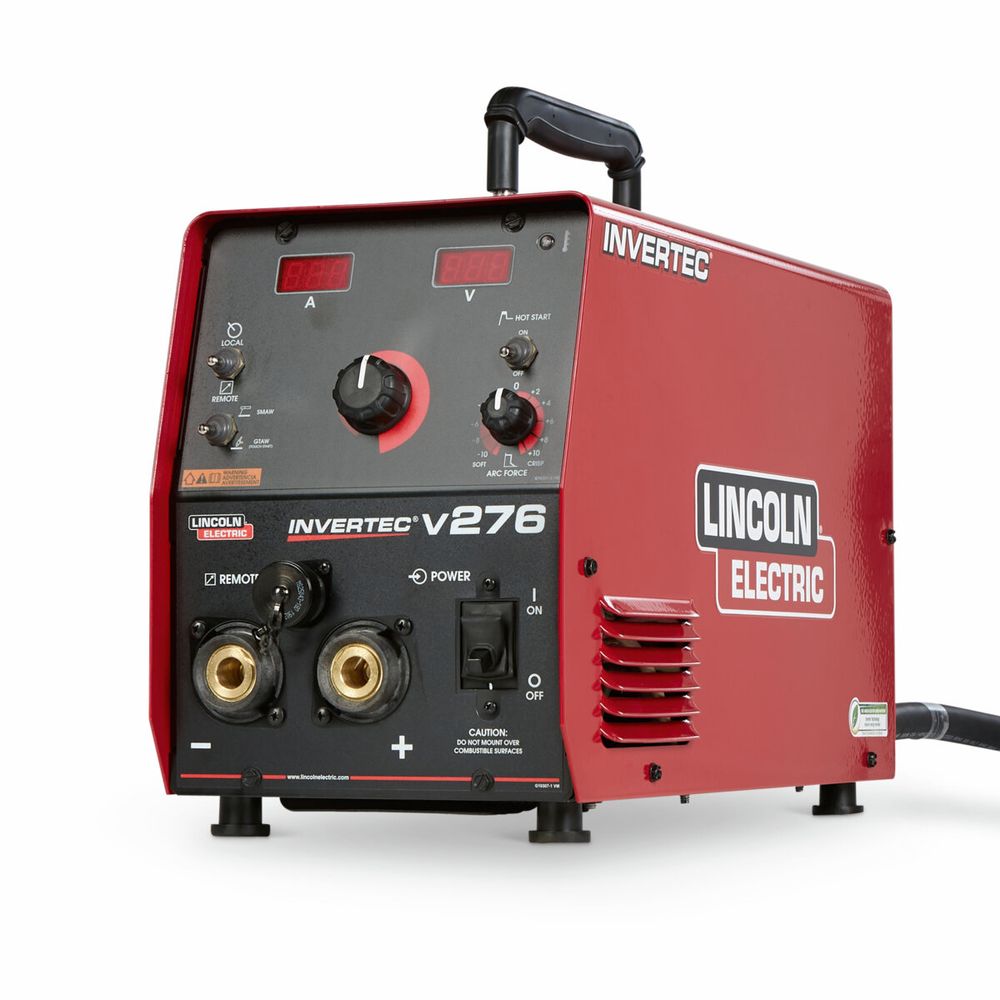

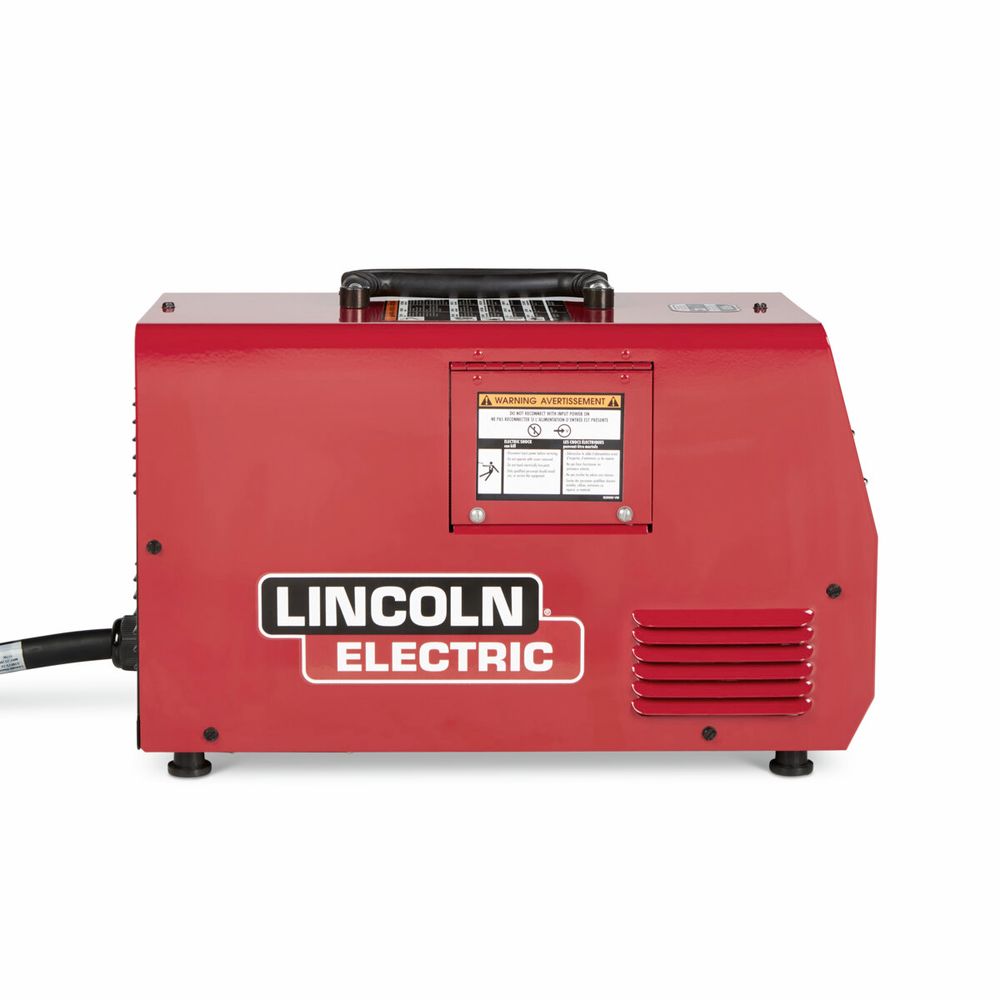

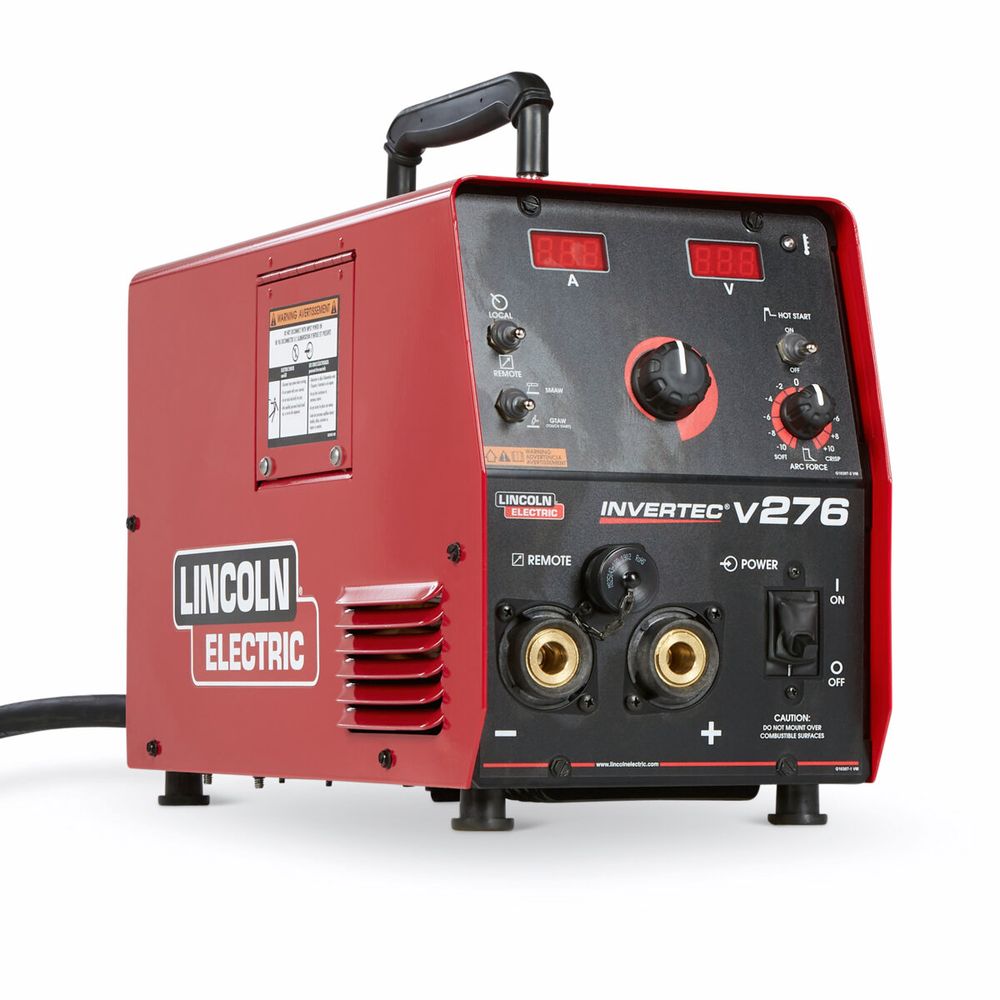

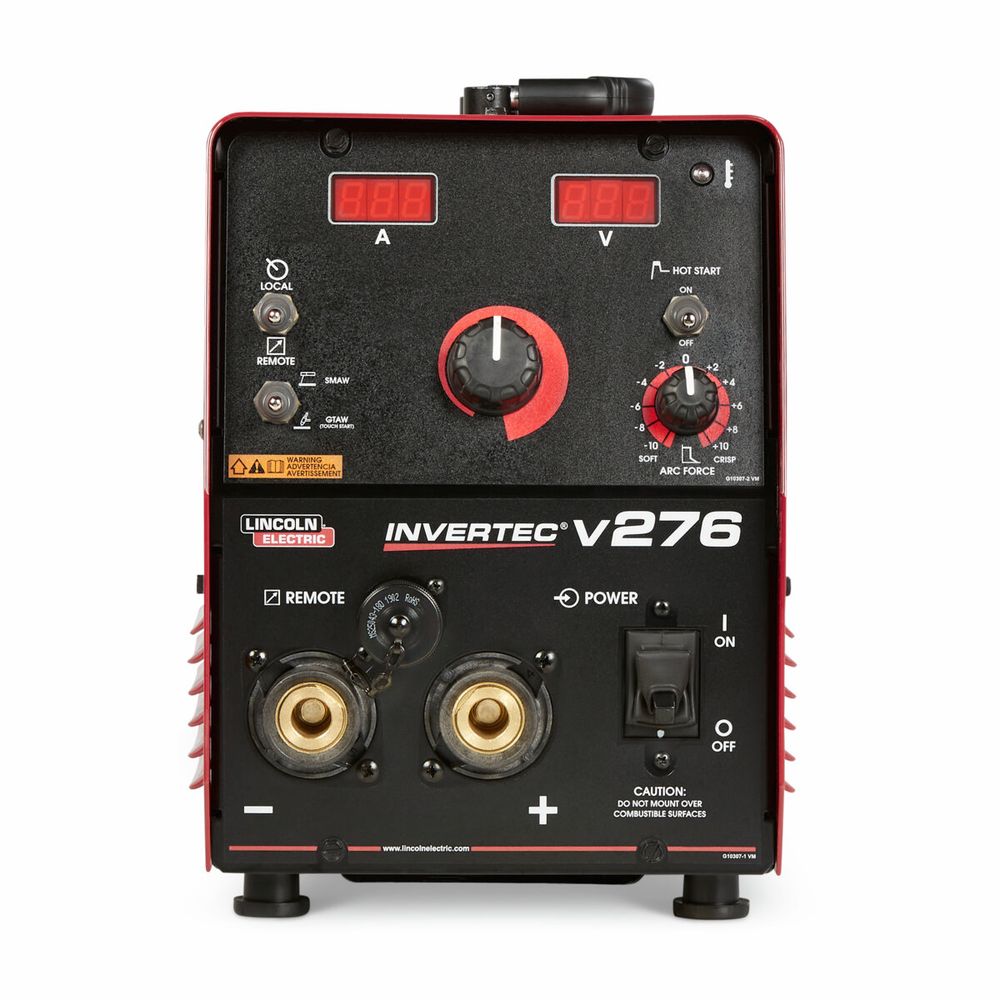

Lincoln Electric Invertec® V276 (Tweco) Stick and TIG Welder K4868-1
The Invertec V276 is a compact, weather-resistant welding machine designed for outdoor construction, offering exceptional performance with a variety of electrode types and sizes.
Highlights
- Outstanding AWS E6010 and E7018 performance with electrodes up to 7/32 in. (5.5 mm) in diameter
- Touch Start TIG® for easy arc initiation without high-frequency
- Capable of air carbon arc cutting and gouging with up to 3/16 in. (4.8 mm) diameter carbon electrodes
- Selectable Hot Start feature for enhanced output to prevent electrode sticking
Industries
- Construction
- Fabrication
- Metalworking
What’s Included
- Invertec V276 Power Source
- 10 ft. Input Power Cable
Benefits of the Invertec® V276 (Tweco)
- Rugged Design: Built to endure tough outdoor conditions while maintaining high performance.
- Versatile Welding Capabilities: Suitable for both stick and TIG welding applications.
- User-Friendly Features: Simplified operation with Touch Start TIG and Hot Start options.
- Compact Size: Lightweight and portable, enhancing job site maneuverability and efficiency.
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
Dimensions (H x W x D) | 13.6 in x 9 in x 20.25 in (345 mm x 229 mm x 514 mm) |
Net Weight | 54 lbs (24.49 kg) |
Machines
Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) |
Amphenol Pins (type of connector) | 6 |
Work Lead Connector Type | Tweco |
Basic Specification

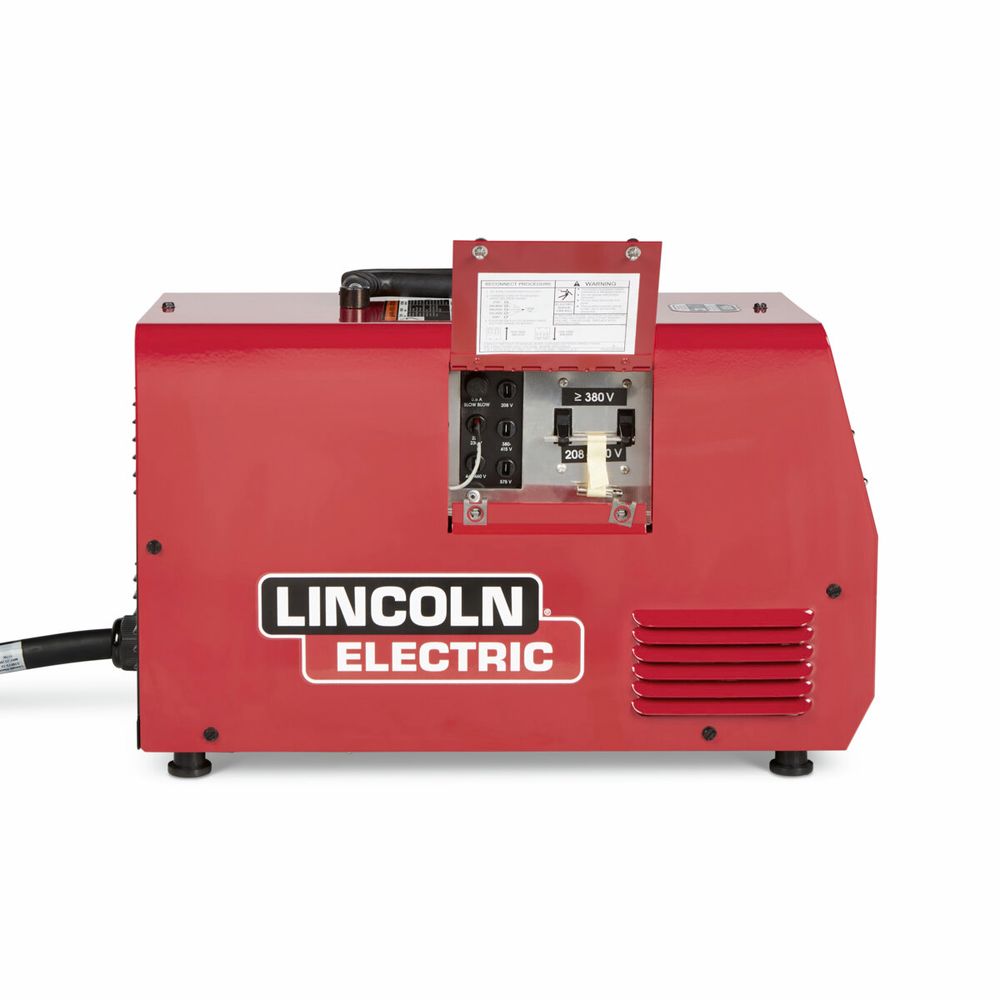

Input Voltage | 208/230/380/415/460/575 VAC |
Input Hertz | 50/60 Hz |
Input Phase | Single or Three Phase |
Output Range | 20-275 A |
Rated Output | 275A/31V/35% 250A/30V/60% 200A/28V/100% |
Application
Typical Application | Construction Construction & Field Erection Maintenance & Repair Repair Welding Structural Fabrication Structural Welding |
Warranty
Warranty | 3 Years Standard |
SHIPPING DIMENSIONS |
|
Height: | 17.00 Inches |
Width: | 28.00 Inches |
Length: | 16.00 Inches |
Weight: | 64 Lb(s) 0 Oz |
