Lincoln Electric Vantage® 549X (Deutz®) Engine-Driven Welder #K3534-2

Lincoln Electric heavy-duty diesel welder/generator

11000W single-phase engine-driven welder for sale

19000W 240V 3-phase engine-driven welder generator for sale

Lincoln Electric Vantage® 549X (Deutz®) Engine-Driven Welder #K3534-2

Name: Vantage® 549X Welder/Generator w/ Deutz® Diesel Engine (19,000W) #K3534-2
Brand: Lincoln Electric
SKU: LINK3534-2

Part Number: K3534-2

UPC: 015082866048

$32,927.00 + Free Shipping

Qualifies for IRS 179 Sale

Call 844-682-0205 or CHAT for more options

Features
Specs
Documents
Accessories
Consumables
FAQS

Diesel Engine
120/240V Output
1-Phase or 3-Phase Output
11000W 120/240V 1PH,
19000W 240V 3PH
Lincoln Electric 3-Year Warranty

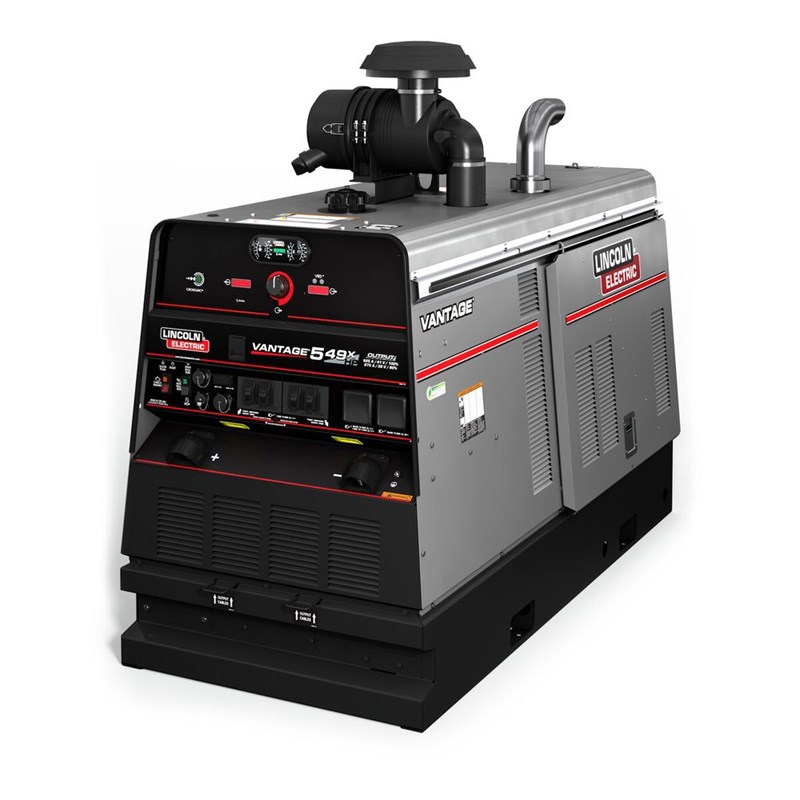

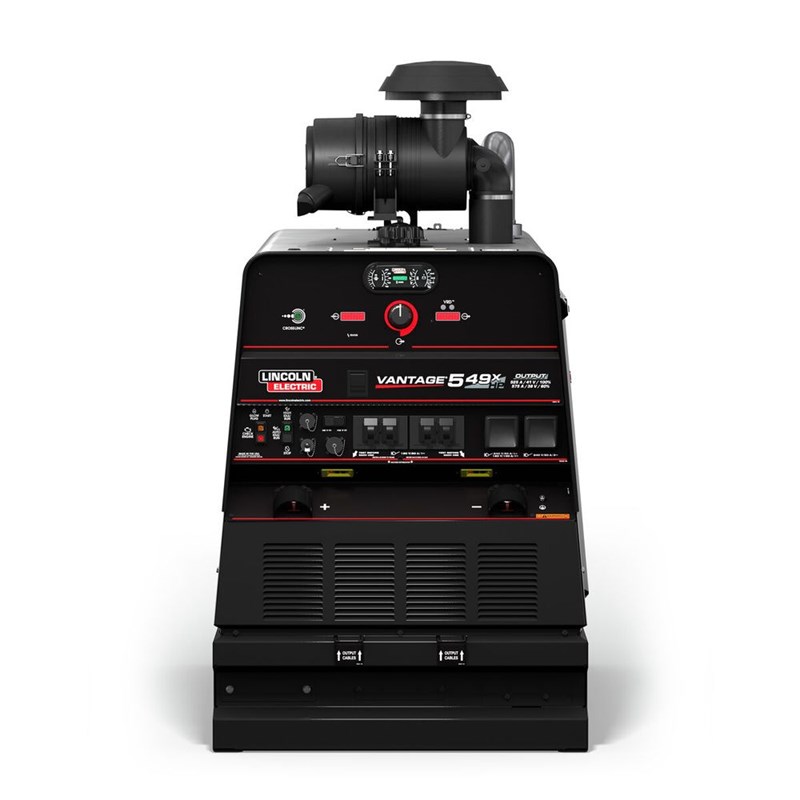

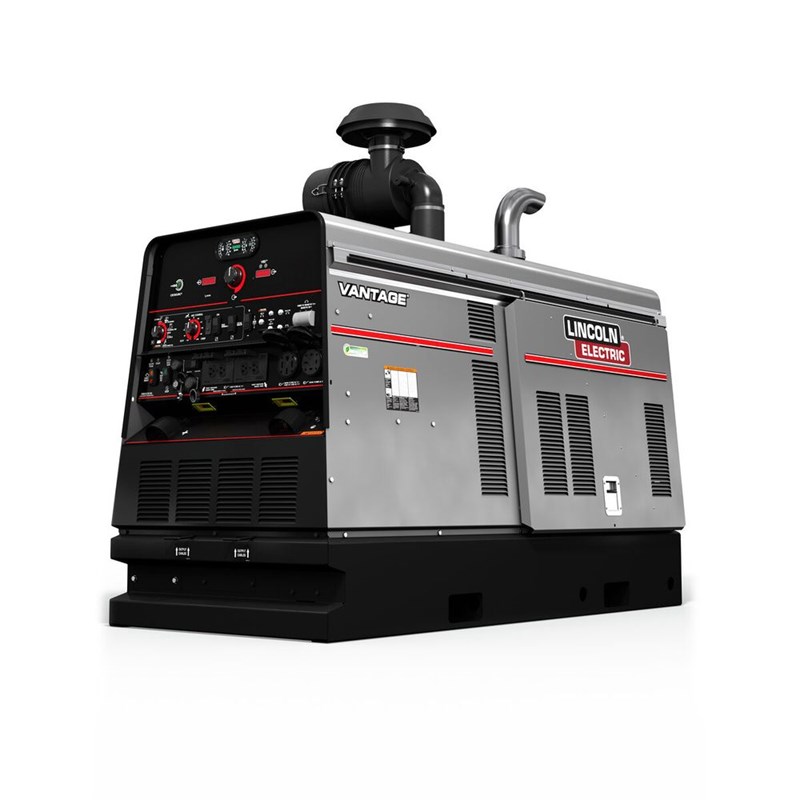

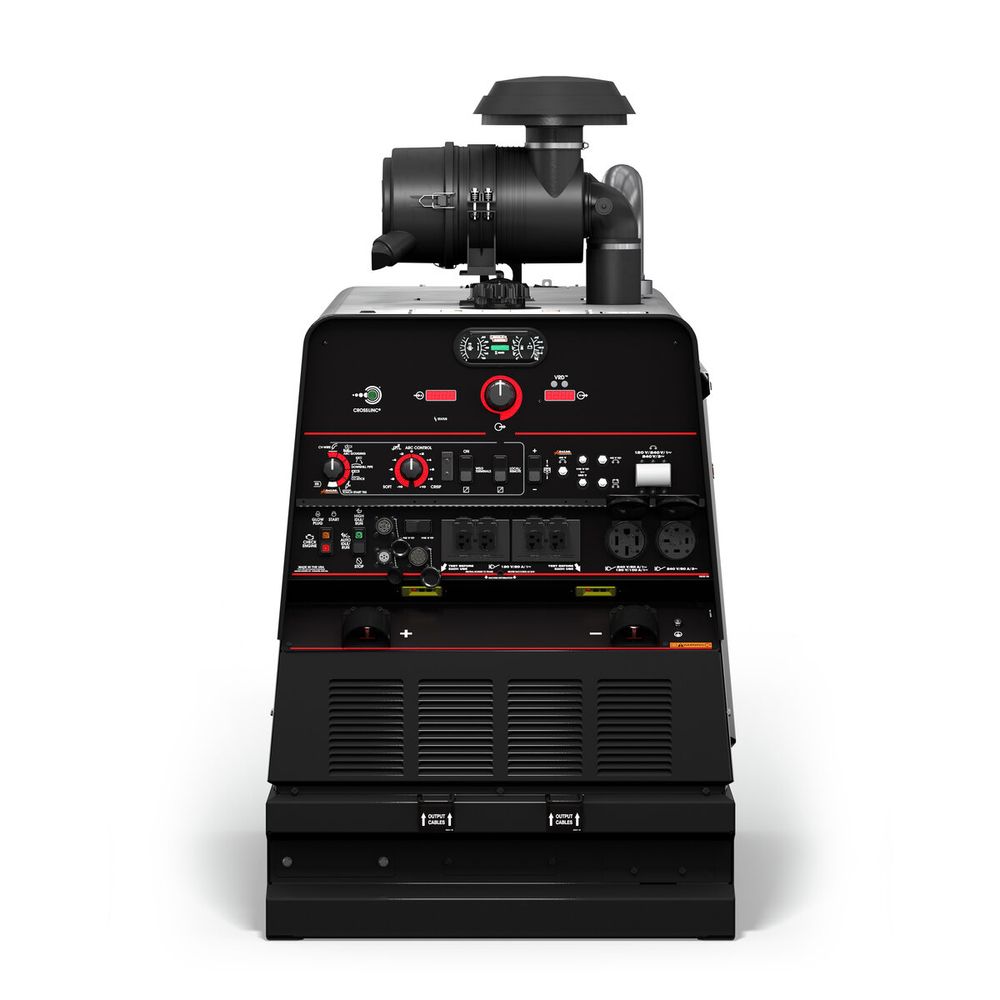

Lincoln Electric Vantage® 549X Diesel Engine-Driven Welder/Generator with Deutz® Engine #K3534-2

The Lincoln Electric Vantage® 549X is a powerhouse welder/generator delivering exceptional performance for various welding applications.

With its robust 49.4 hp Deutz® TD2.9L4 diesel engine, this machine can produce up to 575 amps of DC multi-process welding output. It also provides 120/240 VAC single-phase and 240 VAC three-phase auxiliary power, making it a versatile solution for job sites requiring both welding and power generation capabilities.

Highlights

575A DC multi-process welding output
49.4 hp Deutz® TD2.9L4 diesel engine
Patented Chopper Technology®
CrossLinc® Technology
120/240 VAC single-phase and 240 VAC three-phase auxiliary power

Industries

Construction
Pipeline
Shipbuilding
Mining
Maintenance and Repair

What’s Included

Lincoln Electric Vantage® 549X welder/generator
Deutz® TD2.9L4 diesel engine
Operator’s manual
Limited warranty documentation

Benefits of the Lincoln Electric Vantage® 549X

Excellent all-around performance for various welding processes
Fuel-efficient Deutz® diesel engine for extended runtime
Chopper Technology® for superior arc performance
CrossLinc® Technology for remote control without extra cables
Rugged design for harsh outdoor environments
Easy-to-use interface with digital meters
Large fuel tank for extended operation

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all welder/generators or explore Lincoln Electric welding supplies at the best prices online.

Product Weights & Dimensions

Dimensions (H x W x D)	42 in x 32.9 in x 69 in (1067 mm x 836 mm x 1753 mm)
Net Weight	1662 lbs (753 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW)
IEC Rating	525A / 41V / 100% @ 104°F (40°C)
Max Rating	575A / 38V / 60% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 30 – 575 A Downhill Pipe (CC): 40 –350 A Touch Start TIG: 20 – 350 A CV-Wire: 10 – 45 V Arc Gouging: 60 – 575 A
Open Circuit Voltage	70 Peak OCV @ 1800 RPM
Rated Gouging Carbon Diameter	3/8" (9.5 mm)
Machines Communication Technology	CrossLinc ArcLink

Engine Driven Welders

Single Phase Auxiliary Output	11,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output	19,000 Watts Continuous, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R
Engine Brand & Model	Deutz® TD2.9L4
Engine Description	4 Cylinder Turbocharged Water Cooled Diesel Engine
Engine Horsepower	49.4 hp (37.0 kW)
Engine Block Size & Displacement	178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1525
Fuel Tank Size (US gal.)	25 US gal.
Fuel Tank Size (L)	94.6 L
Oil Capacity (qts.)	9.0 qts.
Oil Capacity (L)	8.5 L
Coolant Capacity (US gal.)	4.1 US gal.
Coolant Capacity (L)	15.6 L

Application

Typical Application

Construction
Mining
Railroad Maintenance
Construction & Field Erection
Maintenance & Repair
Offshore
Oil & Gas
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding
