Ships Free (Contiguous U.S.) 5 Distribution Centers, 289 Reviews

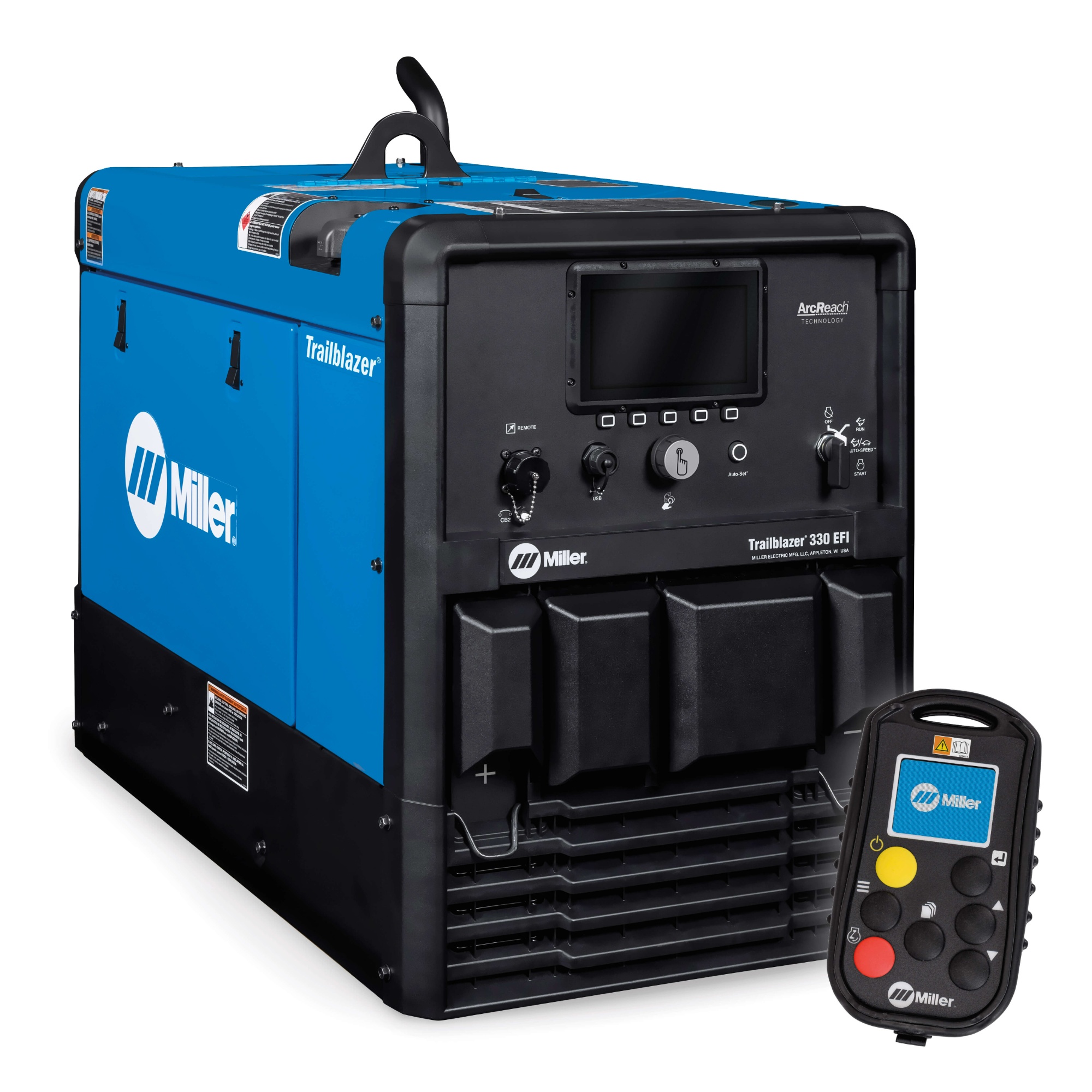

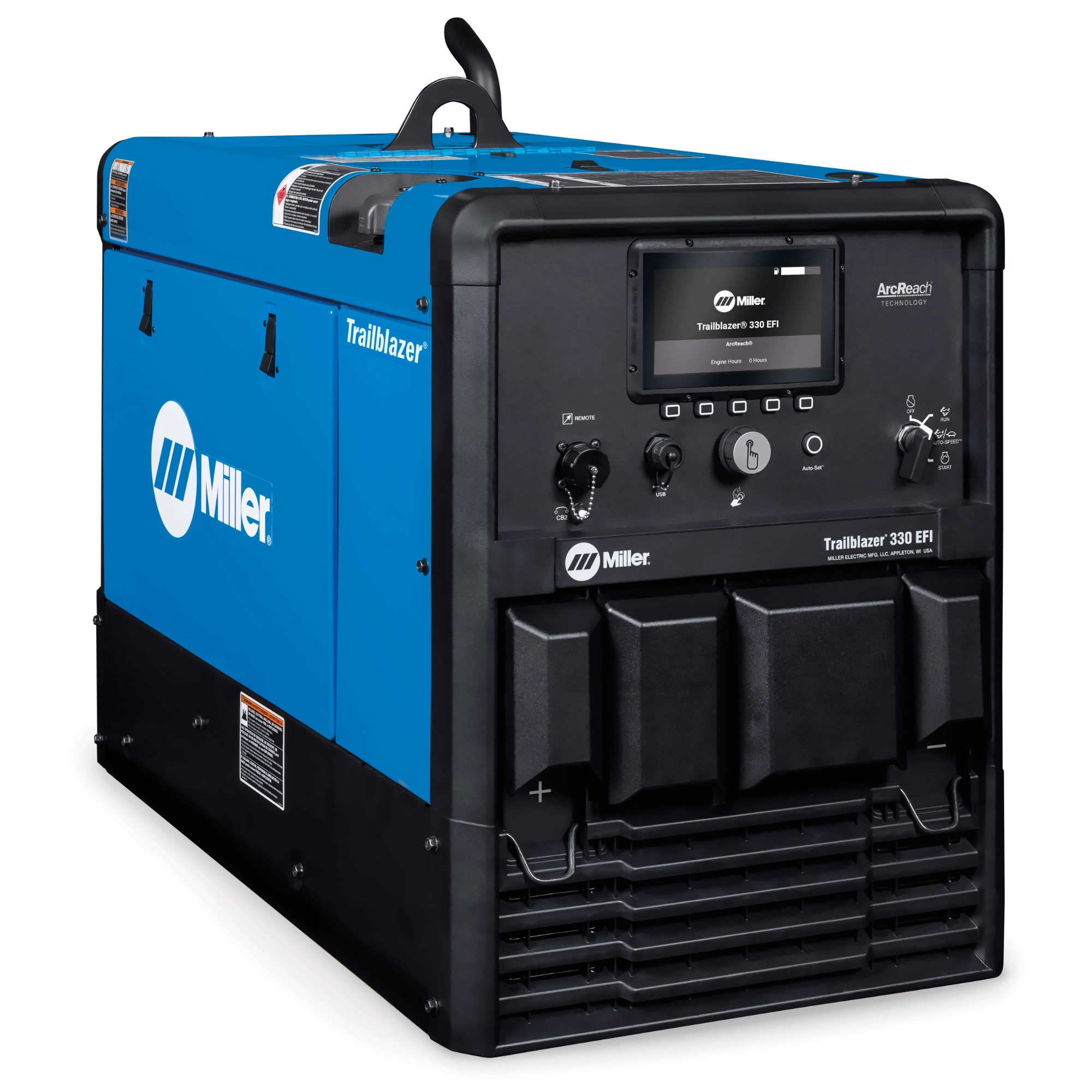

Trailblazer 330 EFI Engine-Driven Welder w/ Excel, Wireless Interface Control Remote #907832002

Part Number: 907832002
UPC: 715959707329
2 Reviews
Rebate Forms:
$1000 MFR Rebate - Miller Build with Blue
$11,115.00 + Free Shipping $11,115.00*
SAVE $0.00

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Fuel Type:

Gasoline

Gasoline

  • $300 Miller Build with Blue Rebate$1000 MFR Rebate
  • Engine-driven welder/generatorGas Engine
  • Multiprocess welding machineMutli-Process MIG/TIG/Stick
  • Lightweight, portable welding machine80+ lbs Lighter
  • Engine-driven welder maintenanceEasy Maintenance
  • Full auxiliary power at any settingSeparate Weld & Auxiliary Power
  • Lincoln Electric 3-year warranty3-Year Warranty

Miller True Blue 3-year warrantyMiller Trailblazer 330 w/ Excel Power #907831001 - Power at Idle (A Miller Exclusive)

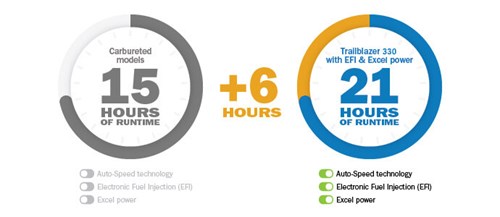

Miller Excel Power - Full Power at IdleUnlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20A) of 120V inverter-based, pure sine wave power at idle. With Excel power, you can operate jobsite tools like grinders and lights at a quieter, fuel-saving engine speed.

Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus, everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered.

Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

Try It For Yourself! Launch Miller's Trailblazer 330 Simulator


Applications:

  • Fabrication
  • Maintenance Repair
  • Structural Steel Work
  • Sheet Metal
  • Pipe

What's Included:

  • Trailblazer welder/generator #907831
  • Not included: Weld Leads
Miller Trailblazer 330 Wireless Interface Control Remote

Full control in the palm of your hand


Features of the Trailblazer 330 #907832002:

As with the previous model 211, the updated model has a Multi-Voltage Plug (MVP) that allows you to connect to either 120 or 230 V power receptacles without the use of any tools.

  • Intuitive digital interface with Auto-Set™ makes it quick and easy to precisely set weld parameters for any process.
  • Lighter and Smaller - The Trailblazer 330 weighs less than any other engine-driven welder in its class. It’s over 80 pounds lighter and 13% smaller than previous models, so it’s easier to move and takes up less space on trucks.
  • Advanced Auto-Speed™ technology automatically varies engine speed from 1,800–3,600 rpm to match weld demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
  • Predictive Maintenance
  • Direct Connect Spool Gun Connection
  • ArcReach® for parameter control at the wire feeder or pendant without needing a control cord.
  • Dynamic DIG™ to optimize arc control for stick welding applications.
  • Pulsed TIG with QuitePulse™ creates a slower, more fluid transition between background and peak amperage.
  • Excel™ Power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle.
  • Wireless Interface Control so you get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free.
Miller Trailblazer 330 Engine-Driven Welder - Key Features
Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Miller & other top brands.

This product replaces these legacy models:

How to Get Your Rebate

Miller Build with Blue rebate claim instructions

Miller Trailblazer 330 Specifications

Welding Mode CC/DC
CV/DC
Process Stick/TIG
MIG/FCAW
Battery charge/ crank assist (optional)
Amp/Volt Ranges 20 - 330 A
15-40 V
12/24 V
Rated Weld Output at 104° F (40° C) 330 A at 30 V, 100% duty cycle
325 A at 30.25 V, 100% duty cycle
Charge: 150 A, Crank assist: 300 A
Single-Phase Auxiliary Power Peak
12,000 watts
Continuous
10,500 watts
Excel™ power (optional)
2,400 watts, 20 A at 120 V,
60 Hz pure auxiliary power at
idle speed and while welding
Sound Levels at 23 ft (7 m) Weld
150 A load: 65 dB (90 Lwa)
330 A load: 73.5 dB (98.5 Lwa)
Auxiliary power
Excel power: 65 dB (90 Lwa)
12 kW standard power:
73.5 dB (98.5 Lwa)

SHIPPING DIMENSIONS

Height: 27.00 Inches
Width: 21.00 Inches
Length: 38.00 Inches
Weight: 444 Lb(s) 8 Oz

Manufacturer Reviews

The Blacksmith
What a great engine welder! This machine has all kinds of bells and whistles and most importantly lays consistent welds every time. I'm still learning on the new technology and playing with the fine tune settings. Very customizable between jobs and projects. I got the WIC jump start model. The remote makes this machine extremely efficient when you're 100-125ft away from the welder on the truck. This machine is clearly capable of anything you want to throw at it. Even arc gouging with a 1/8 rod (DCEN) at 225 ish amps is not a challenge for this welder. So far I'm extremely impressed with how advanced this welder operates. Looking forward to putting a lot of hours on this rig.
Chris
This is the best machine I've ever owned. I got the model with the battery charger option and the other day I had an old Kenworth that had 4 dead batteries on it and I hooked the charging cables up to it from the welding machine and had the truck started in about 15 minutes! The efi gets good fuel economy and I like the fact that it doesn't need to be at high idle just to run small power tools.
