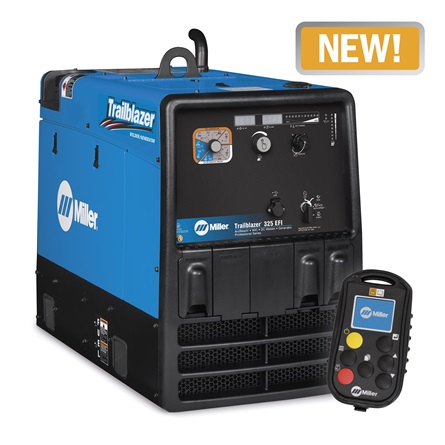

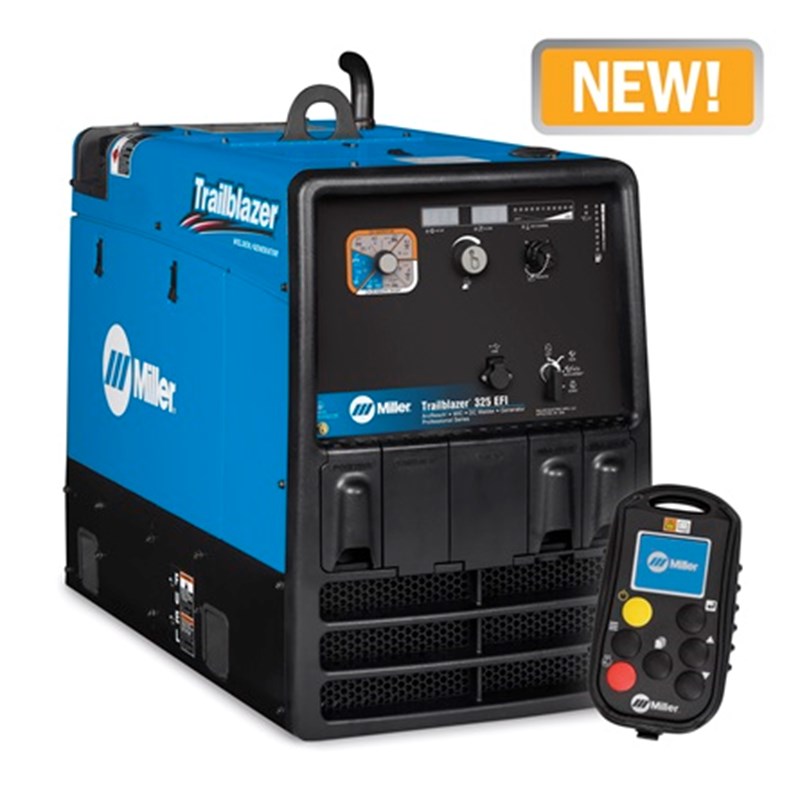

Miller Trailblazer® 325 (Kohler) EFI w/ Wireless Interface Control #907798001

Part Number: 907798001
1 Review
This Item Has Been Discontinued and has been replaced by Trailblazer 330 Air Pak, Excel, Battery Charger, Polarity Reversing, Remote #907836001 - Level up today!

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Fuel Type:

Gasoline

Gasoline

  • Kohler Gas Engine
  • MIG Welding
  • TIG Welding
  • Stick Welding
  • 3-Year Miller Warranty

Miller Trailblazer® 325 (Kohler) EFI w/ Wireless Interface Control #907798001

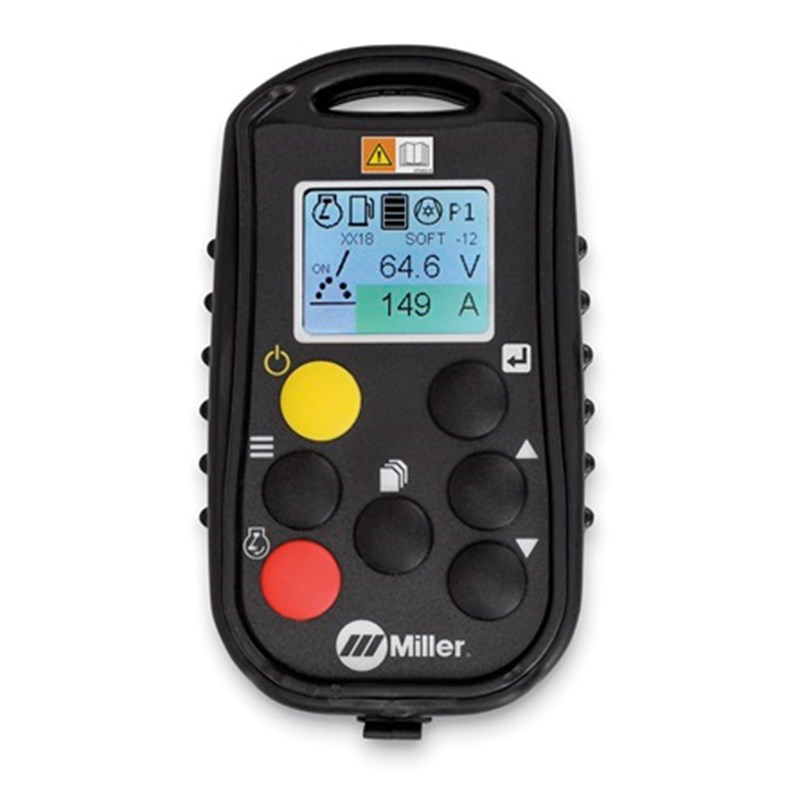

Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

Processes:

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Flux Cores (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)
  • TIC DC (GTAW-DC)
  • Plasma (PAC)

Trailblazer 325 Features:

  • Unmatched arc performance
  • Clean and powerful generator power
  • Minimized refueling trips
  • Auto-Speed Technology
  • ArchReach® Technology

PROCESSES

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Flux Cores (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)
  • TIC DC (GTAW-DC)
  • Plasma (PAC)
Title

Trailblazer® 325 (Kohler) EFI w/Wireless Interface Control

Industries Interests Fabrication
Maintenance
Repair
Structural steelwork
Sheet metal
Pipe
Engine Brand Kohler
Engine Idle Speed 2400 RPM
Engine Weld Speed 2400 RPM
2800 RPM
3200 RPM
3600 RPM
Fuel Tank Size 12 Gallon
Fuel Type Gasoline
Horsepower 23 hp
Rated Output 325 A at 28 V, 100% duty cycle
Single Phase Generator Continuous Power 10500 W
Single Phase Generator Peak Power 12000 W
Sound Rating 150 A load: 65 dB, 325 A load: 73.5 dB
Rated Carbon Diameter 3/16 in (4.8 mm)
Current Type DC
Portability Lift Eye (Standard)
Net Width 20 in
Net Height 28 in
Net Length 40.5 in
Net Weight 491 lbs
Warranty

3 Years
Miller's True Blue Warranty
Engine Warranties

Weld Output CC / CV

SHIPPING DIMENSIONS

Height: 20.00 Inches
Width: 28.00 Inches
Length: 41.00 Inches
Weight: 515 Lb(s) 0 Oz

Manufacturer Reviews

Brett
I've always been skeptical of a gas powered welder compared to diesel. This little guy is light and powerful. It will do everything I need it to do. Very pleased with the purchase and can't wait to get 8,000hrs on it!
